YM40G-PBS (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 3YU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

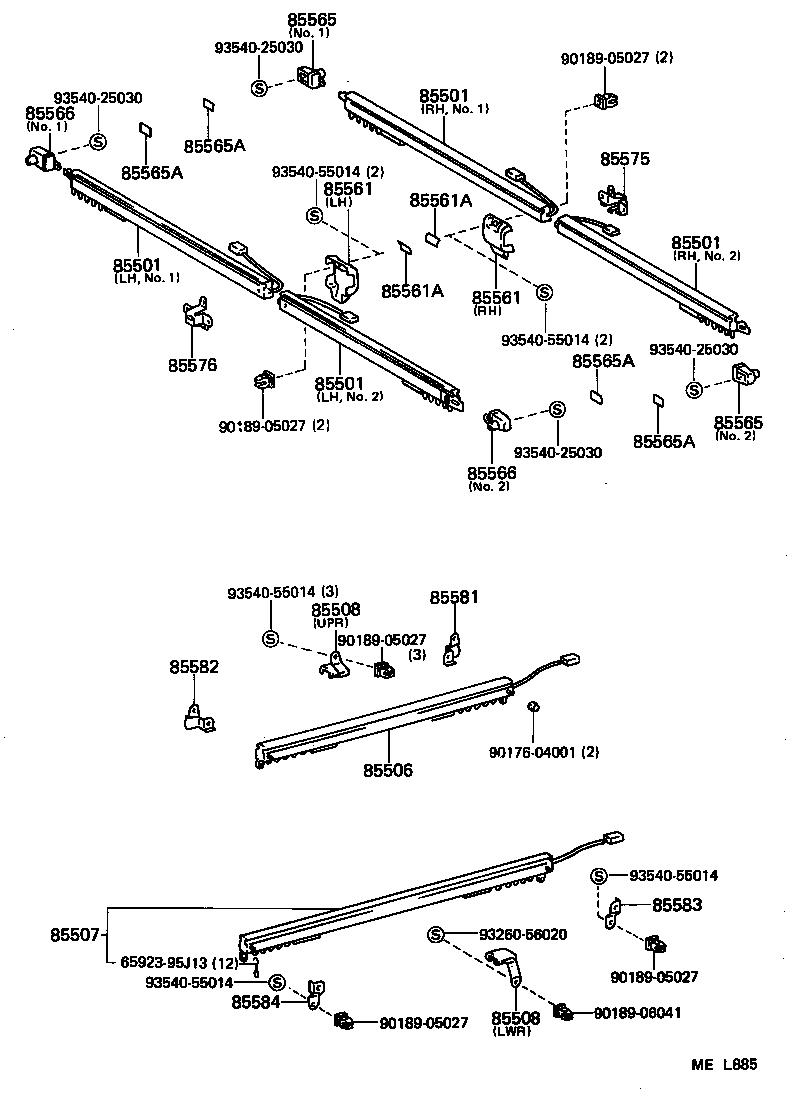

Click highlighted areas on diagram

diagram 6592395J13 85501 85501 85501 85501 85506 85507 85508 85508 85561 85561 85561A 85561A 85565 85565 85565A 85565A 85565A 85565A 85566 85566 85575 85576 85581 85582 85583 85584 9017604001 9018905027 9018905027 9018905027 9018905027 9018905027 9018906041 9326056020 9354025030 9354025030 9354025030 9354025030 9354055014 9354055014 9354055014 9354055014 9354055014
Part # Description Qty Price
Common parts
65923-95J13
90176-04001
90189-05027
90189-06041
93260-56020
93540-25030
93540-55014
