YM40G-MXS (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 3YU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8510- )CM4#,YM40

Click highlighted areas on diagram

diagram 36264 36275 36275 36275A 36275A 36275B 36275B 36311 36311C 36311G 36312 36312E 36313F 36314 36361 36362A 36362B 36367 36367A 9411040800 9451200800 9461211400 9461211800 9616000800
Part # Description Qty Price
36264 - PIN OR ROLLER, SHIFT INTER-LOCK
90250-10013

CM4#,YM40

長さ=17.08,外径=9.53

 1
36275 - PLUG, SHIFT DETENT BALL SPRING
90341-12014

CM4#,YM40

 2
36275 - PLUG, SHIFT DETENT BALL SPRING
90341-12014

CM4#,YM40

 2
36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL)
90501-16094

CM4#,YM40

長さ=38.4,HIGH & LOW SHIFT SIDE

 1
90501-12106

CM4#,YM40

長さ=52.3,FR DRIVE SHIFT SIDE

 1
36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL)
90501-16094

CM4#,YM40

長さ=38.4,HIGH & LOW SHIFT SIDE

 1
90501-12106

CM4#,YM40

長さ=52.3,FR DRIVE SHIFT SIDE

 1
36275B - BALL, SHIFT DETENT
90360-10003

CM4#,YM40

外径=9.52,ｽﾁｰﾙ

 1
36275B - BALL, SHIFT DETENT
90360-10003

CM4#,YM40

外径=9.52,ｽﾁｰﾙ

 1
36311 - FORK, TRANSFER GEAR SHIFT, NO.1
36301-28010

CM4#,YM40

 1
36311C - SPRING, COMPRESION (FOR SHIFT FORK)
90501-18065

CM4#,YM40

 1
90501-18071

CM4#,YM40

 1
36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
90520-13001

CM4#,YM40

 1
36312 - FORK, TRANSFER GEAR SHIFT, NO.2
36312-28010

CM4#,YM40

 1
36312E - PIN, SLOTTED SPRING (FOR TRANSFER GEAR SHIFT FORK)
90254-05001

CM4#,YM40

 1
36313F - SHAFT, TRANSFER FRONT DRIVE SHIFT FORK
36313-28010

CM4#,YM40

 1
36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK
36314-28010

CM4#,YM40

 1
36314-28020

CM4#,YM40

 1
36361 - LEVER, TRANSFER SHIFT, INNER
36361-28010

CM4#,YM40

 1
36362A - LEVER, TRANSFER SHIFT, OUTER
36362-28010

CM4#,YM40

 1
36362-28011

CM4#,YM40

 1
36362B - PIN, LEVER LOCK (FOR TRANSFER SHIFT LEVER OUTER)
33281-16020

CM4#,YM40

 1
36367 - SHAFT, TRANSFER SHIFT INNER LEVER
36367-28010

CM4#,YM40

 1
36367A - SEAL, OIL (FOR TRANSFER SHIFT INNER LEVER SHAFT)
90311-18006

CM4#,YM40

 1
Common parts
94110-40800
94512-00800
94612-11400
94612-11800
96160-00800

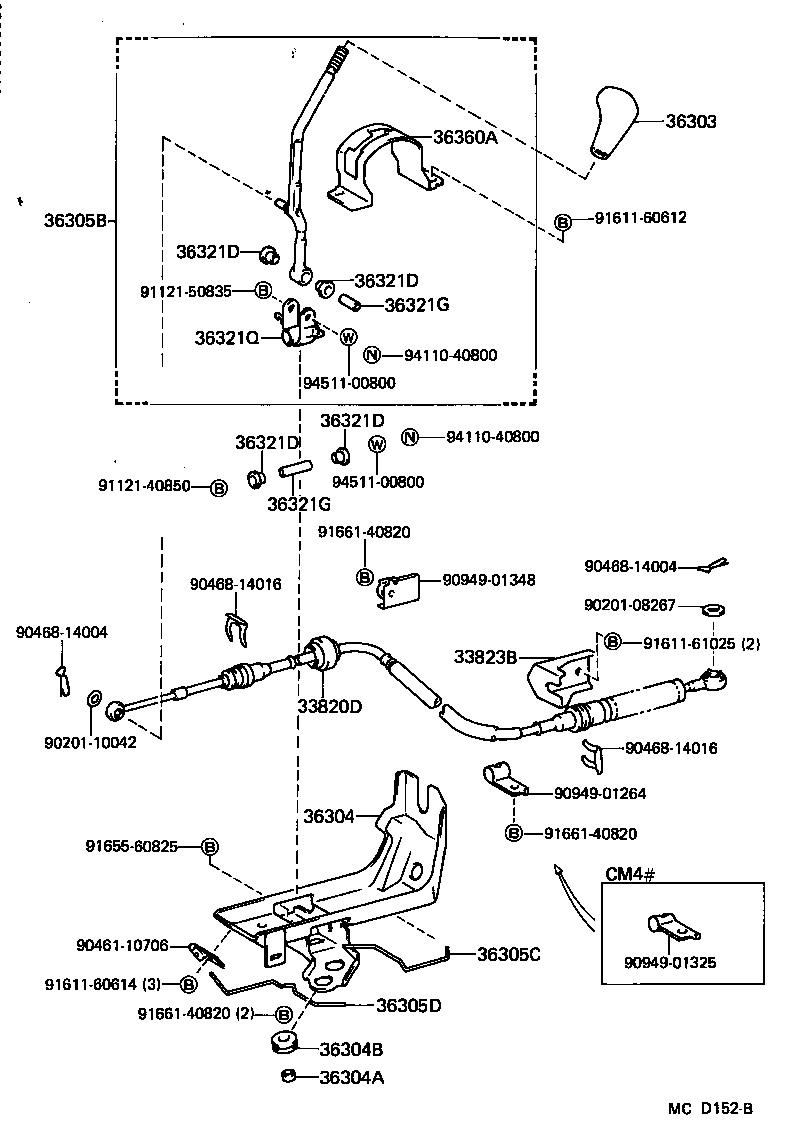

ILLUST NO. 1 OF 2(8510- )CM4#,YM40

Click highlighted areas on diagram

diagram 33820D 33823B 36303 36304 36304A 36304B 36305B 36305C 36305D 36321D 36321D 36321D 36321D 36321G 36321G 36321Q 36360A 9020108267 9020110042 9046110706 9046814004 9046814004 9046814016 9046814016 9094901264 9094901325 9094901348 9112140850 9112150835 9161160612 9161160614 9161161025 9165560825 9166140820 9166140820 9166140820 9411040800 9411040800 9451100800 9451100800
Part # Description Qty Price
33820D - CABLE ASSY, TRANSFER CONTROL
33820-27041

CM4#,YM40..5F

 1
33823B - BRACKET, TRANSFER CONTROL CABLE
33823-28100

CM4#,YM40

 1
36303 - KNOB SUB-ASSY, SHIFT LEVER
36303-2801016

CM4#,YM40..DLX,GXL,SW,XL7

BROWN,BROWN,TRIM4#

 1
36303-2801004

CM4#,YM40..DLX,FXV,GXL,SW

BLUE,BLUE,TRIM4#,8#

 1
36304 - RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER
33506-27030

CM4#,YM40

 1
36304A - COLLER (FOR TRANSFER CONTROL SHIFT LEVER RETAINER)
90387-09011

CM4#,YM40

 2
36304B - GROMMET (FOR TRANSFER CONTROL SHIFT LEVER RETAINER)
90480-13012

CM4#,YM40

 2
36305B - LEVER SUB-ASSY, TRANSFER SHIFT
33503-27160

CM4#,YM40

 1
36305C - SPRING, NO.1 (FOR TRANSFER SHIFT LEVER)
33769-27010

CM4#,YM40

 1
36305D - SPRING, NO.2 (FOR TRANSFER SHIFT LEVER)
33769-27020

CM4#,YM40

 1
36321D - BUSH (FOR TRANSFER SHIFT LEVER)
90385-11006

CM4#,YM40

 4
36321D - BUSH (FOR TRANSFER SHIFT LEVER)
90385-11006

CM4#,YM40

 4
36321D - BUSH (FOR TRANSFER SHIFT LEVER)
90385-11006

CM4#,YM40

 4
36321D - BUSH (FOR TRANSFER SHIFT LEVER)
90385-11006

CM4#,YM40

 4
36321G - COLLER (FOR TRANSFER SHIFT LEVER)
90387-08069

CM4#,YM40

L=22

 1
90387-08067

CM4#,YM40

L=34

 1
36321G - COLLER (FOR TRANSFER SHIFT LEVER)
90387-08069

CM4#,YM40

L=22

 1
90387-08067

CM4#,YM40

L=34

 1
36321Q - LEVER, TRANSFER SHIFT
33503-27130

CM4#,YM40

 1
36360A - PLATE, DETENT (FOR TRANSFER SHIFT LEVER)
33633-27020

CM4#,YM40

 1
Common parts
90201-08267
90201-10042
90461-10706
90468-14004
90468-14016
90949-01264
90949-01325
90949-01348
91121-40850
91121-50835
91611-60612
91611-60614
91611-61025
91655-60825
91661-40820
94110-40800
94511-00800
