YM40G-MQS (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 3YU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

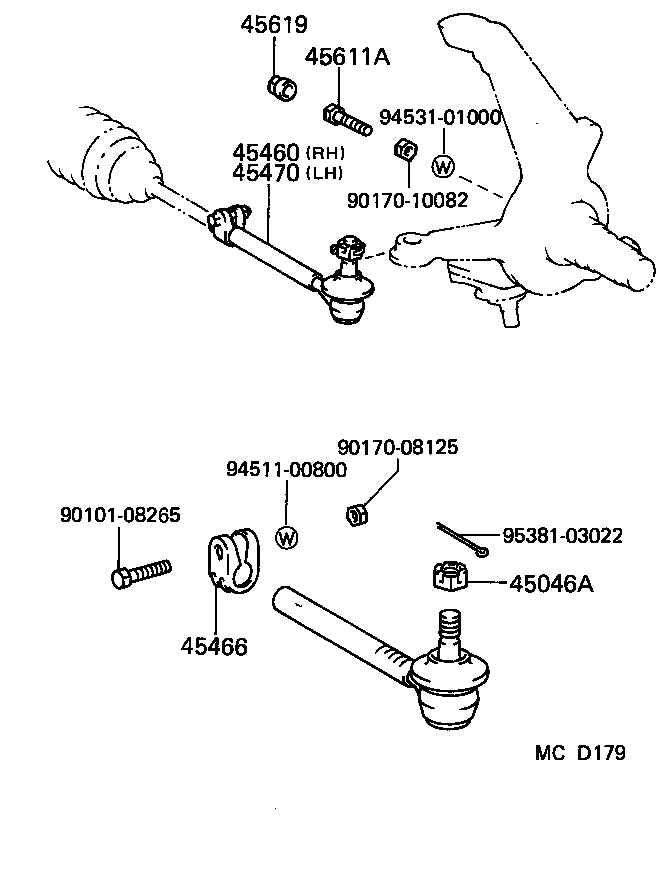

ILLUST NO. 3 OF 3(8510- )CM4#,YM40

Click highlighted areas on diagram

diagram 45046A 45460 45466 45470 45611A 45619 9010108265 9017008125 9017010082 9451100800 9453101000 9538103022
Part # Description Qty Price
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

CM4#,YM40

 2
45460 - ROD ASSY, TIE, RH
45460-29295

CM4#,YM40

 1
45466 - CLAMP, TIE ROD END
45466-22010

CM3#,4#,KM3#,YM30,40

 2
45470 - ROD ASSY, TIE, LH
45460-29295

CM4#,YM40

 1
45611A - BOLT, KNUCKLE STOPPER
90106-10032

CM3#,4#,KM3#,YM30,40

 2
45619 - COVER, KNUCKLE STOPPER
45619-14020

CM3#,4#,KM3#,YM30,40

 2
Common parts
90101-08265
90170-08125
90170-10082
94511-00800
94531-01000
95381-03022
