YM40G-MQS (1988)
Toyota Liteace Van,Wagon
ILLUST NO. 1 OF 3(8808- )CM3#,4#,KM3#,YM3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95713 |
YM40 FLOOR |
1 | ||
| 88460-95713 |
YM40 FLOOR |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95713 |
YM40 FLOOR |
1 | ||
| 88460-95713 |
YM40 FLOOR |
1 | ||
| 88460F - BRACKET, COOLER CONDENSER, NO.4 | ||||
| 88688-95771 |
YM40..FXV;CM40..5F..FXV ﾘﾔ |
1 | ||
| 88688-95776 |
YM40..FXV;CM40..5F..FXV ﾌﾛﾝﾄ |
1 | ||
| 88688-95771 |
YM40..FXV;CM40..5F..FXV ﾘﾔ |
1 | ||
| 88688-95776 |
YM40..FXV;CM40..5F..FXV ﾌﾛﾝﾄ |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-16010 |
CM40,YM40..FXV |
1 | ||
| 88471-16010 |
YM40..FXV;CM40..5F..FXV;CM30..4FC..FXV |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95706 |
YM40..FXV;CM40..5F..FXV |
1 | ||
| 88472-95706 |
YM40..FXV;CM40..5F..FXV |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
CM40,YM40..FXV 400G |
4 | ||
| 90986-02001 |
CM40,YM40 400G |
3 | ||
| 90986-02001 |
YM40 400G |
3 | ||
| 90986-02001 |
YM40 400G |
3 | ||
| 90986-02001 |
YM40 400G |
4 | ||
| 90986-02001 |
YM40..FXV,LD,SW 400G |
4 | ||
| 90986-02004 |
YM30;YM40..FXV 250G |
4 | ||
| 90986-02004 |
CM30,40 250G |
2 | ||
| 90986-02004 |
CM30,40..FXV 250G |
4 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-28040 |
YM40..FXV;CM40..5F..FXV |
1 | ||
| 88723-50030 |
CM40..W4D;YM40..FXV ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88723-28040 |
YM40..FXV;CM40..5F..FXV ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88723-28040 |
YM40..FXV ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88723-50030 |
YM40;CM40..5F ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| Common parts | ||||
| 88461-95702 | ||||
| 88467-95701 | ||||
| 88467-95703 | ||||
| 88718-12790 | ||||
| 88718-14450 | ||||
| 88894-22180 | ||||
| 88897-28010 | ||||
| 90179-06032 | ||||
| 90179-06115 | ||||
| 90179-08123 | ||||
| 90464-00165 | ||||
| 93385-16012 | ||||
| 93385-16014 | ||||
| 93385-16016 | ||||
| 93385-16020 | ||||
| 93385-18020 | ||||
| 93385-58040 | ||||

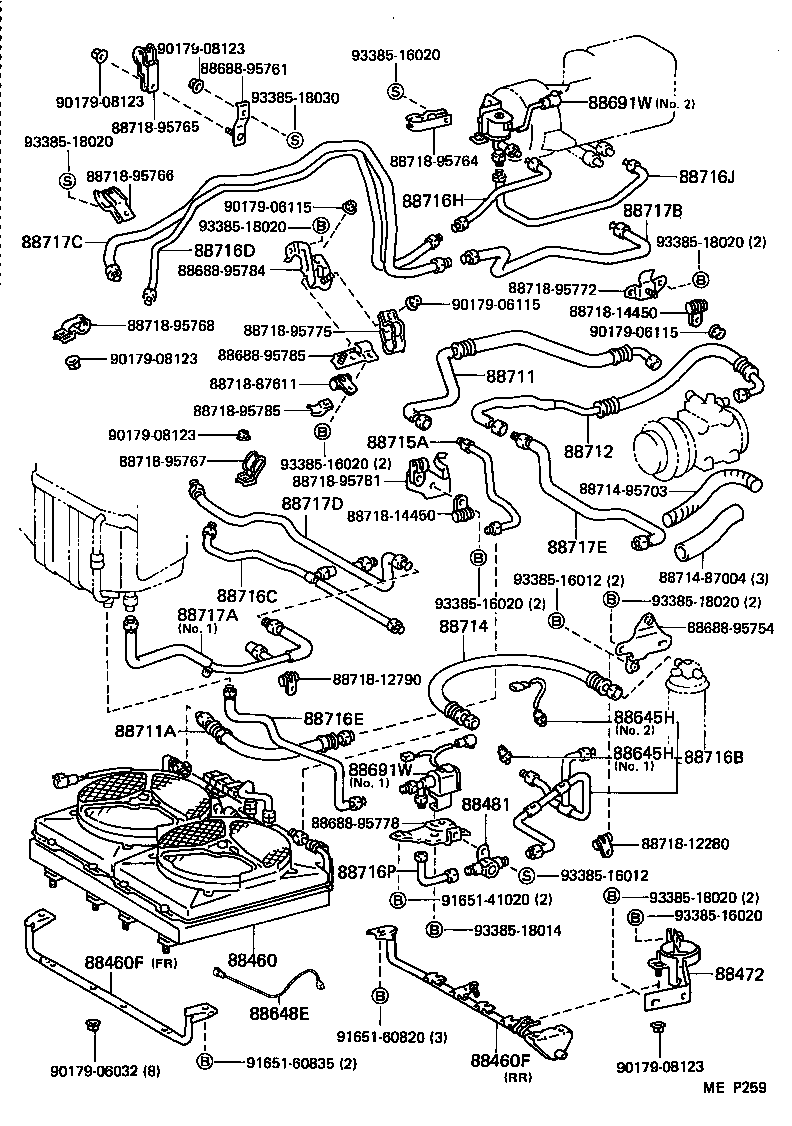

ILLUST NO. 2 OF 3(8808- )YM40
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95713 |
YM40 FLOOR |
1 | ||
| 88460-95713 |
YM40 FLOOR |
1 | ||
| 88460F - BRACKET, COOLER CONDENSER, NO.4 | ||||
| 88688-95771 |
YM40..FXV;CM40..5F..FXV ﾘﾔ |
1 | ||
| 88688-95776 |
YM40..FXV;CM40..5F..FXV ﾌﾛﾝﾄ |
1 | ||
| 88688-95771 |
YM40..FXV;CM40..5F..FXV ﾘﾔ |
1 | ||
| 88688-95776 |
YM40..FXV;CM40..5F..FXV ﾌﾛﾝﾄ |
1 | ||
| 88460F - BRACKET, COOLER CONDENSER, NO.4 | ||||
| 88688-95771 |
YM40..FXV;CM40..5F..FXV ﾘﾔ |
1 | ||
| 88688-95776 |
YM40..FXV;CM40..5F..FXV ﾌﾛﾝﾄ |
1 | ||
| 88688-95771 |
YM40..FXV;CM40..5F..FXV ﾘﾔ |
1 | ||
| 88688-95776 |
YM40..FXV;CM40..5F..FXV ﾌﾛﾝﾄ |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95706 |
YM40..FXV;CM40..5F..FXV |
1 | ||
| 88472-95706 |
YM40..FXV;CM40..5F..FXV |
1 | ||
| 88481 - GLASS, SIGHT | ||||
| 88481-87002 |
KM30,YM40;CM30,40..W5D |
1 | ||
| 88481-87002 |
CM31,36,4#,KM31,35,36,YM40 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10020 |
YM40 NO.1 |
1 | ||
| 88645-95702 |
CM30,40..FXV,GXL,LD,SW NO.1 |
1 | ||
| 88645-95702 |
CM40,YM40..FXV NO.2 |
1 | ||
| 88645-95702 |
YM40..FXV NO.2 |
1 | ||
| 88645-10020 |
KM30,YM40..W4D..(FXV,LD,SCA,SW) NO.1 |
1 | ||
| 88645-95702 |
YM40..FXV NO.2 |
1 | ||
| 88645-95702 |
CM30,40..FXV NO.2 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10020 |
YM40 NO.1 |
1 | ||
| 88645-95702 |
CM30,40..FXV,GXL,LD,SW NO.1 |
1 | ||
| 88645-95702 |
CM40,YM40..FXV NO.2 |
1 | ||
| 88645-95702 |
YM40..FXV NO.2 |
1 | ||
| 88645-10020 |
KM30,YM40..W4D..(FXV,LD,SCA,SW) NO.1 |
1 | ||
| 88645-95702 |
YM40..FXV NO.2 |
1 | ||
| 88645-95702 |
CM30,40..FXV NO.2 |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-95721 |
CM40..5F;CM30,KM30,YM40 |
1 | ||
| 88648-95721 |
CM40,YM40 |
1 | ||
| 88691W - VALVE, MAGNET | ||||
| 88690-95770 |
CM40,YM40..FXV NO.1 |
1 | ||
| 88690-95739 |
CM30,40,KM30,YM30,40..3FC,4FC,5F NO.3 |
1 | ||
| 88690-95768 |
YM30..FXV;CM40,YM40..W4D ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ,NO.2 |
1 | ||
| 88690-95767 |
CM30,40,YM30,40..FXV ﾒ-ｶ ｵﾌﾟｼﾖﾝ,NO.2 |
1 | ||
| 88690-95770 |
CM30,40 NO.1 |
1 | ||
| 88690-95770 |
CM40,YM40..FXV;CM30..4FC..FXV NO.1 |
1 | ||
| 88690-95768 |
CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL) ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ,NO.2 |
1 | ||
| 88691W - VALVE, MAGNET | ||||
| 88690-95770 |
CM40,YM40..FXV NO.1 |
1 | ||
| 88690-95739 |
CM30,40,KM30,YM30,40..3FC,4FC,5F NO.3 |
1 | ||
| 88690-95768 |
YM30..FXV;CM40,YM40..W4D ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ,NO.2 |
1 | ||
| 88690-95767 |
CM30,40,YM30,40..FXV ﾒ-ｶ ｵﾌﾟｼﾖﾝ,NO.2 |
1 | ||
| 88690-95770 |
CM30,40 NO.1 |
1 | ||
| 88690-95770 |
CM40,YM40..FXV;CM30..4FC..FXV NO.1 |
1 | ||
| 88690-95768 |
CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL) ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ,NO.2 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95722 |
YM40..FXV ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88711-95737 |
YM40 ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88711-95737 |
YM40..FXV,LD,SW ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2 | ||||
| 88711-95723 |
YM40..FXV;CM40..5F..FXV ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88711-95739 |
YM40;CM40..W4D..5F ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88711-95739 |
YM40..FXV,LD,SW;CM40..W4D..5F..(FXV,LD,SSW,SW) ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95721 |
YM40..FXV ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88712-95732 |
YM40 ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88712-95732 |
YM40..FXV,LD,SW ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-95712 |
YM40..FXV;CM40..5F..FXV |
1 | ||
| 88721-95712 |
YM40..FXV;CM40..5F..FXV |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-95705 |
YM40..FXV;CM40..5F..FXV |
1 | ||
| 88715-95705 |
YM40..FXV;CM40..5F..FXV |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88710-95705 |
CM40,YM40 ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88710-95703 |
YM40..FXV ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88716-95703 |
YM40 |
1 | ||
| 88710-95705 |
YM40;CM40..5F ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88710-95703 |
YM40..FXV ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-95740 |
YM40..FXV;CM40..5F..FXV |
1 | ||
| 88716-95772 |
CM40,YM40..W4D ｸ-ﾙ ﾎﾞﾂｸｽ ﾖｳ |
1 | ||
| 88716-95740 |
YM40..FXV;CM40..5F..FXV |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-95764 |
CM40,YM40..FXV |
1 | ||
| 88716-95764 |
CM40,YM40..FXV;CM30..4FC..FXV |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-95738 |
CM40,YM40..FXV |
1 | ||
| 88716-95758 |
CM40,YM40 ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88716-95738 |
YM40..FXV;CM40..5F..FXV;CM30..4FC..FXV |
1 | ||
| 88716-95758 |
CM40..5F;CM30,KM30,YM40 ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88716H - PIPE, COOLER REFRIGERANT LIQUID, H | ||||
| 88716-95769 |
CM40,YM40..FXV |
1 | ||
| 88716-95769 |
CM40,YM40..FXV;CM30..4FC..FXV |
1 | ||
| 88716J - PIPE, COOLER REFRIGERANT LIQUID, J | ||||
| 88716-95757 |
YM30..FXV;CM40,YM40..W4D ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-95741 |
CM30,40,YM30,40..FXV ﾒ-ｶ ｵﾌﾟｼﾖﾝ,ﾃﾞﾕｱﾙ ｴｱｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88716-95757 |
CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL) ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716P - PIPE, COOLER REFRIGERANT LIQUID, P | ||||
| 88716-95723 |
CM30,YM40..W4D..(FXV,LD,SSW,SW) |
1 | ||
| 88716-95723 |
CM40,YM40..W4D |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-95753 |
YM40 ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88717-95751 |
YM40..FXV NO.1,ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88717-95741 |
CM30,40,KM30,YM30,40..3FC,4FC,5F NO.2 |
1 | ||
| 88717-95753 |
YM40 ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88717-95751 |
YM40..FXV NO.1,ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-95726 |
CM40,YM40..FXV ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88717-95726 |
CM40,YM40..FXV;CM30..4FC..FXV ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-95737 |
CM40,YM40..FXV |
1 | ||
| 88717-95737 |
CM40,YM40..FXV;CM30..4FC..FXV |
1 | ||
| 88717D - PIPE, COOLER REFRIGERANT SUCTION, D | ||||
| 88717-95733 |
YM40..FXV ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88717-95755 |
YM40 ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88717-95733 |
YM40..FXV ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88717-95755 |
YM40 ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-95725 |
YM40..FXV |
1 | ||
| 88717-95725 |
YM40..FXV |
1 | ||
| Common parts | ||||
| 88688-95754 | ||||
| 88688-95761 | ||||
| 88688-95778 | ||||
| 88688-95784 | ||||
| 88688-95785 | ||||
| 88714-87004 | ||||
| 88714-95703 | ||||
| 88718-12280 | ||||
| 88718-12790 | ||||
| 88718-14450 | ||||
| 88718-87611 | ||||
| 88718-95764 | ||||
| 88718-95765 | ||||
| 88718-95766 | ||||
| 88718-95767 | ||||
| 88718-95768 | ||||
| 88718-95772 | ||||
| 88718-95775 | ||||
| 88718-95781 | ||||
| 88718-95785 | ||||
| 90179-06032 | ||||
| 90179-06115 | ||||
| 90179-08123 | ||||
| 91651-41020 | ||||
| 91651-60820 | ||||
| 91651-60835 | ||||
| 93385-16012 | ||||
| 93385-16020 | ||||
| 93385-18014 | ||||
| 93385-18020 | ||||
| 93385-18030 | ||||
ILLUST NO. 3 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88481 - GLASS, SIGHT | ||||
| 88481-87002 |
KM30,YM40;CM30,40..W5D |
1 | ||
| 88481-87002 |
CM31,36,4#,KM31,35,36,YM40 |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-95721 |
CM40..5F;CM30,KM30,YM40 |
1 | ||
| 88648-95721 |
CM40,YM40 |
1 | ||
| 88691W - VALVE, MAGNET | ||||
| 88690-95770 |
CM40,YM40..FXV NO.1 |
1 | ||
| 88690-95739 |
CM30,40,KM30,YM30,40..3FC,4FC,5F NO.3 |
1 | ||
| 88690-95768 |
YM30..FXV;CM40,YM40..W4D ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ,NO.2 |
1 | ||
| 88690-95767 |
CM30,40,YM30,40..FXV ﾒ-ｶ ｵﾌﾟｼﾖﾝ,NO.2 |
1 | ||
| 88690-95770 |
CM30,40 NO.1 |
1 | ||
| 88690-95770 |
CM40,YM40..FXV;CM30..4FC..FXV NO.1 |
1 | ||
| 88690-95768 |
CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL) ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ,NO.2 |
1 | ||
| 88691W - VALVE, MAGNET | ||||
| 88690-95770 |
CM40,YM40..FXV NO.1 |
1 | ||
| 88690-95739 |
CM30,40,KM30,YM30,40..3FC,4FC,5F NO.3 |
1 | ||
| 88690-95768 |
YM30..FXV;CM40,YM40..W4D ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ,NO.2 |
1 | ||
| 88690-95767 |
CM30,40,YM30,40..FXV ﾒ-ｶ ｵﾌﾟｼﾖﾝ,NO.2 |
1 | ||
| 88690-95770 |
CM30,40 NO.1 |
1 | ||
| 88690-95770 |
CM40,YM40..FXV;CM30..4FC..FXV NO.1 |
1 | ||
| 88690-95768 |
CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL) ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ,NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88710-95705 |
CM40,YM40 ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88710-95703 |
YM40..FXV ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88716-95703 |
YM40 |
1 | ||
| 88710-95705 |
YM40;CM40..5F ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88710-95703 |
YM40..FXV ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-95740 |
YM40..FXV;CM40..5F..FXV |
1 | ||
| 88716-95772 |
CM40,YM40..W4D ｸ-ﾙ ﾎﾞﾂｸｽ ﾖｳ |
1 | ||
| 88716-95740 |
YM40..FXV;CM40..5F..FXV |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-95738 |
CM40,YM40..FXV |
1 | ||
| 88716-95758 |
CM40,YM40 ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88716-95738 |
YM40..FXV;CM40..5F..FXV;CM30..4FC..FXV |
1 | ||
| 88716-95758 |
CM40..5F;CM30,KM30,YM40 ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88716P - PIPE, COOLER REFRIGERANT LIQUID, P | ||||
| 88716-95723 |
CM30,YM40..W4D..(FXV,LD,SSW,SW) |
1 | ||
| 88716-95723 |
CM40,YM40..W4D |
1 | ||
| 88716Q - PIPE, COOLER REFRIGERANT LIQUID, Q | ||||
| 88716-95731 |
YM40;CM40..W4D..5F NO.1 |
1 | ||
| 88716-95731 |
YM40;CM40..W4D..5F NO.1 |
1 | ||
| 88716-95750 |
CM30,40,KM30,YM30,40..3FC,4FC,5F NO.2 |
1 | ||
| 88716Q - PIPE, COOLER REFRIGERANT LIQUID, Q | ||||
| 88716-95731 |
YM40;CM40..W4D..5F NO.1 |
1 | ||
| 88716-95731 |
YM40;CM40..W4D..5F NO.1 |
1 | ||
| 88716-95750 |
CM30,40,KM30,YM30,40..3FC,4FC,5F NO.2 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-95753 |
YM40 ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88717-95751 |
YM40..FXV NO.1,ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88717-95741 |
CM30,40,KM30,YM30,40..3FC,4FC,5F NO.2 |
1 | ||
| 88717-95753 |
YM40 ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88717-95751 |
YM40..FXV NO.1,ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-95753 |
YM40 ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88717-95751 |
YM40..FXV NO.1,ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88717-95741 |
CM30,40,KM30,YM30,40..3FC,4FC,5F NO.2 |
1 | ||
| 88717-95753 |
YM40 ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88717-95751 |
YM40..FXV NO.1,ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| Common parts | ||||
| 88592-87002 | ||||
| 88688-95778 | ||||
| 88714-22030 | ||||
| 90099-32110 | ||||
| 90179-06115 | ||||
| 90480-26003 | ||||
| 91651-41020 | ||||
| 93385-16012 | ||||
| 93385-18014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
