YM40G-MNS (1988)
Toyota Liteace Van,Wagon

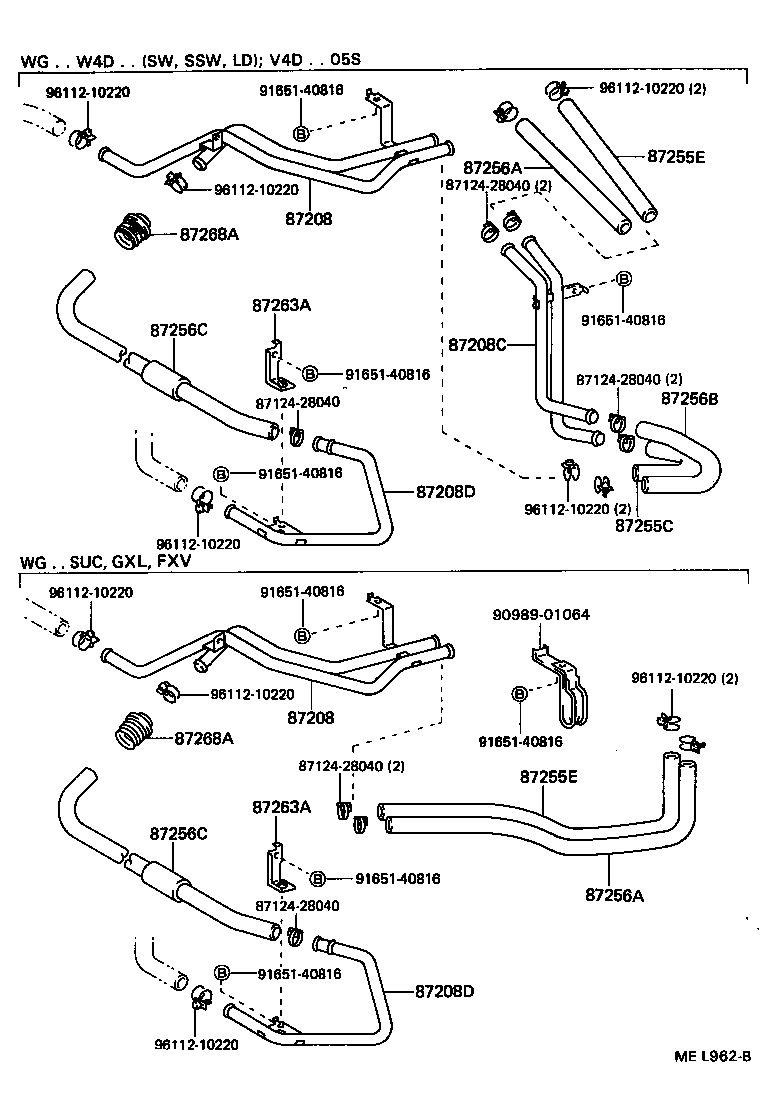

ILLUST NO. 2 OF 2(8808- )CM30,40,YM3#,40 ; (8808- )CM36,41..V4D..05S
REAR HEATER PIPING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-95732 |
CM36,41..V1..V4D..05S;CM30,40,YM3#,40..V4D,W4D |
1 | ||
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-95732 |
CM36,41..V1..V4D..05S;CM30,40,YM3#,40..V4D,W4D |
1 | ||
| 87208C - PIPE SUB-ASSY, HEATER WATER, C | ||||
| 87208-95730 |
CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM31,40..(V4D,W4D)..(DLX,LD,SSW,SUP,SW) |
1 | ||
| 87208D - PIPE SUB-ASSY, HEATER WATER, D | ||||
| 87208-95735 |
YM3#,40..V4D,W4D |
1 | ||
| 87208-95734 |
CM30,40..W4D;CM36,41..V4D..05S |
1 | ||
| 87208D - PIPE SUB-ASSY, HEATER WATER, D | ||||
| 87208-95735 |
YM3#,40..V4D,W4D |
1 | ||
| 87208-95734 |
CM30,40..W4D;CM36,41..V4D..05S |
1 | ||
| 87255C - HOSE, REAR HEATER WATER INLET, C | ||||
| 87245-95749 |
CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM31,40..(V4D,W4D)..(DLX,LD,SSW,SUP,SW) |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 99556-20200 |
CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM31,40..(V4D,W4D)..(DLX,LD,SSW,SUP,SW) 長さ=200 |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 99556-20200 |
CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM31,40..(V4D,W4D)..(DLX,LD,SSW,SUP,SW) 長さ=200 |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 99556-20200 |
CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM31,40..(V4D,W4D)..(DLX,LD,SSW,SUP,SW) 長さ=200 |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 99556-20200 |
CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM31,40..(V4D,W4D)..(DLX,LD,SSW,SUP,SW) 長さ=200 |
1 | ||
| 87256B - HOSE, REAR HEATER WATER OUTLET, B | ||||
| 87245-95750 |
CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM31,40..(V4D,W4D)..(DLX,LD,SSW,SUP,SW) |
1 | ||
| 87256C - HOSE, REAR HEATER WATER OUTLET, C | ||||
| 87245-95751 |
CM36,41..V4D..05S;CM30,40,YM3#,40..V4D,W4D |
1 | ||
| 87256C - HOSE, REAR HEATER WATER OUTLET, C | ||||
| 87245-95751 |
CM36,41..V4D..05S;CM30,40,YM3#,40..V4D,W4D |
1 | ||
| 87263A - BRACKET, HEATER WATER PIPE, NO.2 | ||||
| 87121-95704 |
CM36,41..V4D..05S;CM30,40,YM3#,40..V4D,W4D |
1 | ||
| 87263A - BRACKET, HEATER WATER PIPE, NO.2 | ||||
| 87121-95704 |
CM36,41..V4D..05S;CM30,40,YM3#,40..V4D,W4D |
1 | ||
| 87268A - PROTECTOR, REAR HEATER PIPE | ||||
| 87268-95701 |
CM36,41..V4D..05S;CM30,40,YM3#,40..V4D,W4D |
1 | ||
| 87268A - PROTECTOR, REAR HEATER PIPE | ||||
| 87268-95701 |
CM36,41..V4D..05S;CM30,40,YM3#,40..V4D,W4D |
1 | ||
| Common parts | ||||
| 87124-28040 | ||||
| 90989-01064 | ||||
| 91651-40816 | ||||
| 96112-10220 | ||||
ILLUST NO. 1 OF 2(8808- )CM3#,4#,YM3#,40
FRONT HEATER PIPING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-95712 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-95712 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-95737 |
YM3#,40 |
1 | ||
| 87245-95736 |
CM3#,4# |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-95737 |
YM3#,40 |
1 | ||
| 87245-95736 |
CM3#,4# |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 99556-30260 |
CM3#,4#,YM3#,40 *H,L=260 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 99556-30260 |
CM3#,4#,YM3#,40 *H,L=260 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 99556-30210 |
CM3#,4#,KM3#,YM3#,40 *H,L=210 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 99556-30210 |
CM3#,4#,KM3#,YM3#,40 *H,L=210 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 99556-30700 |
CM3#,4#,YM3#,40 長さ=700 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 99556-30700 |
CM3#,4#,YM3#,40 長さ=700 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-95739 |
CM3#,4# |
1 | ||
| 87245-95740 |
YM3#,40 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-95739 |
CM3#,4# |
1 | ||
| 87245-95740 |
YM3#,40 |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87208-28010 |
YM3#,40 |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87208-95721 |
CM3#,4#,YM31,40..DLX,LD,SSW,SUP,SW |
1 | ||
| 87208-95722 |
CM30,40,YM40..LD ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87208-95721 |
CM3#,4#,YM31,40..DLX,LD,SSW,SUP,SW |
1 | ||
| 87208-95722 |
CM30,40,YM40..LD ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87208-95746 |
CM30,40,YM40..LD ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87208-95747 |
CM3#,4#,YM31,40..DLX,LD,SSW,SUP,SW |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87208-95746 |
CM30,40,YM40..LD ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87208-95747 |
CM3#,4#,YM31,40..DLX,LD,SSW,SUP,SW |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87208-28021 |
YM3#,40 |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 87245-95738 |
CM30,40,YM3#,40..(V4D,W4D)..(DLX,FXV,GXL,LD,SUC) |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 87245-95738 |
CM30,40,YM3#,40..(V4D,W4D)..(DLX,FXV,GXL,LD,SUC) |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 87245-95741 |
CM30,40..FXV,GXL,LD,SUC |
1 | ||
| 87245-95753 |
YM3#,40..(V4D,W4D)..(DLX,FXV,GXL,LD) |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 87245-95741 |
CM30,40..FXV,GXL,LD,SUC |
1 | ||
| 87245-95753 |
YM3#,40..(V4D,W4D)..(DLX,FXV,GXL,LD) |
1 | ||
| 87263 - BRACKET, HEATER WATER PIPE, NO.1 | ||||
| 87263-28011 |
YM3#,40 |
1 | ||
| 87268B - PROTECTOR, HEATER WATER PIPE | ||||
| 87268-95703 |
YM40 |
1 | ||
| Common parts | ||||
| 11493-71010 | ||||
| 17175-72010 | ||||
| 87124-28030 | ||||
| 87124-28040 | ||||
| 90179-08123 | ||||
| 90179-08126 | ||||
| 90460-22073 | ||||
| 90460-24039 | ||||
| 90461-10262 | ||||
| 90461-10589 | ||||
| 90464-00443 | ||||
| 91611-60835 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 96112-10250 | ||||
