YM40G-MNS (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 3YU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(8808- )

Click highlighted areas on diagram

diagram 87116A 88501 88510 88515 88536 88539 8859287002 88625 8868895774 88716F 88716G 8871895752 8871895780 9009900930 9009900968 9017906115 9331513008 9338116012 9338516016
Part # Description Qty Price
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010

CM40,YM40..W4D

 5
87116-14010

CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

 5
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-95712

CM40,YM40..W4D

ﾌﾛﾝﾄ

 1
88501-95711

CM40;CM30,KM30,YM30,40..W4D..(3FC,4FC,5F)

COOL BOX

 1
88501-95713

CM40,YM40..W4D

ﾘﾔ

 1
88501-95712

CM30..4FC..FXV;CM30,KM30..W4D..(HRF,SRF);CM40,YM40..W4D..(FXV,LD,SSW,SW)

ﾌﾛﾝﾄ

 1
88501-95711

CM30,KM30,YM30,40..3FC,4FC,5F

COOL BOX

 1
88501-95713

CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

ﾘﾔ

 1
88510 - UNIT ASSY, COOLER
88510-95723

CM40,YM40..W4D

ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ,ﾌﾛﾝﾄ

 1
88510-95724

YM30..FXV;CM40,YM40..W4D

ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ,ﾘﾔ

 1
88510-95723

CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ,ﾌﾛﾝﾄ

 1
88510-95724

CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ,ﾘﾔ

 1
88515 - VALVE, COOLER EXPANSION
88515-87004

CM40,YM40..5F

ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 1
88515-87004

CM40,YM30,40..W4D

ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 2
88515-95700

CM40,YM40..W4D

ｸ-ﾙ ﾎﾞﾂｸｽ

 1
88515-87004

CM30,40,KM30,YM40

ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 1
88515-87004

CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 2
88515-95700

CM30,40,KM30,YM30,40..W4D..(3FC,4FC,5F)

ｸ-ﾙ ﾎﾞﾂｸｽ

 1
88536 - BRACKET, COOLING UNIT, NO.1
88688-95747

CM40,YM40..W4D..(GXL,LD,SSW,SW)

 1
88688-95747

CM40,KM30..W4D..(LD,SCA,SSW,SW);CM30,YM40..W4D..(LD,SSW,SUC,SW)..(CBR,DSL)

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-95710

CM40,YM40..W4D

ﾘﾔ

 1
88539-95709

CM40,YM40..W4D..(GXL,LD,SSW,SW)

ﾌﾛﾝﾄ

 1
88539-95708

CM30,40,KM30,YM30,40..3FC,4FC,5F

COOL BOX

 1
88539-95709

CM30..4FC..FXV;CM30,YM40..W4D..(LD,SSW,SUC,SW)..(CBR,DSL);CM40,KM30..W4D..(HRF,MRF)..(FXV,LD,SCA,SSW,SW)

ﾌﾛﾝﾄ

 1
88539-95710

CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

ﾘﾔ

 1
88625 - THERMISTOR, COOLER, NO.1
88625-12070

CM40,YM40..W4D

ﾌﾛﾝﾄ

 1
88625-89101

CM40,YM40..W4D

ﾘﾔ

 1
88625-95700

CM30,40,KM30,YM30,40..3FC,4FC,5F

COOL BOX

 1
88625-12070

CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

ﾌﾛﾝﾄ

 1
88625-89101

CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

ﾘﾔ

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-95753

CM40,YM40..W4D

ﾌﾛﾝﾄ

 1
88716-95754

CM40,YM40..W4D

ﾘﾔ

 1
88716-95751

CM30,40,KM30,YM30,40..3FC,4FC,5F

COOL BOX

 1
88716-95753

CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

ﾌﾛﾝﾄ

 1
88716-95754

CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

ﾘﾔ

 1
88716G - PIPE, COOLER REFRIGERANT LIQUID, G
88716-95752

CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

 1
88716-95752

CM40,YM40..W4D

 1
Common parts
88592-87002
88688-95774
88718-95752
88718-95780
90099-00930
90099-00968
90179-06115
93315-13008
93381-16012
93385-16016

ILLUST NO. 3 OF 4(8808- )

Click highlighted areas on diagram

diagram 8271112200 88361 88415B 88501 88510 88515 88536B 88536C 88536E 88539 88550B 8856922190 88605 88625 88635 8868895768 88716F 88717F 9009300807 9009900148 9009900947 9009902210 9009905164 9017906115 9017908123 9166140825 9166140825 9338516012 9338518016 9338518016 9338518016 9351010410 9354015012 9354015012
Part # Description Qty Price
88361 - FAN, COOLER BLOWER, NO.1
87105-87004

CM30,40,KM30,YM30,40..3FC,4FC,5F

COOL BOX

 1
87105-14020

CM40,YM40..W4D

REAR

 1
87105-14020

CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

REAR

 1
88415B - COVER, DUST
88415-95702

CM40,YM40..W4D..(GXL,LD,SSW,SW)

 1
88415-95702

CM40,KM30..W4D..(LD,SCA,SSW,SW);CM30,YM40..W4D..(LD,SSW,SUC,SW)..(CBR,DSL)

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-95712

CM40,YM40..W4D

ﾌﾛﾝﾄ

 1
88501-95711

CM40;CM30,KM30,YM30,40..W4D..(3FC,4FC,5F)

COOL BOX

 1
88501-95713

CM40,YM40..W4D

ﾘﾔ

 1
88501-95712

CM30..4FC..FXV;CM30,KM30..W4D..(HRF,SRF);CM40,YM40..W4D..(FXV,LD,SSW,SW)

ﾌﾛﾝﾄ

 1
88501-95711

CM30,KM30,YM30,40..3FC,4FC,5F

COOL BOX

 1
88501-95713

CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

ﾘﾔ

 1
88510 - UNIT ASSY, COOLER
88510-95723

CM40,YM40..W4D

ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ,ﾌﾛﾝﾄ

 1
88510-95724

YM30..FXV;CM40,YM40..W4D

ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ,ﾘﾔ

 1
88510-95723

CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ,ﾌﾛﾝﾄ

 1
88510-95724

CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ,ﾘﾔ

 1
88515 - VALVE, COOLER EXPANSION
88515-87004

CM40,YM40..5F

ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 1
88515-87004

CM40,YM30,40..W4D

ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 2
88515-95700

CM40,YM40..W4D

ｸ-ﾙ ﾎﾞﾂｸｽ

 1
88515-87004

CM30,40,KM30,YM40

ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 1
88515-87004

CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 2
88515-95700

CM30,40,KM30,YM30,40..W4D..(3FC,4FC,5F)

ｸ-ﾙ ﾎﾞﾂｸｽ

 1
88536B - BRACKET, COOLING UNIT, NO.3
88688-95749

CM40,YM40..W4D..(GXL,LD,SSW,SW)

 1
88688-95749

CM40,KM30..W4D..(LD,SCA,SSW,SW);CM30,YM40..W4D..(LD,SSW,SUC,SW)..(CBR,DSL)

 1
88536C - BRACKET, COOLING UNIT, NO.4
88688-95750

CM40,KM30..W4D..(LD,SCA,SSW,SW);CM30,YM40..W4D..(LD,SSW,SUC,SW)..(CBR,DSL)

 1
88688-95750

CM40,YM40..W4D..(GXL,LD,SSW,SW)

 1
88536E - BRACKET, COOLING UNIT, NO.5
88688-95751

CM40,KM30..W4D..(LD,SCA,SSW,SW);CM30,YM40..W4D..(LD,SSW,SUC,SW)..(CBR,DSL)

 1
88688-95751

CM40,YM40..W4D..(GXL,LD,SSW,SW)

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-95710

CM40,YM40..W4D

ﾘﾔ

 1
88539-95709

CM40,YM40..W4D..(GXL,LD,SSW,SW)

ﾌﾛﾝﾄ

 1
88539-95708

CM30,40,KM30,YM30,40..3FC,4FC,5F

COOL BOX

 1
88539-95709

CM30..4FC..FXV;CM30,YM40..W4D..(LD,SSW,SUC,SW)..(CBR,DSL);CM40,KM30..W4D..(HRF,MRF)..(FXV,LD,SCA,SSW,SW)

ﾌﾛﾝﾄ

 1
88539-95710

CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

ﾘﾔ

 1
88550B - MOTOR ASSY, BLOWER
88550-95700

CM40,YM40..W4D

 1
88550-95700

CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95720

YM40..GXL,LD,SW

ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ,ﾌﾛﾝﾄ

 1
88605-95739

YM40

ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 1
88605-95724

CM40,YM40..W4D

ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ,ﾘﾔ

 1
88605-95720

YM40

 1
88605-95720

YM40..LD,SW

ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ,ﾌﾛﾝﾄ

 1
88605-95738

CM30,40..W4D

ﾘﾔ

 1
88605-95739

YM40;CM40..5F

ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 1
88605-95724

CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ,ﾘﾔ

 1
88625 - THERMISTOR, COOLER, NO.1
88625-12070

CM40,YM40..W4D

ﾌﾛﾝﾄ

 1
88625-89101

CM40,YM40..W4D

ﾘﾔ

 1
88625-95700

CM30,40,KM30,YM30,40..3FC,4FC,5F

COOL BOX

 1
88625-12070

CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

ﾌﾛﾝﾄ

 1
88625-89101

CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

ﾘﾔ

 1
88635 - RESISTOR, COOLER UNIT BLOWER
88635-95703

CM40,YM40..W4D

 1
88635-95703

CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-95753

CM40,YM40..W4D

ﾌﾛﾝﾄ

 1
88716-95754

CM40,YM40..W4D

ﾘﾔ

 1
88716-95751

CM30,40,KM30,YM30,40..3FC,4FC,5F

COOL BOX

 1
88716-95753

CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

ﾌﾛﾝﾄ

 1
88716-95754

CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

ﾘﾔ

 1
88717F - PIPE, COOLER REFRIGERANT SUCTION, F
88717-95744

CM40,YM40..W4D

ﾘﾔ

 1
88717-95742

CM30,40,YM30,40

ｸｰﾙ ﾎﾞﾂｸｽ

 1
88717-95744

CM30..4FC..FXV;CM40..W4D..(FXV,LD,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

ﾘﾔ

 1
Common parts
82711-12200
88569-22190
88688-95768
90093-00807
90099-00148
90099-00947
90099-02210
90099-05164
90179-06115
90179-08123
91661-40825
93385-16012
93385-18016
93510-10410
93540-15012

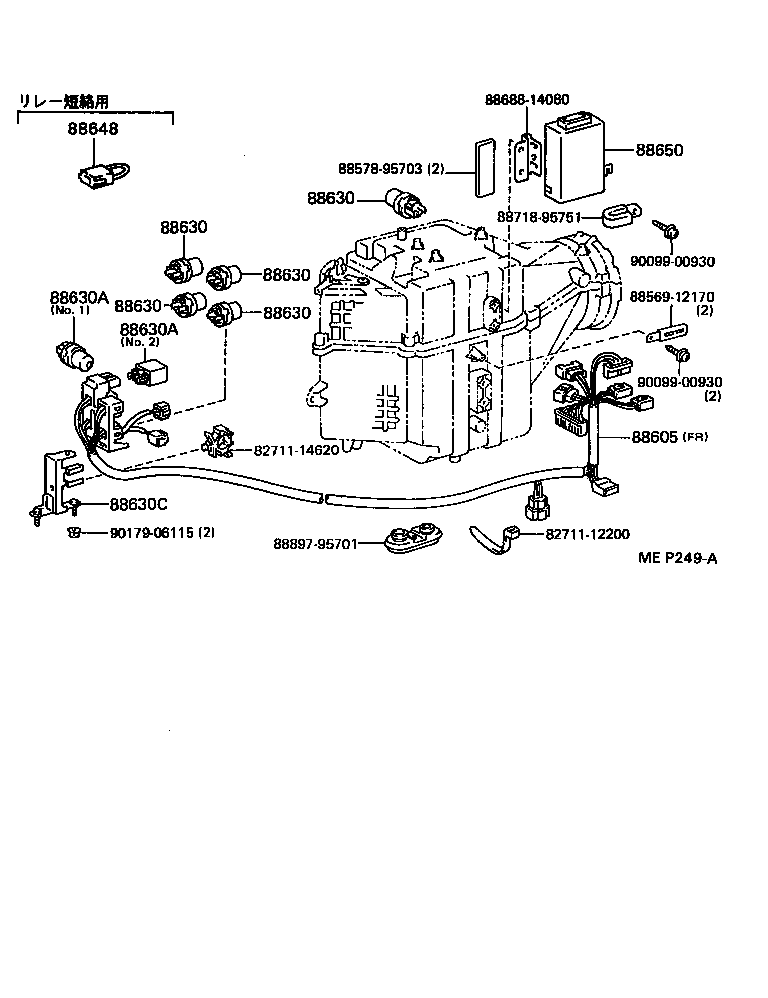

ILLUST NO. 2 OF 4(8808- )CM40,YM40

Click highlighted areas on diagram

diagram 8271112200 8271114620 8856912170 8857895703 88605 88630 88630 88630 88630 88630 88630A 88630A 88630C 88648 88650 8868814080 8871895751 8889795701 9009900930 9009900930 9017906115
Part # Description Qty Price
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95720

YM40..GXL,LD,SW

ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ,ﾌﾛﾝﾄ

 1
88605-95739

YM40

ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 1
88605-95724

CM40,YM40..W4D

ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ,ﾘﾔ

 1
88605-95720

YM40

 1
88605-95720

YM40..LD,SW

ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ,ﾌﾛﾝﾄ

 1
88605-95738

CM30,40..W4D

ﾘﾔ

 1
88605-95739

YM40;CM40..5F

ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 1
88605-95724

CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ,ﾘﾔ

 1
88630 - RELAY ASSY, COOLER
90987-02004

CM40,YM40..W4D

 3
90987-02004

YM40;CM40..W4D..5F

 5
90987-02004

CM30,40,KM30,YM40

 3
90987-02004

YM40..FXV,LD,SW

 5
88630 - RELAY ASSY, COOLER
90987-02004

CM40,YM40..W4D

 3
90987-02004

YM40;CM40..W4D..5F

 5
90987-02004

CM30,40,KM30,YM40

 3
90987-02004

YM40..FXV,LD,SW

 5
88630 - RELAY ASSY, COOLER
90987-02004

CM40,YM40..W4D

 3
90987-02004

YM40;CM40..W4D..5F

 5
90987-02004

CM30,40,KM30,YM40

 3
90987-02004

YM40..FXV,LD,SW

 5
88630 - RELAY ASSY, COOLER
90987-02004

CM40,YM40..W4D

 3
90987-02004

YM40;CM40..W4D..5F

 5
90987-02004

CM30,40,KM30,YM40

 3
90987-02004

YM40..FXV,LD,SW

 5
88630 - RELAY ASSY, COOLER
90987-02004

CM40,YM40..W4D

 3
90987-02004

YM40;CM40..W4D..5F

 5
90987-02004

CM30,40,KM30,YM40

 3
90987-02004

YM40..FXV,LD,SW

 5
88630A - RELAY ASSY, COOLER
90987-03001

YM40;CM40..W4D..5F

NO.1

 1
88630-32010

CM40,YM40..W4D

NO.2

 1
88630-32010

CM40,YM40..W4D..(FXV,LD,SSW,SW)

NO.2

 1
90987-03001

CM30..4FC..FXV;KM30..W4D..(LD,SCA,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

NO.1

 1
88630A - RELAY ASSY, COOLER
90987-03001

YM40;CM40..W4D..5F

NO.1

 1
88630-32010

CM40,YM40..W4D

NO.2

 1
88630-32010

CM40,YM40..W4D..(FXV,LD,SSW,SW)

NO.2

 1
90987-03001

CM30..4FC..FXV;KM30..W4D..(LD,SCA,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

NO.1

 1
88630C - BRACKET, COOLER RELAY
88688-95767

CM40,KM30..W4D..(LD,SCA,SSW,SW);CM30,YM40..W4D..(LD,SSW,SUC,SW)..(CBR,DSL)

 1
88688-95767

CM40,YM40..W4D..(GXL,LD,SSW,SW)

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-87101

YM40

ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 1
88650-95708

YM40

 1
88650-14030

CM30,40

ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 1
88650-87101

KM30,YM40

ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 1
88650-95708

KM30,YM40..W4D..(3FC,4FC,5F)..(FXV,LD,SCA,SW)

 1
Common parts
82711-12200
82711-14620
88569-12170
88578-95703
88688-14080
88718-95751
88897-95701
90099-00930
90179-06115

ILLUST NO. 4 OF 4(8808- )

Click highlighted areas on diagram

COOL BOX

diagram 88306 88361 88501 88502 88515 88520 88522 88539 8857895716 88604 88610 88610 88625 88630B 88630B 88649 88650C 8868895780 88716F 88717F 8871895751 9009900930 9098209004 9354055016
Part # Description Qty Price
88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1
87104-95707

CM30,40,KM30,YM30,40..3FC,4FC,5F

 1
88361 - FAN, COOLER BLOWER, NO.1
87105-87004

CM30,40,KM30,YM30,40..3FC,4FC,5F

COOL BOX

 1
87105-14020

CM40,YM40..W4D

REAR

 1
87105-14020

CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

REAR

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-95712

CM40,YM40..W4D

ﾌﾛﾝﾄ

 1
88501-95711

CM40;CM30,KM30,YM30,40..W4D..(3FC,4FC,5F)

COOL BOX

 1
88501-95713

CM40,YM40..W4D

ﾘﾔ

 1
88501-95712

CM30..4FC..FXV;CM30,KM30..W4D..(HRF,SRF);CM40,YM40..W4D..(FXV,LD,SSW,SW)

ﾌﾛﾝﾄ

 1
88501-95711

CM30,KM30,YM30,40..3FC,4FC,5F

COOL BOX

 1
88501-95713

CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

ﾘﾔ

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-9570003

CM30,40,KM30,YM30,40..3FC,4FC,5F

GRAY,TRIM1#

 1
88515 - VALVE, COOLER EXPANSION
88515-87004

CM40,YM40..5F

ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 1
88515-87004

CM40,YM30,40..W4D

ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 2
88515-95700

CM40,YM40..W4D

ｸ-ﾙ ﾎﾞﾂｸｽ

 1
88515-87004

CM30,40,KM30,YM40

ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 1
88515-87004

CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 2
88515-95700

CM30,40,KM30,YM30,40..W4D..(3FC,4FC,5F)

ｸ-ﾙ ﾎﾞﾂｸｽ

 1
88520 - BOX ASSY, COOLING
88520-9570103

CM30,40,KM30,YM30,40..3FC,4FC,5F

GRAY,TRIM1#

 1
88522 - DOOR, COOLING UNIT
88522-95700

CM30,40,KM30,YM30,40..3FC,4FC,5F

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-95710

CM40,YM40..W4D

ﾘﾔ

 1
88539-95709

CM40,YM40..W4D..(GXL,LD,SSW,SW)

ﾌﾛﾝﾄ

 1
88539-95708

CM30,40,KM30,YM30,40..3FC,4FC,5F

COOL BOX

 1
88539-95709

CM30..4FC..FXV;CM30,YM40..W4D..(LD,SSW,SUC,SW)..(CBR,DSL);CM40,KM30..W4D..(HRF,MRF)..(FXV,LD,SCA,SSW,SW)

ﾌﾛﾝﾄ

 1
88539-95710

CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

ﾘﾔ

 1
88604 - PANEL SUB-ASSY, COOLER CONTROL
88899-9571203

CM30,40,KM30,YM30,40..3FC,4FC,5F

GRAY,TRIM1#

 1
88610 - SWITCH ASSY, COOLER CONTROL
88610-9571203

CM30,40,KM30,YM30,40..3FC,4FC,5F

GRAY,TRIM1#,NO.1

 1
88610-95713

CM30,40,KM30,YM30,40..3FC,4FC,5F

NO.2

 1
88610 - SWITCH ASSY, COOLER CONTROL
88610-9571203

CM30,40,KM30,YM30,40..3FC,4FC,5F

GRAY,TRIM1#,NO.1

 1
88610-95713

CM30,40,KM30,YM30,40..3FC,4FC,5F

NO.2

 1
88625 - THERMISTOR, COOLER, NO.1
88625-12070

CM40,YM40..W4D

ﾌﾛﾝﾄ

 1
88625-89101

CM40,YM40..W4D

ﾘﾔ

 1
88625-95700

CM30,40,KM30,YM30,40..3FC,4FC,5F

COOL BOX

 1
88625-12070

CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

ﾌﾛﾝﾄ

 1
88625-89101

CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

ﾘﾔ

 1
88630B - RELAY ASSY, COOLER
90987-02004

CM30,40,KM30,YM30,40..3FC,4FC,5F

 2
88630B - RELAY ASSY, COOLER
90987-02004

CM30,40,KM30,YM30,40..3FC,4FC,5F

 2
88649 - WIRING, COOLER, NO.2
88605-95732

CM30,40,KM30,YM30,40..3FC,4FC,5F

 1
88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER
88650-95705

CM30,40,KM30,YM30,40..3FC,4FC,5F

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-95753

CM40,YM40..W4D

ﾌﾛﾝﾄ

 1
88716-95754

CM40,YM40..W4D

ﾘﾔ

 1
88716-95751

CM30,40,KM30,YM30,40..3FC,4FC,5F

COOL BOX

 1
88716-95753

CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

ﾌﾛﾝﾄ

 1
88716-95754

CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

ﾘﾔ

 1
88717F - PIPE, COOLER REFRIGERANT SUCTION, F
88717-95744

CM40,YM40..W4D

ﾘﾔ

 1
88717-95742

CM30,40,YM30,40

ｸｰﾙ ﾎﾞﾂｸｽ

 1
88717-95744

CM30..4FC..FXV;CM40..W4D..(FXV,LD,SSW,SW);CM30,YM40..W4D..(FXV,LD,SSW,SUC,SW)..(CBR,DSL)

ﾘﾔ

 1
Common parts
88578-95716
88688-95780
88718-95751
90099-00930
90982-09004
93540-55016
