YM40G-MNS (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 3YU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 4(8808- )

Click highlighted areas on diagram

diagram 88800B 88800C
Part # Description Qty Price
88800B - COOL BOX AND ACCESSORY ASSY, NO.1
88800-9571903

YM40..FXV,LD,SW

ｱﾘ(ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),GRAY,TRIM1#

 1
88800-9571703

YM40..FXV,LD,SW

ｱﾘ(ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),GRAY,TRIM1#

 1
88800-9571903

YM40..FXV,LD,SW

ｱﾘ(ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),GRAY,TRIM1#

 1

ILLUST NO. 1 OF 4(8808- )CM40,YM40

Click highlighted areas on diagram

DUAL AIR CONDITIONER

diagram 88820 88820A 88820B
Part # Description Qty Price

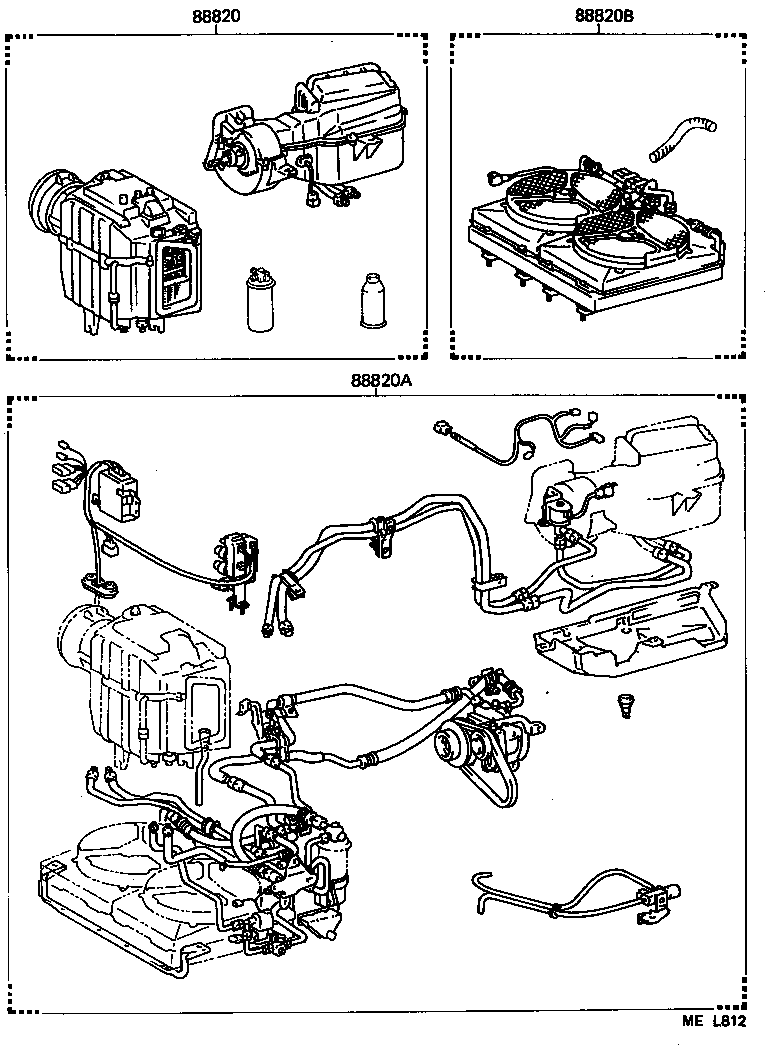

88820 - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1
88820-95700

CM40,YM40..W4D

ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 1
88820-95701

CM40,YM40..W4D

ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 1
88820-95700

KM30,YM40..W4D..(FXV,LD,SCA,SW)

ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 1
88820-95701

YM40;KM30..SRF

ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 1
88820A - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2
88830-95727

YM40

ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 1
88830-95724

YM40

ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 1
88830-95727

YM40

ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 1
88830-95724

YM40..FXV,LD,SW

ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 1
88820B - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.3
88840-95700

YM40;CM40..W4D..5F

 1
88840-95700

YM40..FXV,LD,SW;CM40..W4D..5F..(FXV,LD,SSW,SW)

 1

ILLUST NO. 2 OF 4(8808- )CM30,40,KM30,YM3#,40

Click highlighted areas on diagram

DUAL AIR CONDITIONER

diagram 88870 88870
Part # Description Qty Price
88870 - DUCT AND ACCESSORY ASSY
88870-9570903

CM40,YM30,40..W4D..(GXL,LD,SSW)

GRAY,TRIM1#

 1
88870-9570903

KM30,YM40..MRF..(GXL,LD,SCA,SUC)

GRAY,TRIM1#

 1
88870 - DUCT AND ACCESSORY ASSY
88870-9570903

CM40,YM30,40..W4D..(GXL,LD,SSW)

GRAY,TRIM1#

 1
88870-9570903

KM30,YM40..MRF..(GXL,LD,SCA,SUC)

GRAY,TRIM1#

 1

ILLUST NO. 1 OF 4(8808- )CM40,YM40

Click highlighted areas on diagram

SINGLE AIR CONDITIONER

diagram 88820 88820A 88820B
Part # Description Qty Price

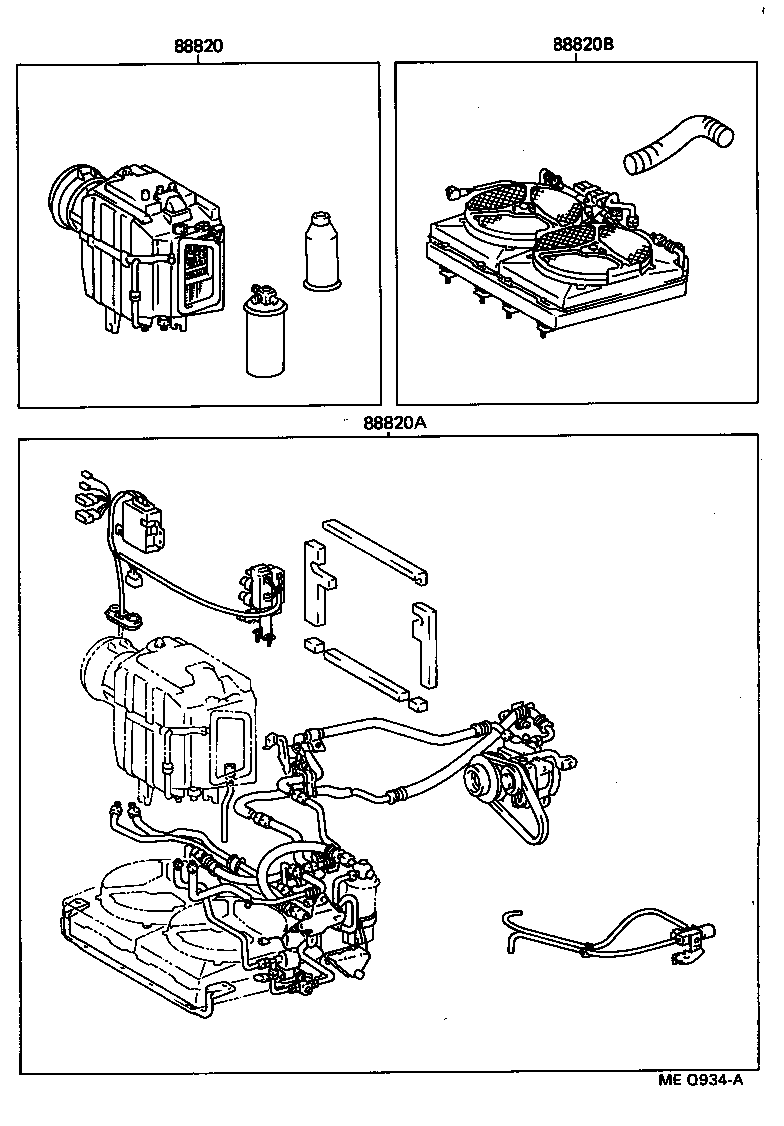

88820 - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1
88820-95700

CM40,YM40..W4D

ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 1
88820-95701

CM40,YM40..W4D

ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 1
88820-95700

KM30,YM40..W4D..(FXV,LD,SCA,SW)

ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 1
88820-95701

YM40;KM30..SRF

ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 1
88820A - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2
88830-95727

YM40

ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 1
88830-95724

YM40

ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 1
88830-95727

YM40

ｼﾝｸﾞﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 1
88830-95724

YM40..FXV,LD,SW

ﾃﾞﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ

 1
88820B - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.3
88840-95700

YM40;CM40..W4D..5F

 1
88840-95700

YM40..FXV,LD,SW;CM40..W4D..5F..(FXV,LD,SSW,SW)

 1

ILLUST NO. 4 OF 4(8808- )

Click highlighted areas on diagram

diagram 7452 88039
Part # Description Qty Price
88039 - ADDITIONAL KIT,AIRCONDITIONER
88039-95704

CM30,36,4#,KM30,YM30,40..MRF

 1
88870-27070

CM30,36,4#,KM30,YM30,40..MRF

 1
Linked diagrams
7452
