YM40G-MNS (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 3YU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(8808- )FXV,GXL,LD,SCA,SUC

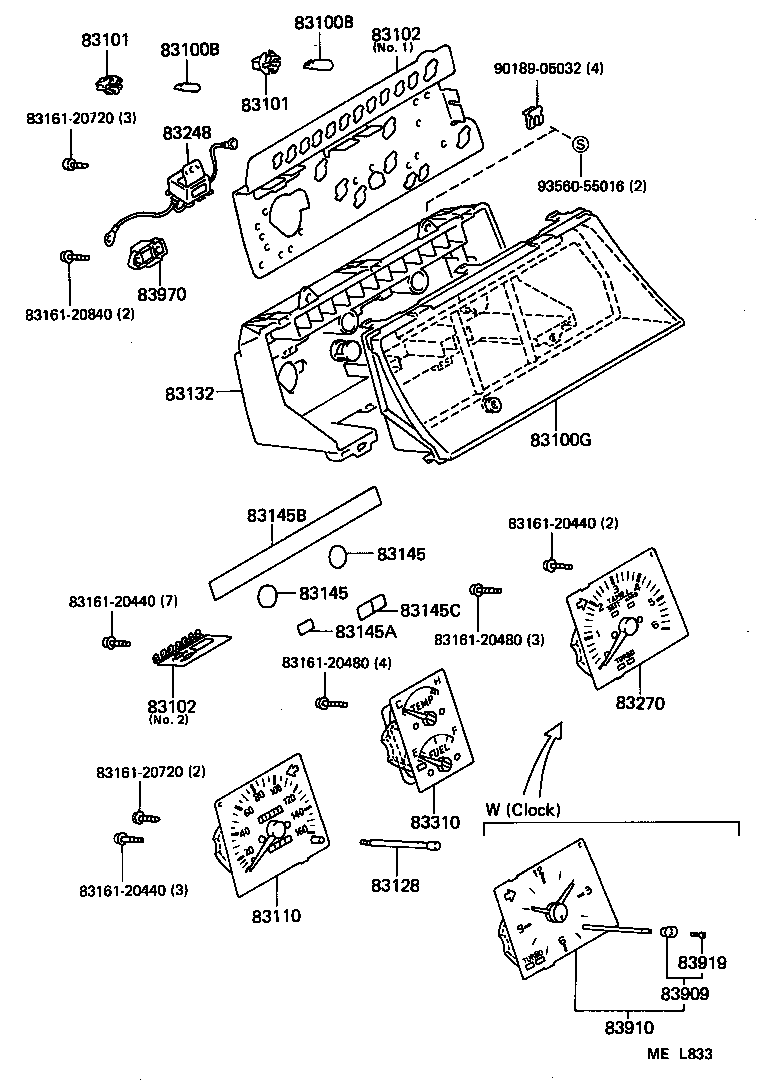

Click highlighted areas on diagram

diagram 83100B 83100B 83100G 83101 83101 83102 83102 83110 83128 83132 83145 83145 83145A 83145B 83145C 8316120440 8316120440 8316120440 8316120480 8316120480 8316120720 8316120720 8316120840 83248 83270 83310 83909 83910 83919 83970 9018905032 9356055016
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
90981-11018

KM30,YM40..LD,SCA,SUC

12V 1.2W ｿｹｯﾄ無し

 6
99132-12034

CM40,YM40..LD;CM30,YM30..FXV,GXL

12V 3.4W

 7
83100B - BULB, COMBINATION METER, NO.1
90981-11018

KM30,YM40..LD,SCA,SUC

12V 1.2W ｿｹｯﾄ無し

 6
99132-12034

CM40,YM40..LD;CM30,YM30..FXV,GXL

12V 3.4W

 7
83100G - GLASS, COMBINATION METER
83134-95G01

CM30,40,YM30,40..(FXV,GXL,LD)..(CBR,TD)

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-20040

CM40,YM40..LD;CM30,YM30..FXV,GXL

12V 3.4W

 7
83101-14040

KM30,YM40..LD,SCA,SUC

12V 1.2W OR 14V 1.4W

 6
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-20040

CM40,YM40..LD;CM30,YM30..FXV,GXL

12V 3.4W

 7
83101-14040

KM30,YM40..LD,SCA,SUC

12V 1.2W OR 14V 1.4W

 6
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-95T01

CM40,YM40..LD

NO.1

 1
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-95T01

CM40,YM40..LD

NO.1

 1
83110 - SPEEDOMETER ASSY
83110-95734

CM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC

 1
83128 - KNOB, TRIP COUNTER
83128-95J00

CM3#,4#,KM3#,YM3#,40

 1
83132 - CASE, COMBINATION METER
83132-95G00

CM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC

 1
83145 - LENS, METER, NO.1
83145-89320

CM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC

 2
83145 - LENS, METER, NO.1
83145-89320

CM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC

 2
83145B - LENS, METER, NO.3
83145-95G40

YM40..LD

 1
83248 - CHIME, SPEED WARNING
86640-12090

CM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC

 1
86640-95701

CM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC

 1
83270 - TACHOMETER ASSY, ENGINE
83242-95G02

YM30,40..FXV,GXL,LD

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-95G02

CM30,40,KM30,YM40..LD,SCA,SUC

 1
83910 - CLOCK ASSY
83910-95705

CM40,YM40..GXL,LD,SSW,SW;CM30,36,41,KM35,36,YM3#..DLX,FXV,GXL

 1
Common parts
83161-20440
83161-20480
83161-20720
83161-20840
90189-05032
93560-55016

ILLUST NO. 2 OF 3(8808- )

Click highlighted areas on diagram

diagram 83710 83710 83770 83770 8379195706 8379195706 8379195708 8379195708 9046708069 9046708069 9046804021 9098901065 9161160814 9161160814 9161160814 9161160814 9161160814
Part # Description Qty Price
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-95722

CM4#,YM40..5F

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-95722

CM4#,YM40..5F

 1
83770 - ADAPTER ASSY, SPEEDOMETER CABLE
83770-22100

CM4#,YM40;CM3#,YM3#..4FC

 1
83770 - ADAPTER ASSY, SPEEDOMETER CABLE
83770-22100

CM4#,YM40;CM3#,YM3#..4FC

 1
Common parts
83791-95706
83791-95708
90467-08069
90468-04021
90989-01065
91611-60814

ILLUST NO. 3 OF 3(8808- )

Click highlighted areas on diagram

diagram 5551 8202 83180 83189 83890 83890B 83891 83891 83901 83910 83910 83919 83919 9017906007 9018305033 9018305033 9356755016 9356755016
Part # Description Qty Price
83910 - CLOCK ASSY
83910-95705

CM40,YM40..GXL,LD,SSW,SW;CM30,36,41,KM35,36,YM3#..DLX,FXV,GXL

 1
83910 - CLOCK ASSY
83910-95705

CM40,YM40..GXL,LD,SSW,SW;CM30,36,41,KM35,36,YM3#..DLX,FXV,GXL

 1
Common parts
90179-06007
90183-05033
93567-55016
Linked diagrams
5551
8202
