YM40G-MNS (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 3YU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )FXV,GXL,LD,SCA,SUC

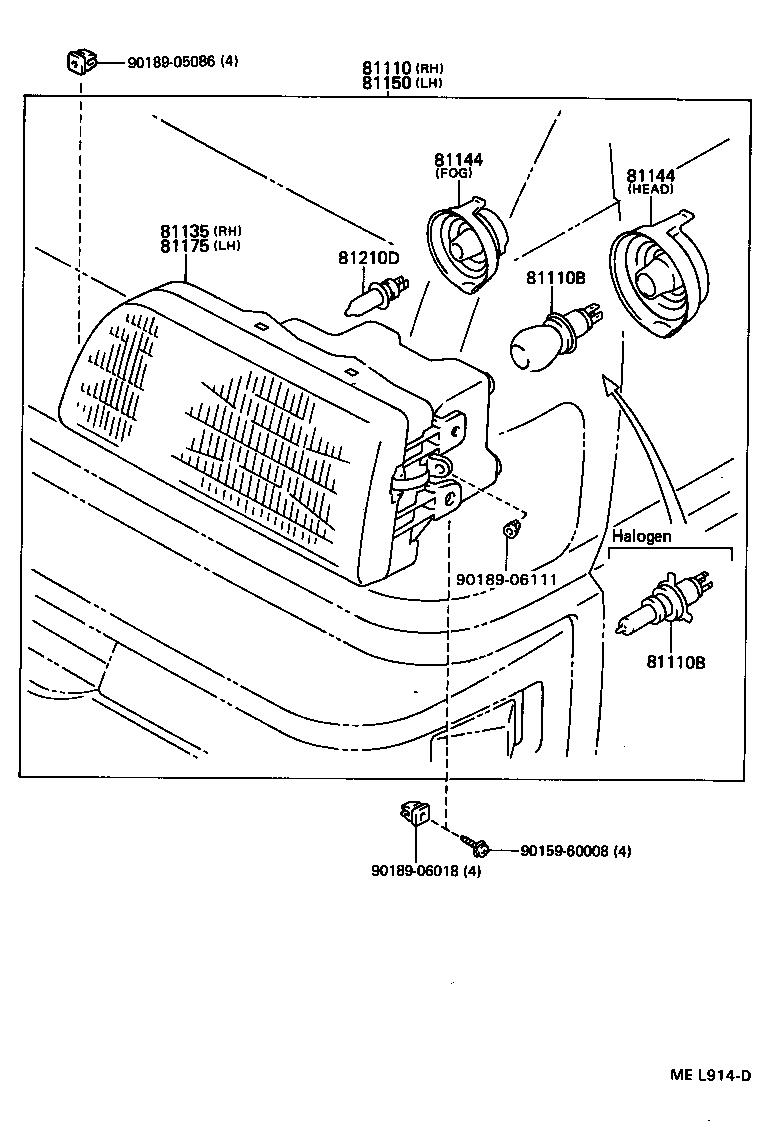

Click highlighted areas on diagram

diagram 81110 81110B 81110B 81135 81144 81144 81150 81175 81210D 9015960008 9018905086 9018906018 9018906111
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-95724

CM30,40,KM30,YM40..LD

 1
81110-95743

CM30,40,KM30,YM40..LD

ﾊﾛｹﾞﾝ

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

CM30,31,40,KM30,31,36,YM3#,40..FXV,GXL,LD,SCA,SSW,SUP,SW

12V 60/55W,*HAL *WH

 2
90981-13022

CM30,40,KM30,YM40..LD

12V 65/60W,ﾎﾜｲﾄ

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

CM30,31,40,KM30,31,36,YM3#,40..FXV,GXL,LD,SCA,SSW,SUP,SW

12V 60/55W,*HAL *WH

 2
90981-13022

CM30,40,KM30,YM40..LD

12V 65/60W,ﾎﾜｲﾄ

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-95743

CM30,40,KM30,YM40..LD

ﾊﾛｹﾞﾝ

 1
81130-95724

CM30,40,KM30,YM40..LD

 1
81144 - COVER, HEADLAMP, NO.1
81139-20730

CM30,40,KM30,YM40..LD

 2
81144 - COVER, HEADLAMP, NO.1
81139-20730

CM30,40,KM30,YM40..LD

 2
81150 - HEADLAMP ASSY, LH
81150-95724

CM30,40,KM30,YM40..LD

 1
81150-95743

CM30,40,KM30,YM40..LD

ﾊﾛｹﾞﾝ

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-95743

CM30,40,KM30,YM40..LD

ﾊﾛｹﾞﾝ

 1
81170-95724

CM30,40,KM30,YM40..LD

 1
Common parts
90159-60008
90189-05086
90189-06018
90189-06111
