YM40G-MNS (1988)
Toyota Liteace Van,Wagon
(8808- )4H..SW ; (8808- )CM30,40,KM30,35,36,YM40..MTM..DLX,LD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95706 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-9573603 |
CM30,40,KM30,YM40..LD GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-9576103 |
CM30,40,YM40..LD GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-9573903 |
CM30,40,KM30,YM40..LD GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-9574603 |
CM30,40,KM30,YM40..LD GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-9578803 |
CM30,40,KM30,YM40..LD ***,GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-9575803 |
CM30,40,YM40..LD ***,GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-9574703 |
CM30,40,KM30,YM40..LD ***,GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-9575503 |
CM30,40,KM30,YM40..LD ***,GRAY,TRIM1# |
1 | ||
| 71440-9577503 |
CM30,40,KM30,YM40..LD ***,GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95701 |
CM3#,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-95702 |
CM3#,4#,KM30,31,36,YM3#,40..(3FC,4FC,5F)..(DLX,GXL,LD,SCA,SSW,SUC,SUP,SW) |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71538-9570013 |
CM30,31,40,KM30,31,36,YM3#,40..FXV,GXL,LD,SCA,SSW,SUC,SUP GRAY,TRIM1# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-95702 |
CM30,36,4#,KM30,35,36,YM31,40..DLX,LD,SW |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-95702 |
CM30,36,4#,KM30,35,36,YM31,40..DLX,LD,SW |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71588-9570013 |
CM3#,4#,KM3#,YM3#,40 GRAY,TRIM1# |
1 | ||
| 71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2 | ||||
| 71588-9570013 |
CM3#,4#,KM3#,YM3#,40 GRAY,TRIM1# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71801-9570003 |
CM3#,4#,KM3#,YM3#,40 GRAY,TRIM1# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-9570203 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC GRAY,TRIM1# |
1 | ||
| 71802-9570113 |
CM30,31,40,KM30,31,36,YM3#,40..FXV,GXL,LD,SCA,SSW,SUC,SUP GRAY,TRIM1# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-9570013 |
CM3#,4#,KM3#,YM3#,40 GRAY,TRIM1# |
1 | ||
| 72213 - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-9570003 |
CM3#,4#,KM3#,YM3#,40 GRAY,TRIM1# |
1 | ||
| 72213 - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-9570003 |
CM3#,4#,KM3#,YM3#,40 GRAY,TRIM1# |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-9570903 |
CM30,40,KM30,YM30,40..GXL,LD,SCA,SUC GRAY,TRIM1# |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-9570603 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC GRAY,TRIM1# |
1 | ||
| 72520-9570903 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90109-08150 | ||||
| 90119-08079 | ||||
| 90159-50050 | ||||
| 90168-40043 | ||||
| 90179-08039 | ||||
| 90179-10073 | ||||
| 90386-12018 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 91611-61020 | ||||

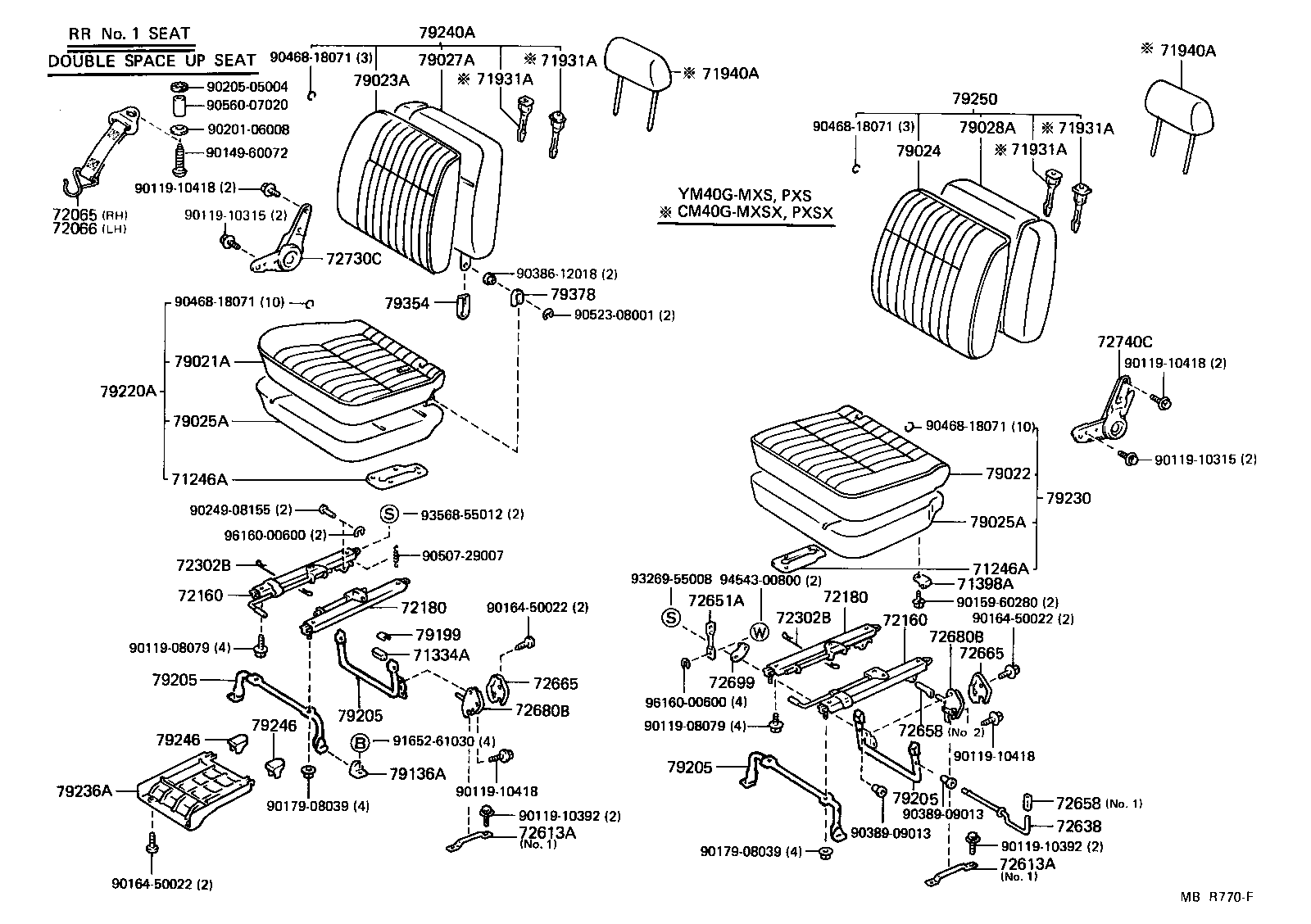

(8808- )GXL,LD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71246A - PLATE, REAR SEAT CUSHION SET | ||||
| 71246-95702 |
CM30,40,KM30,YM40..LD |
2 | ||
| 71246A - PLATE, REAR SEAT CUSHION SET | ||||
| 71246-95702 |
CM30,40,KM30,YM40..LD |
2 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-9570203 |
CM30,40,KM30,YM30,40..GXL,LD GRAY,TRIM1# |
2 | ||
| 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH | ||||
| 72065-9570603 |
CM30,40,KM30,YM40..LD ｱﾘ(ﾀﾞﾌﾞﾙ ｽﾍﾟ-ｽ ｱﾂﾌﾟ ｼ-ﾄ),GRAY,GRAY,TRIM1# |
1 | ||
| 72065-9570503 |
KM30..LD,SUC;CM30,40,YM30,40..FXV,GXL,LD GRAY,GRAY,TRIM1# |
1 | ||
| 72066 - BELT SUB-ASSY, REAR SEAT HOOK, LH | ||||
| 72065-9570503 |
KM30..LD,SUC;CM30,40,YM30,40..FXV,GXL,LD GRAY,GRAY,TRIM1# |
1 | ||
| 72065-9570603 |
CM30,40,KM30,YM40..LD ｱﾘ(ﾀﾞﾌﾞﾙ ｽﾍﾟ-ｽ ｱﾂﾌﾟ ｼ-ﾄ),GRAY,GRAY,TRIM1# |
1 | ||
| 72160 - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-95713 |
CM30,40,KM30,YM40..LD |
2 | ||
| 72160 - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-95713 |
CM30,40,KM30,YM40..LD |
2 | ||
| 72180 - TRACK ASSY, REAR SEAT, INNER RH | ||||
| 72170-95710 |
CM30,40,KM30,YM40..LD |
2 | ||
| 72180 - TRACK ASSY, REAR SEAT, INNER RH | ||||
| 72170-95710 |
CM30,40,KM30,YM40..LD |
2 | ||
| 72302B - WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING | ||||
| 72312-95704 |
CM30,40,KM30,YM40..LD |
2 | ||
| 72302B - WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING | ||||
| 72312-95704 |
CM30,40,KM30,YM40..LD |
2 | ||
| 72613A - STRIKER, FRONT SEAT LOCK | ||||
| 72613-95702 |
CM30,40,KM30,YM30,40..GXL,LD NO.2 |
2 | ||
| 72613-95705 |
CM30,40,KM30,YM30,40..GXL,LD NO.1 |
2 | ||
| 72613A - STRIKER, FRONT SEAT LOCK | ||||
| 72613-95702 |
CM30,40,KM30,YM30,40..GXL,LD NO.2 |
2 | ||
| 72613-95705 |
CM30,40,KM30,YM30,40..GXL,LD NO.1 |
2 | ||
| 72638 - HANDLE, REAR SEAT LOCK, LH | ||||
| 72638-95701 |
CM30,40,KM30,YM30,40..GXL,LD |
1 | ||
| 72651A - COVER, REAR SEAT LOCK | ||||
| 72651-95701 |
CM30,40,KM30,YM30,40..GXL,LD |
1 | ||
| 72658 - KNOB, REAR SEAT HANDLE | ||||
| 72658-9570103 |
CM30,40,KM30,YM30,40..GXL,LD GRAY,TRIM1#,内側 |
1 | ||
| 72639-95J00 |
CM30,40,KM30,YM30,40..GXL,LD 外側 |
1 | ||
| 72658 - KNOB, REAR SEAT HANDLE | ||||
| 72658-9570103 |
CM30,40,KM30,YM30,40..GXL,LD GRAY,TRIM1#,内側 |
1 | ||
| 72639-95J00 |
CM30,40,KM30,YM30,40..GXL,LD 外側 |
1 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-9570303 |
CM30,40,KM30,YM30,40..GXL,LD GRAY,TRIM1#,右側 |
1 | ||
| 72665-9570603 |
CM30,40,KM30,YM30,40..GXL,LD GRAY,TRIM1#,左側 |
1 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-9570303 |
CM30,40,KM30,YM30,40..GXL,LD GRAY,TRIM1#,右側 |
1 | ||
| 72665-9570603 |
CM30,40,KM30,YM30,40..GXL,LD GRAY,TRIM1#,左側 |
1 | ||
| 72680B - LOCK ASSY, REAR SEAT CUSHION, LH | ||||
| 72094-95705 |
CM30,40,KM30,YM30,40..GXL,LD 左側 |
1 | ||
| 72094-95703 |
CM30,40,KM30,YM30,40..GXL,LD 右側 |
1 | ||
| 72680B - LOCK ASSY, REAR SEAT CUSHION, LH | ||||
| 72094-95705 |
CM30,40,KM30,YM30,40..GXL,LD 左側 |
1 | ||
| 72094-95703 |
CM30,40,KM30,YM30,40..GXL,LD 右側 |
1 | ||
| 72699 - PLATE, REAR SEAT LOCK RELEASE | ||||
| 72699-95704 |
CM30,40,KM30,YM30,40..GXL,LD |
1 | ||
| 72730C - ADJUSTER ASSY, NO.2 SEAT RECLINING, RH | ||||
| 72750-9570403 |
CM30,40,KM30,YM40..LD GRAY,TRIM1# |
1 | ||
| 72740C - ADJUSTER ASSY, NO.2 SEAT RECLINING, LH | ||||
| 72760-9570403 |
CM30,40,KM30,YM40..LD GRAY,TRIM1# |
1 | ||
| 79021A - COVER SUB-ASSY, NO.2 SEAT CUSHION | ||||
| 79021-9572103 |
CM30,40,KM30,YM40..LD GRAY,TRIM1# |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79022-9570003 |
CM30,40,KM30,YM40..LD GRAY,TRIM1# |
1 | ||
| 79023A - COVER SUB-ASSY, NO.2 SEAT BACK | ||||
| 79023-9571903 |
CM30,40,KM30,YM40..LD GRAY,TRIM1# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79024-9570203 |
CM30,40,KM30,YM40..LD GRAY,TRIM1# |
1 | ||
| 79025A - PAD SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79025-95703 |
CM30,40,KM30,YM30,40..GXL,LD 右側 |
1 | ||
| 79025-95704 |
CM30,40,KM30,YM30,40..GXL,LD 左側 |
1 | ||
| 79025A - PAD SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79025-95703 |
CM30,40,KM30,YM30,40..GXL,LD 右側 |
1 | ||
| 79025-95704 |
CM30,40,KM30,YM30,40..GXL,LD 左側 |
1 | ||
| 79027A - PAD SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79027-95706 |
CM30,40,KM30,YM40..LD |
1 | ||
| 79028A - PAD SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79028-95701 |
CM30,40,KM30,YM40..LD |
1 | ||
| 79136A - COVER, NO.1 SEAT LEG, A | ||||
| 79136-9570003 |
CM30,40,KM30,YM30,40..GXL,LD GRAY,TRIM1# |
4 | ||
| 79199 - HOLDER, NO.1 SEAT LEG STOPPER | ||||
| 79199-95J00 |
CM30,40,KM30,YM30,40..GXL,LD |
4 | ||
| 79205 - LEG SUB-ASSY, NO.2 SEAT | ||||
| 79205-95708 |
CM30,40,KM30,YM30,40..GXL,LD REAR,LH |
1 | ||
| 79205-95706 |
CM30,40,KM30,YM30,40..GXL,LD FRONT |
2 | ||
| 79205-95707 |
CM30,40,KM30,YM30,40..GXL,LD REAR,RH |
1 | ||
| 79205 - LEG SUB-ASSY, NO.2 SEAT | ||||
| 79205-95708 |
CM30,40,KM30,YM30,40..GXL,LD REAR,LH |
1 | ||
| 79205-95706 |
CM30,40,KM30,YM30,40..GXL,LD FRONT |
2 | ||
| 79205-95707 |
CM30,40,KM30,YM30,40..GXL,LD REAR,RH |
1 | ||
| 79205 - LEG SUB-ASSY, NO.2 SEAT | ||||
| 79205-95708 |
CM30,40,KM30,YM30,40..GXL,LD REAR,LH |
1 | ||
| 79205-95706 |
CM30,40,KM30,YM30,40..GXL,LD FRONT |
2 | ||
| 79205-95707 |
CM30,40,KM30,YM30,40..GXL,LD REAR,RH |
1 | ||
| 79205 - LEG SUB-ASSY, NO.2 SEAT | ||||
| 79205-95708 |
CM30,40,KM30,YM30,40..GXL,LD REAR,LH |
1 | ||
| 79205-95706 |
CM30,40,KM30,YM30,40..GXL,LD FRONT |
2 | ||
| 79205-95707 |
CM30,40,KM30,YM30,40..GXL,LD REAR,RH |
1 | ||
| 79220A - CUSHION ASSY, NO.2 SEAT | ||||
| 79220-9572103 |
CM30,40,KM30,YM40..LD ***,GRAY,TRIM1# |
1 | ||
| 79230 - CUSHION ASSY, NO.2 SEAT, LH | ||||
| 79230-9570003 |
CM30,40,KM30,YM40..LD ***,GRAY,TRIM1# |
1 | ||
| 79236A - COVER, NO.2 SEAT LEG | ||||
| 79236-9570203 |
CM30,40,KM30,YM30,40..GXL,LD GRAY,TRIM1# |
2 | ||
| 79240A - BACK ASSY, NO.2 SEAT | ||||
| 79240-9571903 |
CM30,40,KM30,YM40..LD ***,GRAY,TRIM1# |
1 | ||
| 79246 - COVER, NO.2 SEAT LEG, NO.1 | ||||
| 79246-9570403 |
CM30,40,KM30,YM30,40..GXL,LD GRAY,TRIM1#,左側 |
2 | ||
| 79246-9570303 |
CM30,40,KM30,YM30,40..GXL,LD GRAY,TRIM1#,右側 |
2 | ||
| 79246 - COVER, NO.2 SEAT LEG, NO.1 | ||||
| 79246-9570403 |
CM30,40,KM30,YM30,40..GXL,LD GRAY,TRIM1#,左側 |
2 | ||
| 79246-9570303 |
CM30,40,KM30,YM30,40..GXL,LD GRAY,TRIM1#,右側 |
2 | ||
| 79250 - BACK ASSY, NO.2 SEAT, LH | ||||
| 79250-9570203 |
CM30,40,KM30,YM40..LD ***,GRAY,TRIM1# |
1 | ||
| 79354 - COVER, NO.3 SEAT BACK HINGE | ||||
| 79354-9570003 |
CM30,40,KM30,YM40..LD GRAY,TRIM1# |
4 | ||
| 79378 - COVER, NO.3 SEAT CUSHION HINGE | ||||
| 79378-9570003 |
CM30,40,KM30,YM40..LD GRAY,TRIM1# |
4 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90119-10315 | ||||
| 90119-10392 | ||||
| 90119-10418 | ||||
| 90149-60072 | ||||
| 90159-60280 | ||||
| 90164-50022 | ||||
| 90179-08039 | ||||
| 90201-06008 | ||||
| 90205-05004 | ||||
| 90249-08155 | ||||
| 90386-12018 | ||||
| 90389-09013 | ||||
| 90468-18071 | ||||
| 90507-29007 | ||||
| 90523-08001 | ||||
| 90560-07020 | ||||
| 91652-61030 | ||||
| 93269-55008 | ||||
| 93568-55012 | ||||
| 94543-00800 | ||||
| 96160-00600 | ||||
(8808- )LD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71324A - CUSHION, REAR SEAT | ||||
| 71709-27010 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SUC |
4 | ||
| 71324-95701 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC |
4 | ||
| 71324-95701 |
CM30,40,KM30,YM40..LD |
6 | ||
| 71324A - CUSHION, REAR SEAT | ||||
| 71709-27010 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SUC |
4 | ||
| 71324-95701 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC |
4 | ||
| 71324-95701 |
CM30,40,KM30,YM40..LD |
6 | ||
| 71324A - CUSHION, REAR SEAT | ||||
| 71709-27010 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SUC |
4 | ||
| 71324-95701 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC |
4 | ||
| 71324-95701 |
CM30,40,KM30,YM40..LD |
6 | ||
| 71324A - CUSHION, REAR SEAT | ||||
| 71709-27010 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SUC |
4 | ||
| 71324-95701 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC |
4 | ||
| 71324-95701 |
CM30,40,KM30,YM40..LD |
6 | ||
| 71398C - HOLDER, REAR SEAT BACK | ||||
| 71398-9570103 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SUC GRAY,TRIM1# |
2 | ||
| 71691B - COVER, REAR SEAT LOCK, OUTER RH | ||||
| 71692-9570303 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SUC GRAY,TRIM1# |
1 | ||
| 71691C - COVER, REAR SEAT LOCK, INNER RH | ||||
| 71691-9570303 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SUC GRAY,TRIM1# |
1 | ||
| 71692B - COVER, REAR SEAT LOCK, OUTER LH | ||||
| 71692-9570203 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SUC GRAY,TRIM1# |
1 | ||
| 71692C - COVER, REAR SEAT LOCK, INNER LH | ||||
| 71691-9570203 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SUC GRAY,TRIM1# |
1 | ||
| 71707 - HINGE SUB-ASSY, REAR SEAT SIDE | ||||
| 71707-95700 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SUC |
1 | ||
| 71707 - HINGE SUB-ASSY, REAR SEAT SIDE | ||||
| 71707-95700 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SUC |
1 | ||
| 71709B - CUSHION SUB-ASSY, SEAT SUPPORT | ||||
| 71709-95700 |
CM30,40,KM30,YM30,40..GXL,LD |
2 | ||
| 71709B - CUSHION SUB-ASSY, SEAT SUPPORT | ||||
| 71709-95700 |
CM30,40,KM30,YM30,40..GXL,LD |
2 | ||
| 71777 - COVER, REAR SEAT SIDE HINGE FEMALE | ||||
| 71777-9570003 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SUC GRAY,TRIM1# |
2 | ||
| 71777 - COVER, REAR SEAT SIDE HINGE FEMALE | ||||
| 71777-9570003 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SUC GRAY,TRIM1# |
2 | ||
| 71778 - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-9570003 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SUC GRAY,TRIM1# |
1 | ||
| 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH | ||||
| 71779-9570003 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SUC GRAY,TRIM1# |
1 | ||
| 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH | ||||
| 72065-9570603 |
CM30,40,KM30,YM40..LD ｱﾘ(ﾀﾞﾌﾞﾙ ｽﾍﾟ-ｽ ｱﾂﾌﾟ ｼ-ﾄ),GRAY,GRAY,TRIM1# |
1 | ||
| 72065-9570503 |
KM30..LD,SUC;CM30,40,YM30,40..FXV,GXL,LD GRAY,GRAY,TRIM1# |
1 | ||
| 72066 - BELT SUB-ASSY, REAR SEAT HOOK, LH | ||||
| 72065-9570503 |
KM30..LD,SUC;CM30,40,YM30,40..FXV,GXL,LD GRAY,GRAY,TRIM1# |
1 | ||
| 72065-9570603 |
CM30,40,KM30,YM40..LD ｱﾘ(ﾀﾞﾌﾞﾙ ｽﾍﾟ-ｽ ｱﾂﾌﾟ ｼ-ﾄ),GRAY,GRAY,TRIM1# |
1 | ||
| 72613A - STRIKER, FRONT SEAT LOCK | ||||
| 72613-95702 |
CM30,40,KM30,YM30,40..GXL,LD NO.2 |
2 | ||
| 72613-95705 |
CM30,40,KM30,YM30,40..GXL,LD NO.1 |
2 | ||
| 72613A - STRIKER, FRONT SEAT LOCK | ||||
| 72613-95702 |
CM30,40,KM30,YM30,40..GXL,LD NO.2 |
2 | ||
| 72613-95705 |
CM30,40,KM30,YM30,40..GXL,LD NO.1 |
2 | ||
| 72650B - LOCK ASSY, REAR NO.3 SEAT, RH | ||||
| 72660-95702 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SUC |
1 | ||
| 72658 - KNOB, REAR SEAT HANDLE | ||||
| 72658-9570103 |
CM30,40,KM30,YM30,40..GXL,LD GRAY,TRIM1#,内側 |
1 | ||
| 72639-95J00 |
CM30,40,KM30,YM30,40..GXL,LD 外側 |
1 | ||
| 72658 - KNOB, REAR SEAT HANDLE | ||||
| 72658-9570103 |
CM30,40,KM30,YM30,40..GXL,LD GRAY,TRIM1#,内側 |
1 | ||
| 72639-95J00 |
CM30,40,KM30,YM30,40..GXL,LD 外側 |
1 | ||
| 72660B - LOCK ASSY, REAR NO.3 SEAT, LH | ||||
| 72650-95703 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SUC |
1 | ||
| 72750C - ADJUSTER ASSY, NO.3 SEAT RECLINING, RH | ||||
| 72750-9570303 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SUC GRAY,TRIM1# |
1 | ||
| 72760C - ADJUSTER ASSY, NO.3 SEAT RECLINING, LH | ||||
| 72760-9570303 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SUC GRAY,TRIM1# |
1 | ||
| 79031A - COVER SUB-ASSY, NO.3 SEAT CUSHION | ||||
| 79031-9571403 |
CM30,40,KM30,YM40..LD GRAY,TRIM1# |
1 | ||
| 79032 - COVER SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79032-9571303 |
CM30,40,KM30,YM40..LD GRAY,TRIM1# |
1 | ||
| 79033A - COVER SUB-ASSY, NO.3 SEAT BACK | ||||
| 79033-9573003 |
CM30,40,KM30,YM40..LD GRAY,TRIM1# |
1 | ||
| 79034 - COVER SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79034-9572003 |
CM30,40,KM30,YM40..LD GRAY,TRIM1# |
1 | ||
| 79037A - PAD SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79037-95708 |
CM30,40,KM30,YM40..LD |
1 | ||
| 79038A - PAD SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79038-95708 |
CM30,40,KM30,YM40..LD |
1 | ||
| 79305 - LEG SUB-ASSY, NO.3 SEAT | ||||
| 79305-95703 |
CM30,40,KM30,YM40..LD |
1 | ||
| 79306 - LEG SUB ASSY, NO.3 SEAT, LH | ||||
| 79306-95703 |
CM30,40,KM30,YM40..LD |
1 | ||
| 79320A - CUSHION ASSY, NO.3 SEAT | ||||
| 79320-9571503 |
CM30,40,KM30,YM40..LD ***,GRAY,TRIM1# |
1 | ||
| 79330 - CUSHION ASSY, NO.3 SEAT, LH | ||||
| 79330-9571403 |
CM30,40,KM30,YM40..LD ***,GRAY,TRIM1# |
1 | ||
| 79335 - PAD, NO.3 SEAT CUSHION | ||||
| 79035-95705 |
CM30,40,KM30,YM30,40..GXL,LD,SUC 右側 |
1 | ||
| 79036-95704 |
CM30,40,KM30,YM30,40..GXL,LD,SUC 左側 |
1 | ||
| 79335 - PAD, NO.3 SEAT CUSHION | ||||
| 79035-95705 |
CM30,40,KM30,YM30,40..GXL,LD,SUC 右側 |
1 | ||
| 79036-95704 |
CM30,40,KM30,YM30,40..GXL,LD,SUC 左側 |
1 | ||
| 79340A - BACK ASSY, NO.3 SEAT | ||||
| 79340-9572503 |
CM30,40,KM30,YM40..LD ***,GRAY,TRIM1# |
1 | ||
| 79350 - BACK ASSY, NO.3 SEAT, LH | ||||
| 79350-9571503 |
CM30,40,KM30,YM40..LD ***,GRAY,TRIM1# |
1 | ||
| 79354 - COVER, NO.3 SEAT BACK HINGE | ||||
| 79354-9570003 |
CM30,40,KM30,YM40..LD GRAY,TRIM1# |
4 | ||
| 79354 - COVER, NO.3 SEAT BACK HINGE | ||||
| 79354-9570003 |
CM30,40,KM30,YM40..LD GRAY,TRIM1# |
4 | ||
| 79361 - BRACKET, NO.3 SEAT SUPPORT | ||||
| 79361-95701 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SUC |
2 | ||
| 79361 - BRACKET, NO.3 SEAT SUPPORT | ||||
| 79361-95701 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SUC |
2 | ||
| 79372 - COVER, NO.3 SEAT FRONT BRACKET, RH | ||||
| 79372-9570203 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SUC GRAY,TRIM1# |
1 | ||
| 79374 - COVER, NO.3 SEAT LEG, REAR RH | ||||
| 79374-9570003 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SUC SHADOW GRAY,TRIM1# |
2 | ||
| 79374 - COVER, NO.3 SEAT LEG, REAR RH | ||||
| 79374-9570003 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SUC SHADOW GRAY,TRIM1# |
2 | ||
| 79378 - COVER, NO.3 SEAT CUSHION HINGE | ||||
| 79378-9570003 |
CM30,40,KM30,YM40..LD GRAY,TRIM1# |
4 | ||
| 79378 - COVER, NO.3 SEAT CUSHION HINGE | ||||
| 79378-9570003 |
CM30,40,KM30,YM40..LD GRAY,TRIM1# |
4 | ||
| 79382 - COVER, NO.3 SEAT FRONT BRACKET, LH | ||||
| 79382-9570103 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SUC GRAY,TRIM1# |
1 | ||
| 79383 - COVER, NO.3 SEAT BRACKET SUPPORT | ||||
| 79383-9570003 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SUC GRAY,TRIM1# |
2 | ||
| 79383 - COVER, NO.3 SEAT BRACKET SUPPORT | ||||
| 79383-9570003 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SUC GRAY,TRIM1# |
2 | ||
| 79384 - COVER, NO.3 SEAT LEG, REAR LH | ||||
| 79384-9570103 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SUC SHADOW GRAY,TRIM1# |
2 | ||
| 79384 - COVER, NO.3 SEAT LEG, REAR LH | ||||
| 79384-9570103 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SUC SHADOW GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90109-08170 | ||||
| 90119-10315 | ||||
| 90119-10392 | ||||
| 90119-10418 | ||||
| 90149-60056 | ||||
| 90164-50020 | ||||
| 90201-06008 | ||||
| 90249-08155 | ||||
| 90386-12018 | ||||
| 90467-18071 | ||||
| 90468-18071 | ||||
| 90507-29007 | ||||
| 90523-08001 | ||||
| 91611-61020 | ||||
| 91652-61020 | ||||
| 93269-55008 | ||||
| 93385-16012 | ||||
| 93560-55016 | ||||
| 96160-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
