YM40G-MNS (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 3YU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )MRF..LD

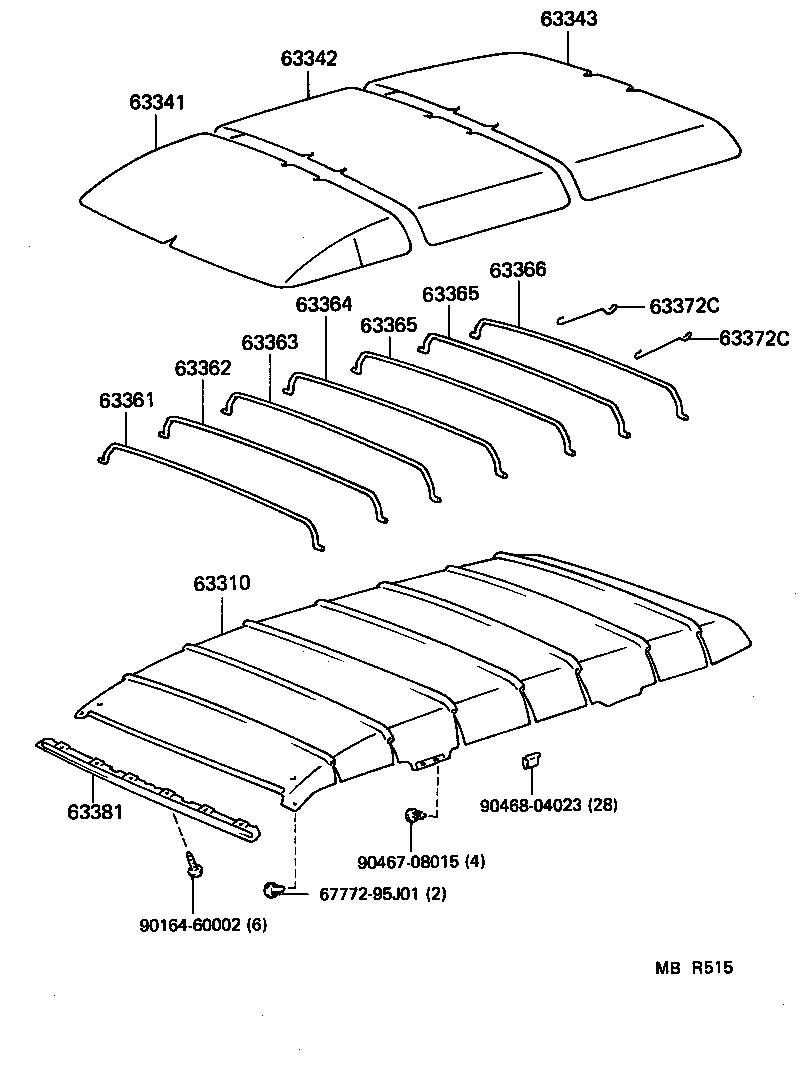

Click highlighted areas on diagram

diagram 63310 63341 63342 63343 63361 63362 63363 63364 63365 63365 63366 63372C 63372C 63381 6777295J01 9016460002 9046708015 9046804023
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-9570803

CM30,40,KM30,YM40..MRF..LD

GRAY,TRIM1#

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-95712

CM30..5F..GXL;CM30..MRF..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..MRF..(GXL,LD,SCA,SUC)

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-95727

CM30..5F..GXL;CM30..MRF..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..MRF..(GXL,LD,SCA,SUC)

 1
63343 - PAD, ROOF SILENCER, NO.3
63343-95711

CM30..5F..GXL;CM30..MRF..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..MRF..(GXL,LD,SCA,SUC)

 2
63361 - SUPPORT, ROOF HEADLINING, NO.1
63361-95702

CM30..5F..GXL;CM30..MRF..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..MRF..(GXL,LD,SCA,SUC)

 1
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-95702

CM30..5F..GXL;CM30..MRF..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..MRF..(GXL,LD,SCA,SUC)

 1
63363 - SUPPORT, ROOF HEADLINING, NO.3
63363-95702

CM30..5F..GXL;CM30..MRF..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..MRF..(GXL,LD,SCA,SUC)

 1
63364 - SUPPORT, ROOF HEADLINING, NO.4
63364-95701

CM30..5F..GXL;CM30..MRF..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..MRF..(GXL,LD,SCA,SUC)

 1
63365 - SUPPORT, ROOF HEADLINING, NO.5
63365-95701

CM30..5F..GXL;CM30..MRF..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..MRF..(GXL,LD,SCA,SUC)

 2
63365 - SUPPORT, ROOF HEADLINING, NO.5
63365-95701

CM30..5F..GXL;CM30..MRF..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..MRF..(GXL,LD,SCA,SUC)

 2
63366 - SUPPORT, ROOF HEADLINING, NO.6
63366-95701

CM30..5F..GXL;CM30..MRF..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..MRF..(GXL,LD,SCA,SUC)

 1
63372C - HOOK, ROOF HEADLINING SUPPORT
63372-95702

CM30..5F..GXL;CM30..MRF..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..MRF..(GXL,LD,SCA,SUC)

 2
63372C - HOOK, ROOF HEADLINING SUPPORT
63372-95702

CM30..5F..GXL;CM30..MRF..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..MRF..(GXL,LD,SCA,SUC)

 2
63381 - RETAINER, HEADLINING, FRONT
63381-95704

CM30..5F..GXL;CM30..(LD,SUC)..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,LD,SCA,SUC

 1
Common parts
67772-95J01
90164-60002
90467-08015
90468-04023

(8808- )

Click highlighted areas on diagram

diagram 63031A 63032A 63033A 63034A 63037 63301A 63302A 63303B 63304B 63305D 63306D 63308C 63309 63310D 63310H 63310H 63311A 63312A 63319C 63319C 63319C 63334C 63337 63337 63338F 63338F 63348D 63348D 63351B 63375 63375D 63376C 63376C 63377D 63377D 63378D 63378D 63383 63384 63399C 63399C 63607 63608 63609 63641 63642B 63643 63644A 63645A 63646A 63647 63647 63648 63648 63651A 63652A 63653A 63654A 63655A 63655A 63657A 63658A 9016460002 9016460002 9018906024 9338516012 9356055025
Part # Description Qty Price
Common parts
90164-60002
90189-06024
93385-16012
93560-55025
