YM40G-MNS (1988)
Toyota Liteace Van,Wagon
Production
Aug 1988
-
Jan 1992
Engine
3YU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

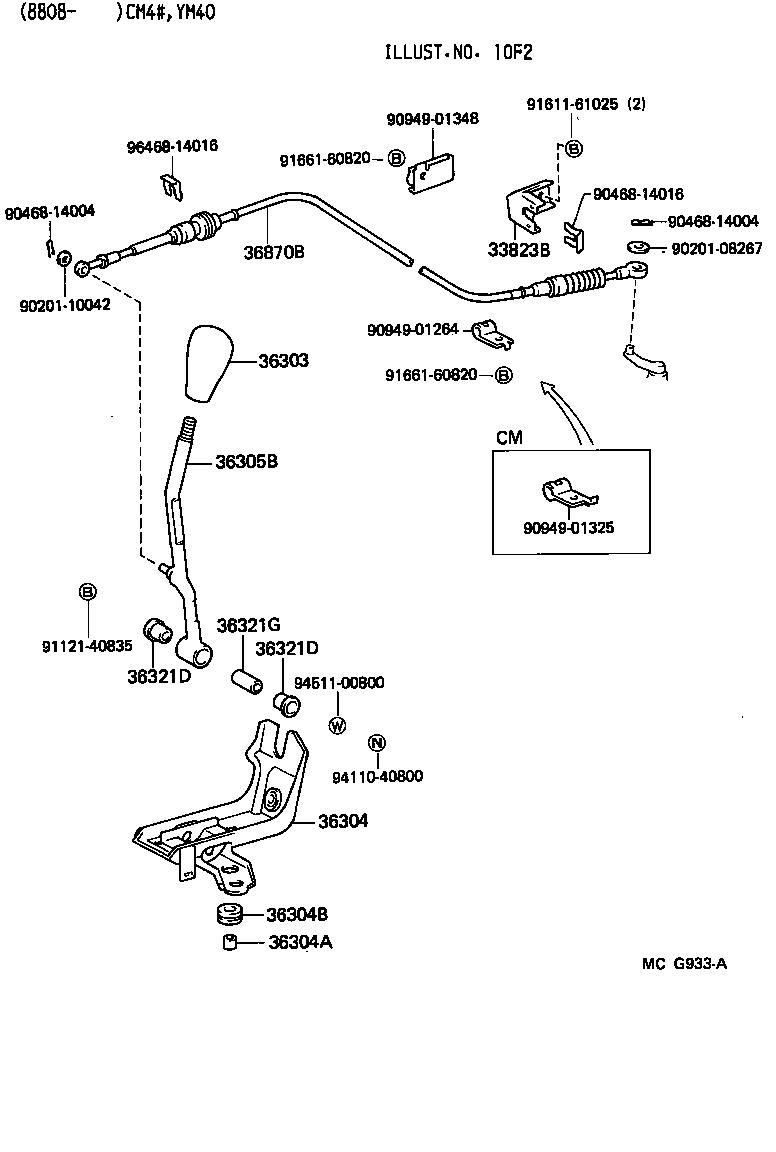

ILLUST NO. 1 OF 2(8808- )CM4#,YM40
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33823B - BRACKET, TRANSFER CONTROL CABLE | ||||
| 33823-28100 |
CM4#,YM40 |
1 | ||
| 36303 - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 36303-2701013 |
CM40..5F..(LD,SW);CM41,YM40..DLX,LD,SW GRAY,TRIM1# |
1 | ||
| 36304 - RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER | ||||
| 33506-27040 |
CM4#,YM40 |
1 | ||
| 36304A - COLLER (FOR TRANSFER CONTROL SHIFT LEVER RETAINER) | ||||
| 90387-09011 |
CM4#,YM40 |
2 | ||
| 36304B - GROMMET (FOR TRANSFER CONTROL SHIFT LEVER RETAINER) | ||||
| 90480-13012 |
CM4#,YM40 |
2 | ||
| 36305B - LEVER SUB-ASSY, TRANSFER SHIFT | ||||
| 33530-27170 |
CM4#,YM40 |
1 | ||
| 36321D - BUSH (FOR TRANSFER SHIFT LEVER) | ||||
| 90385-11003 |
CM4#,YM40 |
2 | ||
| 36321D - BUSH (FOR TRANSFER SHIFT LEVER) | ||||
| 90385-11003 |
CM4#,YM40 |
2 | ||
| 36321G - COLLER (FOR TRANSFER SHIFT LEVER) | ||||
| 90387-08069 |
CM4#,YM40 |
1 | ||
| 36870B - CABLE ASSY, TRANSFER CONTROL | ||||
| 36870-27010 |
CM4#,YM40..5F |
1 | ||
| Common parts | ||||
| 90201-08267 | ||||
| 90201-10042 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 90949-01264 | ||||
| 90949-01325 | ||||
| 90949-01348 | ||||
| 91121-40835 | ||||
| 91611-61025 | ||||
| 91661-60820 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 96468-14016 | ||||

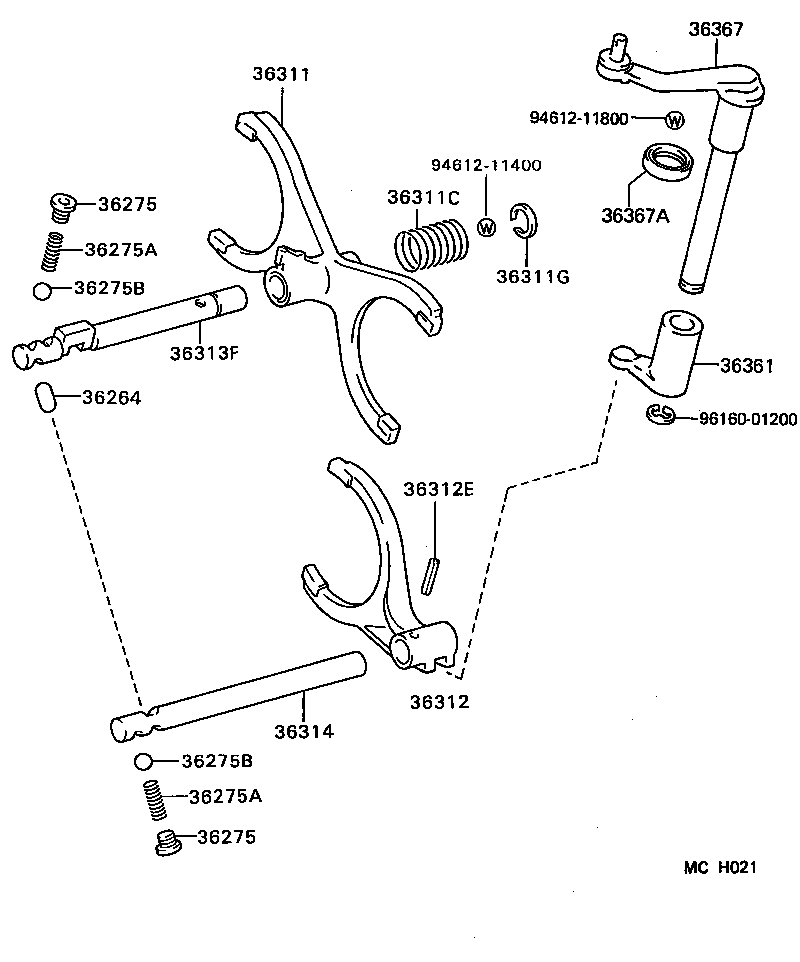

ILLUST NO. 2 OF 2(8808- )CM4#,YM40
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36264 - PIN OR ROLLER, SHIFT INTER-LOCK | ||||
| 90250-10013 |
CM4#,YM40 長さ=17.08,外径=9.53 |
1 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
CM4#,YM40 |
2 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
CM4#,YM40 |
2 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-12106 |
CM4#,YM40 長さ=52.3,NO.1 |
1 | ||
| 90501-16094 |
CM4#,YM40 長さ=38.4,NO.2 |
1 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-12106 |
CM4#,YM40 長さ=52.3,NO.1 |
1 | ||
| 90501-16094 |
CM4#,YM40 長さ=38.4,NO.2 |
1 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
CM4#,YM40 外径=9.52,ｽﾁｰﾙ |
2 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
CM4#,YM40 外径=9.52,ｽﾁｰﾙ |
2 | ||
| 36311 - FORK, TRANSFER GEAR SHIFT, NO.1 | ||||
| 36301-28010 |
CM4#,YM40 |
1 | ||
| 36301-26010 |
CM4#,YM40 |
1 | ||
| 36311C - SPRING, COMPRESION (FOR SHIFT FORK) | ||||
| 90501-23091 |
CM4#,YM40 |
1 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13001 |
CM4#,YM40 |
1 | ||
| 36312 - FORK, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36312-27010 |
CM4#,YM40 |
1 | ||
| 36312E - PIN, SLOTTED SPRING (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90254-05001 |
CM4#,YM40 |
1 | ||
| 36313F - SHAFT, TRANSFER FRONT DRIVE SHIFT FORK | ||||
| 36313-28020 |
CM4#,YM40 |
1 | ||
| 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK | ||||
| 36314-28020 |
CM4#,YM40 |
1 | ||
| 36361 - LEVER, TRANSFER SHIFT, INNER | ||||
| 36361-27010 |
CM4#,YM40 |
1 | ||
| 36367 - SHAFT, TRANSFER SHIFT INNER LEVER | ||||
| 36367-27010 |
CM4#,YM40 |
1 | ||
| 36367A - SEAL, OIL (FOR TRANSFER SHIFT INNER LEVER SHAFT) | ||||
| 90311-18006 |
CM4#,YM40 |
1 | ||
| Common parts | ||||
| 94612-11400 | ||||
| 94612-11800 | ||||
| 96160-01200 | ||||
