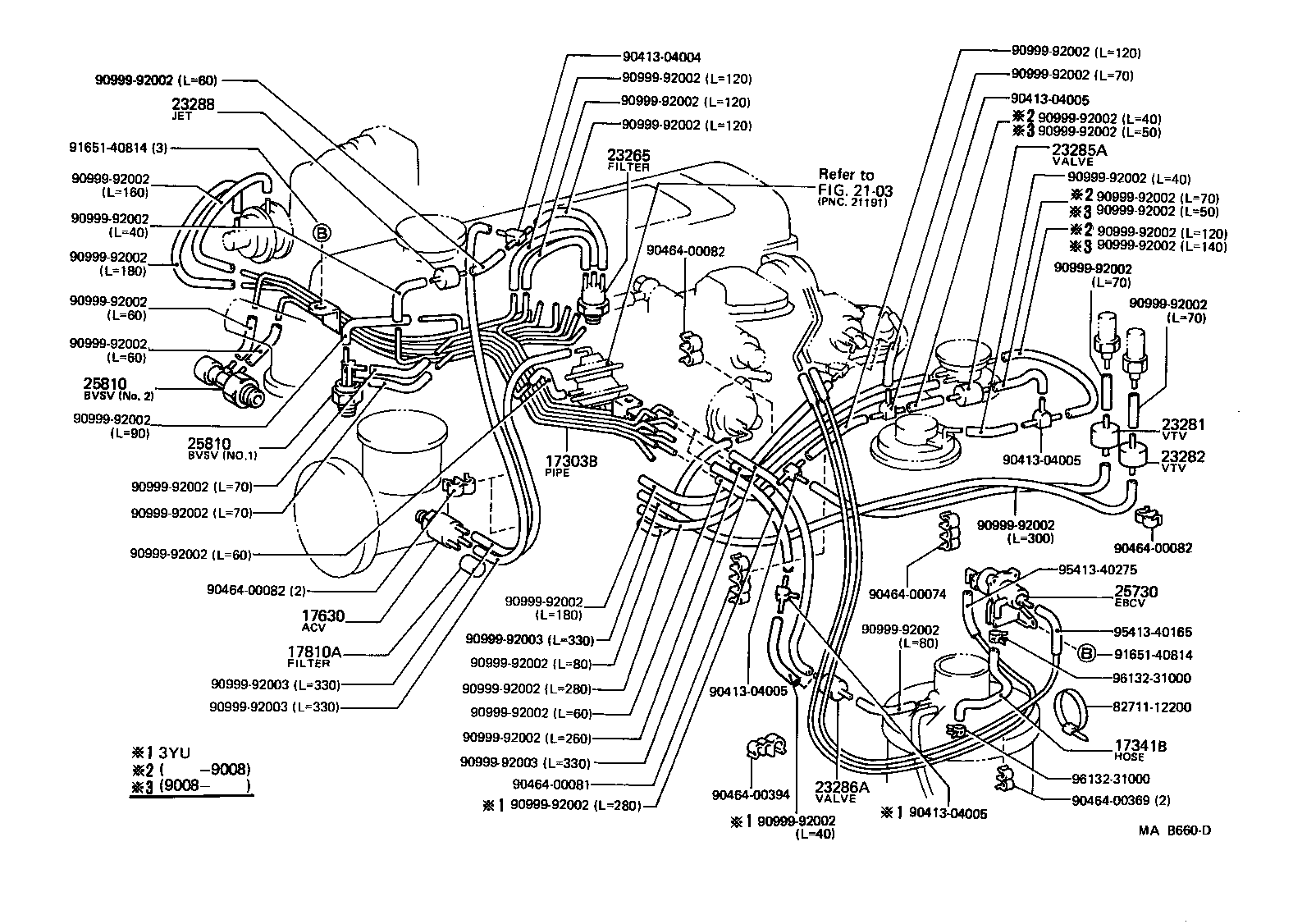

Toyota Liteace van,wagon YM40 VACUUM PIPING

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-71011	2YU,3YU..YM30,40	08/1988 - 01/1992	1
17341B - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-72020	2YU,3YU..YM30,40	08/1988 - 01/1992	1
17630 - VALVE ASSY, AIR CONTROL
17630-28020	2Y#,3YU..YM3#,40	08/1988 - 01/1992	1
17810A - FILTER ASSY, AIR
90925-06007	2Y#,3YU..YM3#,40	08/1988 - 01/1992	1
23265 - FILTER, GAS, NO.1
90917-11024	2YU,3YU..YM30,40	08/1988 - 04/1990	1
90917-11027	2Y#,3YU..YM3#,40	08/1990 - 01/1992	1
90917-11027	2YU,3YU..YM30,40	04/1990 - 08/1990	1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01027	2YU,3YU..YM30,40	08/1990 - 01/1992	1
90925-01027	2YU,3YU..YM30,40	08/1988 - 08/1990	1
23282 - VALVE, VACUUM TRANSMITTING, NO.2
90925-01027	2YU,3YU..YM30,40	08/1988 - 01/1992	1
23285A - VALVE, CHECK, NO.1
90917-10049	2YU,3YU..YM30,40	08/1988 - 08/1990	1
90917-10049	2Y#,3YU..YM3#,40	08/1990 - 01/1992	1
23286A - VALVE, CHECK, NO.2
90917-10049	2Y#,3YU..YM3#,40	08/1988 - 01/1992	1
23288 - JET, NO.1
90925-04004	2YU,3YU..YM30,40	08/1990 - 01/1992	1
90925-04004	2YU,3YU..YM30,40	08/1988 - 08/1990	1
25730 - VALVE ASSY, ELECTRIC BLEED AIR CONTROL
25730-72021	2YU,3YU..YM30,40	08/1988 - 01/1992	1
25810 - VALVE ASSY, BIMETAL
25820-37010	2YU,3YU..YM30,40 NO.2	08/1988 - 01/1992	1
25810-27010	2YU,3YU..YM30,40 NO.1	08/1988 - 01/1992	1
25810 - VALVE ASSY, BIMETAL
25820-37010	2YU,3YU..YM30,40 NO.2	08/1988 - 01/1992	1
25810-27010	2YU,3YU..YM30,40 NO.1	08/1988 - 01/1992	1
Common parts
82711-12200
90413-04004
90413-04005
90464-00074
90464-00081
90464-00082
90464-00369
90464-00394
90999-92002
90999-92003
91651-40814
95413-40165
95413-40275
96132-31000
Linked diagrams
2103

YM40G-MNS (1988)

(8808- )2YU,3YU
