YM40G-MNS (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 3YU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )2Y#,3YU

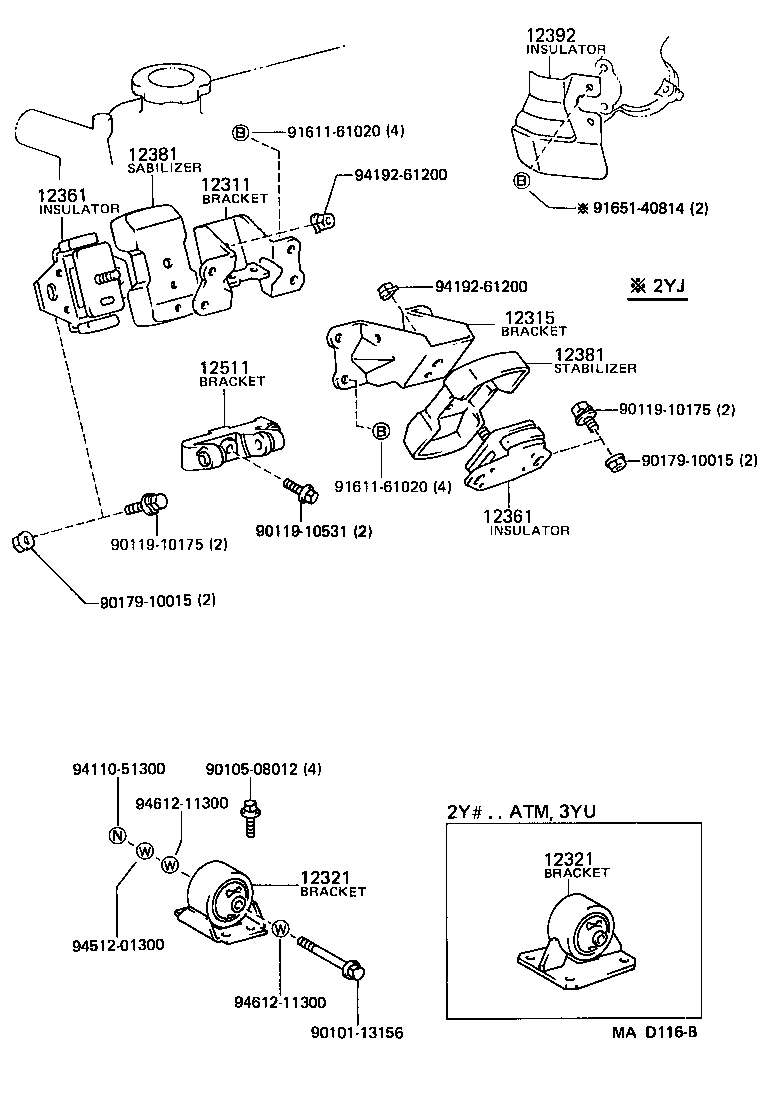

Click highlighted areas on diagram

diagram 12311 12315 12321 12321 12361 12361 12381 12381 12392 12511 9010113156 9010508012 9011910175 9011910175 9011910531 9017910015 9017910015 9161161020 9161161020 9165140814 9411051300 9419261200 9419261200 9451201300 9461211300 9461211300
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-71010

2Y#,3YU..YM3#,40

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-71010

2Y#,3YU..YM3#,40

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12303-54010

3YU..YM40

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12303-54010

3YU..YM40

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-71020

2Y#,3YU..YM3#,40

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-71020

2Y#,3YU..YM3#,40

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-71030

2Y#,3YU..YM3#,40

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-71030

2Y#,3YU..YM3#,40

 2
12392 - INSULATOR, ENGINE MOUNTING HEAT, FRONT LH
12391-72010

2Y#,3YU..YM3#,40

 1
12511 - BRACKET, ALTERNATOR, NO.1
12501-73011

2Y#,3YU..YM3#,40

 1
Common parts
90101-13156
90105-08012
90119-10175
90119-10531
90179-10015
91611-61020
91651-40814
94110-51300
94192-61200
94512-01300
94612-11300
