YM40G-MES (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 3YU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(8510- )YM40

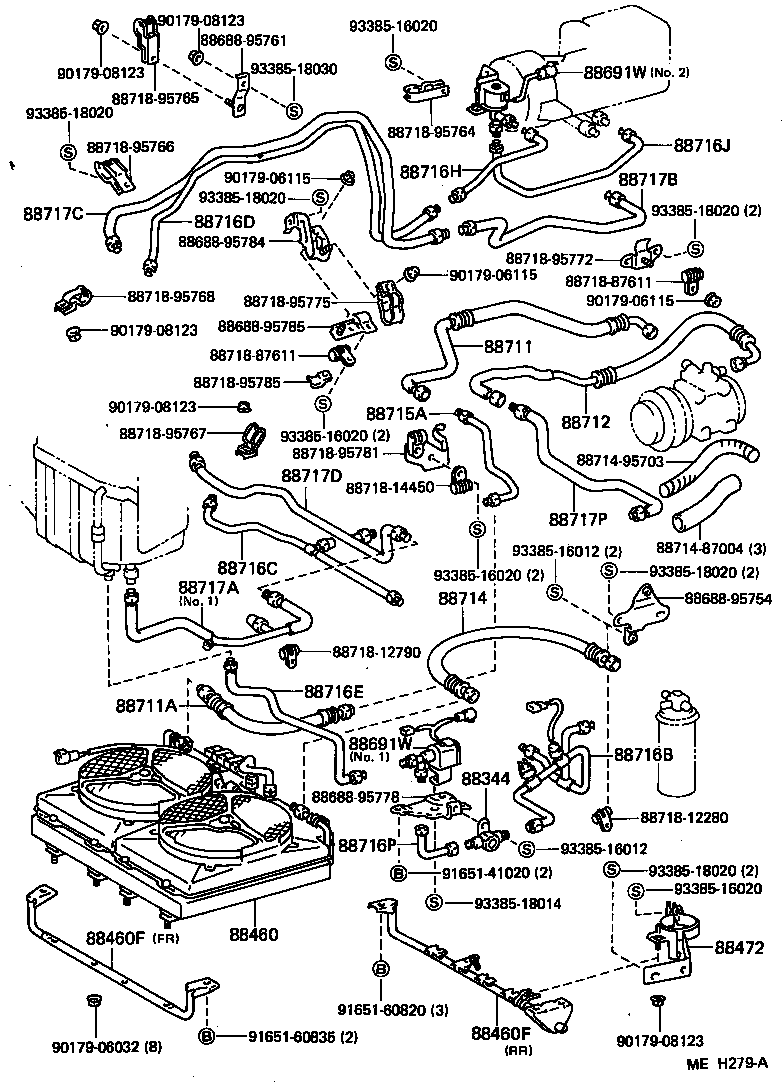

Click highlighted areas on diagram

diagram 88344 88460 88460F 88460F 88472 8868895754 8868895761 8868895778 8868895784 8868895785 88691W 88691W 88711 88711A 88712 88714 8871487004 8871495703 88715A 88716B 88716C 88716D 88716E 88716H 88716J 88716P 88717A 88717B 88717C 88717D 88717P 8871812280 8871812790 8871814450 8871887611 8871887611 8871895764 8871895765 8871895766 8871895767 8871895768 8871895772 8871895775 8871895781 8871895785 9017906032 9017906115 9017906115 9017906115 9017908123 9017908123 9017908123 9017908123 9017908123 9165141020 9165160820 9165160835 9338516012 9338516012 9338516020 9338516020 9338516020 9338516020 9338518014 9338518020 9338518020 9338518020 9338518020 9338518020 9338518030
Part # Description Qty Price
88344 - GLASS SUB-ASSY, SIGHT
88481-87002

CM3#,4#,KM3#,YM30,40

 1
88460 - CONDENSER ASSY, COOLER
88460-95713

CM40,YM40

 1
88460F - BRACKET, COOLER CONDENSER, NO.4
88688-95771

CM40,YM40

RR

 1
88688-95776

CM40,YM40

FR

 1
88460F - BRACKET, COOLER CONDENSER, NO.4
88688-95771

CM40,YM40

RR

 1
88688-95776

CM40,YM40

FR

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95706

CM40,YM40

 1
88691W - VALVE, MAGNET
88690-95754

CM30,40,KM30,YM30,40..MRF

NO.2

 1
88690-95739

CM30,40,KM30,YM30,40..MRF

NO.3

 1
88690-95739

CM30,40,KM30,YM30,40..3FC,4F,4FC,5F

NO.3(COOL BOX)

 1
88690-95752

CM30,40,KM30,YM30,40..MRF

NO.1

 1
88690-95754

CM30,40,KM30,YM30,40..HRF,MRF

NO.2

 1
88690-95752

CM30,40,KM30,YM30,40..HRF,MRF

NO.1(W/*ODAC OR COOL BOX)

 1
88691W - VALVE, MAGNET
88690-95754

CM30,40,KM30,YM30,40..MRF

NO.2

 1
88690-95739

CM30,40,KM30,YM30,40..MRF

NO.3

 1
88690-95739

CM30,40,KM30,YM30,40..3FC,4F,4FC,5F

NO.3(COOL BOX)

 1
88690-95752

CM30,40,KM30,YM30,40..MRF

NO.1

 1
88690-95754

CM30,40,KM30,YM30,40..HRF,MRF

NO.2

 1
88690-95752

CM30,40,KM30,YM30,40..HRF,MRF

NO.1(W/*ODAC OR COOL BOX)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95737

YM40

 1
88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2
88711-95739

CM40,YM40

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95732

YM40

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95712

CM4#,YM40

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-95705

CM4#,YM40

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95737

CM40,YM40

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-95740

CM40,YM40

 1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-95743

CM30,40,KM30,YM30,40..MRF

 1
88716-95743

CM30,40,KM30,YM30,40..HRF,MRF

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-95738

CM30,40,KM30,YM30,40..HRF,MRF

W/*ODAC OR COOL BOX

 1
88716-95738

CM30,40,KM30,YM30,40..MRF

W/*ODAC

 1
88716H - PIPE, COOLER REFRIGERANT LIQUID, H
88716-95742

CM30,40,KM30,YM30,40..MRF

 1
88716-95742

CM30,40,KM30,YM30,40..HRF,MRF

 1
88716J - PIPE, COOLER REFRIGERANT LIQUID, J
88716-95757

CM30,40,KM30,YM30,40..MRF

 1
88716-95757

CM30,40,KM30,YM30,40..HRF,MRF

 1
88716P - PIPE, COOLER REFRIGERANT LIQUID, P
88716-95755

CM30,40,KM30,YM30,40..HRF,MRF

W/*ODAC OR COOL BOX

 1
88716-95755

CM30,40,KM30,YM30,40..MRF

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95731

YM40

 1
88717-95741

CM30,40,KM30,YM30,40..MRF

NO.2(COOL BOX)

 1
88717-95741

CM30,40,KM30,YM30,40..3FC,4F,4FC,5F

NO.2(COOL BOX)

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-95726

CM30,40,KM30,YM30,40..MRF

W/*ODAC

 1
88717-95726

CM30,40,KM30,YM30,40..HRF,MRF

W/*ODAC

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-95727

CM30,40,KM30,YM30,40..MRF

 1
88717-95727

CM30,40,KM30,YM30,40..HRF,MRF

 1
88717D - PIPE, COOLER REFRIGERANT SUCTION, D
88717-95733

YM40

 1
88717P - PIPE, COOLER REFRIGERANT SUCTION, P
88717-95725

YM40

 1
Common parts
88688-95754
88688-95761
88688-95778
88688-95784
88688-95785
88714-87004
88714-95703
88718-12280
88718-12790
88718-14450
88718-87611
88718-95764
88718-95765
88718-95766
88718-95767
88718-95768
88718-95772
88718-95775
88718-95781
88718-95785
90179-06032
90179-06115
90179-08123
91651-41020
91651-60820
91651-60835
93385-16012
93385-16020
93385-18014
93385-18020
93385-18030
