YM40G-MES (1985)
Toyota Liteace Van,Wagon
Production
Oct 1985
-
Aug 1988
Engine
3YU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8510- )CM4#,YM40

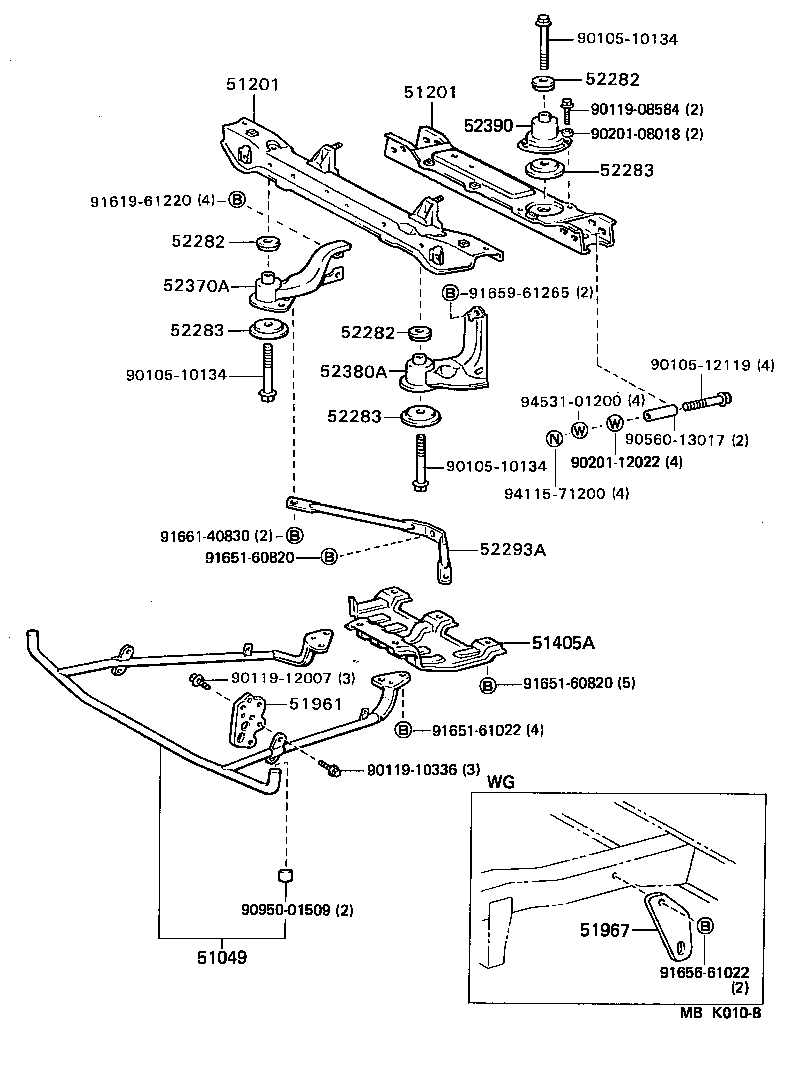

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51049 - BAR SUB-ASSY, UNDER GUARD, FRONT | ||||
| 51040-95700 |
CM4#,YM40 |
1 | ||
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51203-95D00 |
CM4#,YM40 RR |
1 | ||
| 51201-95D00 |
CM4#,YM40 FR |
1 | ||
| 51203-95D01 |
CM4#,YM40 RR |
1 | ||
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51203-95D00 |
CM4#,YM40 RR |
1 | ||
| 51201-95D00 |
CM4#,YM40 FR |
1 | ||
| 51203-95D01 |
CM4#,YM40 RR |
1 | ||
| 51405A - COVER SUB-ASSY, ENGINE UNDER, NO.1 | ||||
| 51405-95D00 |
YM40 |
1 | ||
| 51441-95D00 |
CM4#,YM40 |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51962-95700 |
CM4#,YM40 LH |
1 | ||
| 51961-95701 |
CM4#,YM40 RH |
1 | ||
| 51967 - HOOK, TRANSPORT, REAR | ||||
| 51096-95700 |
CM30,4#,KM30,YM30,40 |
1 | ||
| 52282 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER | ||||
| 52282-95D00 |
CM4#,YM40 |
3 | ||
| 52282 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER | ||||
| 52282-95D00 |
CM4#,YM40 |
3 | ||
| 52282 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER | ||||
| 52282-95D00 |
CM4#,YM40 |
3 | ||
| 52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER | ||||
| 52283-95D01 |
CM4#,YM40 RR |
1 | ||
| 52283-95D00 |
CM4#,YM40 FR |
2 | ||
| 52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER | ||||
| 52283-95D01 |
CM4#,YM40 RR |
1 | ||
| 52283-95D00 |
CM4#,YM40 FR |
2 | ||
| 52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER | ||||
| 52283-95D01 |
CM4#,YM40 RR |
1 | ||
| 52283-95D00 |
CM4#,YM40 FR |
2 | ||
| 52293A - BRACE, FRONT DIFFERENTIAL SUPPORT | ||||
| 52293-95D00 |
CM4#,YM40 |
1 | ||
| 52370A - SUPPORT ASSY, FRONT DIFFERENTIAL, FRONT RH | ||||
| 52370-95D00 |
CM4#,YM40 |
1 | ||
| 52370-95D01 |
CM4#,YM40 |
1 | ||
| 52380A - SUPPORT ASSY, FRONT DIFFERENTIAL, FRONT LH | ||||
| 52380-95D01 |
CM4#,YM40 |
1 | ||
| 52380-95D00 |
CM4#,YM40 |
1 | ||
| 52390 - SUPPORT ASSY, FRONT DIFFERENTIAL, REAR | ||||
| 52390-95D00 |
CM4#,YM40 |
1 | ||
| Common parts | ||||
| 90105-10134 | ||||
| 90105-12119 | ||||
| 90119-08584 | ||||
| 90119-10336 | ||||
| 90119-12007 | ||||
| 90201-08018 | ||||
| 90201-12022 | ||||
| 90560-13017 | ||||
| 90950-01509 | ||||
| 91619-61220 | ||||
| 91651-60820 | ||||
| 91651-61022 | ||||
| 91656-61022 | ||||
| 91659-61265 | ||||
| 91661-40830 | ||||
| 94115-71200 | ||||
| 94531-01200 | ||||
