YM40G-MBS (1988)
Toyota Liteace Van,Wagon
(8808- )YM40

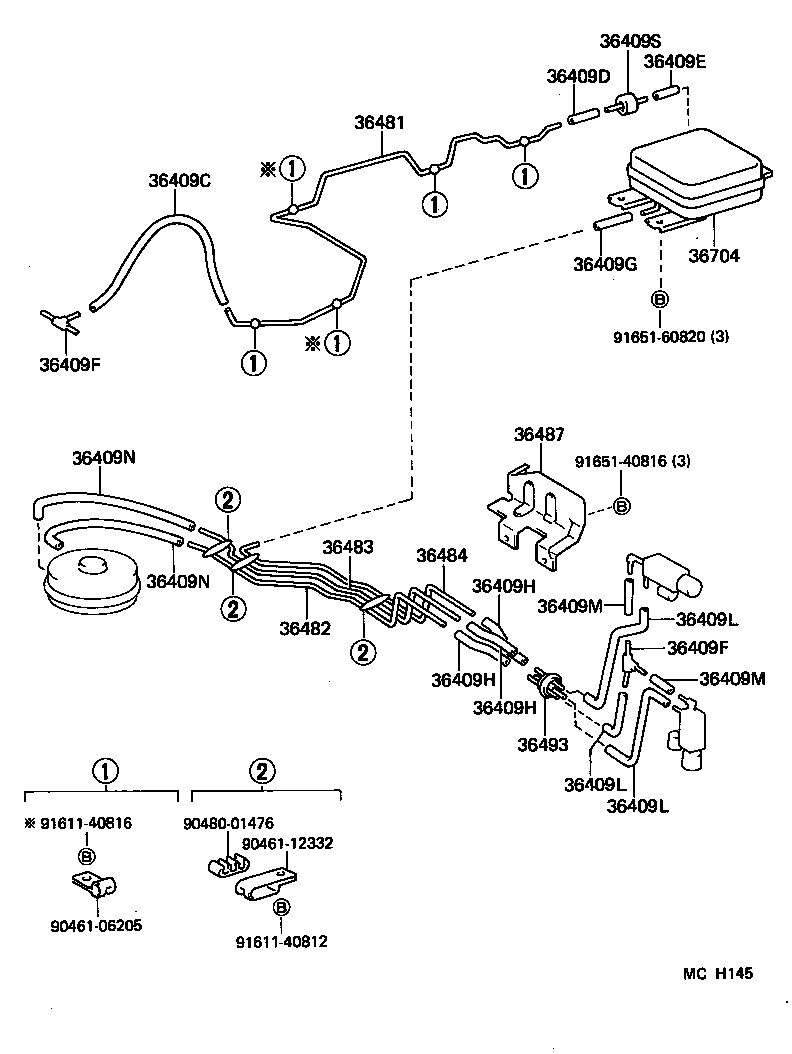

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36409C - HOSE, VACUUM, NO.1 (FOR FRONT DRIVE SHIFT) | ||||
| 90999-92003 |
YM40 長さ=600 |
1 | ||
| 36409D - HOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT) | ||||
| 90999-92002 |
CM4#,YM40 *H,L=300 |
1 | ||
| 36409E - HOSE, VACUUM, NO.3 (FOR FRONT DRIVE SHIFT) | ||||
| 90999-92002 |
CM4#,YM40 *H,L=300 |
1 | ||
| 36409F - WAY, 3, NO.1 (FOR FRONT DRIVE SHIFT) | ||||
| 90413-06004 |
YM40 NO.2 |
1 | ||
| 90413-04005 |
YM40 NO.1 |
1 | ||
| 36409F - WAY, 3, NO.1 (FOR FRONT DRIVE SHIFT) | ||||
| 90413-06004 |
YM40 NO.2 |
1 | ||
| 90413-04005 |
YM40 NO.1 |
1 | ||
| 36409G - HOSE, VACUUM, NO.4 (FOR FRONT DRIVE SHIFT) | ||||
| 90445-10034 |
CM4#,YM40 長さ=70 |
1 | ||
| 36409H - HOSE, VACUUM, NO.5 (FOR FRONT DRIVE SHIFT) | ||||
| 90445-10049 |
CM4#,YM40 長さ=110,ﾏｰｸ 1 |
1 | ||
| 90445-10048 |
CM4#,YM40 長さ=110,ﾏｰｸ 0 |
1 | ||
| 90445-10050 |
CM4#,YM40 長さ=110,ﾏｰｸ 2 |
1 | ||
| 36409H - HOSE, VACUUM, NO.5 (FOR FRONT DRIVE SHIFT) | ||||
| 90445-10049 |
CM4#,YM40 長さ=110,ﾏｰｸ 1 |
1 | ||
| 90445-10048 |
CM4#,YM40 長さ=110,ﾏｰｸ 0 |
1 | ||
| 90445-10050 |
CM4#,YM40 長さ=110,ﾏｰｸ 2 |
1 | ||
| 36409H - HOSE, VACUUM, NO.5 (FOR FRONT DRIVE SHIFT) | ||||
| 90445-10049 |
CM4#,YM40 長さ=110,ﾏｰｸ 1 |
1 | ||
| 90445-10048 |
CM4#,YM40 長さ=110,ﾏｰｸ 0 |
1 | ||
| 90445-10050 |
CM4#,YM40 長さ=110,ﾏｰｸ 2 |
1 | ||
| 36409L - HOSE, VACUUM, NO.7 (FOR FRONT DRIVE SHIFT) | ||||
| 90445-10045 |
CM4#,YM40 L=280, MARK 0 |
1 | ||
| 90445-10047 |
CM4#,YM40 L=300, MARK 2 |
1 | ||
| 90445-10046 |
CM4#,YM40 L=340, MARK 1 |
1 | ||
| 36409L - HOSE, VACUUM, NO.7 (FOR FRONT DRIVE SHIFT) | ||||
| 90445-10045 |
CM4#,YM40 L=280, MARK 0 |
1 | ||
| 90445-10047 |
CM4#,YM40 L=300, MARK 2 |
1 | ||
| 90445-10046 |
CM4#,YM40 L=340, MARK 1 |
1 | ||
| 36409L - HOSE, VACUUM, NO.7 (FOR FRONT DRIVE SHIFT) | ||||
| 90445-10045 |
CM4#,YM40 L=280, MARK 0 |
1 | ||
| 90445-10047 |
CM4#,YM40 L=300, MARK 2 |
1 | ||
| 90445-10046 |
CM4#,YM40 L=340, MARK 1 |
1 | ||
| 36409M - HOSE, VACUUM, NO.8 (FOR FRONT DRIVE SHIFT) | ||||
| 90445-10035 |
CM4#,YM40 長さ=50 |
1 | ||
| 90445-10025 |
CM4#,YM40 長さ=460 |
1 | ||
| 36409M - HOSE, VACUUM, NO.8 (FOR FRONT DRIVE SHIFT) | ||||
| 90445-10035 |
CM4#,YM40 長さ=50 |
1 | ||
| 90445-10025 |
CM4#,YM40 長さ=460 |
1 | ||
| 36409N - HOSE, VACUUM, NO.9 (FOR FRONT DRIVE SHIFT) | ||||
| 90447-10010 |
CM4#,YM40..5F L=260, MARK 1 |
1 | ||
| 90447-10011 |
CM4#,YM40..5F L=260, MARK 2 |
1 | ||
| 36409N - HOSE, VACUUM, NO.9 (FOR FRONT DRIVE SHIFT) | ||||
| 90447-10010 |
CM4#,YM40..5F L=260, MARK 1 |
1 | ||
| 90447-10011 |
CM4#,YM40..5F L=260, MARK 2 |
1 | ||
| 36409S - VALVE, CHECK (FOR FRONT DRIVE SHIFT) | ||||
| 90917-10049 |
CM4#,YM40 |
1 | ||
| 36481 - TUBE, FRONT DRIVE VACUUM, NO.1 | ||||
| 36481-27010 |
CM4#,YM40 |
1 | ||
| 36482 - TUBE, FRONT DRIVE VACUUM, NO.2 | ||||
| 36482-27020 |
CM4#,YM40 |
1 | ||
| 36483 - TUBE, FRONT DRIVE VACUUM, NO.3 | ||||
| 36483-27010 |
CM4#,YM40 |
1 | ||
| 36484 - TUBE, FRONT DRIVE VACUUM, NO.4 | ||||
| 36484-27010 |
CM4#,YM40 |
1 | ||
| 36487 - PROTECTOR, TRANSFER VACUUM TUBE | ||||
| 36487-27010 |
CM4#,YM40 |
1 | ||
| 36493 - GROMMET, TRANSFER VACUUM | ||||
| 36493-27010 |
CM4#,YM40 |
1 | ||
| 36704 - RESERVOIR SUB-ASSY, TRANSMISSION VACUUM | ||||
| 36704-27020 |
CM4#,YM40 |
1 | ||
| Common parts | ||||
| 90461-06205 | ||||
| 90461-12332 | ||||
| 90480-01476 | ||||
| 91611-40812 | ||||
| 91611-40816 | ||||
| 91651-40816 | ||||
| 91651-60820 | ||||
