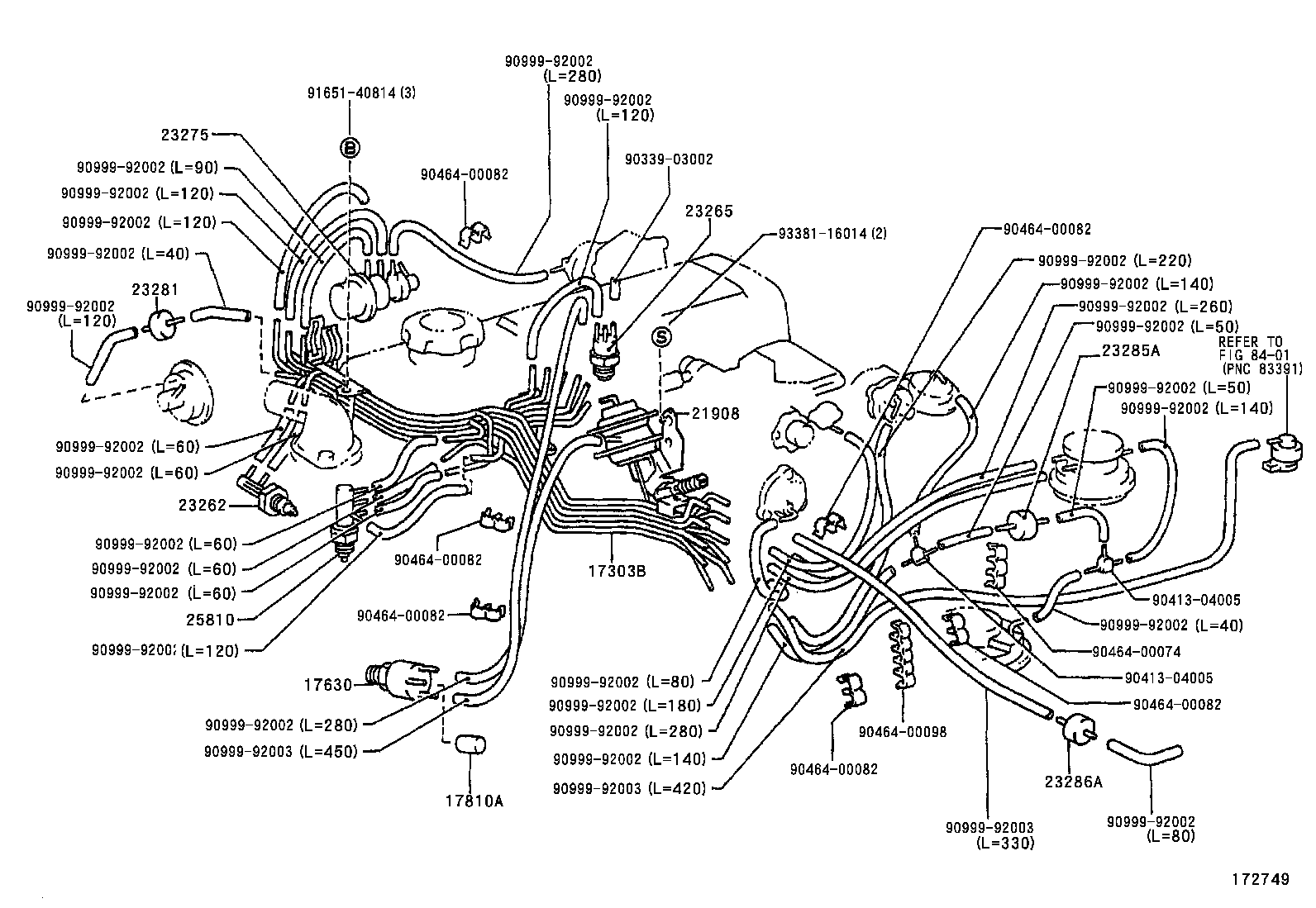

Toyota Liteace van,wagon YM31 VACUUM PIPING

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-72021	2YJ..YM31	08/1990 - 01/1992	1
17630 - VALVE ASSY, AIR CONTROL
17630-28020	2Y#,3YU..YM3#,40	08/1988 - 01/1992	1
17810A - FILTER ASSY, AIR
90925-06007	2Y#,3YU..YM3#,40	08/1988 - 01/1992	1
21908 - ACTUATOR SUB-ASSY, IDLE-UP
21908-71010	2YJ..YM31	08/1990 - 01/1992	1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05044	2YJ..YM31	08/1990 - 01/1992	1
23265 - FILTER, GAS, NO.1
90917-11027	2Y#,3YU..YM3#,40	08/1990 - 01/1992	1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03166	2YJ..YM31	08/1990 - 01/1992	1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01041	2YJ..YM31	08/1990 - 01/1992	1
23285A - VALVE, CHECK, NO.1
90917-10049	2Y#,3YU..YM3#,40	08/1990 - 01/1992	1
23286A - VALVE, CHECK, NO.2
90917-10049	2Y#,3YU..YM3#,40	08/1988 - 01/1992	1
25810 - VALVE ASSY, BIMETAL
90925-02077	2YJ..YM31	08/1990 - 01/1992	1
Common parts
90339-03002
90413-04005
90464-00074
90464-00082
90464-00098
90999-92002
90999-92003
91651-40814
93381-16014
Linked diagrams
8401

YM31V-MNF (1990)
