YM30G-PXS (1985)
Toyota Liteace Van,Wagon
Production
Sep 1985
-
Aug 1988
Engine
2YU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8509- )ATM

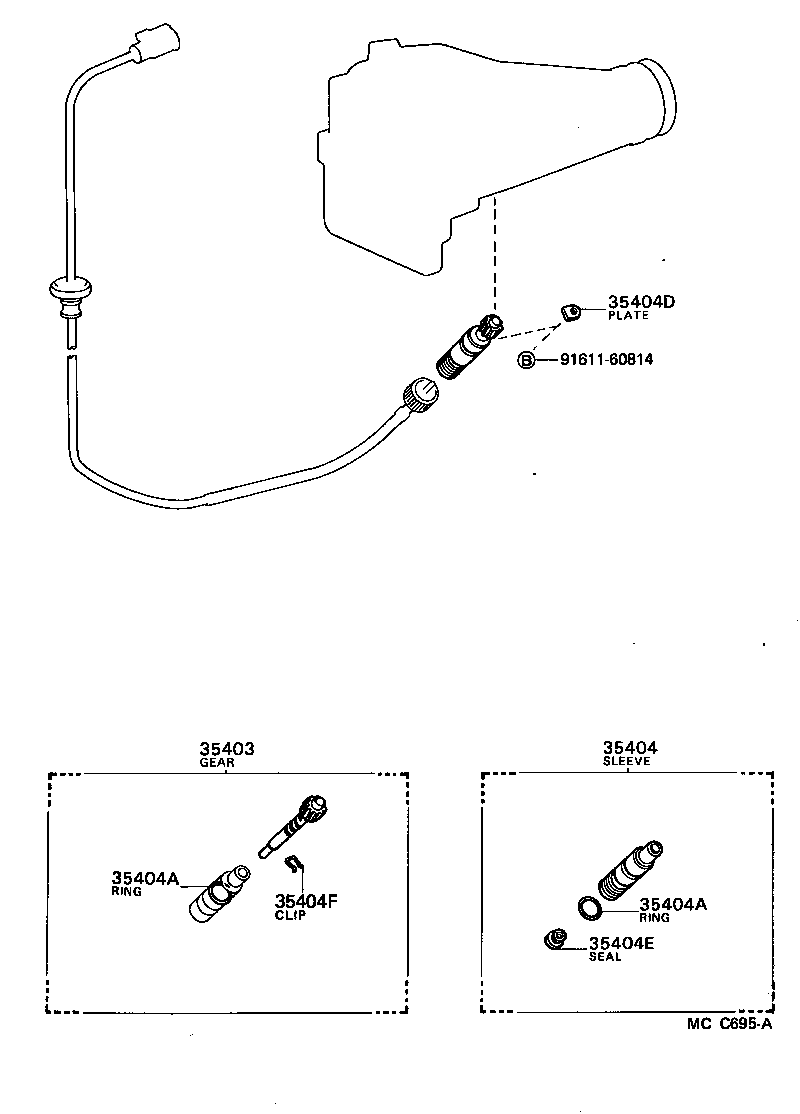

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM) | ||||
| 33482-29025 |
CM30,YM30..4FC..(CBR,TD) |
1 | ||
| 35404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM) | ||||
| 33404-30040 |
CM30,36,KM30,31,YM30..ATM |
1 | ||
| 35404A - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18018 |
CM30,36,KM30,31,YM30,40..ATM |
1 | ||
| 90301-18018 |
CM30,36,KM30,31,YM30..ATM |
1 | ||
| 35404A - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18018 |
CM30,36,KM30,31,YM30,40..ATM |
1 | ||
| 90301-18018 |
CM30,36,KM30,31,YM30..ATM |
1 | ||
| 35404D - PLATE, SPEEDOMETER SLEEVE LOCK (ATM) | ||||
| 33485-30020 |
CM30,36,KM30,31,YM30,40..ATM |
1 | ||
| 35404E - SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90310-09001 |
CM30,36,KM30,31,YM30,40..ATM |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
