YM30G-PXS (1985)
Toyota Liteace Van,Wagon

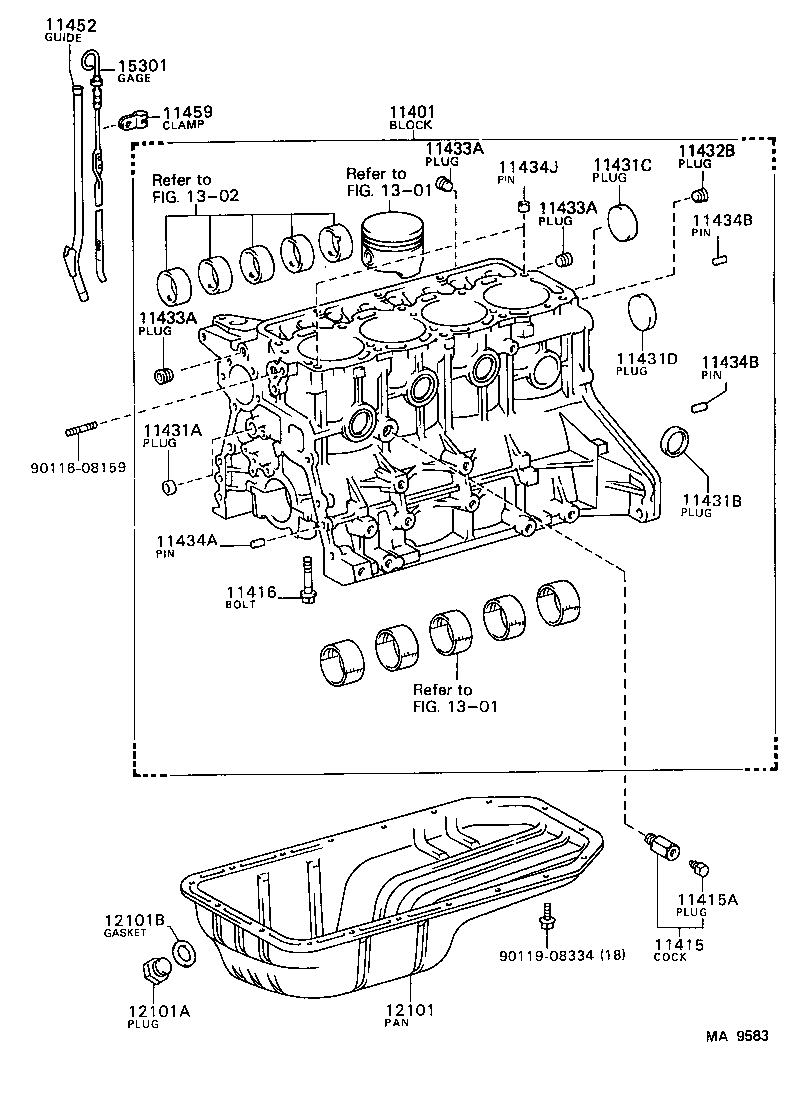

(8509-8703)2YU,3YU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-79066 |
2YU..YM30 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-53828 |
2YU,3YU..YM30,40 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96432-23814 |
2YU,3YU..YM30,40 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02032 |
2YU,3YU..YM30,40 |
10 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-01800 |
2YU,3YU..YM30,40 |
1 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
2YU,3YU..YM30,40 OD=35 |
4 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
2YU,3YU..YM30,40 |
1 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
2YU,3YU..YM30,40 OD=50 |
1 | ||
| 11432B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90344-53011 |
2YU,3YU..YM30,40 |
1 | ||
| 11433A - PLUG, STRAIGHT, NO.1 | ||||
| 90072-34402 |
2YU,3YU..YM30,40 |
3 | ||
| 11433A - PLUG, STRAIGHT, NO.1 | ||||
| 90072-34402 |
2YU,3YU..YM30,40 |
3 | ||
| 11433A - PLUG, STRAIGHT, NO.1 | ||||
| 90072-34402 |
2YU,3YU..YM30,40 |
3 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08120 |
2YU,3YU..YM30,40 長さ=18,外径=8,L=18,OD=8 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-08120 |
2YU,3YU..YM30,40 長さ=18,外径=8,L=18,OD=8 |
2 | ||
| 90250-10113 |
2YU,3YU..YM30,40 長さ=22,外径=10,L=22,OD=10 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-08120 |
2YU,3YU..YM30,40 長さ=18,外径=8,L=18,OD=8 |
2 | ||
| 90250-10113 |
2YU,3YU..YM30,40 長さ=22,外径=10,L=22,OD=10 |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-15016 |
2YU,3YU..YM30,40 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-71020 |
2YU,3YU..YM30,40 |
1 | ||
| 11459 - SUPPORT, OIL LEVEL GAGE GUIDE | ||||
| 11459-71011 |
2YU,3YU..YM30,40 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-71011 |
2YU,3YU..YM30,40 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
2YU,3YU..YM30,40 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12011 |
2YU,3YU..YM30,40 |
1 | ||
| 90430-12019 |
2YU,3YU..YM30,40 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-71020 |
2YU,3YU..YM30,40 |
1 | ||
| Common parts | ||||
| 90116-08159 | ||||
| 90119-08334 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1302 | ||||

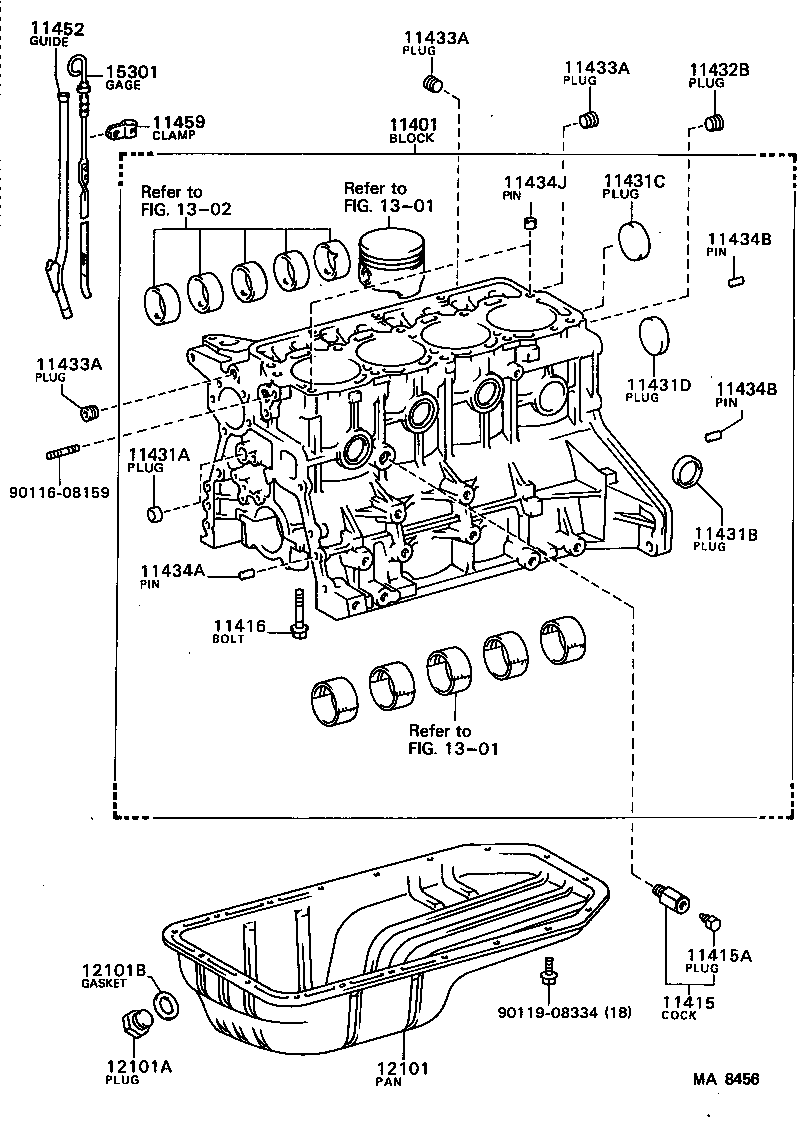

(8703- )2YU,3YU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-79066 |
2YU..YM30 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-53828 |
2YU,3YU..YM30,40 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96432-23814 |
2YU,3YU..YM30,40 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02032 |
2YU,3YU..YM30,40 |
10 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-01800 |
2YU,3YU..YM30,40 |
1 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
2YU,3YU..YM30,40 OD=35 |
4 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
2YU,3YU..YM30,40 |
1 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
2YU,3YU..YM30,40 OD=50 |
1 | ||
| 11432B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90344-53011 |
2YU,3YU..YM30,40 |
1 | ||
| 11433A - PLUG, STRAIGHT, NO.1 | ||||
| 90072-34402 |
2YU,3YU..YM30,40 |
3 | ||
| 11433A - PLUG, STRAIGHT, NO.1 | ||||
| 90072-34402 |
2YU,3YU..YM30,40 |
3 | ||
| 11433A - PLUG, STRAIGHT, NO.1 | ||||
| 90072-34402 |
2YU,3YU..YM30,40 |
3 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08120 |
2YU,3YU..YM30,40 長さ=18,外径=8,L=18,OD=8 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-08120 |
2YU,3YU..YM30,40 長さ=18,外径=8,L=18,OD=8 |
2 | ||
| 90250-10113 |
2YU,3YU..YM30,40 長さ=22,外径=10,L=22,OD=10 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-08120 |
2YU,3YU..YM30,40 長さ=18,外径=8,L=18,OD=8 |
2 | ||
| 90250-10113 |
2YU,3YU..YM30,40 長さ=22,外径=10,L=22,OD=10 |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-15016 |
2YU,3YU..YM30,40 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-71020 |
2YU,3YU..YM30,40 |
1 | ||
| 11459 - SUPPORT, OIL LEVEL GAGE GUIDE | ||||
| 11459-71011 |
2YU,3YU..YM30,40 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-71011 |
2YU,3YU..YM30,40 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
2YU,3YU..YM30,40 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12011 |
2YU,3YU..YM30,40 |
1 | ||
| 90430-12019 |
2YU,3YU..YM30,40 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-71020 |
2YU,3YU..YM30,40 |
1 | ||
| Common parts | ||||
| 90116-08159 | ||||
| 90119-08334 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1302 | ||||
