YM30G-PXS (1988)
Toyota Liteace Van,Wagon

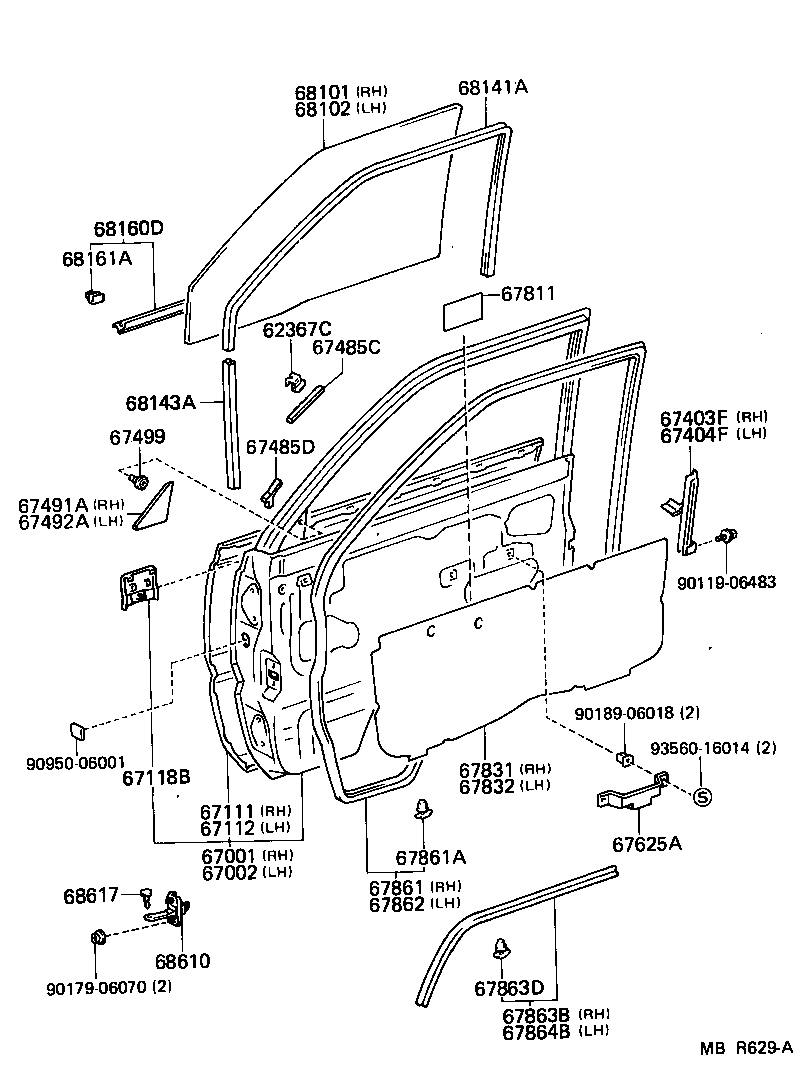

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62367C - CLIP, DOOR WINDOW GLASS | ||||
| 62367-10010 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-95735 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC ｱﾘ(ｵｵｶﾞﾀ ﾐﾗ-) |
1 | ||
| 67001-95736 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC |
1 | ||
| 67001-95739 |
CM30,40,YM30,40..GXL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
1 | ||
| 67001-95740 |
CM30,40,YM30,40..GXL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) & ｱﾘ(ｵｵｶﾞﾀ ﾐﾗ-) |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-95740 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC |
1 | ||
| 67002-95744 |
CM30,40,YM30,40..GXL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
1 | ||
| 67002-95745 |
CM30,40,YM30,40..GXL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) & ｱﾘ(ｵｵｶﾞﾀ ﾐﾗ-) |
1 | ||
| 67002-95738 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC ｱﾘ(ｵｵｶﾞﾀ ﾐﾗ-) |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-95717 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC |
1 | ||
| 67111-95716 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC ｱﾘ(ｵｵｶﾞﾀ ﾐﾗ-) |
1 | ||
| 67111-95717 |
CM30,40,YM30,40..GXL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) & ｱﾘ(ｵｵｶﾞﾀ ﾐﾗ-) |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-95712 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 67118B - RETAINER, OUTER REAR VIEW MIRROR, RH | ||||
| 67118-95700 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-95700 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-95700 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 67485C - SEAL, FRONT DOOR BRACKET, NO.1 | ||||
| 67485-95J01 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 67485D - SEAL, FRONT DOOR BRACKET, NO.2 | ||||
| 67485-95701 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-95700 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-95700 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67772-95J01 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 67625A - BRACKET, FRONT DOOR TRIM, NO.1 | ||||
| 67625-95700 |
CM30,40,YM30,40..FXV,GXL |
2 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67811-95701 |
CM3#,4#,KM3#,YM3#,40 |
4 | ||
| 67811-95700 |
CM3#,4#,KM3#,YM30,40 |
4 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-95704 |
CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,SUC ｱﾘ(ｽﾋﾟ-ｶ ﾎ-ﾙ) |
1 | ||
| 67831-95704 |
CM30,40,YM30,40..GXL ｱﾘ(ｽﾋﾟ-ｶ ﾎ-ﾙ) |
1 | ||
| 67831-95703 |
CM3#,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW |
1 | ||
| 67831-95704 |
CM40..5F..GXL;CM30,YM30,40..GXL ｱﾘ(ｽﾋﾟ-ｶ ﾎ-ﾙ) |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-95700 |
CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,SUC ｱﾘ(ｽﾋﾟ-ｶ ｸﾞﾘﾙ) |
1 | ||
| 67832-95700 |
CM40..5F..GXL;CM30,YM30,40..GXL ｱﾘ(ｽﾋﾟ-ｶ ｸﾞﾘﾙ) |
1 | ||
| 67831-95703 |
CM3#,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW |
1 | ||
| 67832-95700 |
CM30,40,YM30,40..GXL ｱﾘ(ｽﾋﾟ-ｶ ｸﾞﾘﾙ) |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-95703 |
CM30,40,KM30,YM30,40 |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67867-95700 |
CM3#,4#,KM3#,YM30,40 右側 |
27 | ||
| 67868-95700 |
CM3#,4#,KM3#,YM30,40 左側 |
27 | ||
| 67868-20040 |
CM3#,4#,KM3#,YM3#,40 |
27 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-95703 |
CM30,40,KM30,YM30,40 |
1 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-95700 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 67863D - RETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP) | ||||
| 67867-95700 |
CM3#,4#,KM3#,YM3#,40 右側 |
12 | ||
| 67868-95700 |
CM3#,4#,KM3#,YM3#,40 左側 |
12 | ||
| 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67864-95700 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-95708 |
CM30,40,YM30,40..FXV,GXL *TEM ｸﾞﾚｰ |
1 | ||
| 68111-95706 |
CM30,31,40,KM30,31,36,YM3#,40..GXL,SCA,SSW,SUC,SUP *TT,厚さ=4.0 |
1 | ||
| 68111-95707 |
CM30,40,YM30,40..FXV,GXL *TEM,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68111-95708 |
CM30,40,YM30,40..GXL *TEM ｸﾞﾚｰ,GXL ﾘﾐﾃﾂﾄﾞ,29R ,26S |
1 | ||
| 68111-95707 |
CM30,40,YM30,40..GXL *TEM,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,GXL ﾘﾐﾃﾂﾄﾞ,24L |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-95707 |
CM30,40,YM30,40..GXL *TEM,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,GXL ﾘﾐﾃﾂﾄﾞ,24L |
1 | ||
| 68112-95707 |
CM30,40,YM30,40..FXV,GXL *TEM,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68112-95708 |
CM30,40,YM30,40..FXV,GXL *TEM,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 68112-95708 |
CM30,40,YM30,40..GXL *TEM,厚さ=4.0,ｸﾞﾚｰ,GXL ﾘﾐﾃﾂﾄﾞ,29R ,26S |
1 | ||
| 68112-95706 |
CM30,31,40,KM30,31,36,YM3#,40..GXL,SCA,SSW,SUC,SUP *TT,厚さ=4.0 |
1 | ||
| 68141A - RUN, FRONT DOOR GLASS, UPPER | ||||
| 68141-95706 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 68143A - RUN, FRONT DOOR GLASS, NO.2 | ||||
| 68143-95705 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 68143-95704 |
CM3#,4#,KM3#,YM30,40 |
2 | ||
| 68160D - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER | ||||
| 68160-95701 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68211-30080 |
CM3#,4#,KM3#,YM3#,40 |
14 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-95701 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-90A00 |
CM3#,4#,KM3#,YM30,40 |
2 | ||
| 68617-20011 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| Common parts | ||||
| 90119-06483 | ||||
| 90179-06070 | ||||
| 90189-06018 | ||||
| 90950-06001 | ||||
| 93560-16014 | ||||

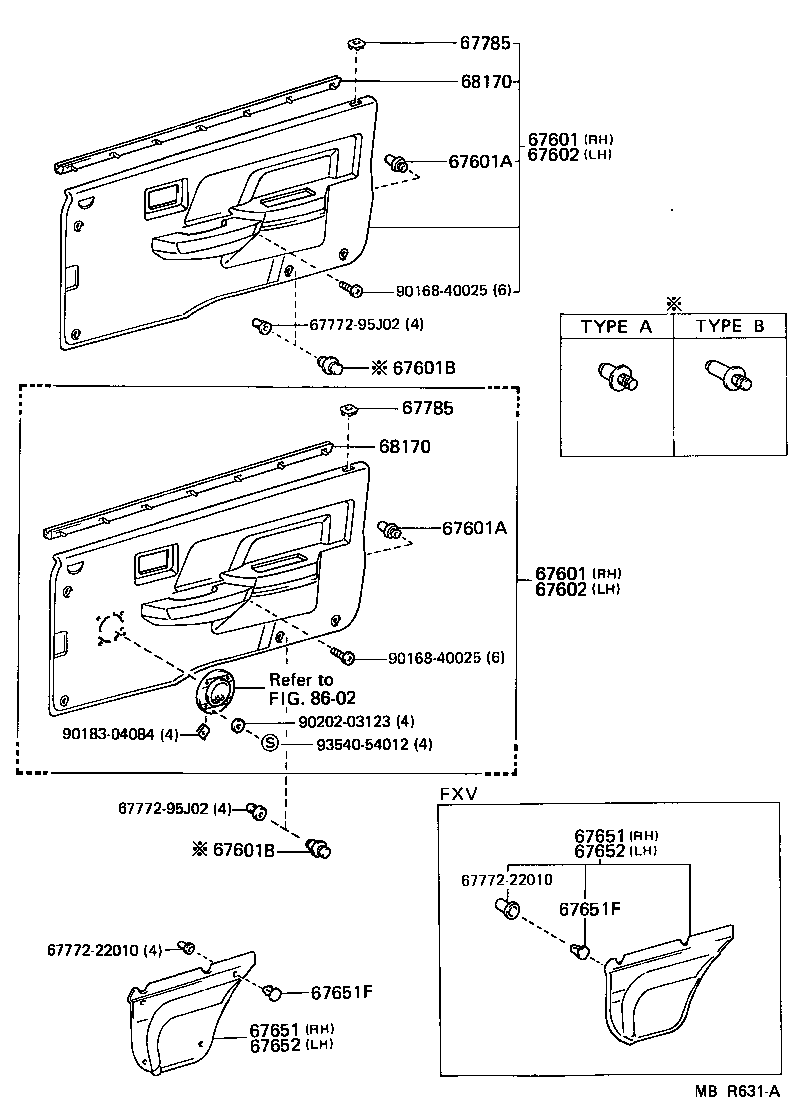

ILLUST NO. 2 OF 2(8808- )FXV,GXL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-95G2503 |
CM30,40,YM30,40..GXL 4WD ｽﾍﾟｼﾔﾙ,GRAY,TRIM1# |
1 | ||
| 67610-95G3203 |
CM30,40,YM30,40..GXL ｱﾘ(ｽﾋﾟ-ｶ ｸﾞﾘﾙ),GRAY,TRIM1# |
1 | ||
| 67610-95G2506 |
CM30,40,YM30,40..GXL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) & ｱﾘ(ｽﾋﾟ-ｶ ｸﾞﾘﾙ),SABLE,TRIM4# |
1 | ||
| 67610-95G2706 |
CM30,40,YM30,40..GXL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),SABLE,TRIM4# |
1 | ||
| 67610-95G2503 |
CM30,40,YM30,40..GXL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) & ｱﾘ(ｽﾋﾟ-ｶ ｸﾞﾘﾙ),GRAY,TRIM1# |
1 | ||
| 67610-95G3003 |
CM30,40,YM30,40..GXL GRAY,TRIM1# |
1 | ||
| 67610-95G2516 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,SABLE,TRIM4# |
1 | ||
| 67610-95G2703 |
CM30,40,YM30,40..GXL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),GRAY,TRIM1# |
1 | ||
| 67610-95G3006 |
CM30,40,YM30,40..GXL SABLE,SABLE,TRIM4# |
1 | ||
| 67610-95G3206 |
CM30,40,YM30,40..GXL ｱﾘ(ｽﾋﾟ-ｶ ｸﾞﾘﾙ),SABLE,TRIM4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-95G2503 |
CM30,40,YM30,40..GXL 4WD ｽﾍﾟｼﾔﾙ,GRAY,TRIM1# |
1 | ||
| 67610-95G3203 |
CM30,40,YM30,40..GXL ｱﾘ(ｽﾋﾟ-ｶ ｸﾞﾘﾙ),GRAY,TRIM1# |
1 | ||
| 67610-95G2506 |
CM30,40,YM30,40..GXL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) & ｱﾘ(ｽﾋﾟ-ｶ ｸﾞﾘﾙ),SABLE,TRIM4# |
1 | ||
| 67610-95G2706 |
CM30,40,YM30,40..GXL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),SABLE,TRIM4# |
1 | ||
| 67610-95G2503 |
CM30,40,YM30,40..GXL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) & ｱﾘ(ｽﾋﾟ-ｶ ｸﾞﾘﾙ),GRAY,TRIM1# |
1 | ||
| 67610-95G3003 |
CM30,40,YM30,40..GXL GRAY,TRIM1# |
1 | ||
| 67610-95G2516 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,SABLE,TRIM4# |
1 | ||
| 67610-95G2703 |
CM30,40,YM30,40..GXL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),GRAY,TRIM1# |
1 | ||
| 67610-95G3006 |
CM30,40,YM30,40..GXL SABLE,SABLE,TRIM4# |
1 | ||
| 67610-95G3206 |
CM30,40,YM30,40..GXL ｱﾘ(ｽﾋﾟ-ｶ ｸﾞﾘﾙ),SABLE,TRIM4# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-30060 |
CM30,40,YM30,40..GXL |
10 | ||
| 67771-16080 |
CM30,40,YM30,40..GXL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
18 | ||
| 67771-12050 |
CM30,40,YM30,40..GXL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
18 | ||
| 67771-12050 |
CM30,40,YM30,40..GXL |
10 | ||
| 67771-26010 |
CM30,40,YM30,40..GXL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
18 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-30060 |
CM30,40,YM30,40..GXL |
10 | ||
| 67771-16080 |
CM30,40,YM30,40..GXL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
18 | ||
| 67771-12050 |
CM30,40,YM30,40..GXL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
18 | ||
| 67771-12050 |
CM30,40,YM30,40..GXL |
10 | ||
| 67771-26010 |
CM30,40,YM30,40..GXL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
18 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0704303 |
CM30,40,YM30,40..GXL SHADOW GRAY,TRIM1#,ﾀｲﾌﾟ A |
4 | ||
| 90467-0704346 |
CM30,40,YM30,40..GXL SABLE,TRIM4#,ﾀｲﾌﾟ A |
4 | ||
| 90467-0705616 |
CM30,40,YM30,40..GXL SABLE,TRIM4#,ﾀｲﾌﾟ B |
4 | ||
| 90467-0705603 |
CM30,40,YM30,40..GXL GRAY,TRIM1#,ﾀｲﾌﾟ B |
4 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0704303 |
CM30,40,YM30,40..GXL SHADOW GRAY,TRIM1#,ﾀｲﾌﾟ A |
4 | ||
| 90467-0704346 |
CM30,40,YM30,40..GXL SABLE,TRIM4#,ﾀｲﾌﾟ A |
4 | ||
| 90467-0705616 |
CM30,40,YM30,40..GXL SABLE,TRIM4#,ﾀｲﾌﾟ B |
4 | ||
| 90467-0705603 |
CM30,40,YM30,40..GXL GRAY,TRIM1#,ﾀｲﾌﾟ B |
4 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-9578103 |
CM30,40,YM30,40..GXL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),GRAY,TRIM1# |
1 | ||
| 67620-9577903 |
CM30,40,YM30,40..GXL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) & ｱﾘ(ｽﾋﾟ-ｶ ｸﾞﾘﾙ),GRAY,TRIM1# |
1 | ||
| 67620-9577903 |
CM30,40,YM30,40..GXL 4WD ｽﾍﾟｼﾔﾙ,GRAY,TRIM1# |
1 | ||
| 67620-9578406 |
CM30,40,YM30,40..GXL SABLE,TRIM4# |
1 | ||
| 67620-9578603 |
CM30,40,YM30,40..GXL ｱﾘ(ｽﾋﾟ-ｶ ｸﾞﾘﾙ),GRAY,TRIM1# |
1 | ||
| 67620-9578106 |
CM30,40,YM30,40..GXL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),SABLE,TRIM4# |
1 | ||
| 67620-9578403 |
CM30,40,YM30,40..GXL GRAY,TRIM1# |
1 | ||
| 67620-9577906 |
CM30,40,YM30,40..GXL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) & ｱﾘ(ｽﾋﾟ-ｶ ｸﾞﾘﾙ),SABLE,TRIM4# |
1 | ||
| 67620-9578606 |
CM30,40,YM30,40..GXL ｱﾘ(ｽﾋﾟ-ｶ ｸﾞﾘﾙ),SABLE,TRIM4# |
1 | ||
| 67620-9577916 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,SABLE,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-9578103 |
CM30,40,YM30,40..GXL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),GRAY,TRIM1# |
1 | ||
| 67620-9577903 |
CM30,40,YM30,40..GXL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) & ｱﾘ(ｽﾋﾟ-ｶ ｸﾞﾘﾙ),GRAY,TRIM1# |
1 | ||
| 67620-9577903 |
CM30,40,YM30,40..GXL 4WD ｽﾍﾟｼﾔﾙ,GRAY,TRIM1# |
1 | ||
| 67620-9578406 |
CM30,40,YM30,40..GXL SABLE,TRIM4# |
1 | ||
| 67620-9578603 |
CM30,40,YM30,40..GXL ｱﾘ(ｽﾋﾟ-ｶ ｸﾞﾘﾙ),GRAY,TRIM1# |
1 | ||
| 67620-9578106 |
CM30,40,YM30,40..GXL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),SABLE,TRIM4# |
1 | ||
| 67620-9578403 |
CM30,40,YM30,40..GXL GRAY,TRIM1# |
1 | ||
| 67620-9577906 |
CM30,40,YM30,40..GXL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) & ｱﾘ(ｽﾋﾟ-ｶ ｸﾞﾘﾙ),SABLE,TRIM4# |
1 | ||
| 67620-9578606 |
CM30,40,YM30,40..GXL ｱﾘ(ｽﾋﾟ-ｶ ｸﾞﾘﾙ),SABLE,TRIM4# |
1 | ||
| 67620-9577916 |
CM30,40,YM30,40..GXL GXL ﾘﾐﾃﾂﾄﾞ,SABLE,TRIM4# |
1 | ||
| 67651 - BOARD, FRONT DOOR TRIM, LOWER RH | ||||
| 67628-9570013 |
CM30,31,40,KM30,31,36,YM3#,40..GXL,SCA,SSW,SUC,SUP GRAY,TRIM1# |
1 | ||
| 67628-9570016 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC SABLE,TRIM4# |
1 | ||
| 67651 - BOARD, FRONT DOOR TRIM, LOWER RH | ||||
| 67628-9570013 |
CM30,31,40,KM30,31,36,YM3#,40..GXL,SCA,SSW,SUC,SUP GRAY,TRIM1# |
1 | ||
| 67628-9570016 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC SABLE,TRIM4# |
1 | ||
| 67651F - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0804626 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC SABLE,TRIM4# |
8 | ||
| 90467-0804603 |
CM30,31,40,KM30,31,36,YM3#,40..FXV,GXL,SCA,SSW,SUC,SUP GRAY,TRIM1# |
8 | ||
| 90467-08046B1 |
CM30,31,40,KM3#,YM3#,40..FXV,GXL,SCA,SSW,SUC,SUP SHADOW GRAY,TRIM1# |
8 | ||
| 67651F - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0804626 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC SABLE,TRIM4# |
8 | ||
| 90467-0804603 |
CM30,31,40,KM30,31,36,YM3#,40..FXV,GXL,SCA,SSW,SUC,SUP GRAY,TRIM1# |
8 | ||
| 90467-08046B1 |
CM30,31,40,KM3#,YM3#,40..FXV,GXL,SCA,SSW,SUC,SUP SHADOW GRAY,TRIM1# |
8 | ||
| 67652 - BOARD, FRONT DOOR TRIM, LOWER LH | ||||
| 67629-9570016 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC SABLE,TRIM4# |
1 | ||
| 67629-9570013 |
CM30,31,40,KM30,31,36,YM3#,40..GXL,SCA,SSW,SUC,SUP GRAY,TRIM1# |
1 | ||
| 67652 - BOARD, FRONT DOOR TRIM, LOWER LH | ||||
| 67629-9570016 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC SABLE,TRIM4# |
1 | ||
| 67629-9570013 |
CM30,31,40,KM30,31,36,YM3#,40..GXL,SCA,SSW,SUC,SUP GRAY,TRIM1# |
1 | ||
| 67785 - HOLDER, FRONT DOOR LOCKING BUTTON COLLAR | ||||
| 69751-1201013 |
CM3#,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW GRAY,TRIM1# |
2 | ||
| 69751-1201016 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC SABLE,TRIM4# |
2 | ||
| 69751-3201013 |
CM30,40,YM30,40..GXL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) & ｱﾘ(ｽﾋﾟ-ｶ ｸﾞﾘﾙ),SHADOW GRAY,TRIM1# |
2 | ||
| 69751-3201006 |
CM30,40,YM30,40..GXL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) & ｱﾘ(ｽﾋﾟ-ｶ ｸﾞﾘﾙ),SABLE,TRIM4# |
2 | ||
| 67785 - HOLDER, FRONT DOOR LOCKING BUTTON COLLAR | ||||
| 69751-1201013 |
CM3#,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW GRAY,TRIM1# |
2 | ||
| 69751-1201016 |
CM30,40,KM30,YM30,40..GXL,SCA,SUC SABLE,TRIM4# |
2 | ||
| 69751-3201013 |
CM30,40,YM30,40..GXL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) & ｱﾘ(ｽﾋﾟ-ｶ ｸﾞﾘﾙ),SHADOW GRAY,TRIM1# |
2 | ||
| 69751-3201006 |
CM30,40,YM30,40..GXL ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) & ｱﾘ(ｽﾋﾟ-ｶ ｸﾞﾘﾙ),SABLE,TRIM4# |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-95700 |
CM30,40,YM30,40..FXV,GXL |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-95700 |
CM30,40,YM30,40..FXV,GXL |
2 | ||
| Common parts | ||||
| 67772-22010 | ||||
| 67772-95J02 | ||||
| 90168-40025 | ||||
| 90183-04084 | ||||
| 90202-03123 | ||||
| 93540-54012 | ||||
| Linked diagrams | ||||
| 8602 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
