YM30G-PXS (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 2YU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )YM3#

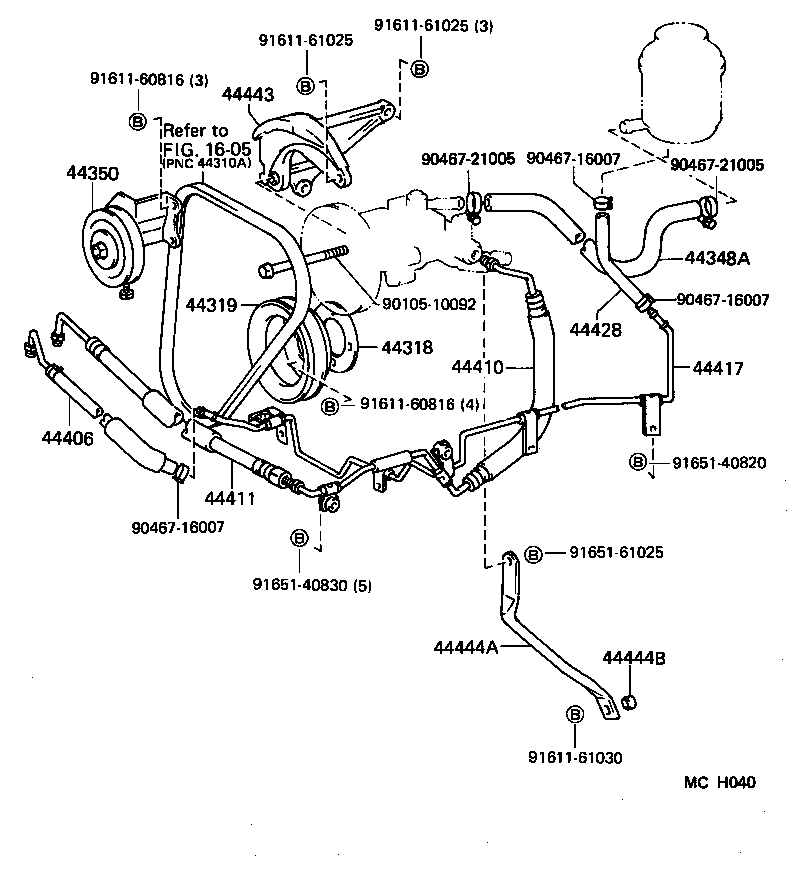

Click highlighted areas on diagram

diagram 1605 44318 44319 44348A 44350 44406 44410 44411 44417 44428 44443 44444A 44444B 9010510092 9046716007 9046716007 9046716007 9046721005 9046721005 9161160816 9161160816 9161161025 9161161025 9161161030 9165140820 9165140830 9165161025
Part # Description Qty Price
44318 - SPACER, VANE PUMP DRIVE PULLEY
44318-28012

YM3#,40

 1
44319 - PULLEY, VANE PUMP DRIVE
44319-28013

YM3#,40

 1
44319-27010

CM3#,4#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-27100

YM3#,40

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-28011

YM3#,40

 1
44406 - TUBE SUB-ASSY, RETURN
44406-27010

CM3#,KM30,31,36,YM3#

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-27040

YM3#

 1
44411 - HOSE, PRESSURE FEED
44411-27020

KM30,31,36,YM3#

 1
44417 - TUBE, RETURN, NO.2
44417-27040

KM30,31,36,YM3#

 1
44428 - HOSE, RETURN, NO.2
44428-27010

KM30,31,36,YM3#,40

 1
44443 - BRACKET, PUMP
44443-14030

CM3#,4#

 1
44443-28011

YM3#

 1
44444A - STAY, PUMP, REAR NO.1
44444-27030

YM3#,40

 1
44444B - COLLAR (FOR PUMP REAR STAY)
90387-12031

YM3#,40

 1
Common parts
90105-10092
90467-16007
90467-21005
91611-60816
91611-61025
91611-61030
91651-40820
91651-40830
91651-61025
Linked diagrams
1605
