YM30G-MXS (1985)
Toyota Liteace Van,Wagon

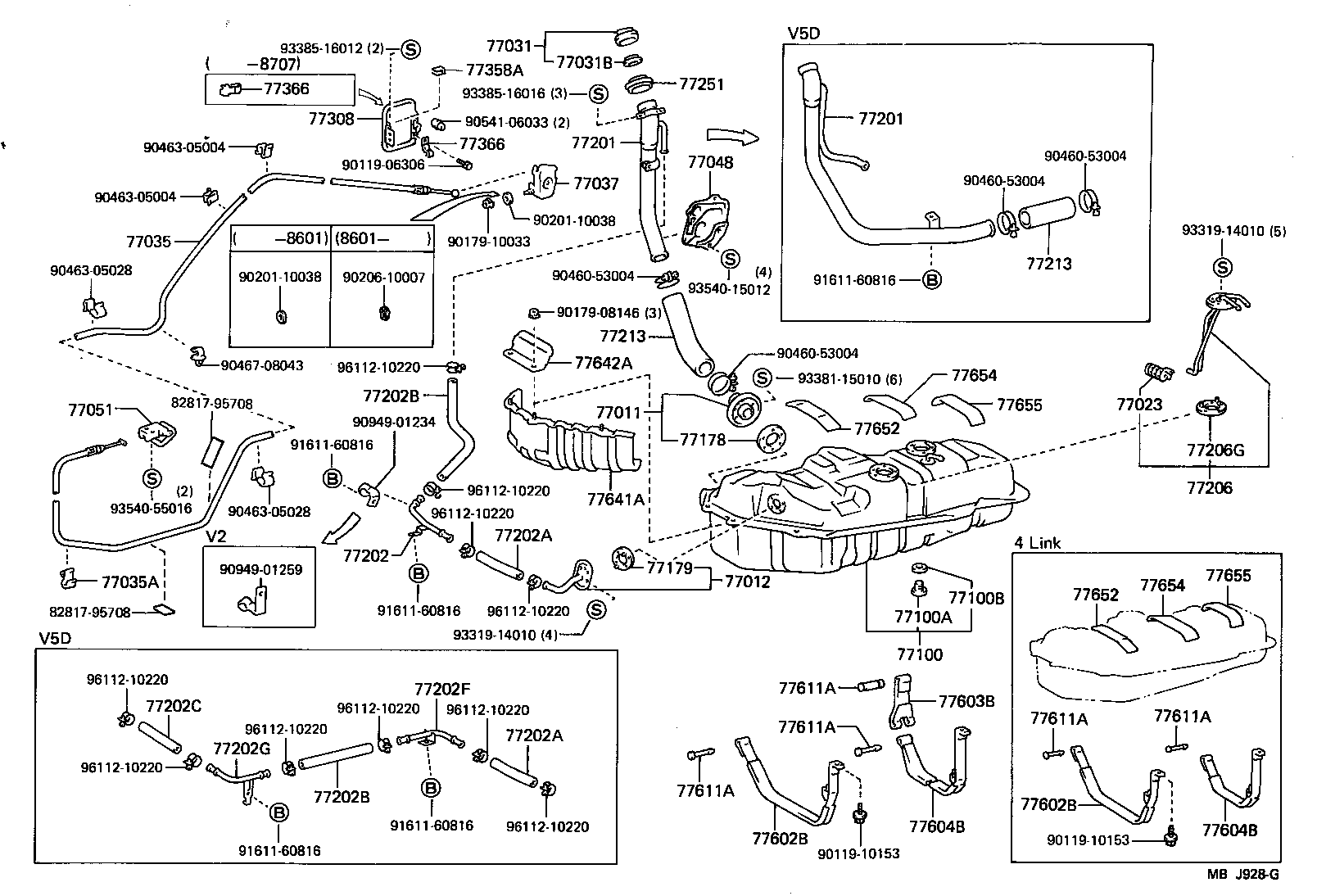

ILLUST NO. 1 OF 2(8509- )CM3#,KM3#,YM30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-27010 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 77012 - TUBE SUB-ASSY, FUEL TANK BREATHER | ||||
| 77012-27061 |
CM3#,KM3#,YM30 |
1 | ||
| 77012-27060 |
CM3#,KM3#,YM30 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-14030 |
KM3#,YM30,40 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
KM3#,YM30,40 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-95700 |
CM30,40,KM30,YM30,40;CM35,36,41,KM31,35,36..V4D |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 69749-12010 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-95700 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 77051-9570001 |
CM3#,4#,KM3#,YM30,40 BLACK |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-27320 |
KM30,YM30;KM31,35,36..V4D |
1 | ||
| 77001-27190 |
KM30,YM30;KM31,35,36..V4D |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 90341-20004 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 90430-20007 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-13020 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 77179 - RETAINER, FUEL TANK MOUNTING, FRONT | ||||
| 77179-14030 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-27110 |
CM30,40,KM30,YM30,40;CM35,36,41,KM31,35,36..V4D |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-27110 |
CM30,40,KM30,YM30,40;CM35,36,41,KM31,35,36..V4D |
1 | ||
| 77202 - TUBE SUB-ASSY, BREATHER | ||||
| 77203-27120 |
CM30,36,KM30,YM30;CM35,KM31,35,36..V4D |
1 | ||
| 77203-27160 |
CM30,40,KM30,YM30,40;CM35,36,41,KM31,35,36..V4D |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 77259-27140 |
CM3#,KM3#,YM30 |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 77259-27140 |
CM3#,KM3#,YM30 |
1 | ||
| 77202B - HOSE, FUEL, NO.2 (FOR BREATHER TUBE) | ||||
| 77259-27160 |
CM30,40,KM30,YM30,40;CM35,36,41,KM31,35,36..V4D |
1 | ||
| 77202B - HOSE, FUEL, NO.2 (FOR BREATHER TUBE) | ||||
| 77259-27160 |
CM30,40,KM30,YM30,40;CM35,36,41,KM31,35,36..V4D |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77017-27100 |
KM3#,YM30 |
1 | ||
| 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77259-27120 |
CM30,40,KM30,YM30,40;CM35,36,41,KM31,35,36..V4D |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77259-27120 |
CM30,40,KM30,YM30,40;CM35,36,41,KM31,35,36..V4D |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77251-10010 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77305-95700 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 77305-95701 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 77358A - STOPPER, FUEL FILLER OPENING LID | ||||
| 77358-87001 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-95700 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 77366-95702 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 77360-95701 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-95700 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 77366-95702 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 77360-95701 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-27040 |
CM35,KM35,36..V1;CM30,36,KM30,31,YM30 |
1 | ||
| 77602-27041 |
CM35..V1;CM30,36,YM30 |
1 | ||
| 77602-27040 |
CM35..V1;CM30,36,YM30 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-27040 |
CM35,KM35,36..V1;CM30,36,KM30,31,YM30 |
1 | ||
| 77602-27041 |
CM35..V1;CM30,36,YM30 |
1 | ||
| 77602-27040 |
CM35..V1;CM30,36,YM30 |
1 | ||
| 77604B - BAND SUB-ASSY, FUEL TANK, NO.2 LH | ||||
| 77604-27020 |
CM30,KM30,31,YM30 |
1 | ||
| 77604B - BAND SUB-ASSY, FUEL TANK, NO.2 LH | ||||
| 77604-27020 |
CM30,KM30,31,YM30 |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-28010 |
CM3#,4#,KM3#,YM30,40 L=73 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-28010 |
CM3#,4#,KM3#,YM30,40 L=73 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-28010 |
CM3#,4#,KM3#,YM30,40 L=73 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-28010 |
CM3#,4#,KM3#,YM30,40 L=73 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-28010 |
CM3#,4#,KM3#,YM30,40 L=73 |
2 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-27010 |
CM30,KM30,YM30;CM35,36,KM31,35,36..V4D |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77606-27061 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 77606-27060 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-27120 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-27120 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77651-27131 |
CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40 |
1 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77651-27131 |
CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40 |
1 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77651-27150 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77651-27150 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| Common parts | ||||
| 82817-95708 | ||||
| 90119-06306 | ||||
| 90119-10153 | ||||
| 90179-08146 | ||||
| 90179-10033 | ||||
| 90201-10038 | ||||
| 90206-10007 | ||||
| 90460-53004 | ||||
| 90463-05004 | ||||
| 90463-05028 | ||||
| 90467-08043 | ||||
| 90541-06033 | ||||
| 90949-01234 | ||||
| 90949-01259 | ||||
| 91611-60816 | ||||
| 93319-14010 | ||||
| 93381-15010 | ||||
| 93385-16012 | ||||
| 93385-16016 | ||||
| 93540-15012 | ||||
| 93540-55016 | ||||
| 96112-10220 | ||||

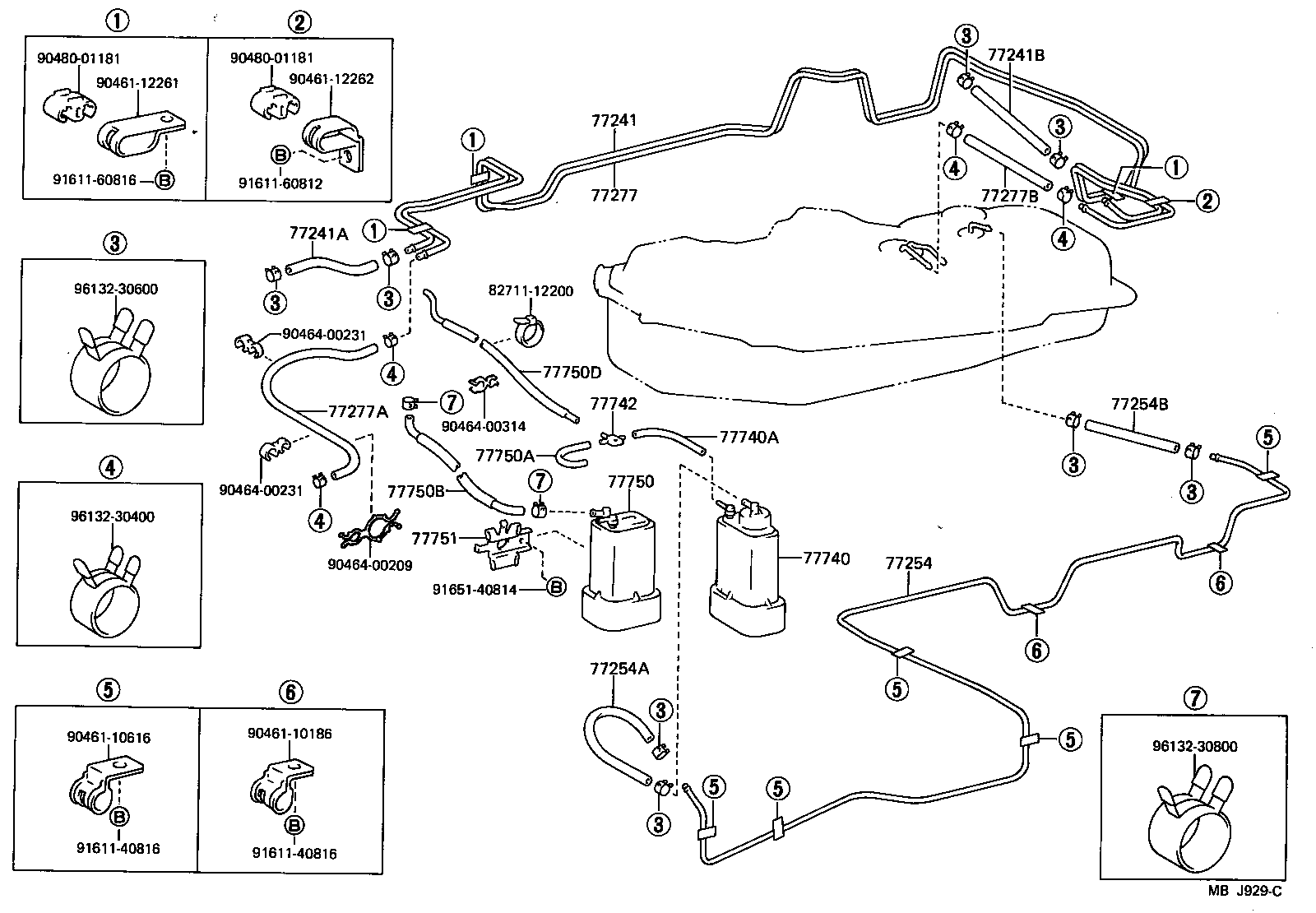

ILLUST NO. 2 OF 2(8509- )KM3#,YM30,40
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-27160 |
KM30,31,YM30 |
1 | ||
| 77251-27230 |
YM30 |
1 | ||
| 77251-27160 |
KM30,31,YM30,40 |
1 | ||
| 77251-27171 |
KM30,31,YM30 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06030 |
KM35,36..V1;KM30,31,YM30,40 *H,L=260 |
1 | ||
| 90447-12076 |
KM35,36..V1;KM30,31,YM30,40 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
KM35,36..V1;KM30,31,YM30,40 *H,L=170 |
1 | ||
| 95333-06020 |
KM35,36..V1;KM30,31,YM30,40 *H,L=170 |
1 | ||
| 95333-06017 |
KM35,36..V1;KM30,31,YM30,40 *H,L=170 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77263-27070 |
KM35,36..V1;KM30,31,YM30,40 |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 77249-27010 |
KM3#,YM30,40 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06020 |
KM35,36..V1;KM30,31,YM30,40 *H,L=170 |
1 | ||
| 95333-06020 |
KM35,36..V1;KM30,31,YM30,40 *H,L=170 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-27170 |
KM30,31,YM30,40 |
1 | ||
| 77255-27240 |
YM30 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-11005 |
YM30,40 長さ=515 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-04020 |
KM35,36..V1;KM30,31,YM30,40 *H,L=170 |
1 | ||
| 95333-04020 |
KM35,36..V1;KM30,31,YM30,40 *H,L=170 |
1 | ||
| 95333-04017 |
KM35,36..V1;KM30,31,YM30,40 *H,L=170 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-27180 |
YM30,40 |
1 | ||
| 77740-27110 |
KM3#,YM30,40 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-10630 |
YM30,40 *H,L=160,ﾏｰｸ=#6 |
1 | ||
| 77742 - WAY, 3(FOR CANISTER) | ||||
| 90413-04005 |
KM3#,YM30,40 |
1 | ||
| 90413-04004 |
YM30,40 |
1 | ||
| 77750 - CANISTER ASSY, CHARCOAL | ||||
| 77740-27200 |
YM30,40 |
1 | ||
| 77740-27120 |
YM30,40 |
1 | ||
| 77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER) | ||||
| 95411-10630 |
YM30,40 *H,L=80,ﾏｰｸ=#6 |
1 | ||
| 77750B - HOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER) | ||||
| 23829-72050 |
YM30,40 |
1 | ||
| 23829-72060 |
YM30,40 |
1 | ||
| 23829-72020 |
YM30,40 |
1 | ||
| 77750D - HOSE, FUEL, NO.4 (FOR CHARCOAL CANISTER) | ||||
| 90447-08011 |
YM30,40 長さ=360 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-27010 |
KM3#,YM30,40 |
1 | ||
| 77751-27011 |
KM3#,YM30,40 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90461-10186 | ||||
| 90461-10616 | ||||
| 90461-12261 | ||||
| 90461-12262 | ||||
| 90464-00209 | ||||
| 90464-00231 | ||||
| 90464-00314 | ||||
| 90480-01181 | ||||
| 91611-40816 | ||||
| 91611-60812 | ||||
| 91611-60816 | ||||
| 91651-40814 | ||||
| 96132-30400 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
