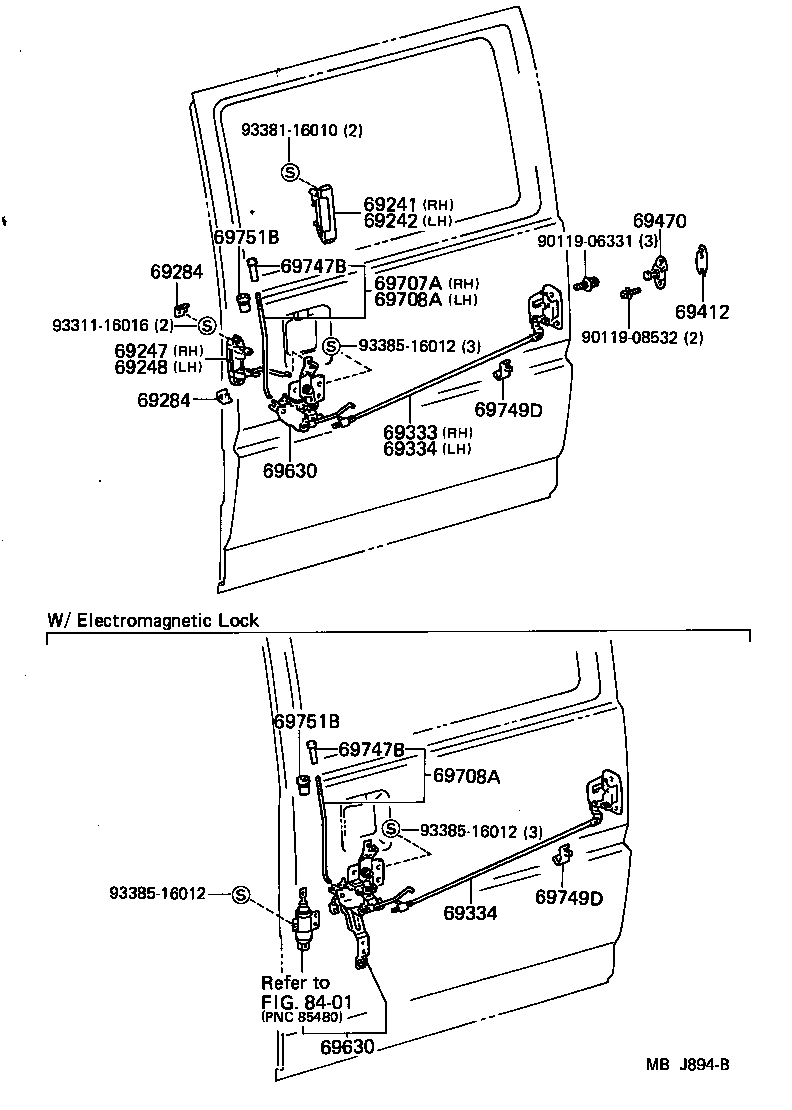

Toyota Liteace van,wagon YM30 REAR DOOR LOCK & HANDLE

Part #	Description	Period	Qty
69242 - HANDLE ASSY, SLIDE DOOR OUTSIDE, LH
69240-95J00	CM3#,4#,KM3#,YM30,40	02/1988 - 08/1988	1
69240-87002	CM3#,4#,KM3#,YM30,40	09/1985 - 02/1988	1
69248 - HANDLE, SLIDE DOOR INSIDE, LH
69080-9570004	CM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7 BLUE,BLUE,TRIM4#,8#	09/1985 - 08/1988	1
69080-9570006	CM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP BROWN,BROWN,TRIM4#	09/1985 - 08/1988	1
69284 - PLUG, SLIDE DOOR INSIDE HANDLE
69284-8700106	CM35,36,41,KM31,35,36..V4D;CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC BROWN,BROWN,TRIM4#	09/1985 - 08/1988	2
69284-8700104	CM30,40,KM30,YM30,40..DLX,GXL,SCA,SUC,SW,XL7 BLUE,BLUE,TRIM4#,8#	09/1985 - 08/1988	2
69284 - PLUG, SLIDE DOOR INSIDE HANDLE
69284-8700106	CM35,36,41,KM31,35,36..V4D;CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC BROWN,BROWN,TRIM4#	09/1985 - 08/1988	2
69284-8700104	CM30,40,KM30,YM30,40..DLX,GXL,SCA,SUC,SW,XL7 BLUE,BLUE,TRIM4#,8#	09/1985 - 08/1988	2
69334 - LOCK ASSY, SLIDE DOOR, LH
69340-95702	CM3#,4#,KM3#,YM30,40	09/1985 - 08/1988	1
69334 - LOCK ASSY, SLIDE DOOR, LH
69340-95702	CM3#,4#,KM3#,YM30,40	09/1985 - 08/1988	1
69412 - SHIM, DOOR LOCK STRIKER
69413-87002	CM3#,4#,KM3#,YM30,40	09/1985 - 08/1988	1
69470 - PLATE ASSY, SLIDE DOOR LOCK STRIKER
69470-95701	CM30,40,KM30,YM30,40;CM35,36,41,KM31,35,36..V4D	09/1985 - 08/1988	1
69630 - CONTROL ASSY, SLIDE DOOR LOCK REMOTE
69640-95704	CM30,40,YM30,40..GXL GXL LIMITED	04/1988 - 05/1988	1
69640-95705	CM30,40,KM30,YM30,40..GXL,SCA,SUC,XL7 LH	09/1985 - 08/1988	1
69630 - CONTROL ASSY, SLIDE DOOR LOCK REMOTE
69640-95704	CM30,40,YM30,40..GXL GXL LIMITED	04/1988 - 05/1988	1
69640-95705	CM30,40,KM30,YM30,40..GXL,SCA,SUC,XL7 LH	09/1985 - 08/1988	1
69708A - ROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, LH
69708-9570006	CM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP BROWN,BROWN,TRIM4#	09/1985 - 08/1988	1
69708-9570004	CM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7 BLUE,BLUE,TRIM4#,8#	09/1985 - 08/1988	1
69708A - ROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, LH
69708-9570006	CM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP BROWN,BROWN,TRIM4#	09/1985 - 08/1988	1
69708-9570004	CM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7 BLUE,BLUE,TRIM4#,8#	09/1985 - 08/1988	1
69747B - BUTTON, DOOR LOCKING(FOR REAR DOOR)
69741-9570304	CM30,40,KM30,YM30,40..DLX,GXL,SCA,SUC,SW,XL7 BLUE,BLUE,TRIM4#,8#	09/1985 - 08/1988	1
69741-9570306	CM35,36,41,KM31,35,36..V4D;CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC BROWN,BROWN,TRIM4#	09/1985 - 08/1988	1
69747B - BUTTON, DOOR LOCKING(FOR REAR DOOR)
69741-9570304	CM30,40,KM30,YM30,40..DLX,GXL,SCA,SUC,SW,XL7 BLUE,BLUE,TRIM4#,8#	09/1985 - 08/1988	1
69741-9570306	CM35,36,41,KM31,35,36..V4D;CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC BROWN,BROWN,TRIM4#	09/1985 - 08/1988	1
69749D - CLAMP, SLIDE DOOR LOCK LINK
69749-95700	CM30,40,KM30,YM30,40;CM35,36,41,KM31,35,36..V4D	09/1985 - 08/1988	1
69749D - CLAMP, SLIDE DOOR LOCK LINK
69749-95700	CM30,40,KM30,YM30,40;CM35,36,41,KM31,35,36..V4D	09/1985 - 08/1988	1
69751B - HOLDER, DOOR LOCKING(FOR REAR DOOR)
69751-9570106	CM35,36,41,KM31,35,36..V4D;CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BROWN,TRIM4#	09/1985 - 08/1986	1
69751-9570104	CM30,40,KM30,YM30,40..DLX,GXL,SUC,SW,XL7 BLUE,BLUE,TRIM4#,8#	09/1985 - 08/1986	1
69751B - HOLDER, DOOR LOCKING(FOR REAR DOOR)
69751-9570106	CM35,36,41,KM31,35,36..V4D;CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BROWN,TRIM4#	09/1985 - 08/1986	1
69751-9570104	CM30,40,KM30,YM30,40..DLX,GXL,SUC,SW,XL7 BLUE,BLUE,TRIM4#,8#	09/1985 - 08/1986	1
Common parts
90119-06331
90119-08532
93311-16016
93381-16010
93385-16012
Linked diagrams
8401

YM30G-MXS (1985)

(8509- )
