YM30G-MQS (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988
Engine 2YU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )CM3#,4#,YM30,40

Click highlighted areas on diagram

diagram 1149371010 1717572010 8712428030 8712428030 8712428030 8712428030 8712428030 8712428030 8712428040 8712428040 87240 87240 87245A 87245A 87245B 87245B 87245E 87245E 87246A 87246A 87246E 87246E 87248A 87248B 87248B 87249A 87249A 87249B 87255A 87255A 87256E 87256E 87263 87268B 9017908123 9017908123 9017908146 9046022073 9046022073 9046024039 9046024039 9046024039 9046024039 9046110262 9046110262 9046110589 9046110589 9046400443 9161160835 9165140616 9165140814 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-95707

CM3#,4#,KM3#,YM30,40

 1
87240 - VALVE ASSY, HEATER WATER
87240-95707

CM3#,4#,KM3#,YM30,40

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95737

YM30,40

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95737

YM30,40

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30260

CM3#,4#,YM30,40

*H,L=250

 1
99556-30300

CM3#,4#,YM30,40

*H,L=250

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30260

CM3#,4#,YM30,40

*H,L=250

 1
99556-30300

CM3#,4#,YM30,40

*H,L=250

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30180

CM3#,4#,KM3#,YM30,40

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30180

CM3#,4#,KM3#,YM30,40

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30980

CM3#,4#,YM30,40

*H,L=820

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30980

CM3#,4#,YM30,40

*H,L=820

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95740

YM30,40

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95740

YM30,40

 1
87248A - PIPE, HEATER WATER INLET, A
87208-28010

YM30,40

 1
87248B - PIPE, HEATER WATER INLET, B
87208-95722

CM30,40,YM30,40

W/RR HEATER

 1
87248B - PIPE, HEATER WATER INLET, B
87208-95722

CM30,40,YM30,40

W/RR HEATER

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-95724

CM30,40,YM30,40

W/RR HEATER

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-95724

CM30,40,YM30,40

W/RR HEATER

 1
87249B - PIPE, HEATER WATER OUTLET, B
87208-28021

YM30,40

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-95738

CM30,40,YM30,40

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-95738

CM30,40,YM30,40

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
87245-95753

YM30,40

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
87245-95753

YM30,40

 1
87263 - BRACKET, HEATER WATER PIPE, NO.1
87263-28011

YM30,40

 1
Common parts
11493-71010
17175-72010
87124-28030
87124-28040
90179-08123
90179-08146
90460-22073
90460-24039
90461-10262
90461-10589
90464-00443
91611-60835
91651-40616
91651-40814
91651-40816
96112-10250

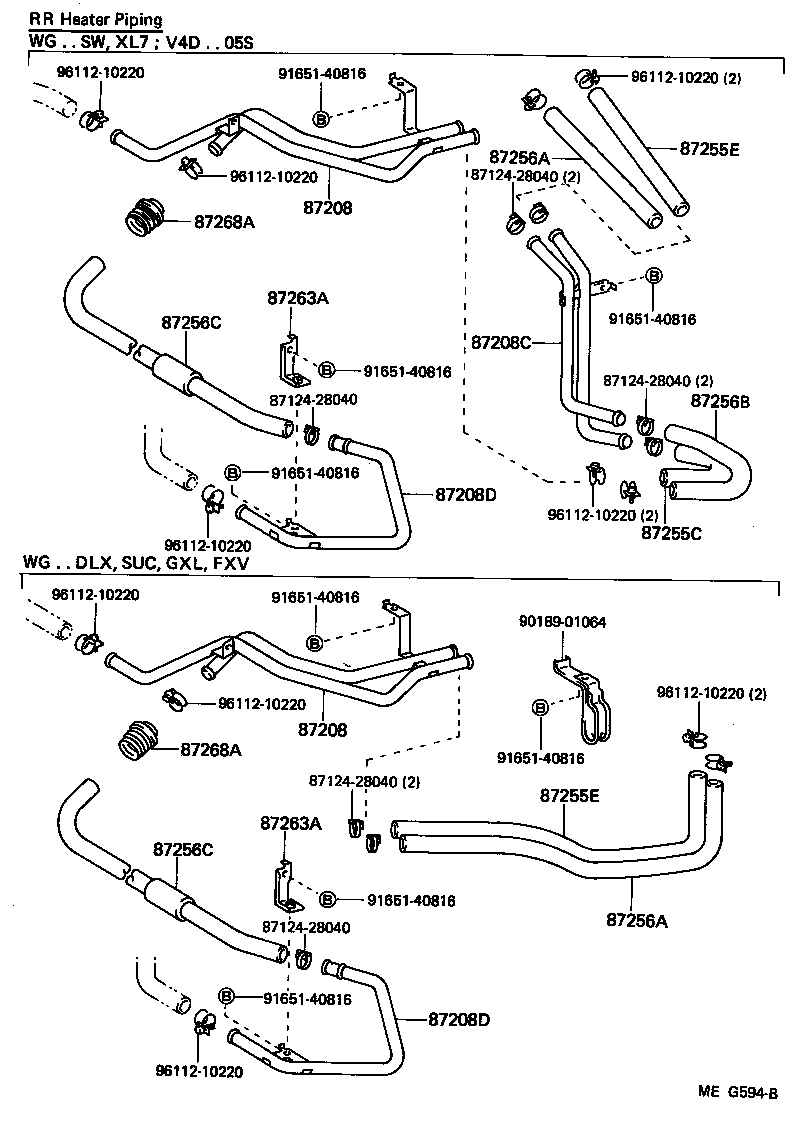

(8509- )CM41..V4D..05S ; (8509- )CM30,40,YM30,40

Click highlighted areas on diagram

diagram 8712428040 8712428040 8712428040 8712428040 8712428040 87208 87208 87208C 87208D 87208D 87255C 87255E 87255E 87256A 87256A 87256B 87256C 87256C 87263A 87263A 87268A 87268A 9018901064 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95732

CM30,40,YM30,40

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95732

CM30,40,YM30,40

 1
87208D - PIPE SUB-ASSY, HEATER WATER, D
87208-95735

YM30,40

 1
87208D - PIPE SUB-ASSY, HEATER WATER, D
87208-95735

YM30,40

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-95745

CM30,40,KM30,YM30,40..DLX,FXV,GXL,SCA,SUC

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-95745

CM30,40,KM30,YM30,40..DLX,FXV,GXL,SCA,SUC

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-20700

CM30,40,KM30,YM30,40..DLX,FXV,GXL,SCA,SUC

*H,L=600

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-20700

CM30,40,KM30,YM30,40..DLX,FXV,GXL,SCA,SUC

*H,L=600

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
87245-95751

CM30,40,YM30,40

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
87245-95751

CM30,40,YM30,40

 1
87263A - BRACKET, HEATER WATER PIPE, NO.2
87121-95704

CM30,40,YM30,40

 1
87263A - BRACKET, HEATER WATER PIPE, NO.2
87121-95704

CM30,40,YM30,40

 1
87268A - PROTECTOR, REAR HEATER PIPE
87268-95701

CM30,40,YM30,40

 1
87268A - PROTECTOR, REAR HEATER PIPE
87268-95701

CM30,40,YM30,40

 1
Common parts
87124-28040
90189-01064
91651-40816
96112-10220
