YM30G-MQS (1985)
Toyota Liteace Van,Wagon
(8509- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

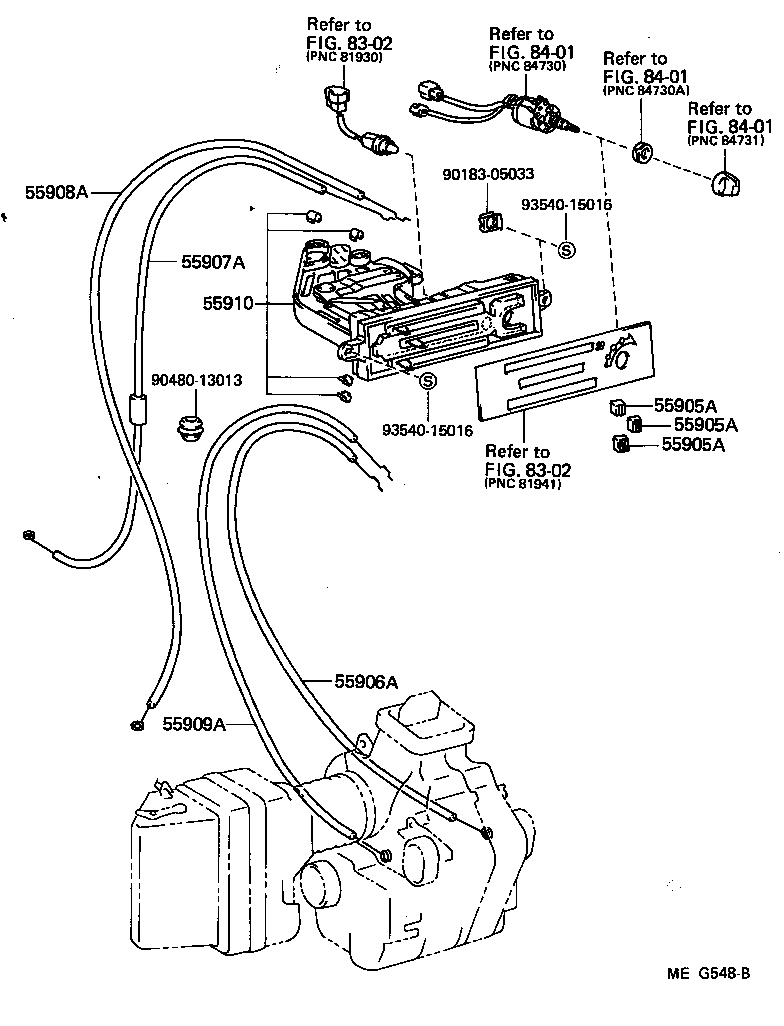

| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-10110 |
CM3#,4#,KM3#,YM30,40 DEF-VENT,WARM-COOL |
2 | ||
| 55905-95707 |
CM3#,4#,KM3#,YM30,40 FRESH-RECIRC |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-10110 |
CM3#,4#,KM3#,YM30,40 DEF-VENT,WARM-COOL |
2 | ||
| 55905-95707 |
CM3#,4#,KM3#,YM30,40 FRESH-RECIRC |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-10110 |
CM3#,4#,KM3#,YM30,40 DEF-VENT,WARM-COOL |
2 | ||
| 55905-95707 |
CM3#,4#,KM3#,YM30,40 FRESH-RECIRC |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-95707 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-95709 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-95706 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-95703 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-95719 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| Common parts | ||||
| 90183-05033 | ||||
| 90480-13013 | ||||
| 93540-15016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||
(8509- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

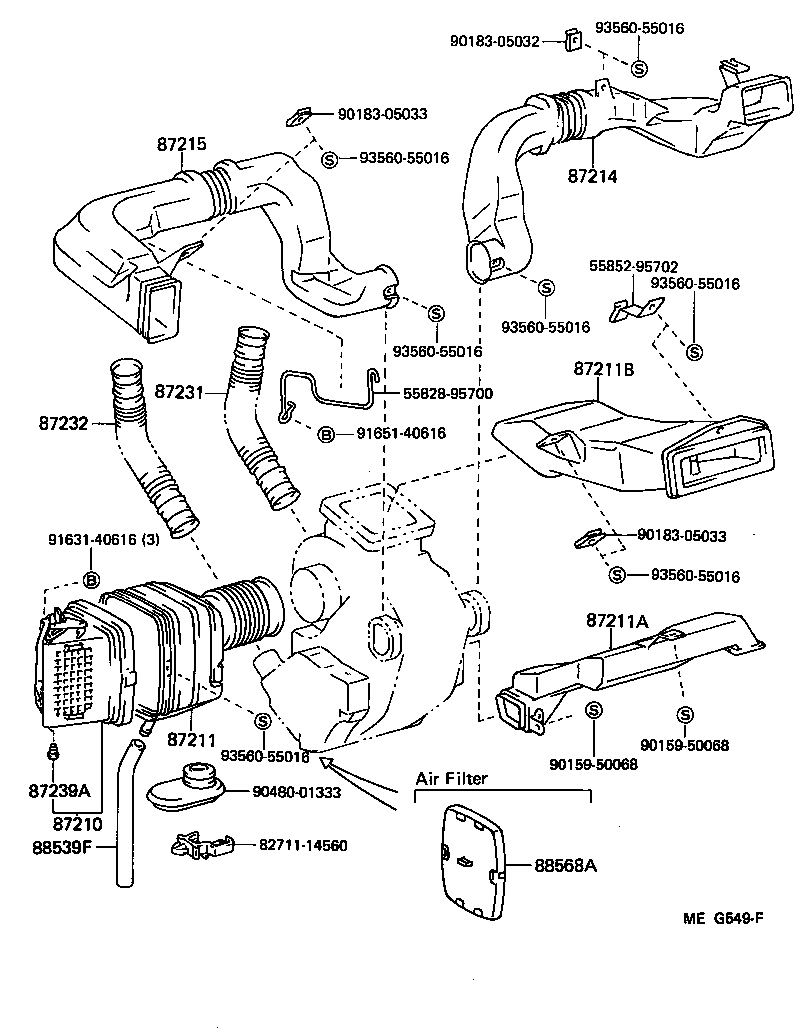

| 87210 - DAMPER ASSY, AIR | ||||
| 87210-95709 |
CM3#,4#,KM3#,YM30,40 COLD SPEC |
1 | ||
| 87210-95706 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-95715 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-95716 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 55086-95703 |
CM30,40,KM30,YM30,40 |
1 | ||
| 55086-95701 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55085-95703 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55084-95703 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 87231 - HOSE, HEATER DEFROSTER, RH | ||||
| 87231-95702 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 87231-95701 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 87232 - HOSE, HEATER DEFROSTER, LH | ||||
| 87231-95702 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 87231-95701 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 87239A - COVER, HEATER INLET HOLE | ||||
| 87239-95700 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 88539F - HOSE, DRAIN | ||||
| 88539-95707 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 88568A - FILTER, AIR | ||||
| 88880-95701 |
CM3#,4#,KM3#,YM30,40 W/COOLER |
1 | ||
| 88880-95700 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| Common parts | ||||
| 55828-95700 | ||||
| 55852-95702 | ||||
| 82711-14560 | ||||
| 90159-50068 | ||||
| 90183-05032 | ||||
| 90183-05033 | ||||
| 90480-01333 | ||||
| 91631-40616 | ||||
| 91651-40616 | ||||
| 93560-55016 | ||||
(8509- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

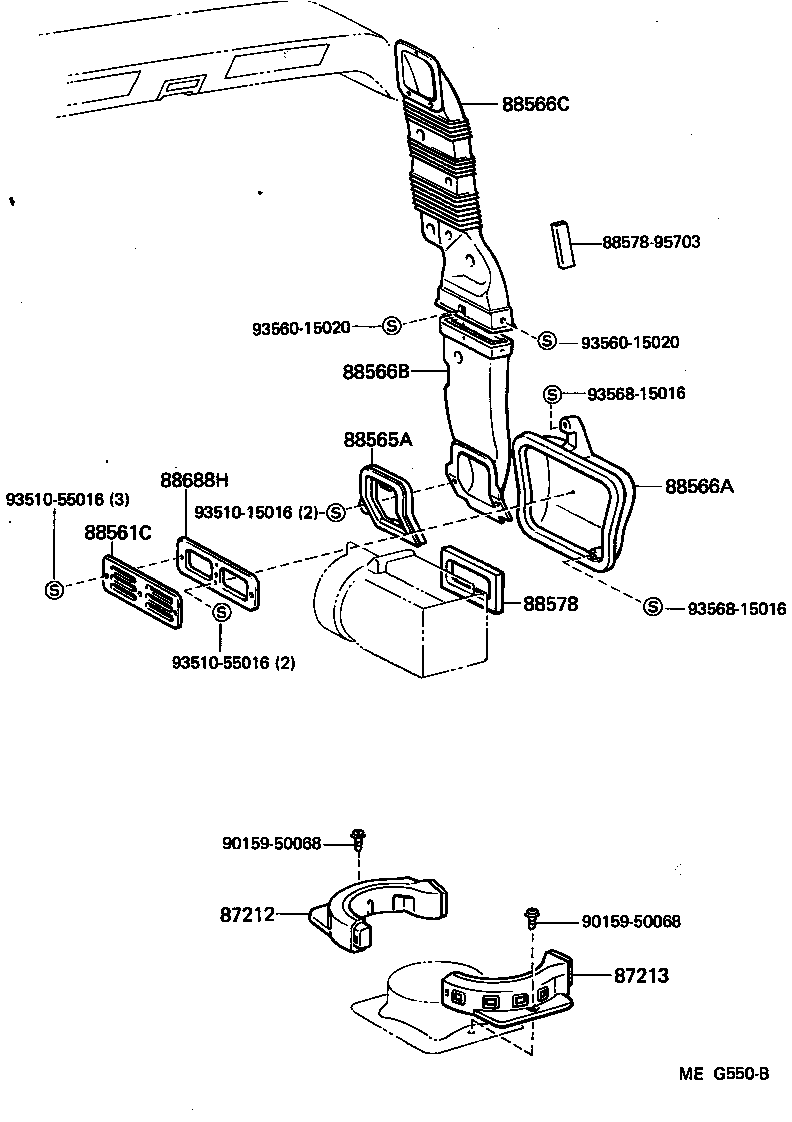

| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87211-95719 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87211-95720 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC |
1 | ||
| 88561C - GRILLE, COOLER AIR INLET | ||||
| 88561-9570306 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC BROWN,BROWN,TRIM4# |
1 | ||
| 88565A - ADAPTER, AIR DUCT, NO.1 | ||||
| 88565-95706 |
CM30,40,KM30,YM30,40..MRF |
1 | ||
| 88565-95706 |
CM30,40,KM30,YM30,40..HRF,MRF |
1 | ||
| 88566A - DUCT, COOLER AIR, NO.1 | ||||
| 88566-95712 |
CM30,40,KM30,YM30,40..HRF,MRF |
1 | ||
| 88566-95712 |
CM30,40,KM30,YM30,40..MRF |
1 | ||
| 88566B - DUCT, COOLER AIR, NO.2 | ||||
| 88566-95713 |
CM30,40,KM30,YM30,40..MRF |
1 | ||
| 88566-95713 |
CM30,40,KM30,YM30,40..HRF,MRF |
1 | ||
| 88566C - DUCT, COOLER AIR, NO.3 | ||||
| 87211-95713 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC,SW,XL7 |
1 | ||
| 87211-95713 |
CM30,40,KM30,YM30,40..MRF |
1 | ||
| 88578 - PAKING, COOLER AIR DUCT | ||||
| 88578-95710 |
CM30,40,KM30,YM30,40..HRF,MRF |
1 | ||
| 88578-95710 |
CM30,40,KM30,YM30,40..MRF |
1 | ||
| 88688H - BRACKET, COOLER AIR DUCT, NO.1 | ||||
| 88688-95752 |
CM30,40,KM30,YM30,40..MRF |
1 | ||
| 88688-95752 |
CM30,40,KM30,YM30,40..HRF,MRF |
1 | ||
| Common parts | ||||
| 88578-95703 | ||||
| 90159-50068 | ||||
| 93510-15016 | ||||
| 93510-55016 | ||||
| 93560-15020 | ||||
| 93568-15016 | ||||
(8509- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

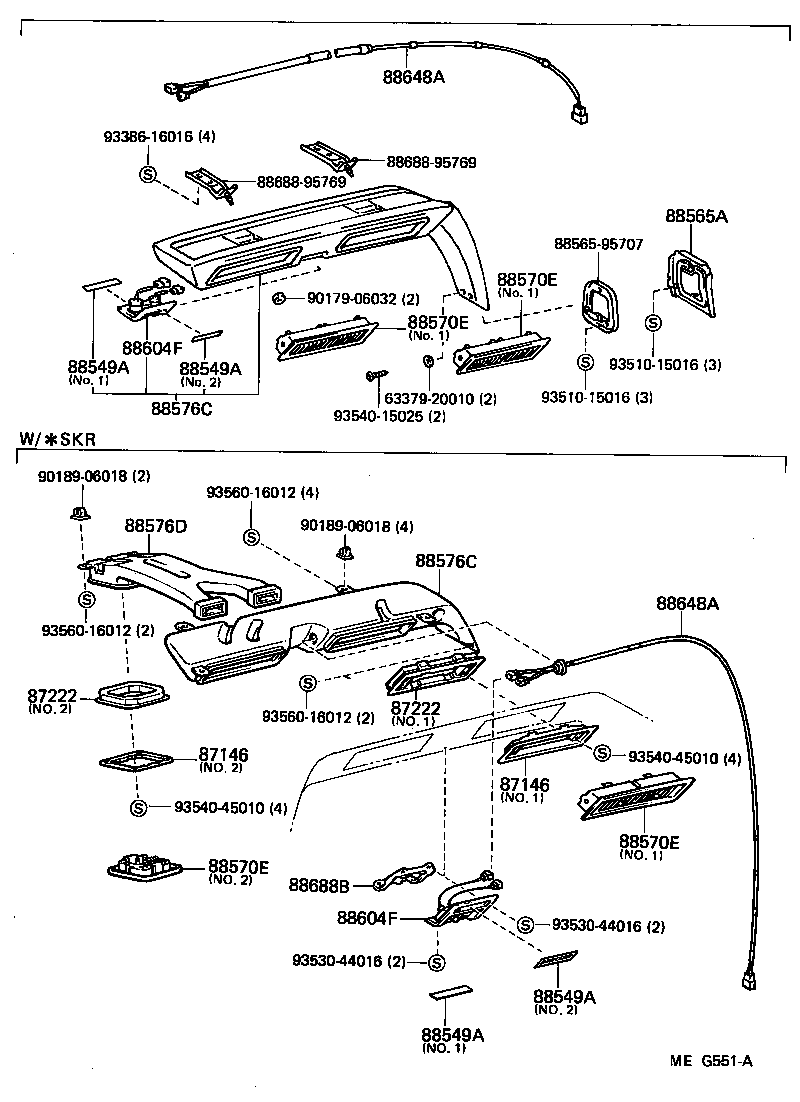

| 87146 - RETAINER, GRILLE | ||||
| 87146-95700 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC NO.1 |
2 | ||
| 87146-95701 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) NO.2 |
1 | ||
| 87146-95700 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) NO.1 |
2 | ||
| 87146-95701 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC NO.2 |
1 | ||
| 87146 - RETAINER, GRILLE | ||||
| 87146-95700 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC NO.1 |
2 | ||
| 87146-95701 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) NO.2 |
1 | ||
| 87146-95700 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) NO.1 |
2 | ||
| 87146-95701 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC NO.2 |
1 | ||
| 87222 - GUIDE, AIR DUCT, REAR | ||||
| 87215-95701 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC NO.2 |
1 | ||
| 87215-95700 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC NO.1 |
2 | ||
| 87215-95700 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) NO.1 |
2 | ||
| 87215-95701 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) NO.2 |
1 | ||
| 87222 - GUIDE, AIR DUCT, REAR | ||||
| 87215-95701 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC NO.2 |
1 | ||
| 87215-95700 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC NO.1 |
2 | ||
| 87215-95700 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) NO.1 |
2 | ||
| 87215-95701 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) NO.2 |
1 | ||
| 88549A - PLATE, CAUTION | ||||
| 88549-9571905 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) NO.1 & NO.2,W/*SKR,BEIGE,BEIGE,TRIM4# |
2 | ||
| 88549-9571905 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC NO.1 & NO.2,W/*SKR,BEIGE,BEIGE,TRIM4# |
2 | ||
| 88549-95721 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC NO.2,W/*SKR & *ODAC |
1 | ||
| 88549-95721 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) NO.2,W/*SKR & *ODAC |
1 | ||
| 88549A - PLATE, CAUTION | ||||
| 88549-9571905 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) NO.1 & NO.2,W/*SKR,BEIGE,BEIGE,TRIM4# |
2 | ||
| 88549-9571905 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC NO.1 & NO.2,W/*SKR,BEIGE,BEIGE,TRIM4# |
2 | ||
| 88549-95721 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC NO.2,W/*SKR & *ODAC |
1 | ||
| 88549-95721 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) NO.2,W/*SKR & *ODAC |
1 | ||
| 88549A - PLATE, CAUTION | ||||
| 88549-9571905 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) NO.1 & NO.2,W/*SKR,BEIGE,BEIGE,TRIM4# |
2 | ||
| 88549-9571905 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC NO.1 & NO.2,W/*SKR,BEIGE,BEIGE,TRIM4# |
2 | ||
| 88549-95721 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC NO.2,W/*SKR & *ODAC |
1 | ||
| 88549-95721 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) NO.2,W/*SKR & *ODAC |
1 | ||
| 88549A - PLATE, CAUTION | ||||
| 88549-9571905 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) NO.1 & NO.2,W/*SKR,BEIGE,BEIGE,TRIM4# |
2 | ||
| 88549-9571905 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC NO.1 & NO.2,W/*SKR,BEIGE,BEIGE,TRIM4# |
2 | ||
| 88549-95721 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC NO.2,W/*SKR & *ODAC |
1 | ||
| 88549-95721 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) NO.2,W/*SKR & *ODAC |
1 | ||
| 88565A - ADAPTER, AIR DUCT, NO.1 | ||||
| 88565-95706 |
CM30,40,KM30,YM30,40..MRF |
1 | ||
| 88565-95706 |
CM30,40,KM30,YM30,40..HRF,MRF |
1 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-9570205 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC NO.1,W/*SKR,BEIGE,BEIGE,TRIM4# |
2 | ||
| 88570-9570405 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC NO.2,W/*SKR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88570-9570405 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) NO.2,W/*SKR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88570-9570205 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) NO.1,W/*SKR,BEIGE,BEIGE,TRIM4# |
2 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-9570205 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC NO.1,W/*SKR,BEIGE,BEIGE,TRIM4# |
2 | ||
| 88570-9570405 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC NO.2,W/*SKR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88570-9570405 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) NO.2,W/*SKR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88570-9570205 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) NO.1,W/*SKR,BEIGE,BEIGE,TRIM4# |
2 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-9570205 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC NO.1,W/*SKR,BEIGE,BEIGE,TRIM4# |
2 | ||
| 88570-9570405 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC NO.2,W/*SKR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88570-9570405 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) NO.2,W/*SKR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88570-9570205 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) NO.1,W/*SKR,BEIGE,BEIGE,TRIM4# |
2 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-9570205 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC NO.1,W/*SKR,BEIGE,BEIGE,TRIM4# |
2 | ||
| 88570-9570405 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC NO.2,W/*SKR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88570-9570405 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) NO.2,W/*SKR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88570-9570205 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) NO.1,W/*SKR,BEIGE,BEIGE,TRIM4# |
2 | ||
| 88576C - DUCT, COOLER AIR, NO.1 | ||||
| 88576-95713 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC W/*SKR |
1 | ||
| 88576-95713 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) W/*SKR |
1 | ||
| 88576C - DUCT, COOLER AIR, NO.1 | ||||
| 88576-95713 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC W/*SKR |
1 | ||
| 88576-95713 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) W/*SKR |
1 | ||
| 88576D - DUCT, COOLER AIR, NO.2 | ||||
| 88576-95714 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) |
1 | ||
| 88576-95714 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC |
1 | ||
| 88604F - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88610-9571405 |
CM30..4FC;CM30..5F..SUC..TD;CM40,KM30,YM30,40..HRF,MRF;CM30..(HRF,MRF)..5F..(FXV,GXL,SW,XL7) W/*ODAC,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88619-9570105 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC W/*SKR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88610-9571005 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC W/*SKR & *ODAC,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88610-9571403 |
CM30..4FC;CM30..5F..SUC..TD;CM40,KM30,YM30,40..HRF,MRF;CM30..(HRF,MRF)..5F..(FXV,GXL,SW,XL7) W/*ODAC,GRAY,GRAY,TRIM4#,8# |
1 | ||
| 88610-9571005 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) W/*SKR & *ODAC,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88619-9570105 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) W/*SKR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88604F - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88610-9571405 |
CM30..4FC;CM30..5F..SUC..TD;CM40,KM30,YM30,40..HRF,MRF;CM30..(HRF,MRF)..5F..(FXV,GXL,SW,XL7) W/*ODAC,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88619-9570105 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC W/*SKR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88610-9571005 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC W/*SKR & *ODAC,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88610-9571403 |
CM30..4FC;CM30..5F..SUC..TD;CM40,KM30,YM30,40..HRF,MRF;CM30..(HRF,MRF)..5F..(FXV,GXL,SW,XL7) W/*ODAC,GRAY,GRAY,TRIM4#,8# |
1 | ||
| 88610-9571005 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) W/*SKR & *ODAC,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88619-9570105 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) W/*SKR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88648A - WIRING, COOLER | ||||
| 88648-95712 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC W/*SKR |
1 | ||
| 88648-95712 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) W/*SKR |
1 | ||
| 88648A - WIRING, COOLER | ||||
| 88648-95712 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC W/*SKR |
1 | ||
| 88648-95712 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) W/*SKR |
1 | ||
| 88688B - BRACKET, AIR CONDITIONER CONTROL | ||||
| 88438-95703 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC |
1 | ||
| 88438-95703 |
CM30,40,KM30,YM30,40..(FXV,GXL,SCA,SUC)..(CBR,TD) |
1 | ||
| Common parts | ||||
| 63379-20010 | ||||
| 88565-95707 | ||||
| 88688-95769 | ||||
| 90179-06032 | ||||
| 90189-06018 | ||||
| 93386-16016 | ||||
| 93510-15016 | ||||
| 93530-44016 | ||||
| 93540-15025 | ||||
| 93540-45010 | ||||
| 93560-16012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
