KM36V-QDBE (1990)
Toyota Liteace Van,Wagon
Production
Aug 1990
-
Jan 1992
Engine
5KJ
Transmission
5H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9008- )5K#

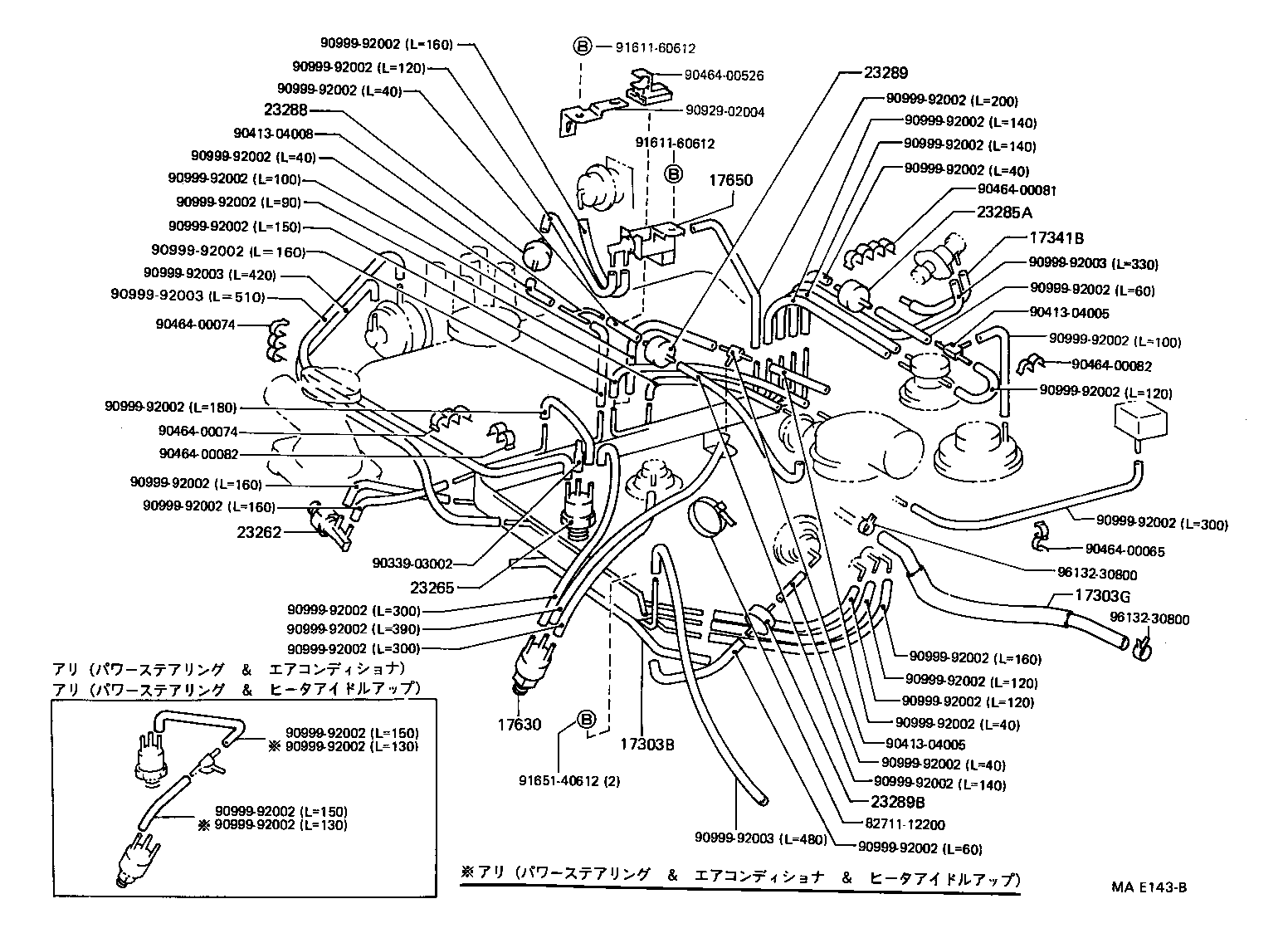

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-13120 |
5KJ..KM36 |
1 | ||
| 17303-13130 |
5KJ..KM31,36 |
1 | ||
| 17303G - HOSE, NO.3(FOR AIR PIPE) | ||||
| 23826-13070 |
5K#..KM30,31,36 |
1 | ||
| 17341B - HOSE, NO.1(FOR AIR INJECTION SYSTEM) | ||||
| 17341-10010 |
5K#..KM30,31,36 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-28020 |
5K#..KM30,31,36 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 25860-13010 |
5KJ..KM36 |
1 | ||
| 89570-13020 |
5KJ..KM31,36..MTM |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05074 |
5KJ..KM36 |
1 | ||
| 90925-05051 |
4KJ,5KJ..KM31,35,36 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
4KJ,5KJ..KM31,35,36 |
1 | ||
| 90917-11027 |
5KJ..KM36 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
5KJ..KM36 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04004 |
5KJ..KM36 |
1 | ||
| 90925-04006 |
4KJ,5KJ..KM31,35,36 |
1 | ||
| 23289 - JET, NO.2 | ||||
| 90925-04005 |
5KJ..KM36 |
1 | ||
| 23289B - JET, NO.3 | ||||
| 90925-04004 |
5KJ..KM36 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90413-04008 | ||||
| 90464-00065 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00526 | ||||
| 90929-02004 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91611-60612 | ||||
| 91651-40612 | ||||
| 96132-30800 | ||||
