KM36V-QD (1990)

Toyota Liteace Van,Wagon

Production Aug 1990 - Jan 1992
Engine 5KJ
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9008- )5KJ

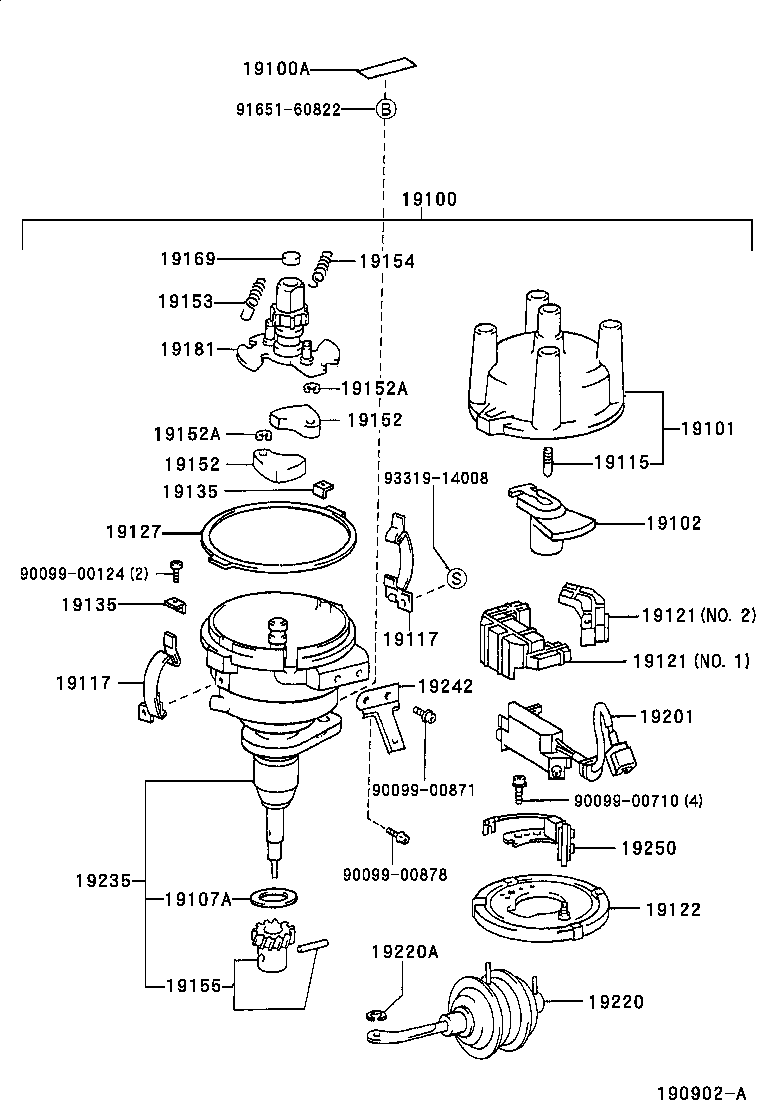

Click highlighted areas on diagram

diagram 19100 19100A 19101 19102 19107A 19115 19117 19117 19121 19121 19122 19127 19135 19135 19152 19152 19152A 19152A 19153 19154 19155 19169 19181 19201 19220 19220A 19235 19242 19250 9009900124 9009900710 9009900871 9009900878 9165160822 9331914008
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-13370

5KJ..KM31,36

 1
19060-13140

5KJ..KM36

 1
19100A - TAPE, SEALING
90919-24004

4KJ,5K#..KM3#

 1
90919-24004

5KJ..KM36

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-71020

4KJ,5K#..KM3#

 1
19101-71020

5KJ..KM36

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-33012

5KJ..KM36

 1
19102-33012

4KJ,5K#..KM3#

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14090

5KJ..KM36

 1
90099-14020

5KJ..KM36

 1
90099-14020

4KJ,5K#..KM3#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

4KJ,5K#..KM3#

 1
19115-50010

5KJ..KM36

 1
19117 - SPRING, DISTRIBUTOR CAP, A
19117-24080

4KJ,5K#..KM3#

 1
19117-24080

5KJ..KM36

 2
19117 - SPRING, DISTRIBUTOR CAP, A
19117-24080

4KJ,5K#..KM3#

 1
19117-24080

5KJ..KM36

 2
19121 - COVER, DUST PROOF
19121-88261

5KJ..KM36

NO.1

 1
19121-88260

5KJ..KM36

NO.2

 1
19121 - COVER, DUST PROOF
19121-88261

5KJ..KM36

NO.1

 1
19121-88260

5KJ..KM36

NO.2

 1
19122 - PLATE, STATIONARY, DISTRIBUTOR
19122-13070

4KJ,5KJ..KM31,35,36

 1
19122-88263

5KJ..KM36

 1
19127 - PACKING, DUST PROOF
19127-15010

4KJ,5K#..KM3#

 1
19127-15010

5KJ..KM36

 1
19135 - PLATE, HOLDER
19135-24080

4KJ,5K#..KM3#

 2
19135-24080

5KJ..KM36

 2
19135 - PLATE, HOLDER
19135-24080

4KJ,5K#..KM3#

 2
19135-24080

5KJ..KM36

 2
19152 - WEIGHT, GOVERNOR
19152-63010

4KJ,5K#..KM3#

 2
19152-63010

5KJ..KM36

 2
19152 - WEIGHT, GOVERNOR
19152-63010

4KJ,5K#..KM3#

 2
19152-63010

5KJ..KM36

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07122

5KJ..KM36

 2
90099-07122

4KJ,5K#..KM3#

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07122

5KJ..KM36

 2
90099-07122

4KJ,5K#..KM3#

 2
19153 - SPRING, GOVERNOR, A
19153-13370

5KJ..KM31,36

 1
19153-13080

5KJ..KM36

 1
19154 - SPRING, GOVERNOR, B
19154-13370

5KJ..KM31,36

 1
19154-13080

5KJ..KM36

 1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-13060

5KJ..KM36

 1
19195-13060

5K#..KM30,31,36

 1
19169 - STOPPER, CAM GREASE
19169-63011

5KJ..KM36

 1
19169-63011

4KJ,5K#..KM3#

 1
19181 - ROTOR, DISTRIBUTOR, SIGNAL
19181-13100

5KJ..KM36

 1
19181-13030

5KJ..KM36

 1
19201 - IGNITER
89620-27031

5KJ..KM36

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-13180

5KJ..KM36

 1
19220-13170

5KJ..KM31,36

 1
19220A - RING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER)
90099-07109

5KJ..KM36

 1
90099-07109

4KJ,5K#..KM3#

 1
19235 - HOUSING, DISTRIBUTOR
19235-13030

5KJ..KM36

 1
19242 - CLAMP, CORD
19242-13080

5KJ..KM36

 1
19250 - GENERATOR ASSY, SIGNAL
19250-13120

5KJ..KM36

 1
Common parts
90099-00124
90099-00710
90099-00871
90099-00878
91651-60822
93319-14008
