KM36V-MNST (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 5KJ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

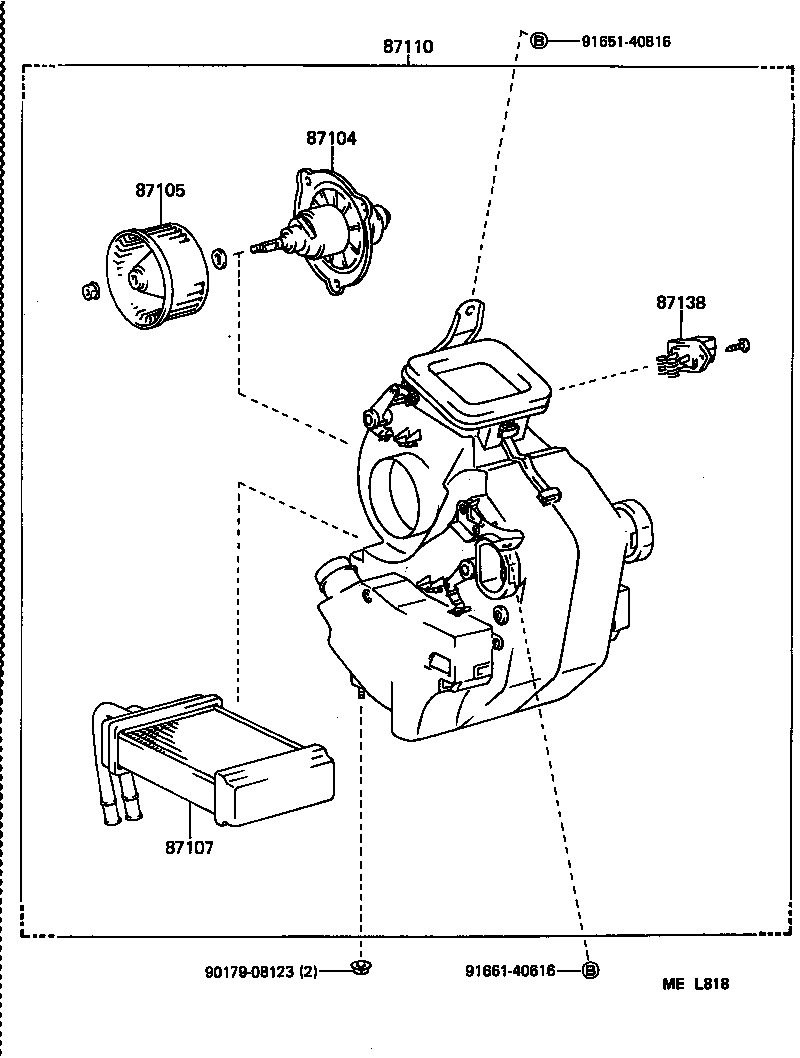

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

FR HEATER

diagram 87104 87105 87107 87110 87138 9017908123 9165140816 9166140616
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-95705

CM3#,4#,KM3#,YM3#,40

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-16020

CM3#,4#,KM3#,YM3#,40

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-95707

CM3#,4#,KM3#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87107-95706

CM3#,4#

 1
87107-95705

KM3#,YM3#,40

 1
87110 - HEATER ASSY
87110-95739

CM3#,4#..DLX,LD,SSW,SUP,SW

 1
87110-95738

KM3#,YM31,40..DLX,LD,SUP,SW

 1
87110-95741

CM3#,4#,KM3#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87138 - RESISTOR, HEATER BLOWER
87138-95707

CM3#,4#,KM3#,YM3#,40

 1
Common parts
90179-08123
91651-40816
91661-40616

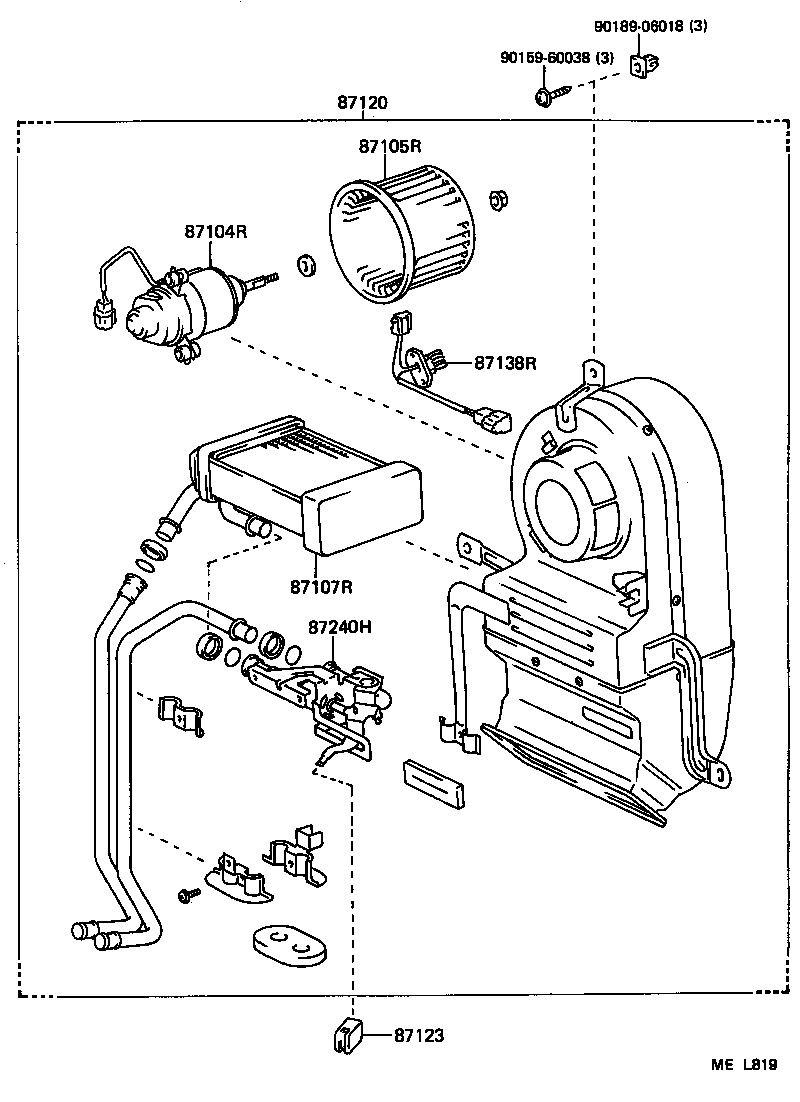

ILLUST NO. 2 OF 2(8808- )CM36,41,KM35,36..V4D..05S,06S ; (8808- )CM30,40,KM30,31,YM31,40..V4D,

Click highlighted areas on diagram

RR HEATER

diagram 87104R 87105R 87107R 87120 87123 87138R 87240H 9015960038 9018906018
Part # Description Qty Price
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-87003

CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM3#,40..(V4D,W4D)..(DLX,FXV,GXL,SCA,SSW,SUC,SUP,SW)

 1
87105R - FAN SUB-ASSY, REAR HEATER BLOWER
87105-87002

CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM3#,40..(V4D,W4D)..(DLX,FXV,GXL,SCA,SSW,SUC,SUP,SW)

 1
87107R - UNIT SUB-ASSY, REAR HEATER
87107-95708

CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM31,40..(V4D,W4D)..(DLX,LD,SSW,SUP,SW)

 1
87120 - HEATER ASSY, REAR
87110-95723

CM36,KM35,36..V4D..MRF..(05S,06S)

 1
87123 - KNOB, HEATER
55905-10110

CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM3#,40..V4D,W4D

 1
87138R - RESISTOR, REAR HEATER BLOWER
87138-95705

CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM31,40..(V4D,W4D)..(DLX,LD,SSW,SUP,SW)

 1
87240H - VALVE ASSY, WATER UNIT
87240-95708

CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM31,40..(V4D,W4D)..(DLX,LD,SSW,SUP,SW)

 1
Common parts
90159-60038
90189-06018
