Toyota Liteace van,wagon KM36 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
JP
LITEACE VAN,WAGON
KM36V-MNST (1985)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

KM36V-MNST (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988

Engine 5KJ

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

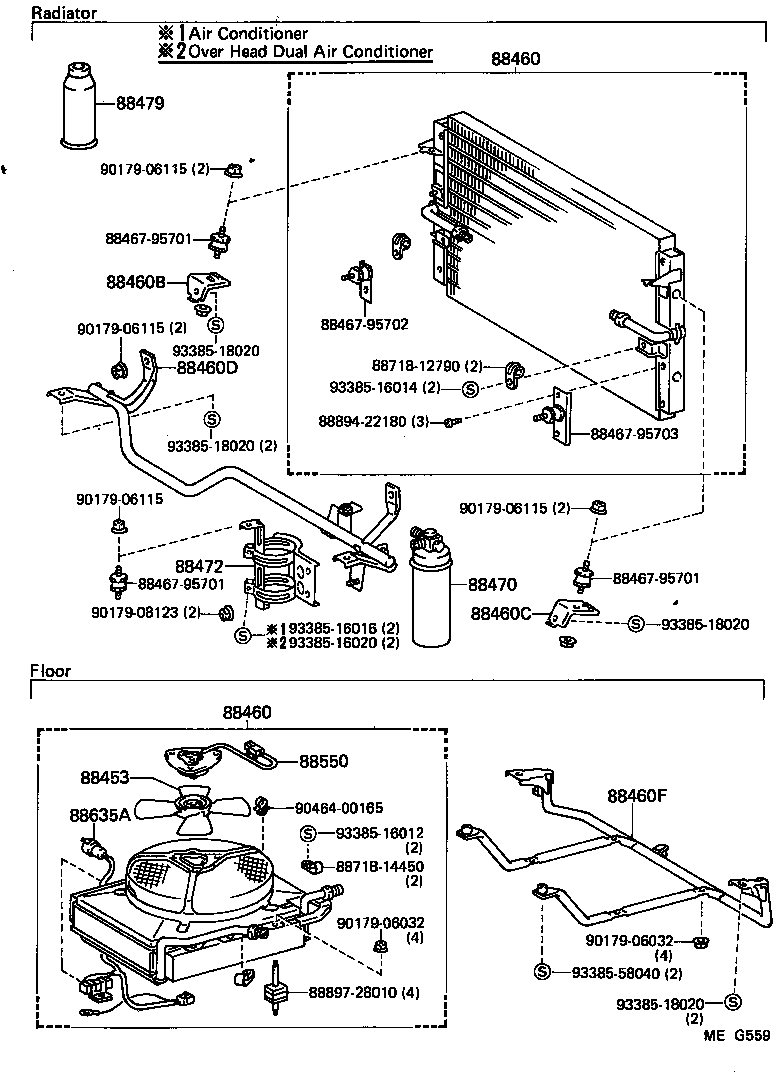

ILLUST NO. 1 OF 3(8509- )CM3#,41,KM3#,YM30

Click highlighted areas on diagram

Part #	Description	Period	Qty
88453 - FAN, COOLING (FOR CONDENSER)
88453-28010	CM30,4#,KM30,YM30,40	05/1987 - 08/1988	1
88460 - CONDENSER ASSY, COOLER
88460-95716	CM3#,KM3#,YM30 RADIATOR	09/1985 - 08/1988	1
88460 - CONDENSER ASSY, COOLER
88460-95716	CM3#,KM3#,YM30 RADIATOR	09/1985 - 08/1988	1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-95743	CM3#,KM3#,YM30	09/1985 - 08/1988	1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-95744	CM3#,KM3#,YM30	09/1985 - 08/1988	1
88460D - BRACKET, COOLER CONDENSER, NO.3
88688-95746	CM3#,KM3#,YM30	09/1985 - 08/1988	1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-16010	CM3#,4#,KM3#,YM30,40	10/1986 - 08/1988	1
88470-16010	CM3#,4#,KM3#,YM30,40	09/1985 - 10/1986	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95707	CM3#,KM3#,YM30	09/1985 - 08/1988	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001	CM3#,4#,KM3#,YM30,40 400G	09/1985 - 08/1988	4
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-87002	CM30,4#,KM30,YM30	09/1985 - 08/1988	1
Common parts
88467-95701
88467-95702
88467-95703
88718-12790
88718-14450
88894-22180
88897-28010
90179-06032
90179-06115
90179-08123
90464-00165
93385-16012
93385-16014
93385-16016
93385-16020
93385-18020
93385-58040

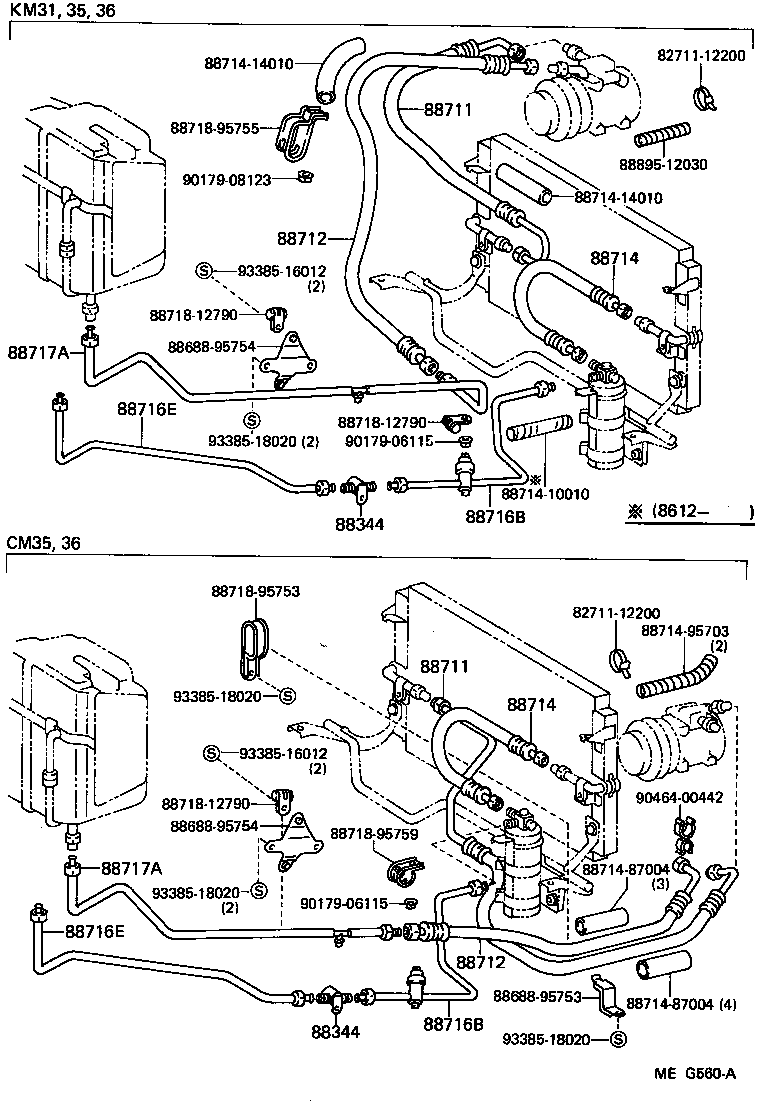

ILLUST NO. 2 OF 3(8509- )CM35,36,KM31,35,36

Click highlighted areas on diagram

Part #	Description	Period	Qty
88344 - GLASS SUB-ASSY, SIGHT
88481-87002	CM3#,4#,KM3#,YM30,40	09/1985 - 08/1988	1
88344 - GLASS SUB-ASSY, SIGHT
88481-87002	CM3#,4#,KM3#,YM30,40	09/1985 - 08/1988	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95734	CM35,36	09/1985 - 08/1988	1
88711-95731	KM31,35,36	09/1985 - 08/1988	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95734	CM35,36	09/1985 - 08/1988	1
88711-95731	KM31,35,36	09/1985 - 08/1988	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95726	KM31,35,36	09/1985 - 08/1988	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95726	KM31,35,36	09/1985 - 08/1988	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95709	CM3#,KM3#,YM30	09/1985 - 08/1988	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95709	CM3#,KM3#,YM30	09/1985 - 08/1988	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95732	CM35,36,KM31,35,36	09/1985 - 08/1988	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95732	CM35,36,KM31,35,36	09/1985 - 08/1988	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-95734	CM35,36,KM31,35,36	09/1985 - 08/1988	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-95734	CM35,36,KM31,35,36	09/1985 - 08/1988	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95723	KM31,35,36	09/1985 - 08/1988	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95723	KM31,35,36	09/1985 - 08/1988	1
Common parts
82711-12200
88688-95753
88688-95754
88714-10010
88714-14010
88714-87004
88714-95703
88718-12790
88718-95753
88718-95755
88718-95759
88895-12030
90179-06115
90179-08123
90464-00442
93385-16012
93385-18020

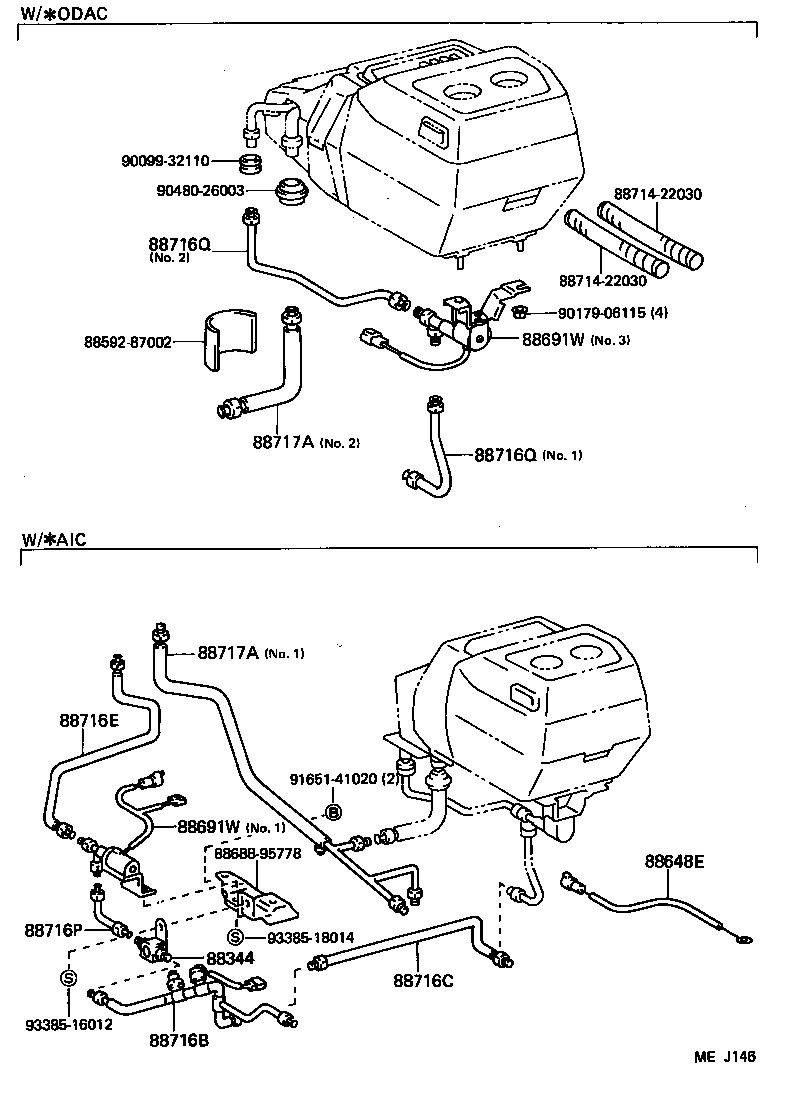

ILLUST NO. 3 OF 3(8509- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88344 - GLASS SUB-ASSY, SIGHT
88481-87002	CM3#,4#,KM3#,YM30,40	09/1985 - 08/1988	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95732	CM35,36,KM31,35,36	09/1985 - 08/1988	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-95734	CM35,36,KM31,35,36	09/1985 - 08/1988	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95723	KM31,35,36	09/1985 - 08/1988	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95723	KM31,35,36	09/1985 - 08/1988	1
Common parts
88592-87002
88688-95778
88714-22030
90099-32110
90179-06115
90480-26003
91651-41020
93385-16012
93385-18014

KM36V-MNST (1985)

ILLUST NO. 1 OF 3(8509- )CM3#,41,KM3#,YM30

ILLUST NO. 2 OF 3(8509- )CM35,36,KM31,35,36

ILLUST NO. 3 OF 3(8509- )
