KM36V-MNST (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988
Engine 5KJ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )4KJ,5K#

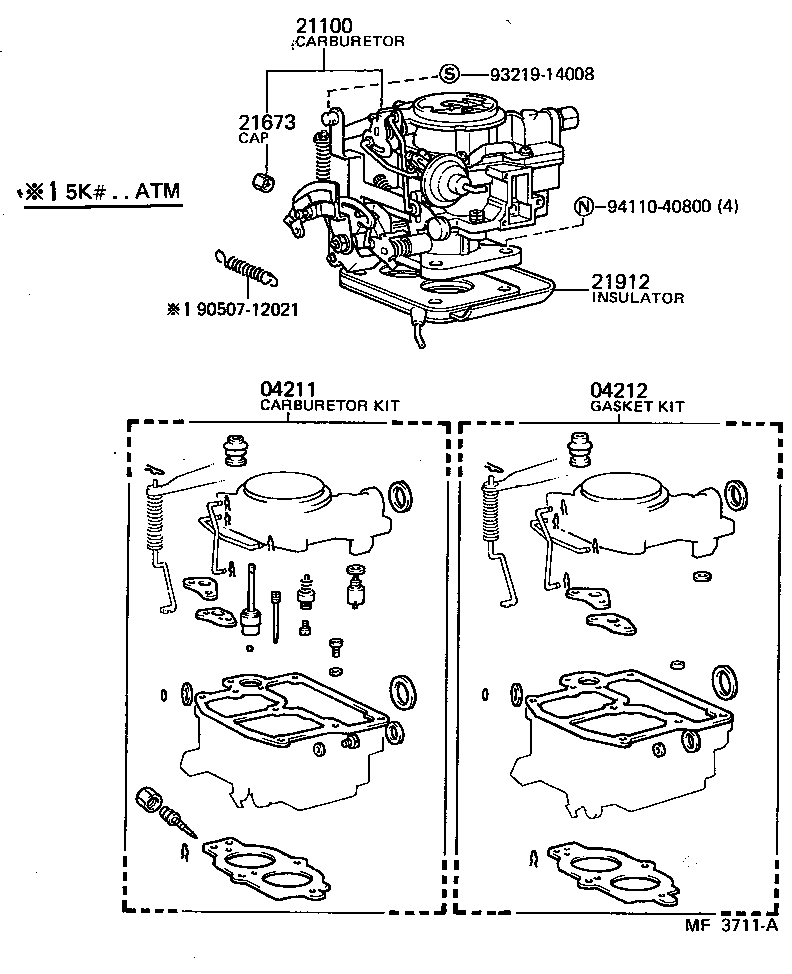

Click highlighted areas on diagram

diagram 04211 04212 21100 21673 21912 9050712021 9321914008 9411040800
Part # Description Qty Price
04211 - CARBURETOR KIT
04211-13350

5KJ..KM31,36

 1
04211-13351

5KJ..KM31,36

 1
04212 - GASKET KIT, CARBURETOR
04212-13070

5K#..KM30,31,36

 1
21100 - CARBURETOR ASSY
21100-13550

5KJ..KM31,36..MTM

 1
21673 - CAP, IDLE LIMIT
21673-13280

4KJ,5K#..KM3#

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-13031

4KJ,5K#..KM3#

 1
Common parts
90507-12021
93219-14008
94110-40800
