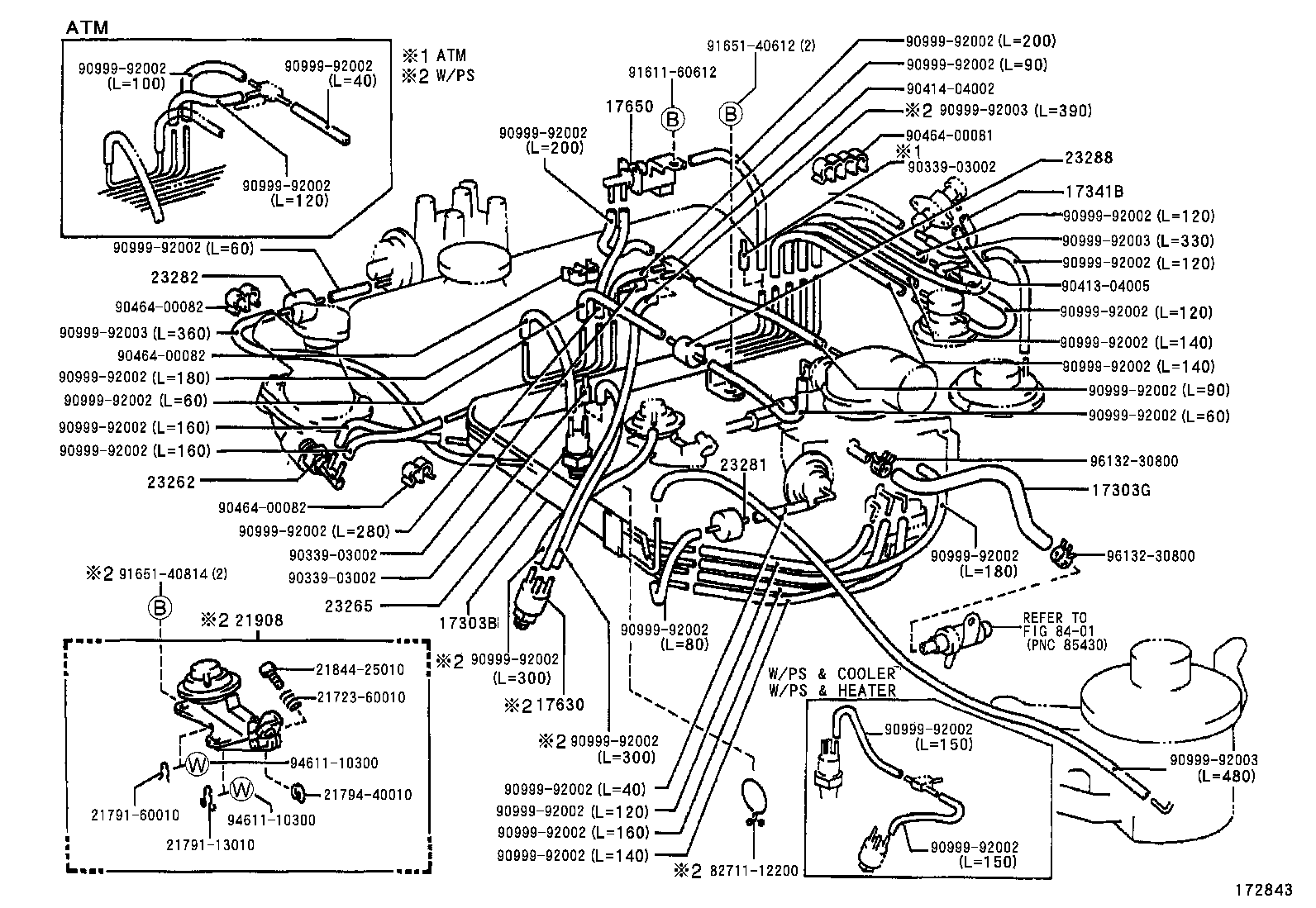

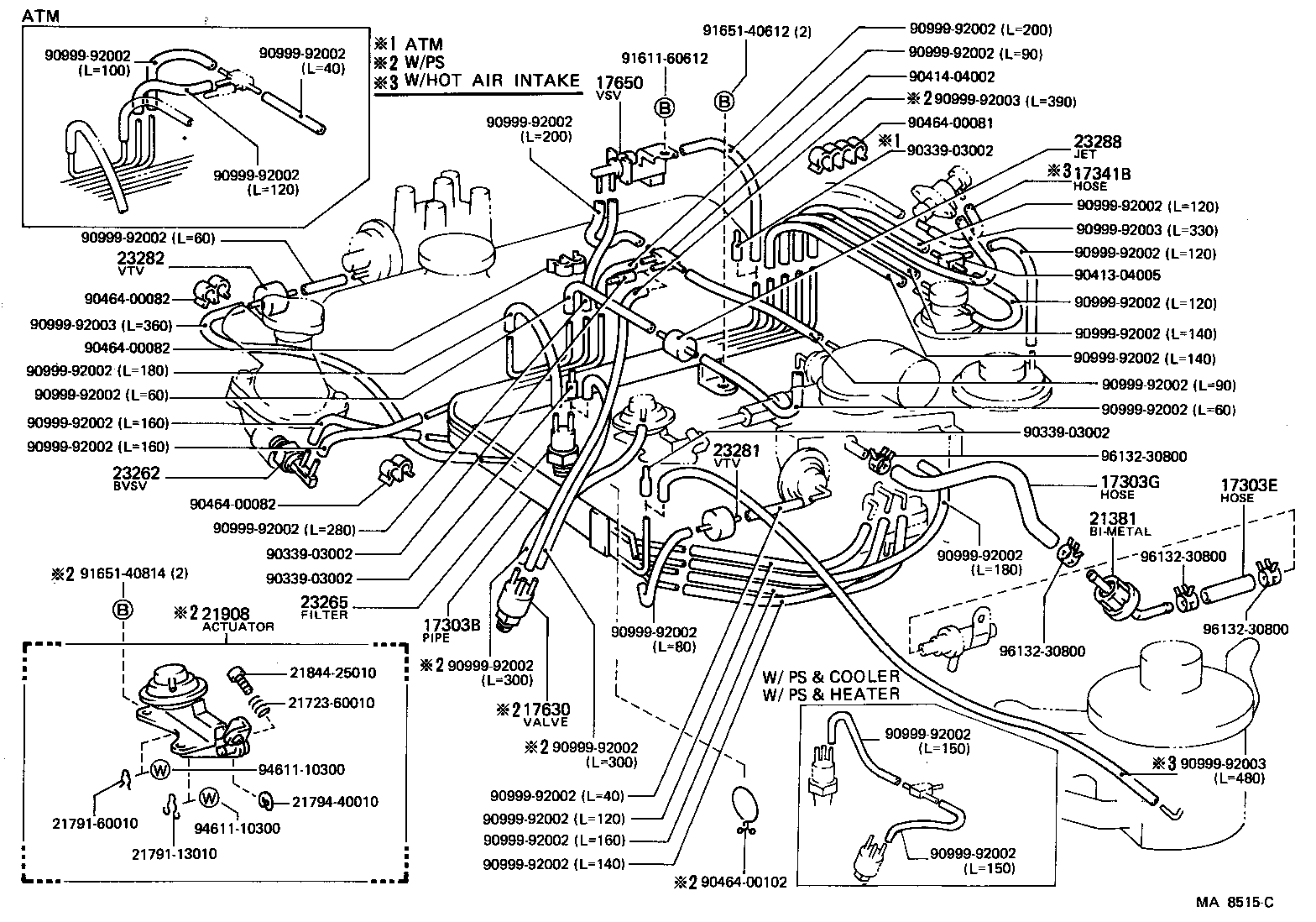

Toyota Liteace van,wagon KM36 VACUUM PIPING

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-13130	5KJ..KM31,36	09/1985 - 08/1988	1
17303E - HOSE, NO.1(FOR AIR PIPE)
90445-14069	4KJ,5K#..KM3#	09/1985 - 08/1988	1
17303G - HOSE, NO.3(FOR AIR PIPE)
23826-13030	5K#..KM30,31,36	09/1985 - 08/1988	1
17341B - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-10010	5K#..KM30,31,36	09/1985 - 08/1988	1
17630 - VALVE ASSY, AIR CONTROL
17630-28020	5KJ..KM31,36 W/PS	08/1986 - 08/1988	1
17630-28020	5K#..KM30,31,36 W/PS	09/1985 - 08/1986	1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-13020	5KJ..KM31,36..MTM	09/1985 - 05/1986	1
25860-13010	5KJ..KM31,36..MTM	05/1986 - 08/1988	1
21381 - BIMETAL, THERMOSTATIC
21381-13030	4KJ,5K#..KM3#	09/1985 - 08/1988	1
21908 - ACTUATOR SUB-ASSY, IDLE-UP
21908-13010	5KJ..KM31,36 W/PS	08/1986 - 08/1988	1
21908-13010	5K#..KM30,31,36 W/PS	09/1985 - 08/1986	1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05051	4KJ,5KJ..KM31,35,36	09/1985 - 08/1988	1
23265 - FILTER, GAS, NO.1
90917-11023	4KJ,5KJ..KM31,35,36	09/1985 - 08/1988	1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01029	5KJ..KM31,36..MTM	09/1985 - 08/1988	1
23282 - VALVE, VACUUM TRANSMITTING, NO.2
90925-01041	5KJ..KM31,36..MTM	09/1985 - 08/1988	1
23288 - JET, NO.1
90925-04006	4KJ,5KJ..KM31,35,36 YELLOW	09/1985 - 11/1985	1
90925-04006	4KJ,5KJ..KM31,35,36 YELLOW	11/1985 - 08/1988	1
Common parts
21723-60010
21791-13010
21791-60010
21794-40010
21844-25010
90339-03002
90413-04005
90414-04002
90464-00081
90464-00082
90464-00102
90999-92002
90999-92003
91611-60612
91651-40612
91651-40814
94611-10300
96132-30800

KM36V-MNST (1985)
