KM36V-MNST (1985)
Toyota Liteace Van,Wagon
(8509- )

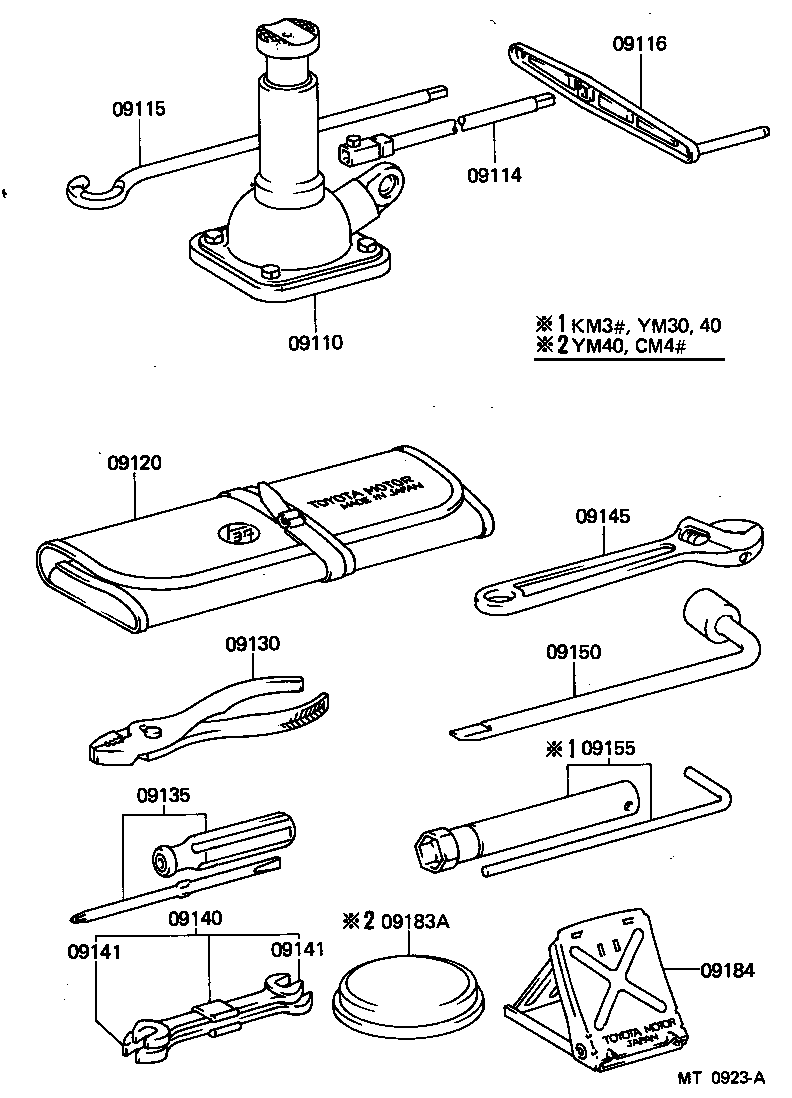

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 09110 - JACK ASSY | ||||
| 09111-27050 |
KM35..06S;KM35..MRF..03S;CM3#,KM30,31,36,YM30 |
1 | ||
| 09114 - EXTENSION SUB-ASSY, JACK HANDLE | ||||
| 09114-60050 |
CM3#,4#,KM3#,YM30,40 |
2 | ||
| 09114-60040 |
CM3#,4#,KM3#,YM30,40 |
2 | ||
| 09115 - ROD SUB-ASSY, JACK HANDLE | ||||
| 09115-60030 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 09116 - LEVER, JACK HANDLE | ||||
| 09116-35040 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 09120 - BAG, TOOL | ||||
| 09120-26021 |
CM3#,KM3#,YM30 |
1 | ||
| 09130 - PLIERS | ||||
| 99913-11500 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 09135 - DRIVER, SCREW | ||||
| 99915-10700 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 09140 - SPANNER SET | ||||
| 09140-27010 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 09141 - SPANNER | ||||
| 99914-11012 |
CM3#,4#,KM3#,YM30,40 10 X 12,10X12 |
1 | ||
| 99914-11417 |
CM3#,4#,KM3#,YM30,40 14 X 17,14X17 |
1 | ||
| 99914-11012 |
CM3#,4#,KM3#,YM30,40 10 X 12,12X14 |
1 | ||
| 99914-10810 |
CM3#,4#,KM3#,YM30,40 8 X 10,8X10 |
1 | ||
| 09141 - SPANNER | ||||
| 99914-11012 |
CM3#,4#,KM3#,YM30,40 10 X 12,10X12 |
1 | ||
| 99914-11417 |
CM3#,4#,KM3#,YM30,40 14 X 17,14X17 |
1 | ||
| 99914-11012 |
CM3#,4#,KM3#,YM30,40 10 X 12,12X14 |
1 | ||
| 99914-10810 |
CM3#,4#,KM3#,YM30,40 8 X 10,8X10 |
1 | ||
| 09145 - WRENCH, MONKEY | ||||
| 99911-11200 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 99911-10200 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 09150 - WRENCH, HUB NUT BOX | ||||
| 09150-35020 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 09155 - WRENCH, SPARK PLUG | ||||
| 09155-44010 |
KM3# |
1 | ||
| 09184 - STOPPER, WHEEL | ||||
| 09184-00010 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
