KM36V-MNSFT (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988
Engine 5KJ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

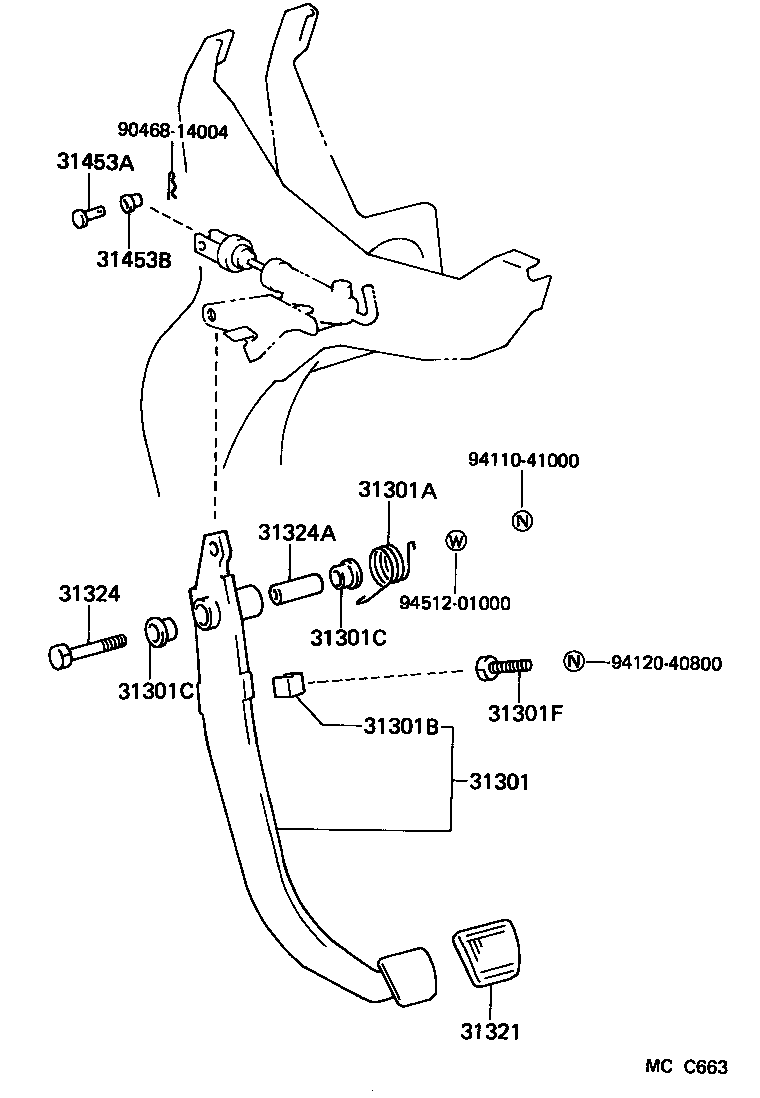

ILLUST NO. 1 OF 3(8509- )5F

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31453A 31453B 9046814004 9411041000 9412040800 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-27151

CM30,35,4#,KM30,31,36,YM30,40..5F

 1
31301-27150

CM30,35,4#,KM30,31,36,YM30,40..5F

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90508-32002

CM30,35,4#,KM30,31,36,YM30,40..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
47131-10020

CM30,35,4#,KM3#,YM30,40..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

CM30,35,4#,KM3#,YM30,40..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

CM30,35,4#,KM3#,YM30,40..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-08052

CM30,35,4#,KM30,31,36,YM30,40..5F

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

CM30,35,4#,KM3#,YM30,40..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
91111-51060

CM30,35,4#,KM3#,YM30,40..MTM

 1
91121-51060

CM30,35,4#,KM3#,YM30,40..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

CM30,35,4#,KM3#,YM30,40..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

CM30,35,4#,KM30,31,36,YM30,40..5F

長さ=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

CM30,35,4#,KM30,31,36,YM30,40..5F

 1
Common parts
90468-14004
94110-41000
94120-40800
94512-01000

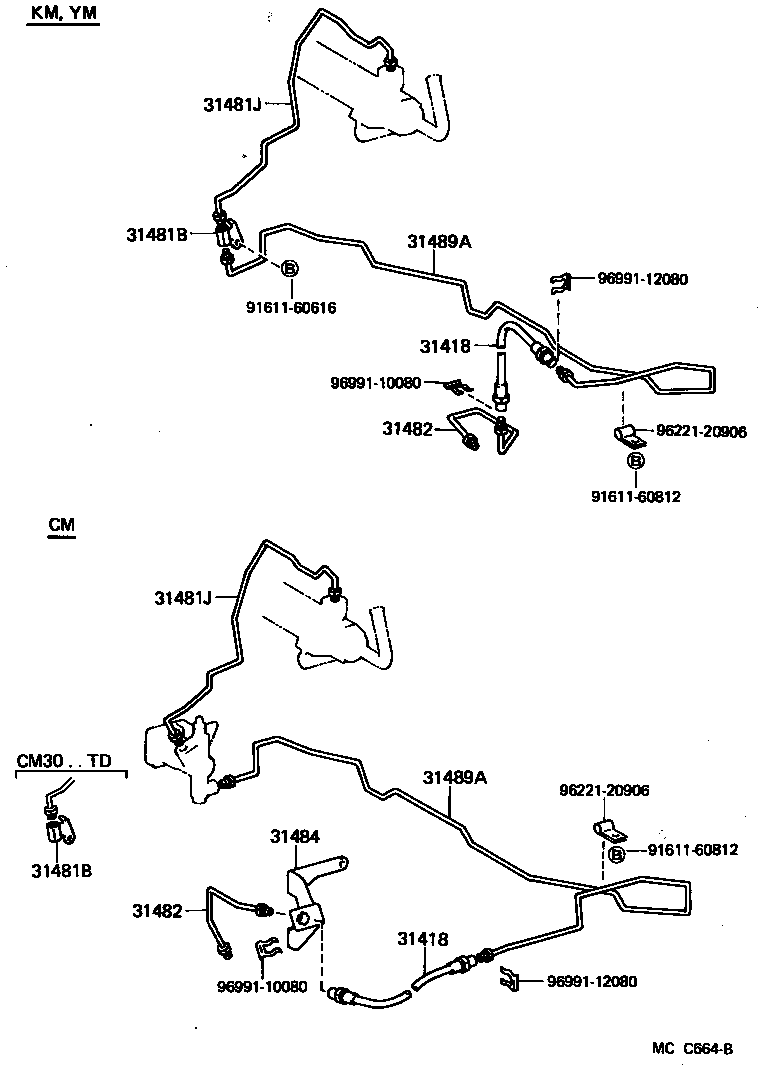

ILLUST NO. 2 OF 3(8509- )5F

Click highlighted areas on diagram

diagram 31418 31418 31481B 31481B 31481J 31481J 31482 31482 31484 31489A 31489A 9161160616 9161160812 9161160812 9622120906 9622120906 9699110080 9699110080 9699112080 9699112080
Part # Description Qty Price
31418 - HOSE, CLUTCH
96817-50270

KM36..SUP

 1
31418 - HOSE, CLUTCH
96817-50270

KM36..SUP

 1
31481B - WAY(FOR CLUTCH TUBE)
90412-12017

KM30,31,36,YM30,40..5F

 1
31481B - WAY(FOR CLUTCH TUBE)
90412-12017

KM30,31,36,YM30,40..5F

 1
31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY
31481-27050

KM30,31,36,YM30,40..5F

 1
31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY
31481-27050

KM30,31,36,YM30,40..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-27070

KM30,31,36..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-27070

KM30,31,36..5F

 1
31489A - TUBE, 2 WAY TO FLEXIBLE HOSE
31489-27080

KM36..SUP

 1
31489A - TUBE, 2 WAY TO FLEXIBLE HOSE
31489-27080

KM36..SUP

 1
Common parts
91611-60616
91611-60812
96221-20906
96991-10080
96991-12080
