KM36V-JDST (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Aug 1990
Engine 5KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )5KJ

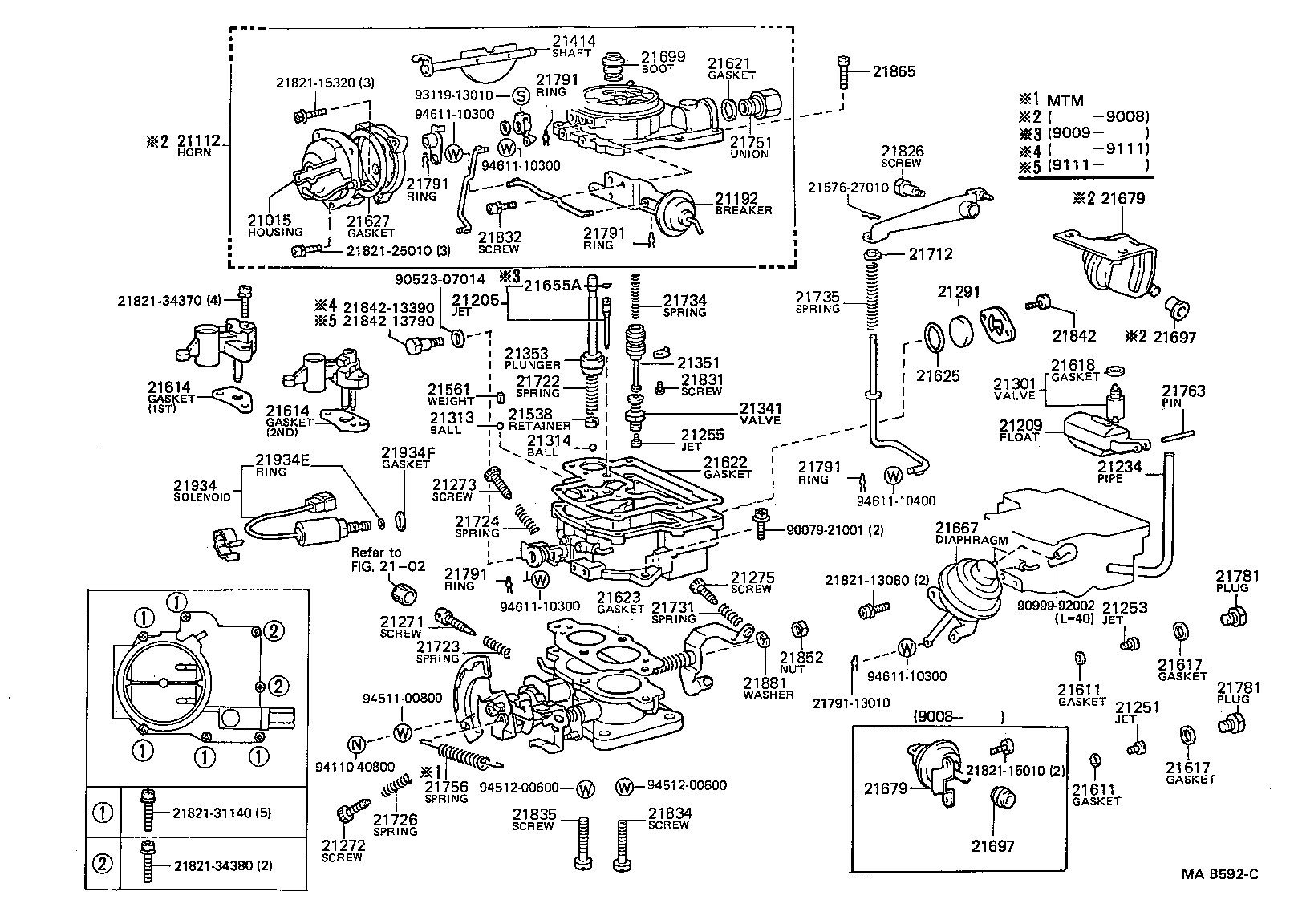

Click highlighted areas on diagram

diagram 21015 2102 21112 21192 21205 21209 21234 21251 21253 21255 21271 21272 21273 21275 21291 21301 21313 21314 21341 21351 21353 21414 21538 21561 2157627010 21611 21611 21614 21614 21617 21617 21618 21621 21622 21623 21625 21627 21655A 21667 21679 21679 21697 21697 21699 21712 21722 21723 21724 21726 21731 21734 21735 21751 21756 21763 21781 21781 21791 21791 21791 21791 21791 2179113010 2182113080 2182115010 2182115320 2182125010 2182131140 2182134370 2182134380 21826 21831 21832 21834 21835 21842 2184213390 2184213790 21852 21865 21881 21934 21934E 21934F 9007921001 9052307014 9099992002 9311913010 9411040800 9451100800 9451200600 9451200600 9461110300 9461110300 9461110300 9461110300 9461110400
Part # Description Qty Price
21015 - HOUSING SUB-ASSY, COIL
21015-13531

5K#..KM30,31,36

 1
21112 - HORN, AIR
21112-13550

5KJ..KM31,36

 1
21192 - BREAKER
21192-13550

5KJ..KM31,36

 1
21205 - JET SUB-ASSY, SLOW
21205-13250

4KJ,5KJ..KM31,35,36

 1
21209 - FLOAT SUB-ASSY
21209-24480

4KJ,5K#..KM3#

 1
21234 - PIPE OR HOSE
21234-61020

5K#..KM30,31,36

 1
21251 - JET, 1ST MAIN
90999-41099

4KJ,5KJ..KM31,35,36

 1
21253 - JET, 2ND MAIN
90999-42159

5KJ..KM31,36

 1
21255 - JET, POWER
90999-43053

5KJ..KM31,36

 1
21271 - SCREW, IDLE ADJUSTING
21271-13270

4KJ,5KJ..KM31,35,36

 1
21272 - SCREW, 1ST IDLE ADJUSTING
21814-33010

4KJ,5K#..KM3#

 1
21273 - SCREW, THROTTLE ADJUSTING
21273-13390

4KJ,5K#..KM3#

 1
21275 - SCREW, ADJUSTING
21275-24360

4KJ,5KJ..KM31,35,36

 1
21301 - VALVE SUB-ASSY, NEEDLE
21301-24501

4KJ,5K#..KM3#

 1
21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21313-11020

4KJ,5K#..KM3#

 1
21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21314-60010

4KJ,5K#..KM3#

 1
21341 - VALVE, POWER
21304-30010

5KJ..KM31,36

 1
21351 - PISTON, POWER
21351-24230

5KJ..KM31,36

 1
21353 - PLUNGER, PUMP
21353-24010

4KJ,5KJ..KM31,35,36

 1
21414 - SHAFT, CHOKE
21054-13391

4KJ,5K#..KM3#

 1
21538 - RETAINER, BALL CHECK
21538-31010

4KJ,5K#..KM3#

 1
21561 - WEIGHT, PUMP DISCHARGE
21561-22010

4KJ,5K#..KM3#

 1
21611 - GASKET, MAIN JET
21611-22010

4KJ,5K#..KM3#

 2
21611 - GASKET, MAIN JET
21611-22010

4KJ,5K#..KM3#

 2
21614 - GASKET, VENTURI
21614-24360

4KJ,5K#..KM3#

2ND

 1
21614-22010

4KJ,5K#..KM3#

1ST

 1
21614 - GASKET, VENTURI
21614-24360

4KJ,5K#..KM3#

2ND

 1
21614-22010

4KJ,5K#..KM3#

1ST

 1
21617 - GASKET, MAIN PASSAGE PLUG
21617-30010

4KJ,5K#..KM3#

 2
21617 - GASKET, MAIN PASSAGE PLUG
21617-30010

4KJ,5K#..KM3#

 2
21618 - GASKET, NEEDLE VALVE SEAT
21618-14010

5K#..KM30,31,36

 1
21621 - GASKET, UNION NIPPLE
21633-24030

4KJ,5K#..KM3#

 1
21622 - GASKET, AIR HORN
21622-24360

4KJ,5K#..KM3#

 1
21623 - GASKET, BODY FLANGE
21623-13080

4KJ,5K#..KM3#

 1
21627 - GASKET, COIL HOUSING
21627-28090

4KJ,5K#..KM3#

 1
21667 - DIAPHRAGM
21667-13390

4KJ,5K#..KM3#..MTM

 1
21679 - POSITIONER
21679-13550

5KJ..KM31,36

 1
21679 - POSITIONER
21679-13550

5KJ..KM31,36

 1
21697 - BOOT(FOR SLIDING ROD)
21699-24360

4KJ,5KJ..KM31,35,36

 1
21697 - BOOT(FOR SLIDING ROD)
21699-24360

4KJ,5KJ..KM31,35,36

 1
21699 - BOOT(FOR PUMP PLUNGER)
21699-28150

4KJ,5K#..KM3#

 1
21722 - SPRING, PUMP DAMPING
21722-22010

4KJ,5K#..KM3#

 1
21723 - SPRING, IDLE ADJUSTING
21723-21030

4KJ,5K#..KM3#

 1
21724 - SPRING, THROTTLE ADJUSTING
21864-24230

4KJ,5K#..KM3#

 1
21726 - SPRING, 1ST IDLE ADJUSTING
21726-40010

4KJ,5K#..KM3#

 1
21731 - SPRING, DASH POT OR POSITIONER ADJUSTING
21864-24010

4KJ,5KJ..KM31,35,36

 1
21734 - SPRING, POWER PISTON
21734-13550

5KJ..KM31,36

 1
21735 - SPRING, PUMP ARM
21735-22010

4KJ,5K#..KM3#

 1
21751 - UNION, NIPPLE
21751-24034

4KJ,5K#..KM3#

 1
21756 - SPRING, BACK(FOR THROTTLE SHAFT)
90507-10003

4KJ,5K#..KM3#..MTM

 1
21763 - PIN, FLOAT LEVER
21763-38010

4KJ,5K#..KM3#

 1
21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21781-15230

4KJ,5K#..KM3#

 2
21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21781-15230

4KJ,5K#..KM3#

 2
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-13011

5KJ..KM31,36;5KU..KM30..MTM

 5
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-13011

5KJ..KM31,36;5KU..KM30..MTM

 5
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-13011

5KJ..KM31,36;5KU..KM30..MTM

 5
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-13011

5KJ..KM31,36;5KU..KM30..MTM

 5
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-13011

5KJ..KM31,36;5KU..KM30..MTM

 5
21826 - SCREW, PUMP ARM SET
21826-24470

4KJ,5K#..KM3#

 1
21831 - SCREW, POWER PISTON STOP
21821-15060

4KJ,5K#..KM3#

 1
21832 - SCREW(FOR CHOKE LEVER ADAPTER SET)
21821-15010

4KJ,5K#..KM3#

 1
21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21834-31010

4KJ,5K#..KM3#

 1
21835 - SCREW, SET, NO.3(FOR CARBURETOR BODY SET)
21835-40010

4KJ,5K#..KM3#

 1
21852 - NUT, THROTTLE LEVER SET
21852-30010

4KJ,5K#..KM3#

 1
21881 - WASHER, LOCK(FOR THROTTLE SHAFT)
21881-60010

4KJ,5K#..KM3#

 1
21934 - SOLENOID, THROTTLE VALVE
21062-13550

5KJ..KM31,36

 1
21934E - RING, O(FOR SOLENOID VALVE)
21655-44101

4KJ,5K#..KM3#

 1
21934F - GASKET
21649-38010

4KJ,5K#..KM3#

 1
Common parts
21576-27010
21791-13010
21821-13080
21821-15010
21821-15320
21821-25010
21821-31140
21821-34370
21821-34380
21842-13390
21842-13790
90079-21001
90523-07014
90999-92002
93119-13010
94110-40800
94511-00800
94512-00600
94611-10300
94611-10400
