KM36V-JDSFT (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Aug 1990
Engine 5KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 88301 88302 88320 88330 88330A 88330B 88330C 88403 9009904349 9009907087 9009907114 9009907125 9009935012 9331915008 9411040800 9451100800
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-28020

CM31,36,4#..V4D,V5D,W5D

 1
88412-22030

KM31,35,36,YM30

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-14050

KM31,35,36,YM30

 1
88411-22151

CM31,36,41

 1
88411-30510

CM31,36,4#..V4D,V5D,W5D

 1
88320 - COMPRESSOR ASSY, COOLER
88320-27070

KM31,35,36

 1
88320-27120

CM31,36

 1
88330 - CLUTCH ASSY, MAGNET
88410-28020

CM31,36,41

 1
88410-22080

KM31,35,36,YM30

 1
88410-28050

CM31,36,4#..V4D,V5D,W5D

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-12050

KM36..MTM

 1
88335-12050

CM31,36,4#,KM31,35,YM30,40

 1
88330B - BEARING, MAGNET CLUTCH
90099-10133

KM31,35,36,YM30..DLX,GXL,SUP

 1
88330C - RING, SNAP (FOR MAGNET CLUTCH)
90099-07094

KM31,35,36,YM3#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-12030

KM31,35,36,YM30

 1
88403-16011

CM31,36,4#..V4D,V5D,W5D

 1
Common parts
90099-04349
90099-07087
90099-07114
90099-07125
90099-35012
93319-15008
94110-40800
94511-00800

ILLUST NO. 2 OF 2(8808- )CM3#,4#

Click highlighted areas on diagram

diagram 1605 1605 88444 88444 88595 88595 8889920090 8889920090 9009904306 9009904306 9009904406 9011908713 9161160825 9161160825 9161160850 9161160850
Part # Description Qty Price
88444 - BRACKET, IDLE PULLEY
88444-20200

CM31,36

 1
88444 - BRACKET, IDLE PULLEY
88444-20200

CM31,36

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35010

CM31,36,KM31,35,36

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35010

CM31,36,KM31,35,36

 1
Common parts
88899-20090
90099-04306
90099-04406
90119-08713
91611-60825
91611-60850
Linked diagrams
1605

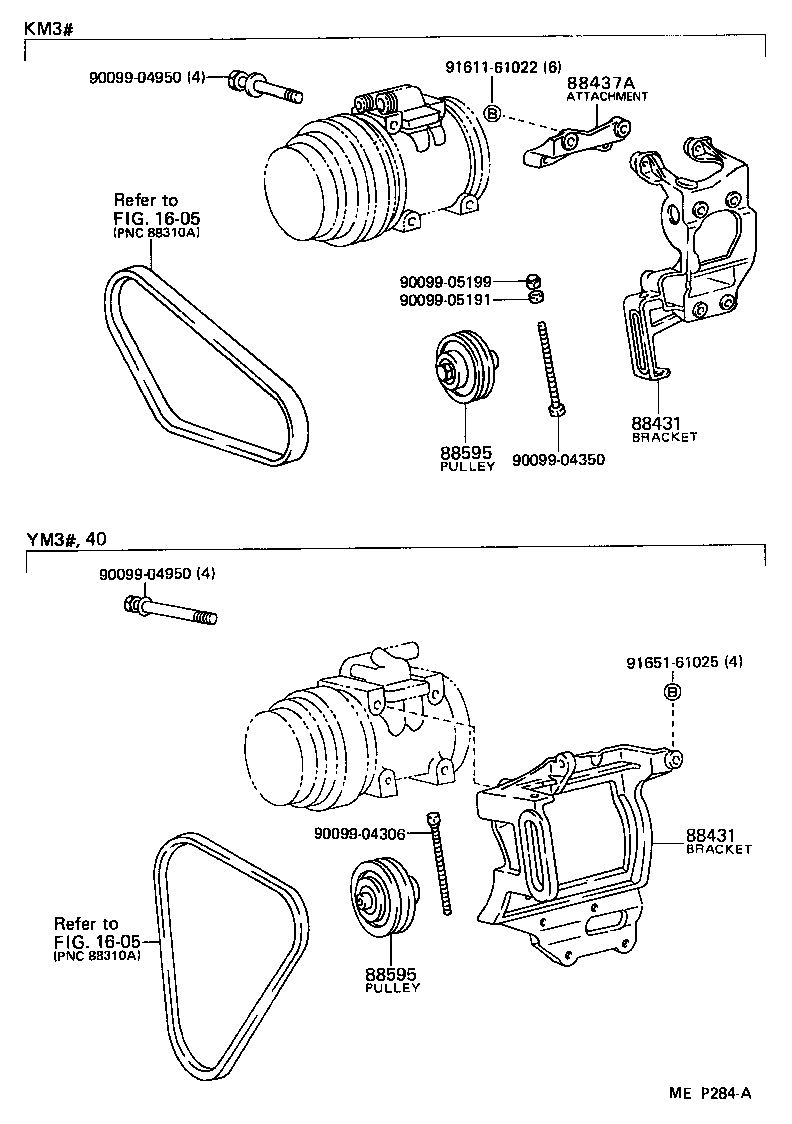

ILLUST NO. 2 OF 2(8808- )KM3#,YM3#,40

Click highlighted areas on diagram

diagram 1605 1605 88431 88431 88437A 88595 88595 9009904306 9009904350 9009904950 9009904950 9009905191 9009905199 9161161022 9165161025
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-27030

KM31,35,36

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-27030

KM31,35,36

 1
88437A - ATTACHMENT, COMPRESSOR
88437-27030

KM31,35,36

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35010

CM31,36,KM31,35,36

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35010

CM31,36,KM31,35,36

 1
Common parts
90099-04306
90099-04350
90099-04950
90099-05191
90099-05199
91611-61022
91651-61025
Linked diagrams
1605
