KM36V-JDSBET (1988)
Toyota Liteace Van,Wagon

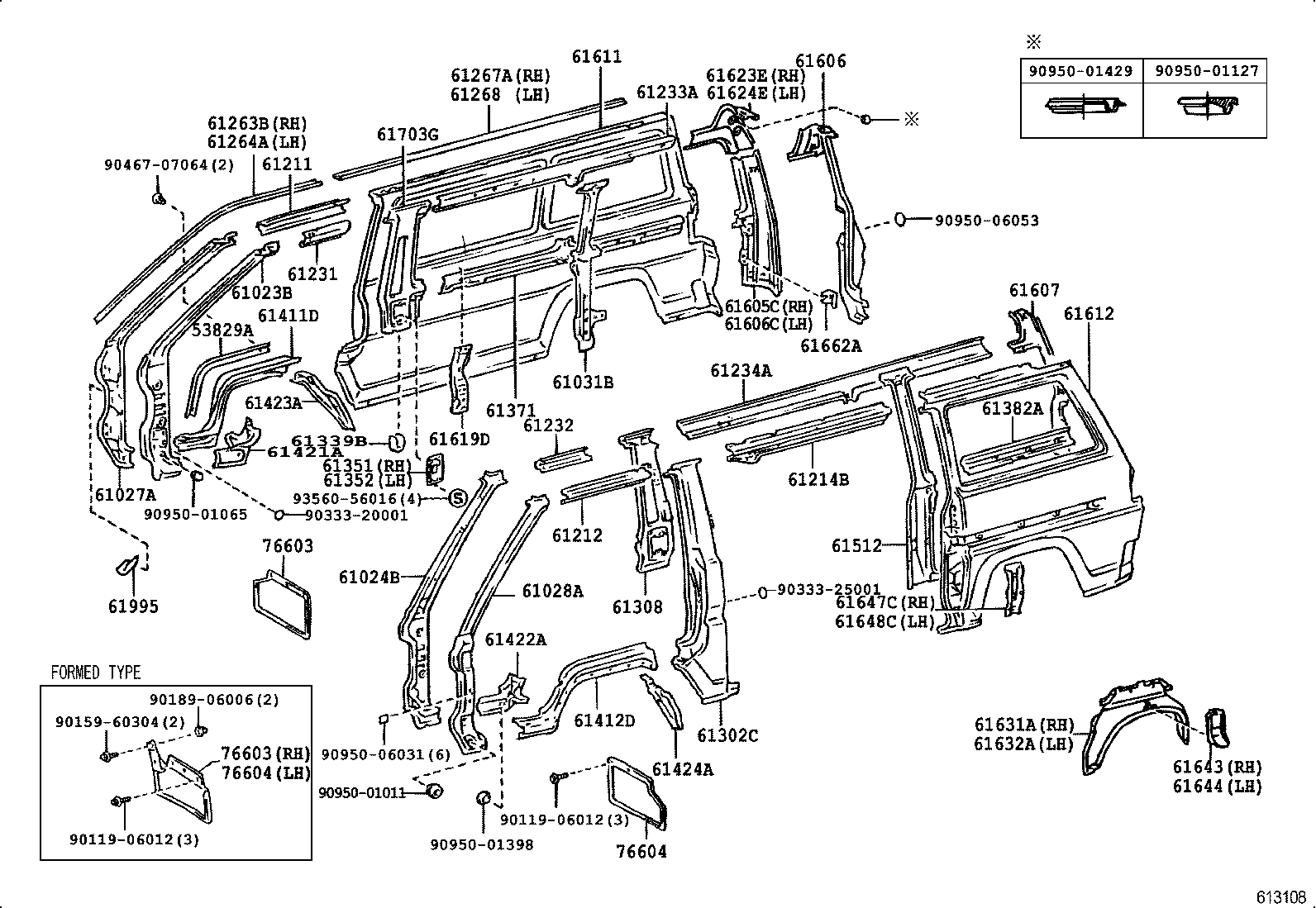

ILLUST NO. 1 OF 2(8808- )CM36,KM35,36..V4D..MRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53829A - PROTECTOR, FRONT FENDER, LOWER | ||||
| 53839-95700 |
CM3#,4#,KM3#,YM3#,40 左側 |
1 | ||
| 53829-95700 |
CM3#,4#,KM3#,YM3#,40 右側 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-95704 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-95702 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61027-95700 |
CM30..W4D..SW;CM31,36,4#,KM3#,YM3#,40;CM30..FXV,GXL,LD,SSW,SUC |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61028-95702 |
CM30..SSW;CM30..W4D..SW;CM31,36,4#,KM3#,YM31,40..DLX,SSW,SUP,SW |
1 | ||
| 61031B - EXTENSION SUB-ASSY, QUARTER PANEL, RH | ||||
| 61031-95712 |
KM36..VSP..MRF |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-95705 |
CM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-95705 |
CM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW |
1 | ||
| 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH | ||||
| 61214-95701 |
CM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-95705 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-95704 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-95704 |
CM36,KM35,36..V4D..VSG;CM30,4#,KM30,31,YM31,40..(V4D,W4D)..(DLX,SSW,SUP,SW) |
1 | ||
| 61233-95706 |
CM36,KM35,36..VSP |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61208-95705 |
CM36,KM35,36..VSG;CM30,31,4#,KM30,31,YM31,40..DLX,SSW,SUP,SW |
1 | ||
| 61208-95709 |
CM36,KM35,36..VSP |
1 | ||
| 61263B - CHANNEL, ROOF DRIP SIDE, FRONT RH | ||||
| 61263-95702 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 61264A - CHANNEL, ROOF DRIP SIDE, FRONT LH | ||||
| 61264-95702 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 61267A - CHANNEL, ROOF DRIP SIDE, REAR RH | ||||
| 61267-95702 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 61268 - CHANNEL, ROOF DRIP SIDE, REAR LH | ||||
| 61268-95702 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 61302C - PILLAR SUB-ASSY, CENTER BODY, OUTER LH | ||||
| 61302-95725 |
CM3#,4#,KM3#,YM31,40..DLX,LD,SCA,SSW,SUC,SUP,SW |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-95711 |
KM36..V1;KM36..VSG..MRF;CM3#,4#,KM30,31,35,YM31,40..DLX,SSW,SUP,SW |
1 | ||
| 61308-95713 |
KM36..VSG;CM31,36,41,KM31,35 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 61308-95713 |
KM36..VSP..MRF |
1 | ||
| 61339B - SEAL, CENTER BODY PILLAR, INNER NO.1 | ||||
| 61339-95701 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 61351 - COVER, CENTER BODY, INNER RH | ||||
| 61347-95711 |
CM3#,4#,KM3#,YM31,40..DLX,SSW,SUP,SW |
1 | ||
| 61352 - COVER, CENTER BODY, INNER, LH | ||||
| 61347-95711 |
CM3#,4#,KM3#,YM31,40..DLX,SSW,SUP,SW |
1 | ||
| 61371 - RAIL, NO.1 CENTER INNER, RH | ||||
| 61371-95702 |
CM36,KM35,36..VSP |
1 | ||
| 61371-95700 |
CM36,KM35,36..V4D..VSG;CM30,4#,KM30,31,YM31,40..(V4D,W4D)..(DLX,LD,SSW,SUP,SW) |
1 | ||
| 61382A - RAIL, NO.2 CENTER, INNER LH | ||||
| 61382-95702 |
CM36,KM35,36..VSP |
1 | ||
| 61411D - PANEL, FENDER, OUTER RH | ||||
| 61411-95702 |
CM40,YM40..LD;CM3#,41,KM3#,YM31..DLX,LD,SCA,SSW,SUC,SUP,SW |
1 | ||
| 61412D - PANEL, FENDER, OUTER LH | ||||
| 61412-95702 |
KM30..W4D;CM40,YM40..LD;CM3#,41,KM31,35,36,YM31..DLX,LD,SSW,SUC,SUP,SW |
1 | ||
| 61421A - PANEL, FENDER, INNER RH | ||||
| 61421-95702 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 61422A - PANEL, FENDER, INNER LH | ||||
| 61422-95702 |
KM30..W4D;CM3#,4#,KM31,35,36,YM3#,40 |
1 | ||
| 61423A - PANEL, FENDER, INNER LOWER RH | ||||
| 61423-95702 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 61424A - PANEL, FENDER, INNER LOWER LH | ||||
| 61424-95703 |
KM30..W4D;CM3#,4#,KM31,35,36,YM3#,40 |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61502-95714 |
KM36..VSP..MRF |
1 | ||
| 61605C - PANEL SUB-ASSY, QUATER, REAR INNER RH | ||||
| 61605-95717 |
KM36..VSP..MRF |
1 | ||
| 61606 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61705-95702 |
CM3#,4#,KM3#,YM3#,40..HRF,MRF |
1 | ||
| 61606C - PANEL SUB-ASSY, QUATER, REAR INNER LH | ||||
| 61606-95719 |
KM36..VSP..MRF |
1 | ||
| 61607 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61706-95701 |
CM3#,4#,KM3#,YM3#,40..HRF,MRF |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-95G27 |
KM36..VSP..MRF |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-95756 |
KM36..VSP..MRF |
1 | ||
| 61619D - REINFORCEMENT, QUARTER PANEL, RH | ||||
| 61619-95704 |
CM30,36,4#,KM3#,YM3#,40..V4D,W4D 右側 |
1 | ||
| 61623E - EXTENSION, QUARTER INNER PANEL, REAR RH | ||||
| 61623-95704 |
KM36..VSG..(HRF,MRF);CM3#,4#,KM30,31,35,YM31,40..(HRF,MRF)..(DLX,LD,SSW,SUP,SW) |
1 | ||
| 61623-95708 |
KM36..VSP..MRF |
1 | ||
| 61624E - EXTENSION, QUARTER INNER PANEL, REAR LH | ||||
| 61624-95704 |
KM36..VSG..(HRF,MRF);CM3#,4#,KM30,31,35,YM31,40..(HRF,MRF)..(DLX,LD,SSW,SUP,SW) |
1 | ||
| 61624-95708 |
KM36..VSP..MRF |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-95705 |
CM36,KM35,36..V1;CM30,31,4#,KM30,31,YM3#,40 |
1 | ||
| 61631-95704 |
CM36,KM35,36..MRF |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61631-95704 |
CM36,KM35,36..MRF |
1 | ||
| 61631-95705 |
CM36,KM35,36..V1;CM30,31,4#,KM30,31,YM3#,40 |
1 | ||
| 61643 - GUSSET, QUARTER WHEEL HOUSE CENTER, RH | ||||
| 61643-95701 |
CM36,KM35,36..MRF |
1 | ||
| 61644 - GUSSET, QUARTER WHEEL HOUSE, CENTER LH | ||||
| 61643-95701 |
CM36,KM35,36..MRF |
1 | ||
| 61647C - REINFORCEMENT, WHEEL HOUSE, RH | ||||
| 61647-95700 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 61648C - REINFORCEMENT, WHEEL HOUSE, LH | ||||
| 61647-95700 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 61662A - PLATE, QUARTER PANEL OUTER EXTENSION, LOWER REAR | ||||
| 61662-95700 |
CM3#,4#,KM3#,YM3#,40 左側 |
1 | ||
| 61703G - PANEL SUB-ASSY, QUARTER, INNER RH | ||||
| 61703-95717 |
KM36..VSP..MRF |
1 | ||
| 61995 - DAM, FRONT BODY PILLAR, OUTER | ||||
| 61995-95700 |
CM3#,4#,KM3#,YM3#,40 ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 53881-95701 |
CM3#,4#,KM3#,YM31,40..DLX,LD,SCA,SSW,SUC,SUP,SW |
1 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 53881-95701 |
CM3#,4#,KM3#,YM31,40..DLX,LD,SCA,SSW,SUC,SUP,SW |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 53881-95701 |
CM3#,4#,KM3#,YM31,40..DLX,LD,SCA,SSW,SUC,SUP,SW |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 53881-95701 |
CM3#,4#,KM3#,YM31,40..DLX,LD,SCA,SSW,SUC,SUP,SW |
1 | ||
| Common parts | ||||
| 90119-06012 | ||||
| 90159-60304 | ||||
| 90189-06006 | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90467-07064 | ||||
| 90950-01011 | ||||
| 90950-01065 | ||||
| 90950-01127 | ||||
| 90950-01398 | ||||
| 90950-01429 | ||||
| 90950-06031 | ||||
| 90950-06053 | ||||
| 93560-56016 | ||||
ILLUST NO. 2 OF 2(8808- )CM31,36,41,KM31,35,36,YM31
| Part # | Description | Qty | Price |
|---|
