KM36V-JDF (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988
Engine 5KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )KM30,31,36

Click highlighted areas on diagram

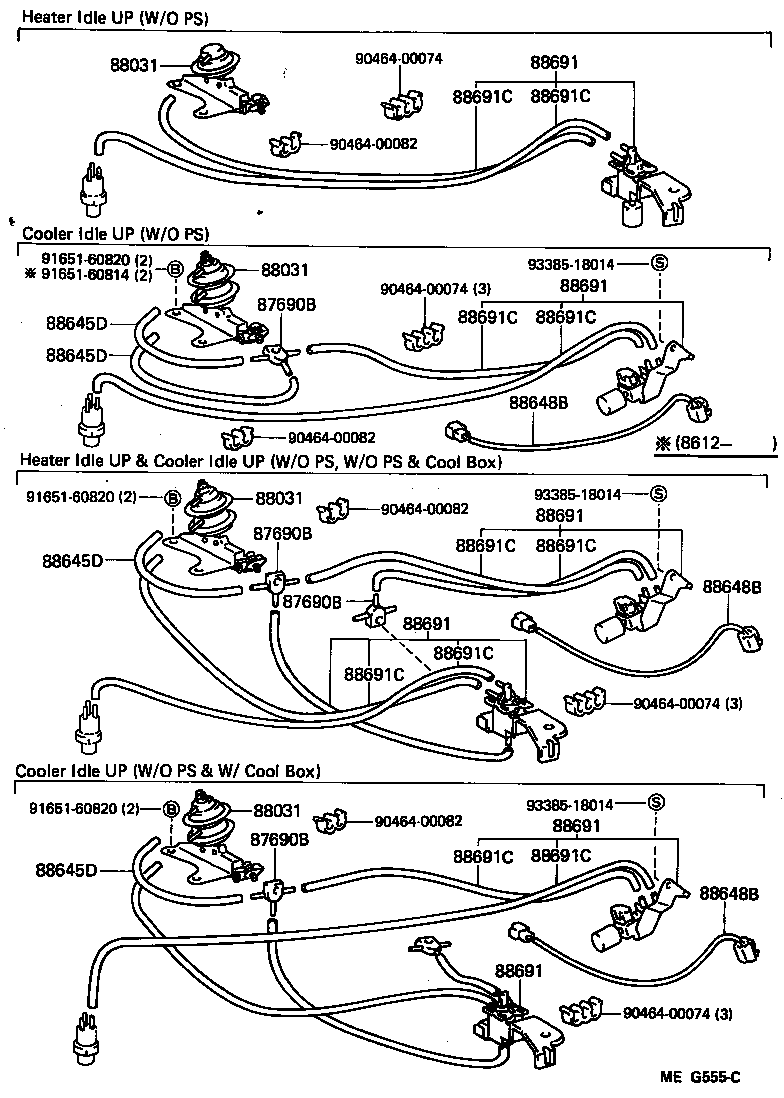

diagram 87690B 87690B 87690B 87690B 88031 88031 88031 88031 88645D 88645D 88645D 88645D 88648B 88648B 88648B 88691 88691 88691 88691 88691 88691 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 9046400074 9046400074 9046400074 9046400074 9046400082 9046400082 9046400082 9046400082 9165160814 9165160820 9165160820 9165160820 9338518014 9338518014 9338518014
Part # Description Qty Price
87690B - WAY, 3
90413-04005

KM3#

*CIU

 1
90413-04005

KM30,31,36

*HIU,W/PS

 1
87690B - WAY, 3
90413-04005

KM3#

*CIU

 1
90413-04005

KM30,31,36

*HIU,W/PS

 1
87690B - WAY, 3
90413-04005

KM3#

*CIU

 1
90413-04005

KM30,31,36

*HIU,W/PS

 1
87690B - WAY, 3
90413-04005

KM3#

*CIU

 1
90413-04005

KM30,31,36

*HIU,W/PS

 1
88031 - ACTUATOR SET, IDLE-UP
21908-13010

KM30,31,36

*HIU,W/O PS

 1
88031-27020

KM30,31,36

*CIU

 1
88031-28020

CM3#,4#

*CIU

 1
88031 - ACTUATOR SET, IDLE-UP
21908-13010

KM30,31,36

*HIU,W/O PS

 1
88031-27020

KM30,31,36

*CIU

 1
88031-28020

CM3#,4#

*CIU

 1
88031 - ACTUATOR SET, IDLE-UP
21908-13010

KM30,31,36

*HIU,W/O PS

 1
88031-27020

KM30,31,36

*CIU

 1
88031-28020

CM3#,4#

*CIU

 1
88031 - ACTUATOR SET, IDLE-UP
21908-13010

KM30,31,36

*HIU,W/O PS

 1
88031-27020

KM30,31,36

*CIU

 1
88031-28020

CM3#,4#

*CIU

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19930

KM30,31,36

*H,L=200,ﾏｰｸ=#*,*CIU

 2
90999-92002

KM30,31,36

*H,L=200,ﾏｰｸ=#*,*CIU

 2
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19930

KM30,31,36

*H,L=200,ﾏｰｸ=#*,*CIU

 2
90999-92002

KM30,31,36

*H,L=200,ﾏｰｸ=#*,*CIU

 2
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19930

KM30,31,36

*H,L=200,ﾏｰｸ=#*,*CIU

 2
90999-92002

KM30,31,36

*H,L=200,ﾏｰｸ=#*,*CIU

 2
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19930

KM30,31,36

*H,L=200,ﾏｰｸ=#*,*CIU

 2
90999-92002

KM30,31,36

*H,L=200,ﾏｰｸ=#*,*CIU

 2
88648B - WIRING, COOLER, NO.1
88648-95718

KM31,35,36

*CIU

 1
88648B - WIRING, COOLER, NO.1
88648-95718

KM31,35,36

*CIU

 1
88648B - WIRING, COOLER, NO.1
88648-95718

KM31,35,36

*CIU

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95729

KM30,31,36

*HIU,W/PS

 1
88690-95728

KM3#

*HIU,W/O PS

 1
88690-95753

KM30,31,36

*CIU

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95729

KM30,31,36

*HIU,W/PS

 1
88690-95728

KM3#

*HIU,W/O PS

 1
88690-95753

KM30,31,36

*CIU

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95729

KM30,31,36

*HIU,W/PS

 1
88690-95728

KM3#

*HIU,W/O PS

 1
88690-95753

KM30,31,36

*CIU

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95729

KM30,31,36

*HIU,W/PS

 1
88690-95728

KM3#

*HIU,W/O PS

 1
88690-95753

KM30,31,36

*CIU

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95729

KM30,31,36

*HIU,W/PS

 1
88690-95728

KM3#

*HIU,W/O PS

 1
88690-95753

KM30,31,36

*CIU

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95729

KM30,31,36

*HIU,W/PS

 1
88690-95728

KM3#

*HIU,W/O PS

 1
88690-95753

KM30,31,36

*CIU

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
95411-10060

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
90999-92003

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
90999-92003

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
95411-10060

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
90999-92003

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
90999-92003

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
95411-10060

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
90999-92003

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
90999-92003

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
95411-10060

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
90999-92003

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
90999-92003

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
95411-10060

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
90999-92003

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
90999-92003

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
95411-10060

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
90999-92003

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
90999-92003

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
95411-10060

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
90999-92003

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
90999-92003

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
95411-10060

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
90999-92003

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
90999-92003

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
95411-10060

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
90999-92003

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
90999-92003

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
95411-10060

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
90999-92003

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
90999-92003

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
Common parts
90464-00074
90464-00082
91651-60814
91651-60820
93385-18014

(8509- )KM30,31,36

Click highlighted areas on diagram

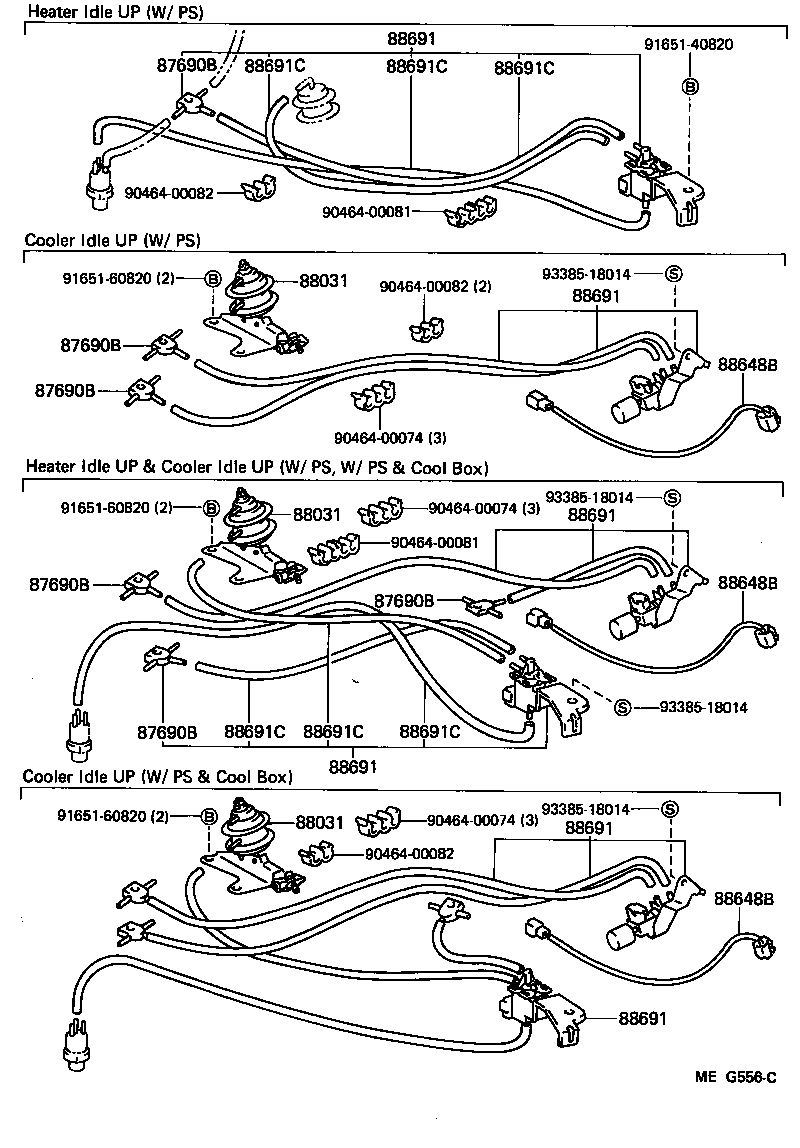

diagram 87690B 87690B 87690B 87690B 87690B 87690B 88031 88031 88031 88648B 88648B 88648B 88691 88691 88691 88691 88691 88691 88691C 88691C 88691C 88691C 88691C 88691C 9046400074 9046400074 9046400074 9046400081 9046400081 9046400082 9046400082 9046400082 9165140820 9165160820 9165160820 9165160820 9338518014 9338518014 9338518014 9338518014
Part # Description Qty Price
87690B - WAY, 3
90413-04005

KM3#

*CIU

 1
90413-04005

KM30,31,36

*HIU,W/PS

 1
87690B - WAY, 3
90413-04005

KM3#

*CIU

 1
90413-04005

KM30,31,36

*HIU,W/PS

 1
87690B - WAY, 3
90413-04005

KM3#

*CIU

 1
90413-04005

KM30,31,36

*HIU,W/PS

 1
87690B - WAY, 3
90413-04005

KM3#

*CIU

 1
90413-04005

KM30,31,36

*HIU,W/PS

 1
87690B - WAY, 3
90413-04005

KM3#

*CIU

 1
90413-04005

KM30,31,36

*HIU,W/PS

 1
87690B - WAY, 3
90413-04005

KM3#

*CIU

 1
90413-04005

KM30,31,36

*HIU,W/PS

 1
88031 - ACTUATOR SET, IDLE-UP
21908-13010

KM30,31,36

*HIU,W/O PS

 1
88031-27020

KM30,31,36

*CIU

 1
88031-28020

CM3#,4#

*CIU

 1
88031 - ACTUATOR SET, IDLE-UP
21908-13010

KM30,31,36

*HIU,W/O PS

 1
88031-27020

KM30,31,36

*CIU

 1
88031-28020

CM3#,4#

*CIU

 1
88031 - ACTUATOR SET, IDLE-UP
21908-13010

KM30,31,36

*HIU,W/O PS

 1
88031-27020

KM30,31,36

*CIU

 1
88031-28020

CM3#,4#

*CIU

 1
88648B - WIRING, COOLER, NO.1
88648-95718

KM31,35,36

*CIU

 1
88648B - WIRING, COOLER, NO.1
88648-95718

KM31,35,36

*CIU

 1
88648B - WIRING, COOLER, NO.1
88648-95718

KM31,35,36

*CIU

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95729

KM30,31,36

*HIU,W/PS

 1
88690-95728

KM3#

*HIU,W/O PS

 1
88690-95753

KM30,31,36

*CIU

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95729

KM30,31,36

*HIU,W/PS

 1
88690-95728

KM3#

*HIU,W/O PS

 1
88690-95753

KM30,31,36

*CIU

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95729

KM30,31,36

*HIU,W/PS

 1
88690-95728

KM3#

*HIU,W/O PS

 1
88690-95753

KM30,31,36

*CIU

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95729

KM30,31,36

*HIU,W/PS

 1
88690-95728

KM3#

*HIU,W/O PS

 1
88690-95753

KM30,31,36

*CIU

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95729

KM30,31,36

*HIU,W/PS

 1
88690-95728

KM3#

*HIU,W/O PS

 1
88690-95753

KM30,31,36

*CIU

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95729

KM30,31,36

*HIU,W/PS

 1
88690-95728

KM3#

*HIU,W/O PS

 1
88690-95753

KM30,31,36

*CIU

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
95411-10060

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
90999-92003

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
90999-92003

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
95411-10060

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
90999-92003

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
90999-92003

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
95411-10060

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
90999-92003

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
90999-92003

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
95411-10060

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
90999-92003

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
90999-92003

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
95411-10060

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
90999-92003

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
90999-92003

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
95411-10060

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
90999-92003

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
90999-92003

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
Common parts
90464-00074
90464-00081
90464-00082
91651-40820
91651-60820
93385-18014

(8509- )CM3#,4#

Click highlighted areas on diagram

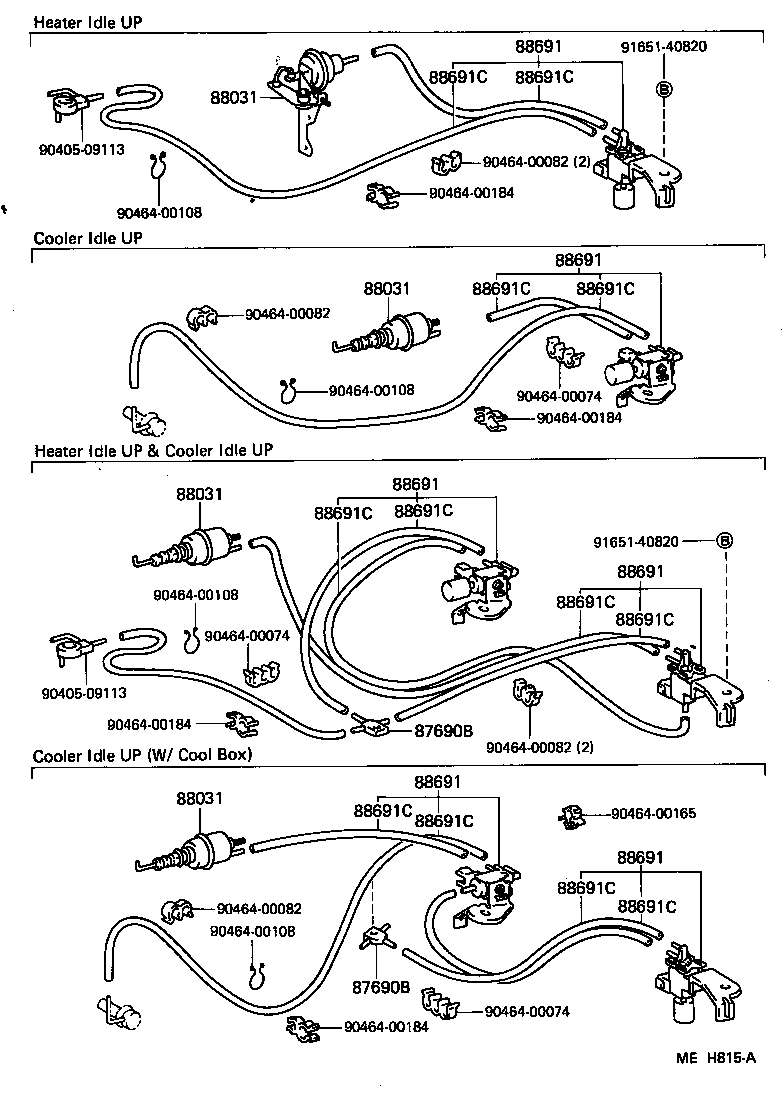

diagram 87690B 87690B 88031 88031 88031 88031 88691 88691 88691 88691 88691 88691 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 9040509113 9040509113 9046400074 9046400074 9046400074 9046400082 9046400082 9046400082 9046400082 9046400108 9046400108 9046400108 9046400108 9046400165 9046400184 9046400184 9046400184 9046400184 9165140820 9165140820
Part # Description Qty Price
87690B - WAY, 3
90413-04005

KM3#

*CIU

 1
90413-04005

KM30,31,36

*HIU,W/PS

 1
87690B - WAY, 3
90413-04005

KM3#

*CIU

 1
90413-04005

KM30,31,36

*HIU,W/PS

 1
88031 - ACTUATOR SET, IDLE-UP
21908-13010

KM30,31,36

*HIU,W/O PS

 1
88031-27020

KM30,31,36

*CIU

 1
88031-28020

CM3#,4#

*CIU

 1
88031 - ACTUATOR SET, IDLE-UP
21908-13010

KM30,31,36

*HIU,W/O PS

 1
88031-27020

KM30,31,36

*CIU

 1
88031-28020

CM3#,4#

*CIU

 1
88031 - ACTUATOR SET, IDLE-UP
21908-13010

KM30,31,36

*HIU,W/O PS

 1
88031-27020

KM30,31,36

*CIU

 1
88031-28020

CM3#,4#

*CIU

 1
88031 - ACTUATOR SET, IDLE-UP
21908-13010

KM30,31,36

*HIU,W/O PS

 1
88031-27020

KM30,31,36

*CIU

 1
88031-28020

CM3#,4#

*CIU

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95729

KM30,31,36

*HIU,W/PS

 1
88690-95728

KM3#

*HIU,W/O PS

 1
88690-95753

KM30,31,36

*CIU

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95729

KM30,31,36

*HIU,W/PS

 1
88690-95728

KM3#

*HIU,W/O PS

 1
88690-95753

KM30,31,36

*CIU

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95729

KM30,31,36

*HIU,W/PS

 1
88690-95728

KM3#

*HIU,W/O PS

 1
88690-95753

KM30,31,36

*CIU

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95729

KM30,31,36

*HIU,W/PS

 1
88690-95728

KM3#

*HIU,W/O PS

 1
88690-95753

KM30,31,36

*CIU

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95729

KM30,31,36

*HIU,W/PS

 1
88690-95728

KM3#

*HIU,W/O PS

 1
88690-95753

KM30,31,36

*CIU

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95729

KM30,31,36

*HIU,W/PS

 1
88690-95728

KM3#

*HIU,W/O PS

 1
88690-95753

KM30,31,36

*CIU

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
95411-10060

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
90999-92003

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
90999-92003

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
95411-10060

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
90999-92003

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
90999-92003

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
95411-10060

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
90999-92003

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
90999-92003

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
95411-10060

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
90999-92003

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
90999-92003

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
95411-10060

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
90999-92003

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
90999-92003

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
95411-10060

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
90999-92003

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
90999-92003

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
95411-10060

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
90999-92003

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
90999-92003

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
95411-10060

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
90999-92003

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
90999-92003

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
95411-10060

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
90999-92003

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
90999-92003

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
95411-10060

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
90999-92003

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
90999-92003

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
95411-10060

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
90999-92003

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
90999-92003

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
95411-10060

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
90999-92003

KM3#

*H,L=510,ﾏｰｸ=#0,*HIU,W/O PS

 1
90999-92003

KM30,31,36

*H,L=450,ﾏｰｸ=#0,*HIU,W/PS

 1
Common parts
90405-09113
90464-00074
90464-00082
90464-00108
90464-00165
90464-00184
91651-40820
