KM36V-JDF (1985)
Toyota Liteace Van,Wagon
(8509- )

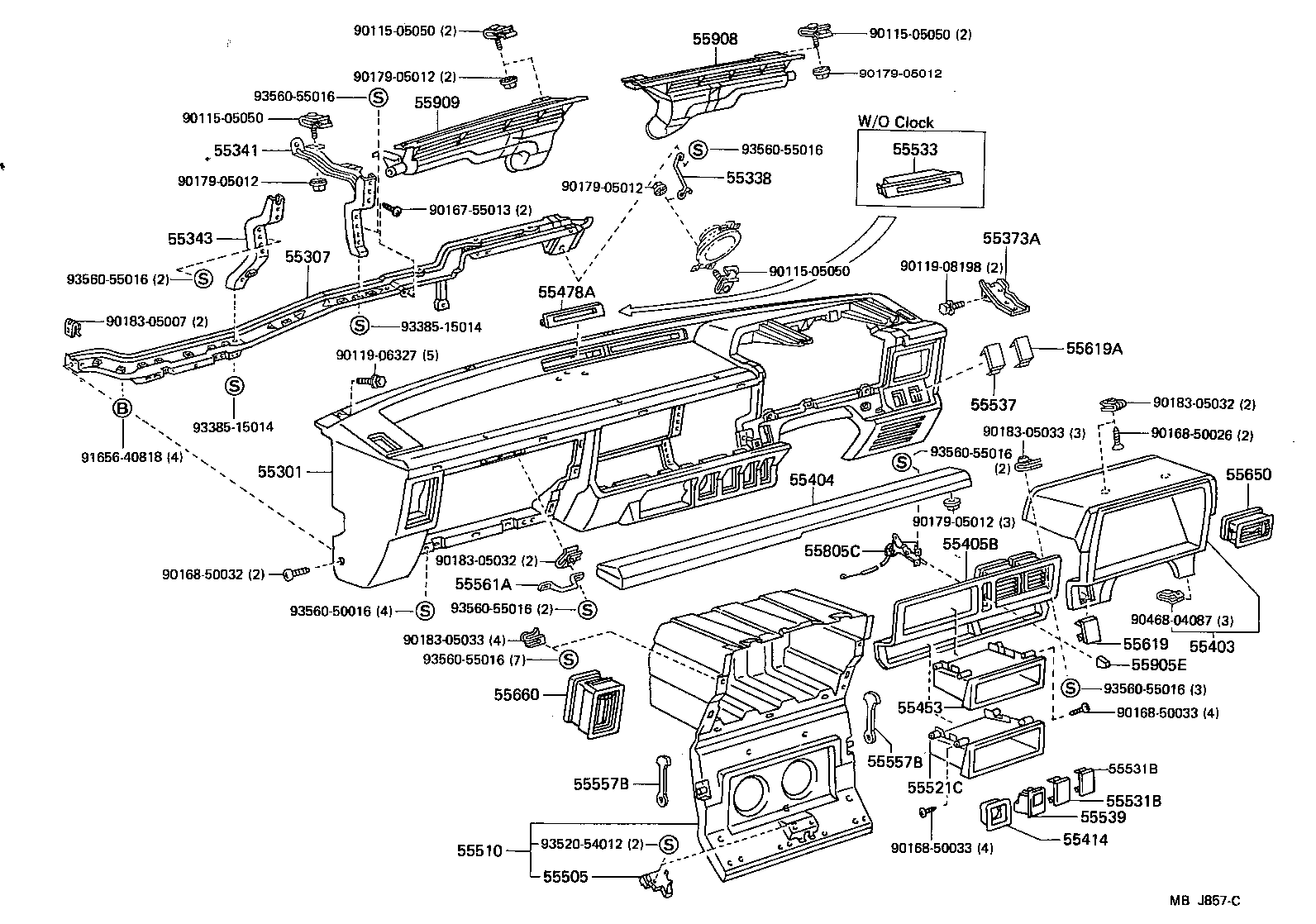

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55311-9571306 |
CM35,36,41,KM31,35,36 BROWN,BROWN,TRIM4# |
1 | ||
| 55311-9571304 |
CM35,36,41,KM31,35,36 BLUE,BLUE,TRIM4#,8# |
1 | ||
| 55307 - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER | ||||
| 55307-95703 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 55338 - EXTENSION, INSTRUMENT PANEL REINFORCEMENT, NO.1 | ||||
| 55338-95700 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55306-95702 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 55343 - BRACE, INSTRUMENT PANEL, NO.3 | ||||
| 55344-95700 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 55373A - BRACKET, OIL RESERVOIR TANK | ||||
| 55373-95700 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 55403 - HOOD SUB-ASSY, METER | ||||
| 55403-9570206 |
CM35,36,41,KM31,35,36 BROWN,BROWN,TRIM4# |
1 | ||
| 55403-9570204 |
CM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM40..DLX,SUP,SW,XL7 BLUE,BLUE,TRIM4#,8# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-9570304 |
CM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM40..DLX,SUP,SW,XL7 BLUE,BLUE,TRIM8# |
1 | ||
| 55405-9570306 |
CM35,36,41,KM31,35,36 BROWN,BROWN,TRIM4# |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55414-95J00 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 55478A - BEZEL, AUTO CLOCK HOLE | ||||
| 55478-9570106 |
CM35,36,41,KM35,36..DLX W/DIGITAL CLOCK,BROWN,BROWN,TRIM4# |
1 | ||
| 55478-9570104 |
CM35,KM35,36..VSG..DLX;CM30,36,KM30,YM30..DLX,FXV,GXL,SW W/DIGITAL CLOCK,BLUE,BLUE,TRIM4#,8# |
1 | ||
| 55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-9570404 |
CM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7 BLUE,BLUE,TRIM4#,8# |
1 | ||
| 55560-9570406 |
CM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP BROWN,BROWN,TRIM4# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55501-9570706 |
CM35,36,41,KM35,36;CM30,KM30,31..SCA,SUC,SUP BROWN,BROWN,TRIM4# |
1 | ||
| 55501-9570704 |
CM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM40..DLX,SCA,SUC,SUP,SW,XL7 BLUE,BLUE,TRIM4#,8# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55308-95701 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 55531B - COVER, CHOKE KNOB HOLE | ||||
| 55539-2401034 |
KM35,36..VSG;KM30,31,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7 BLUE,BLUE,TRIM4#,8# |
1 | ||
| 55539-2401006 |
KM35,36;KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP BROWN,BROWN,TRIM4# |
1 | ||
| 55539-2401024 |
KM35,36..VSG;KM30,31,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7 BLUE,DEEP BLUE,TRIM4#,8# |
1 | ||
| 55531B - COVER, CHOKE KNOB HOLE | ||||
| 55539-2401034 |
KM35,36..VSG;KM30,31,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7 BLUE,BLUE,TRIM4#,8# |
1 | ||
| 55539-2401006 |
KM35,36;KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP BROWN,BROWN,TRIM4# |
1 | ||
| 55539-2401024 |
KM35,36..VSG;KM30,31,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7 BLUE,DEEP BLUE,TRIM4#,8# |
1 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55423-9570204 |
CM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM40..DLX,SCA,SUC,SUP,SW,XL7 BLUE,BLUE,TRIM4#,8# |
1 | ||
| 55423-9570206 |
CM35,36,41,KM35,36;CM30,KM30,31..SCA,SUC,SUP BROWN,BROWN,TRIM4# |
1 | ||
| 55537 - COVER, REAR WINDOW DEFOGGER SWITCH HOLE | ||||
| 55539-3201026 |
CM35,36,41,KM35,36..DLX BROWN,BROWN,TRIM4# |
1 | ||
| 55539-3201024 |
CM35,36,41,KM35,36..VSG..DLX BLUE,BLUE,TRIM4#,8# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-2401034 |
CM35,KM35,36..VSG;CM30,36,41,KM30,31..DLX,SUP,SW W/O RR HEATER,BLUE,BLUE,TRIM4#,8# |
1 | ||
| 55539-2401024 |
CM35,KM35,36..VSG;CM30,36,41,KM30,31..DLX,SUP,SW W/O RR HEATER,BLUE,DEEP BLUE,TRIM4#,8# |
1 | ||
| 58824-9570304 |
CM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7 W/O RHEOSTAT,BLUE,BLUE,TRIM4#,8# |
1 | ||
| 55539-2401006 |
CM35,36,41,KM31,35,36 W/O RR HEATER,BROWN,BROWN,TRIM4# |
1 | ||
| 58824-9570306 |
CM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP W/O RHEOSTAT,BROWN,BROWN,TRIM4# |
1 | ||
| 55557B - STOPPER, GLOVE COMPERTMENT DOOR CHECK | ||||
| 55557-95700 |
CM3#,4#,KM3#,YM30,40 |
2 | ||
| 55557B - STOPPER, GLOVE COMPERTMENT DOOR CHECK | ||||
| 55557-95700 |
CM3#,4#,KM3#,YM30,40 |
2 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-95702 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 55619 - COVER, SWITCH HOLE | ||||
| 55539-3201024 |
KM35,36..VSG;KM30,31..DLX,SUP,SW,XL7 BLUE,BLUE,TRIM4#,8# |
1 | ||
| 55539-3201026 |
KM35,36 BROWN,BROWN,TRIM4# |
1 | ||
| 55619A - COVER, SWITCH HOLE, NO.2 | ||||
| 55539-3201024 |
CM35,KM35,36..VSG;CM30,36,40,KM30,31,YM40..DLX,SUP,SW BLUE,BLUE,TRIM4#,8# |
1 | ||
| 55539-3201026 |
CM35,36,41,KM31,35,36 BROWN,BROWN,TRIM4# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-9570106 |
CM35,36,41,KM31,35,36 BROWN,BROWN,TRIM4# |
1 | ||
| 55650-9570104 |
CM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM40..DLX,GXL,SCA,SUC,SUP,SW,XL7 BLUE,BLUE,TRIM4#,8# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-9570106 |
CM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP BROWN,BROWN,TRIM4# |
1 | ||
| 55660-9570104 |
CM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7 BLUE,BLUE,TRIM4#,8# |
1 | ||
| 55805C - BRACKET SUB-ASSY, AIR DAMPER CONTROL LEVER | ||||
| 55805-95704 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 55905E - KNOB SUB-ASSY, CONTROL | ||||
| 55905-1205001 |
CM3#,4#,KM3#,YM30,40 BLACK,BLACK,TRIM4#,8# |
1 | ||
| 55908 - NOZZLE SUB-ASSY, DEFROSTER, RH | ||||
| 55950-95703 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 55950-95702 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 55909 - NOZZLE SUB-ASSY, DEFROSTER, LH | ||||
| 55960-95702 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 55960-95701 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| Common parts | ||||
| 90115-05050 | ||||
| 90119-06327 | ||||
| 90119-08198 | ||||
| 90167-55013 | ||||
| 90168-50026 | ||||
| 90168-50032 | ||||
| 90168-50033 | ||||
| 90179-05012 | ||||
| 90183-05007 | ||||
| 90183-05032 | ||||
| 90183-05033 | ||||
| 90468-04087 | ||||
| 91656-40818 | ||||
| 93385-15014 | ||||
| 93520-54012 | ||||
| 93560-50016 | ||||
| 93560-55016 | ||||
