KM36V-JDE (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988
Engine 5KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )KM3#

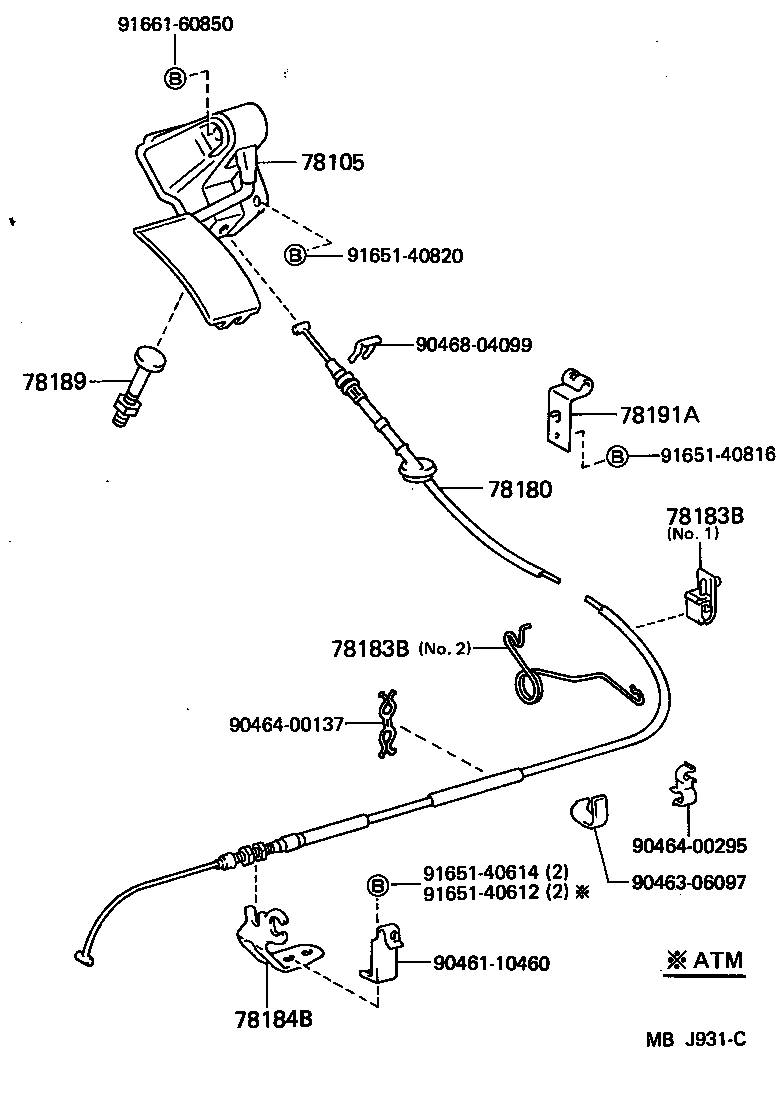

Click highlighted areas on diagram

diagram 78105 78180 78183B 78183B 78184B 78189 78191A 9046110460 9046306097 9046400137 9046400295 9046804099 9165140612 9165140614 9165140816 9165140820 9166160850
Part # Description Qty Price
78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78105-95706

KM3#

 1
78180 - WIRE ASSY, ACCELERATOR
78150-95720

KM3#

 1
78150-95718

CM3#,4#

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-95705

CM3#,KM3#,YM30,40

NO.1

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-95705

CM3#,KM3#,YM30,40

NO.1

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-95704

CM3#,4#

 1
78184-95705

KM3#

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-95702

CM3#,4#,KM3#,YM30,40

 1
78107-95A00

CM3#,KM3#,YM30

 1
78191A - CLAMP (FOR ACCELERATOR WIRE SET)
78183-95707

CM3#,4#,KM3#,YM30,40

 1
Common parts
90461-10460
90463-06097
90464-00137
90464-00295
90468-04099
91651-40612
91651-40614
91651-40816
91651-40820
91661-60850

(8509- )CM3#,4#

Click highlighted areas on diagram

diagram 78105 78180 78183B 78184B 78189 78191A 78403 78410C 78410D 78472 9046313003 9046315003 9046400137 9046804099 9098901066 9161160612 9165140816 9165140820 9166160850
Part # Description Qty Price
78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78105-95706

KM3#

 1
78180 - WIRE ASSY, ACCELERATOR
78150-95720

KM3#

 1
78150-95718

CM3#,4#

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-95705

CM3#,KM3#,YM30,40

NO.1

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-95704

CM3#,4#

 1
78184-95705

KM3#

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-95702

CM3#,4#,KM3#,YM30,40

 1
78107-95A00

CM3#,KM3#,YM30

 1
78191A - CLAMP (FOR ACCELERATOR WIRE SET)
78183-95707

CM3#,4#,KM3#,YM30,40

 1
78472 - SUPPORT, THROTTLE CONTROL CABLE
78472-9570006

CM35,4#..DLX,FXV,GXL;CM30..5F..(FXV,GXL,SUC)

BROWN,BROWN,TRIM4#

 1
Common parts
90463-13003
90463-15003
90464-00137
90468-04099
90989-01066
91611-60612
91651-40816
91651-40820
91661-60850
