KM35V-JDZF (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Aug 1990
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

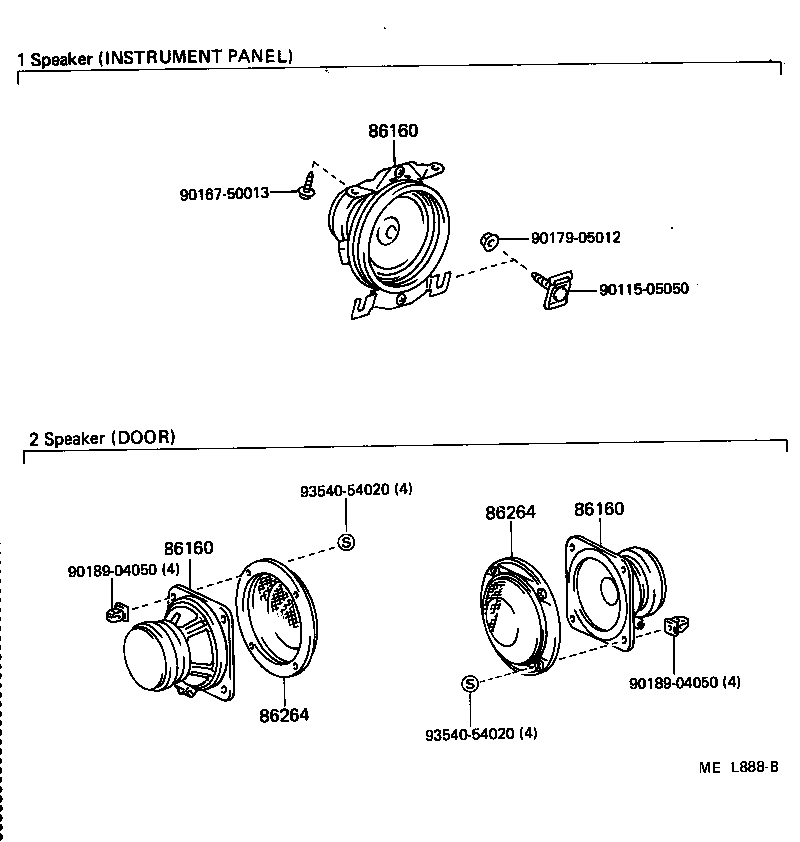

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 86160 86160 86160 86264 86264 9011505050 9016750013 9017905012 9018904050 9018904050 9354054020 9354054020
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-95722

CM3#,4#,KM3#,YM30,40..DLX,GXL,LD,SCA,SUC,SUP,SW

DOOR

 2
86160-95716

CM3#,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW

INSTRUMENT PANEL

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-95722

CM3#,4#,KM3#,YM30,40..DLX,GXL,LD,SCA,SUC,SUP,SW

DOOR

 2
86160-95716

CM3#,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW

INSTRUMENT PANEL

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-95722

CM3#,4#,KM3#,YM30,40..DLX,GXL,LD,SCA,SUC,SUP,SW

DOOR

 2
86160-95716

CM3#,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW

INSTRUMENT PANEL

 1
86264 - GRILLE, SPEAKER, FRONT
86269-95716

CM3#,4#,KM3#,YM30,40

 2
86264 - GRILLE, SPEAKER, FRONT
86269-95716

CM3#,4#,KM3#,YM30,40

 2
Common parts
90115-05050
90167-50013
90179-05012
90189-04050
93540-54020

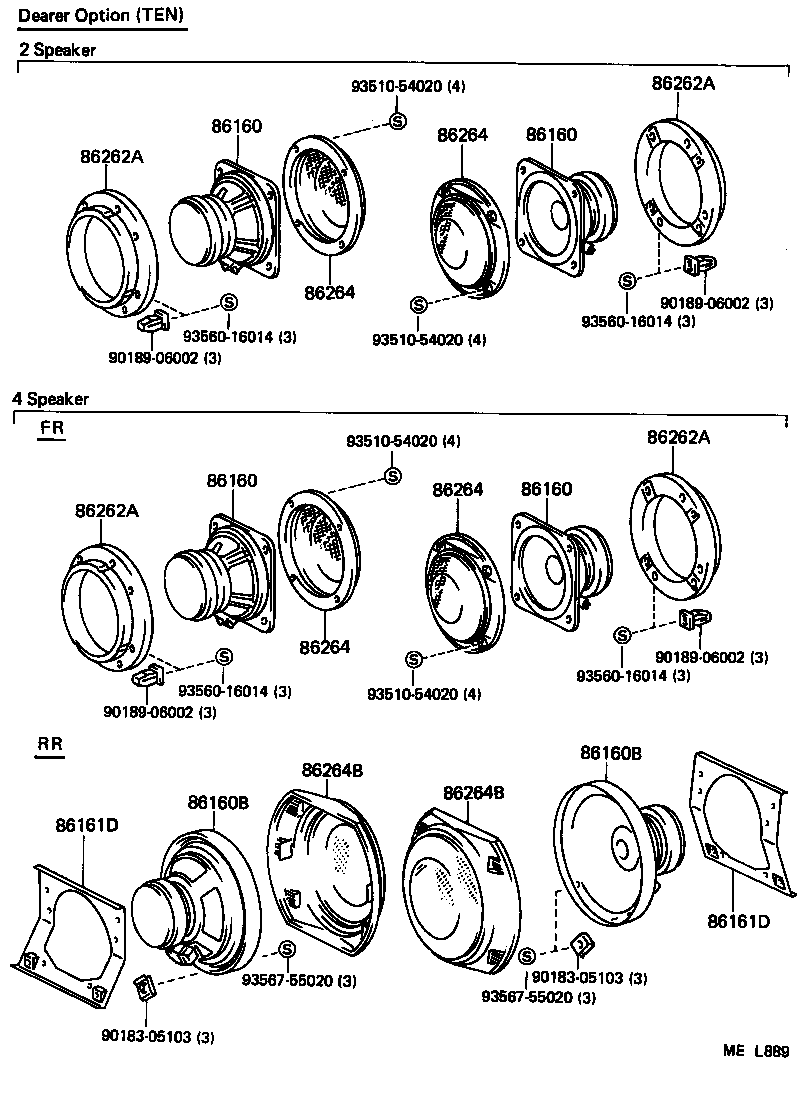

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 86160 86160 86160 86160 86160B 86160B 86161D 86161D 86262A 86262A 86262A 86262A 86264 86264 86264 86264 86264B 86264B 9018305103 9018305103 9018906002 9018906002 9018906002 9018906002 9351054020 9351054020 9351054020 9351054020 9356016014 9356016014 9356016014 9356016014 9356755020 9356755020
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-95722

CM3#,4#,KM3#,YM30,40..DLX,GXL,LD,SCA,SUC,SUP,SW

DOOR

 2
86160-95716

CM3#,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW

INSTRUMENT PANEL

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-95722

CM3#,4#,KM3#,YM30,40..DLX,GXL,LD,SCA,SUC,SUP,SW

DOOR

 2
86160-95716

CM3#,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW

INSTRUMENT PANEL

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-95722

CM3#,4#,KM3#,YM30,40..DLX,GXL,LD,SCA,SUC,SUP,SW

DOOR

 2
86160-95716

CM3#,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW

INSTRUMENT PANEL

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-95722

CM3#,4#,KM3#,YM30,40..DLX,GXL,LD,SCA,SUC,SUP,SW

DOOR

 2
86160-95716

CM3#,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW

INSTRUMENT PANEL

 1
86262A - COVER, SPEAKER, FRONT
86262-95704

CM3#,4#,KM3#,YM30,40..DLX,GXL,LD,SCA,SUC,SUP,SW

 2
86262A - COVER, SPEAKER, FRONT
86262-95704

CM3#,4#,KM3#,YM30,40..DLX,GXL,LD,SCA,SUC,SUP,SW

 2
86262A - COVER, SPEAKER, FRONT
86262-95704

CM3#,4#,KM3#,YM30,40..DLX,GXL,LD,SCA,SUC,SUP,SW

 2
86262A - COVER, SPEAKER, FRONT
86262-95704

CM3#,4#,KM3#,YM30,40..DLX,GXL,LD,SCA,SUC,SUP,SW

 2
86264 - GRILLE, SPEAKER, FRONT
86269-95716

CM3#,4#,KM3#,YM30,40

 2
86264 - GRILLE, SPEAKER, FRONT
86269-95716

CM3#,4#,KM3#,YM30,40

 2
86264 - GRILLE, SPEAKER, FRONT
86269-95716

CM3#,4#,KM3#,YM30,40

 2
86264 - GRILLE, SPEAKER, FRONT
86269-95716

CM3#,4#,KM3#,YM30,40

 2
Common parts
90183-05103
90189-06002
93510-54020
93560-16014
93567-55020

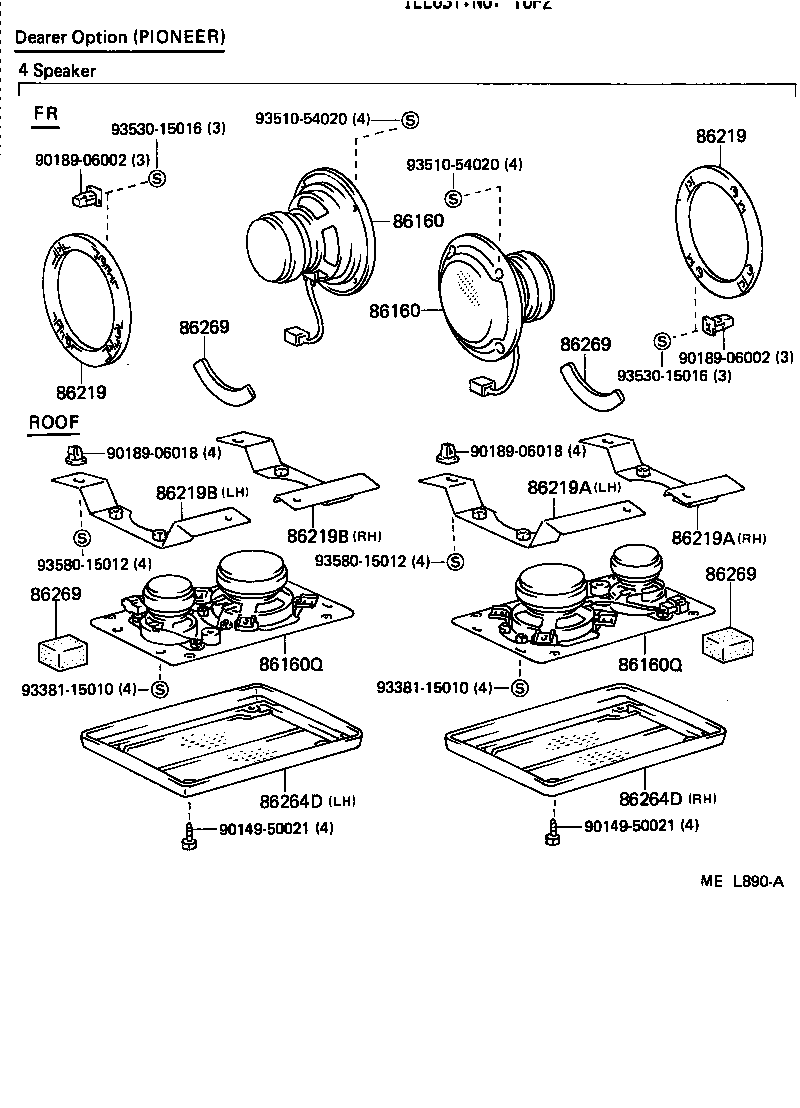

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 86160 86160 86160Q 86160Q 86219 86219 86219A 86219A 86219B 86219B 86264D 86264D 86269 86269 86269 86269 9014950021 9014950021 9018906002 9018906002 9018906018 9018906018 9338115010 9338115010 9351054020 9351054020 9353015016 9353015016 9358015012 9358015012
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-95722

CM3#,4#,KM3#,YM30,40..DLX,GXL,LD,SCA,SUC,SUP,SW

DOOR

 2
86160-95716

CM3#,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW

INSTRUMENT PANEL

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-95722

CM3#,4#,KM3#,YM30,40..DLX,GXL,LD,SCA,SUC,SUP,SW

DOOR

 2
86160-95716

CM3#,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW

INSTRUMENT PANEL

 1
Common parts
90149-50021
90189-06002
90189-06018
93381-15010
93510-54020
93530-15016
93580-15012

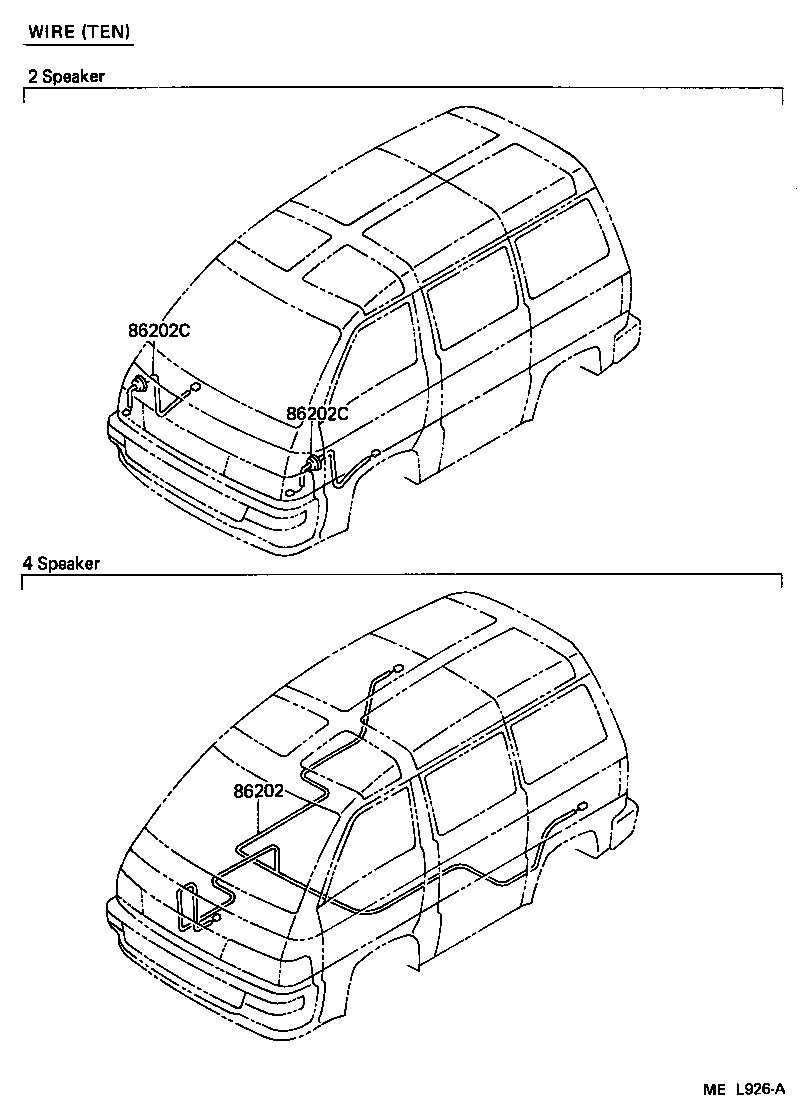

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 86202 86202C 86202C
Part # Description Qty Price
86202C - WIRE, SPEAKER, NO.3
86238-95706

CM31,36,41,KM31,35,36

TEN

 2
86202C - WIRE, SPEAKER, NO.3
86238-95706

CM31,36,41,KM31,35,36

TEN

 2

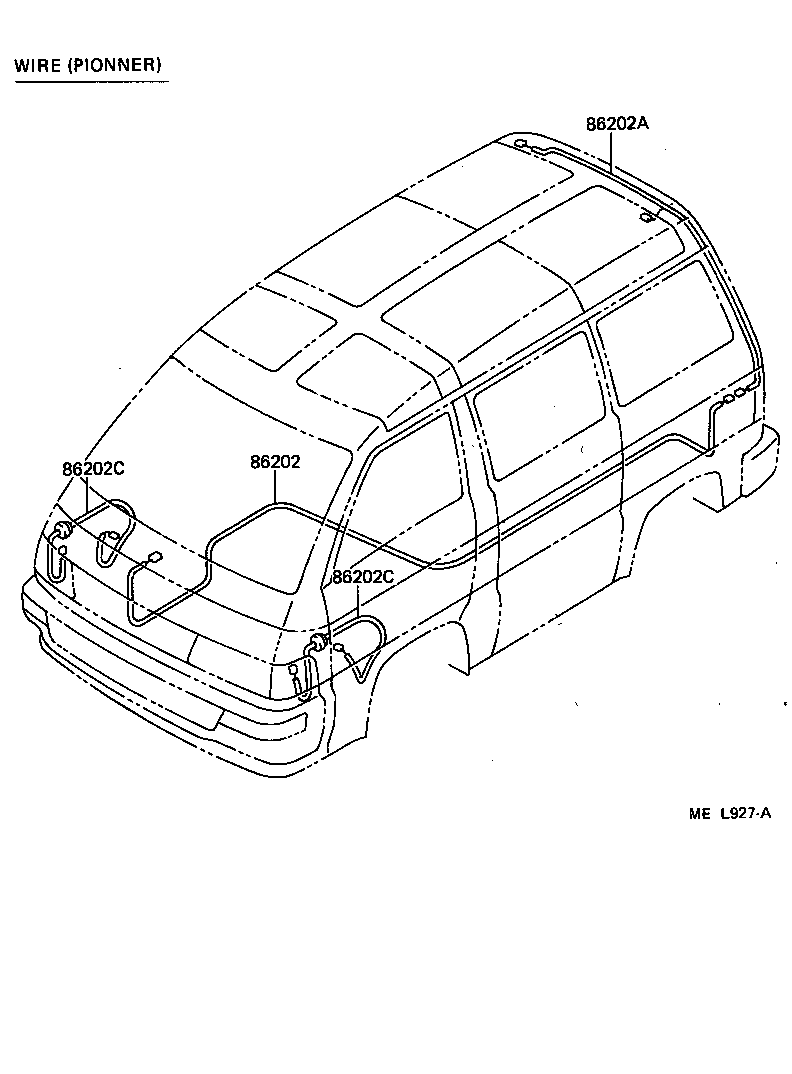

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 86202 86202A 86202C 86202C
Part # Description Qty Price
86202C - WIRE, SPEAKER, NO.3
86238-95706

CM31,36,41,KM31,35,36

TEN

 2
86202C - WIRE, SPEAKER, NO.3
86238-95706

CM31,36,41,KM31,35,36

TEN

 2
