KM35V-JDZF (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Aug 1990
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

Click highlighted areas on diagram

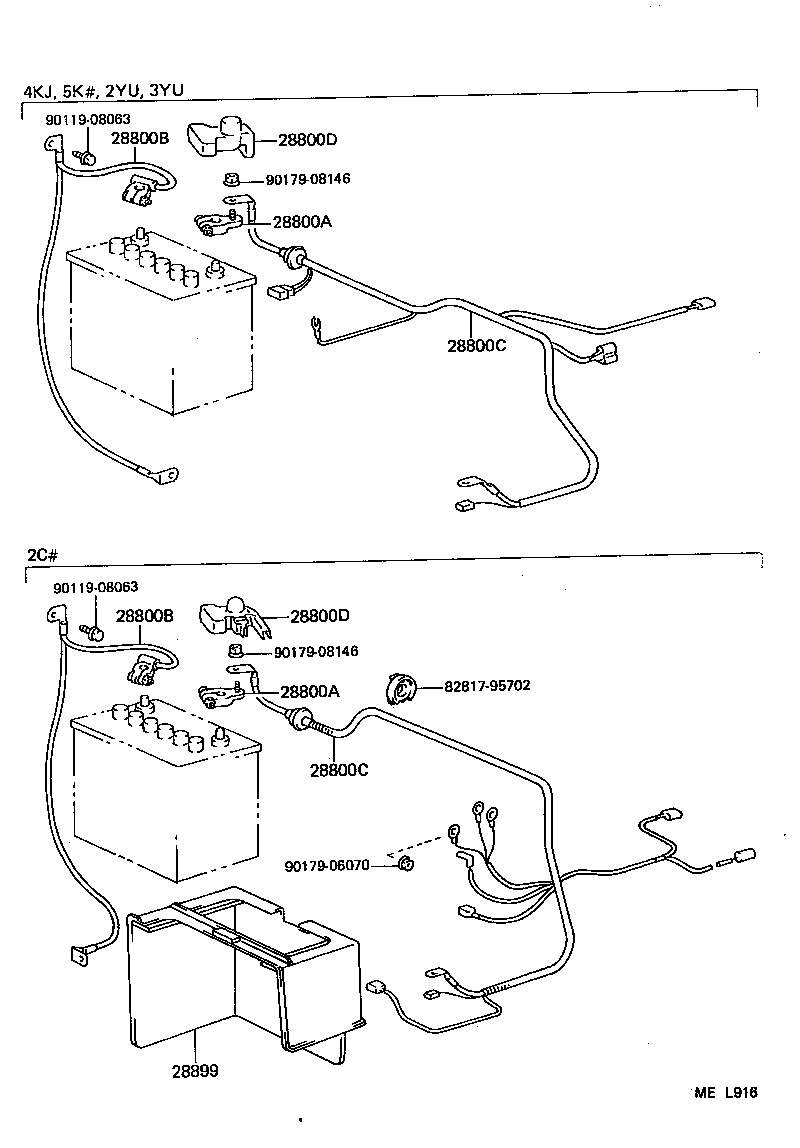

diagram 28800A 28800A 28800B 28800B 28800C 28800C 28800D 28800D 28899 8281795702 9011908063 9011908063 9017906070 9017908146 9017908146
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05028

4KJ,5K#,2Y#,3YU..KM3#,YM3#,40

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05028

4KJ,5K#,2Y#,3YU..KM3#,YM3#,40

 1
28800B - CABLE, BATTERY TO GROUND
82123-95700

4KJ,5K#,2Y#,3YU..KM3#,YM3#,40

 1
28800B - CABLE, BATTERY TO GROUND
82123-95700

4KJ,5K#,2Y#,3YU..KM3#,YM3#,40

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-95719

4KJ,5K#..KM30,35,36..4H

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-95719

4KJ,5K#..KM30,35,36..4H

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-95703

4KJ,5K#,2Y#,3YU..KM3#,YM3#,40

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-95703

4KJ,5K#,2Y#,3YU..KM3#,YM3#,40

 1
Common parts
82817-95702
90119-08063
90179-06070
90179-08146

(8808- )

Click highlighted areas on diagram

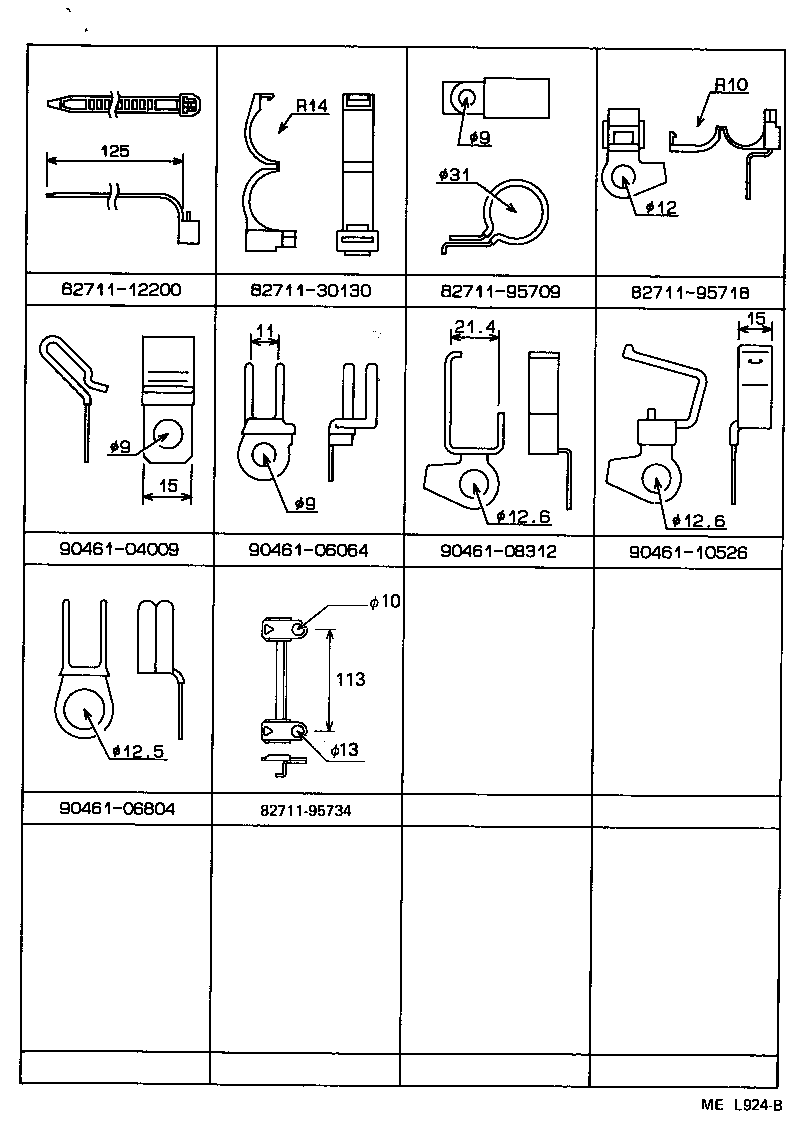

diagram 8271112200 8271130130 8271195709 8271195718 8271195734 9046104009 9046106064 9046106804 9046108312 9046110526
Part # Description Qty Price
Common parts
82711-12200
82711-30130
82711-95709
82711-95718
82711-95734
90461-04009
90461-06064
90461-06804
90461-08312
90461-10526
