KM35V-JDZF (1988)
Toyota Liteace Van,Wagon

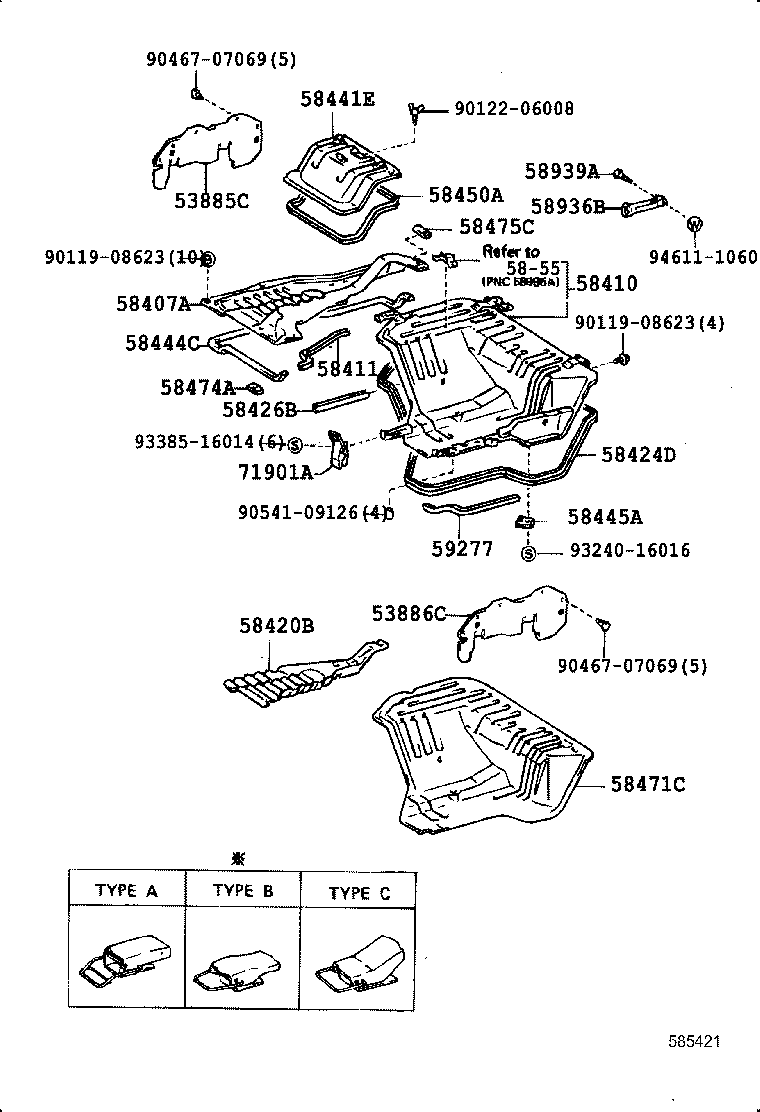

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53885C - SEAL, FENDER APRON MUDGUARD, RH | ||||
| 53885-95704 |
CM3#,KM3#,YM3# |
1 | ||
| 53886C - SEAL, FENDER APRON MUDGUARD, LH | ||||
| 53885-95704 |
CM3#,KM3#,YM3# |
1 | ||
| 58407A - COVER SUB-ASSY, ENGINE SERVICE HOLE SUB | ||||
| 58407-95704 |
KM30,35,36..4H,5H |
1 | ||
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 59208-95724 |
KM35,36..MTM..DLX |
1 | ||
| 58411 - PAD, ENGINE COVER, LH | ||||
| 58411-95A00 |
KM30,35,36..4H,5H |
1 | ||
| 58420B - SILENCER, ENGINE SERVICE HOLE COVER, NO.2 | ||||
| 58472-95710 |
KM30,35,36..4H,5H |
1 | ||
| 58424D - PACKING, ENGINE COVER | ||||
| 58424-95702 |
KM30,35,36..4H,5H |
1 | ||
| 58441E - COVER, BATTERY SERVICE HOLE | ||||
| 58441-95713 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 58444C - PACKING, ENGINE SUB COVER, NO.1 | ||||
| 58444-95702 |
KM30,35,36..4H,5H |
1 | ||
| 58445A - CUSHION, ENGINE SERVICE HOLE COVER | ||||
| 58445-95400 |
CM40..4FC..SSW;CM40..FXV,GXL,LD,SW;CM3#,41,KM3#,YM3#,40 |
1 | ||
| 58450A - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58449-95701 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 58471C - SILENCER, ENGINE MAIN COVER | ||||
| 58471-95714 |
KM30,35,36..4H,5H |
1 | ||
| 58474A - PACKING, ENGINE SUB COVER, NO.2 | ||||
| 58474-95705 |
KM30,35,36..4H,5H |
1 | ||
| 58475C - PACKING, ENGIN SUB COVER, NO.3 | ||||
| 58475-95705 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 58936B - BAND, ENGINE SERVICE HOLE COVER SUPPORT | ||||
| 58936-95704 |
CM30,31,40,KM30;KM36..V4D..MRF..4H;CM36,41,KM31,35..HRF,MRF;KM36..V5D..MRF..(3FC,4H,5F) |
1 | ||
| 58939A - SCREW, ENGINE SERVICE HOLE COVER SUPPORT BAND | ||||
| 58939-95J00 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 59277 - PROTECTOR, ENGINE MAIN COVER | ||||
| 59277-95702 |
CM40..FXV,GXL,LD,SW;CM3#,41,KM3#,YM30,40 |
1 | ||
| 59277-95700 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 71901A - CATCH SUB-ASSY, CENTER SEAT CUSHION, FRONT | ||||
| 71902-95708 |
CM3#,4#,KM3#,YM3#,40 ﾀｲﾌﾟ A |
1 | ||
| 71902-95709 |
KM30,35,36..4H,5H ﾀｲﾌﾟ B |
2 | ||
| Common parts | ||||
| 90119-08623 | ||||
| 90122-06008 | ||||
| 90467-07069 | ||||
| 90541-09126 | ||||
| 93240-16016 | ||||
| 93385-16014 | ||||
| 94611-10601 | ||||
| Linked diagrams | ||||
| 5855 | ||||

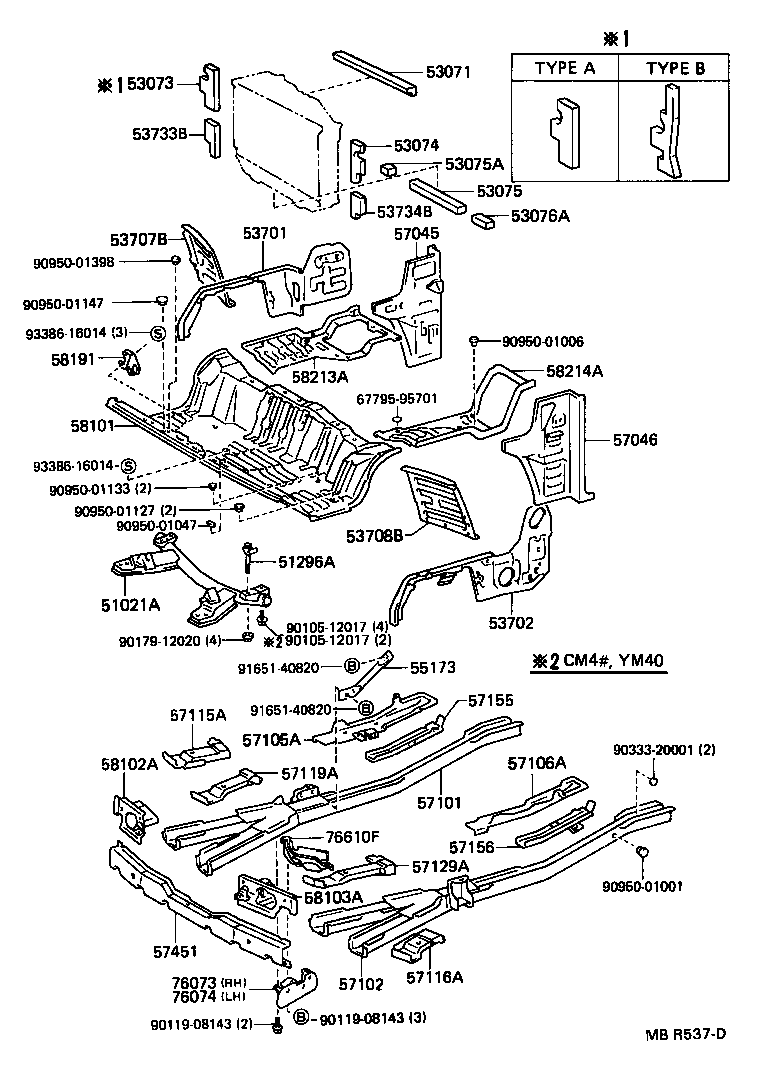

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51021A - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT | ||||
| 51021-95706 |
KM3# |
1 | ||
| 51296A - BOLT, ENGINE FRONT SUPPORT MEMBER | ||||
| 51296-95701 |
CM40..4FC..SSW;CM40..FXV,GXL,LD,SW;CM3#,41,KM3#,YM3#,40 |
4 | ||
| 53071 - SHUTTER SUB-ASSY, HOT AIR, UPPER | ||||
| 53735-95700 |
CM31,36;CM30,KM31,35,36,YM3#..CBR,TD |
1 | ||
| 53073 - SHUTTER SUB-ASSY, HOT AIR SIDE, RH | ||||
| 53727-95707 |
CM31,36,KM31,35,36,YM3# ﾀｲﾌﾟ A |
1 | ||
| 53727-95707 |
KM3# |
1 | ||
| 53074 - SHUTTER SUB-ASSY, HOT AIR SIDE, LH | ||||
| 53728-95704 |
CM31,36;CM30,KM31,35,36,YM3#..CBR,TD |
1 | ||
| 53075 - SHUTTER SUB-ASSY, HOT AIR, LOWER | ||||
| 53737-95701 |
CM31,36;CM30,KM31,35,36,YM3#..CBR,TD |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-95713 |
KM3# |
1 | ||
| 53701-95712 |
CM3#,4# |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-95713 |
KM3# |
1 | ||
| 53702-95714 |
CM3#,4# |
1 | ||
| 53707B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53707-95701 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 53708B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53708-95704 |
CM3#,4#,KM30,31,36,YM3#,40 |
1 | ||
| 53708-95702 |
KM35 |
1 | ||
| 53733B - SHUTTER, HOT AIR SIDE, A RH | ||||
| 53733-95701 |
CM31,36;CM30,KM31,35,36,YM3#..CBR,TD |
1 | ||
| 53734B - SHUTTER, HOT AIR SIDE, A LH | ||||
| 53733-95701 |
CM31,36;CM30,KM31,35,36,YM3#..CBR,TD |
1 | ||
| 57045 - PLATE SUB-ASSY, FLOOR SIDE RAIL, RH | ||||
| 57045-95707 |
CM3#,4#,KM3#,YM31..V5D,W5D |
1 | ||
| 57046 - PLATE SUB-ASSY, FLOOR SIDE RAIL, LH | ||||
| 57046-95716 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-95723 |
CM3#,KM3#,YM31..(V5D,W5D)..(HRF,SRF)..(DLX,SUP,SW) |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-95716 |
CM36,KM35,36..V1;CM30,31,KM30,31,YM30 |
1 | ||
| 57105A - PLATE SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57105-95704 |
CM36,KM35,36..V1;CM30,31,4#,KM30,31,YM3#,40 |
1 | ||
| 57106A - PLATE SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57148-95702 |
CM36,KM35,36..V1;CM30,31,4#,KM30,31,YM3#,40 |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-95703 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-95703 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 57119A - PLATE, FRONT SIDE MEMBER, FRONT RH | ||||
| 57119-95702 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 57129A - PLATE, FRONT SIDE MEMBER, FRONT LH | ||||
| 57129-95702 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 57155 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH | ||||
| 57155-95701 |
CM36,KM35,36..V1;CM30,31,4#,KM30,31,YM3#,40 |
1 | ||
| 57156 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH | ||||
| 57044-95702 |
CM36,KM35,36..V1;CM30,31,4#,KM30,31,YM3#,40 |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57408-95705 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58101-95746 |
KM30,35,36..4H,5H |
1 | ||
| 58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR | ||||
| 58102-95700 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 58103A - REINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, LH | ||||
| 58103-95704 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 58213A - PANEL, SEAT FLOOR, RH | ||||
| 58201-95718 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 58214A - PANEL, SEAT FLOOR, LH | ||||
| 58214-95708 |
CM3#,KM3#,YM3# |
1 | ||
| Common parts | ||||
| 67795-95701 | ||||
| 90105-12017 | ||||
| 90119-08143 | ||||
| 90179-12020 | ||||
| 90333-20001 | ||||
| 90950-01001 | ||||
| 90950-01006 | ||||
| 90950-01047 | ||||
| 90950-01127 | ||||
| 90950-01133 | ||||
| 90950-01147 | ||||
| 90950-01398 | ||||
| 91651-40820 | ||||
| 93386-16014 | ||||
