KM35V-JDZF (1988)
Toyota Liteace Van,Wagon

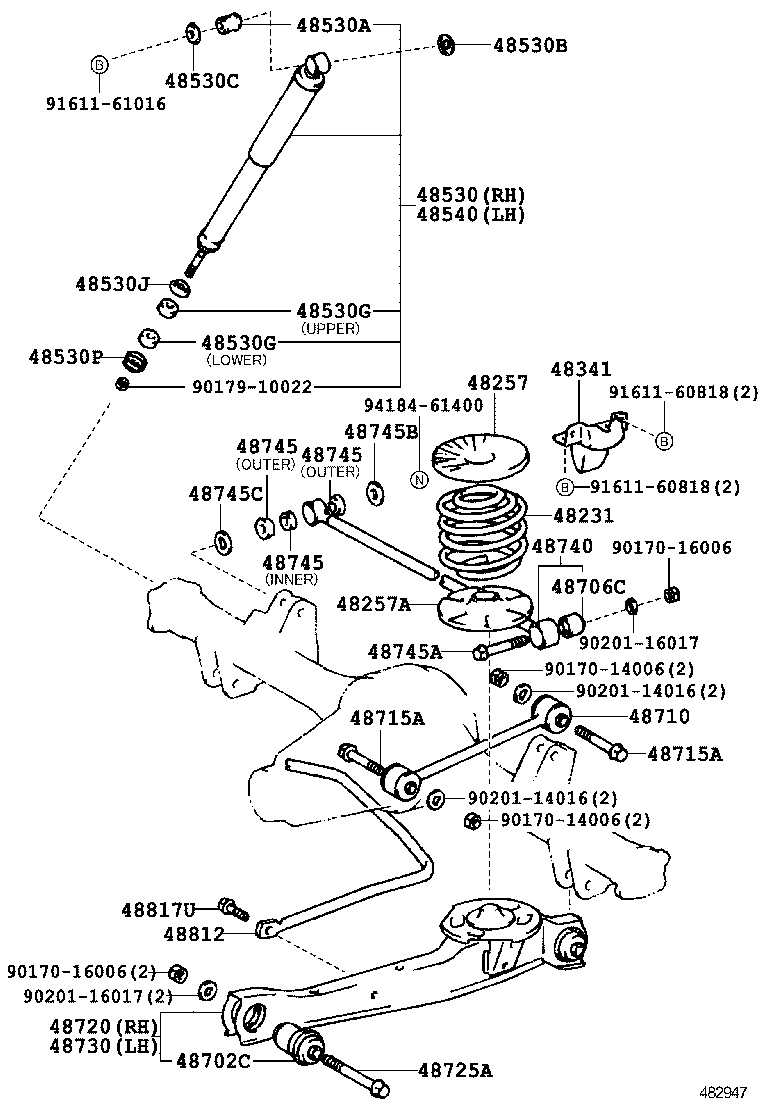

ILLUST NO. 1 OF 2(8808- )CM30,31,4#,KM30,31,YM3#,40
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48257 - INSULATOR, REAR COIL SPRING | ||||
| 48257-27010 |
CM30,31,4#,KM30,31,YM3#,40 |
2 | ||
| 48257A - INSULATOR, REAR COIL SPRING, LOWER | ||||
| 48258-27010 |
CM30,31,4#,KM30,31,YM3#,40 |
2 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-27070 |
CM30,31,4#,YM40 |
2 | ||
| 48341-27050 |
CM36,KM35,36..V1 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80078 |
KM35,36..V1 ﾏｰｸ 48531−27100 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
CM36,KM35,36 |
4 | ||
| 90385-16004 |
CM30,31,4#,KM30,31,YM3#,40 |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03004 |
CM30,31,4#,KM30,31,YM3#,40 |
2 | ||
| 90948-03004 |
CM36,KM35,36 |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03007 |
CM30,31,4#,KM30,31,YM3#,40 |
2 | ||
| 90948-03007 |
CM36,KM35,36 |
4 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90540-10002 |
CM30,31,4#,KM30,31,YM3#,40 下側 |
2 | ||
| 90540-10005 |
CM30,31,4#,KM30,31,YM3#,40 上側 |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90540-10002 |
CM30,31,4#,KM30,31,YM3#,40 下側 |
2 | ||
| 90540-10005 |
CM30,31,4#,KM30,31,YM3#,40 上側 |
2 | ||
| 48530J - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02002 |
CM30,31,4#,KM30,31,YM3#,40 |
2 | ||
| 48530P - RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02045 |
CM30,31,4#,KM30,31,YM3#,40 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80078 |
KM35,36..V1 ﾏｰｸ 48531−27100 |
1 | ||
| 48702C - BUSH SUB-ASSY, LOWER CONTROL ARM | ||||
| 48702-27040 |
CM30,31,4#,KM30,31,YM3#,40 |
4 | ||
| 48706C - BUSH SUB-ASSY, LATERAL CONTROL ROD | ||||
| 48706-22030 |
CM30,31,4#,KM30,31,YM3#,40 |
1 | ||
| 48710 - ARM ASSY, UPPER CONTROL | ||||
| 48710-27010 |
CM30,31,4#,KM30,31,YM3#,40 |
2 | ||
| 48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM) | ||||
| 90105-14037 |
CM30,31,4#,KM30,31,YM3#,40 |
4 | ||
| 48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM) | ||||
| 90105-14037 |
CM30,31,4#,KM30,31,YM3#,40 |
4 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-27020 |
CM30,31,4#,KM30,31,YM3#,40 |
1 | ||
| 48725A - BOLT(FOR LOWER CONTROL ARM) | ||||
| 90105-16025 |
CM30,31,4#,KM30,31,YM3#,40 |
4 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48730-27020 |
CM30,31,4#,KM30,31,YM3#,40 |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-27010 |
CM30,31,4#,KM30,31,YM3#,40 |
1 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 90386-20001 |
CM30,31,4#,KM30,31,YM3#,40 L=12, HOUSING SIDE |
1 | ||
| 90385-20001 |
CM30,31,4#,KM30,31,YM3#,40 L=15, HOUSING SIDE |
2 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 90386-20001 |
CM30,31,4#,KM30,31,YM3#,40 L=12, HOUSING SIDE |
1 | ||
| 90385-20001 |
CM30,31,4#,KM30,31,YM3#,40 L=15, HOUSING SIDE |
2 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 90386-20001 |
CM30,31,4#,KM30,31,YM3#,40 L=12, HOUSING SIDE |
1 | ||
| 90385-20001 |
CM30,31,4#,KM30,31,YM3#,40 L=15, HOUSING SIDE |
2 | ||
| 48745A - BOLT, HEXAGON(FOR LATERAL CONTROL ROD) | ||||
| 90105-16026 |
CM30,31,4#,KM30,31,YM3#,40 |
1 | ||
| 48745B - WASHER, LATERAL CONTROL ROD CUSHION | ||||
| 90201-15019 |
CM30,31,4#,KM30,31,YM3#,40 |
1 | ||
| 48745C - WASHER, LATERAL CONTROL ROD CUSHION | ||||
| 90201-24003 |
CM30,31,4#,KM30,31,YM3#,40 |
1 | ||
| Common parts | ||||
| 90170-14006 | ||||
| 90170-16006 | ||||
| 90179-10022 | ||||
| 90201-14016 | ||||
| 90201-16017 | ||||
| 91611-60818 | ||||
| 91611-61016 | ||||
| 94184-61400 | ||||

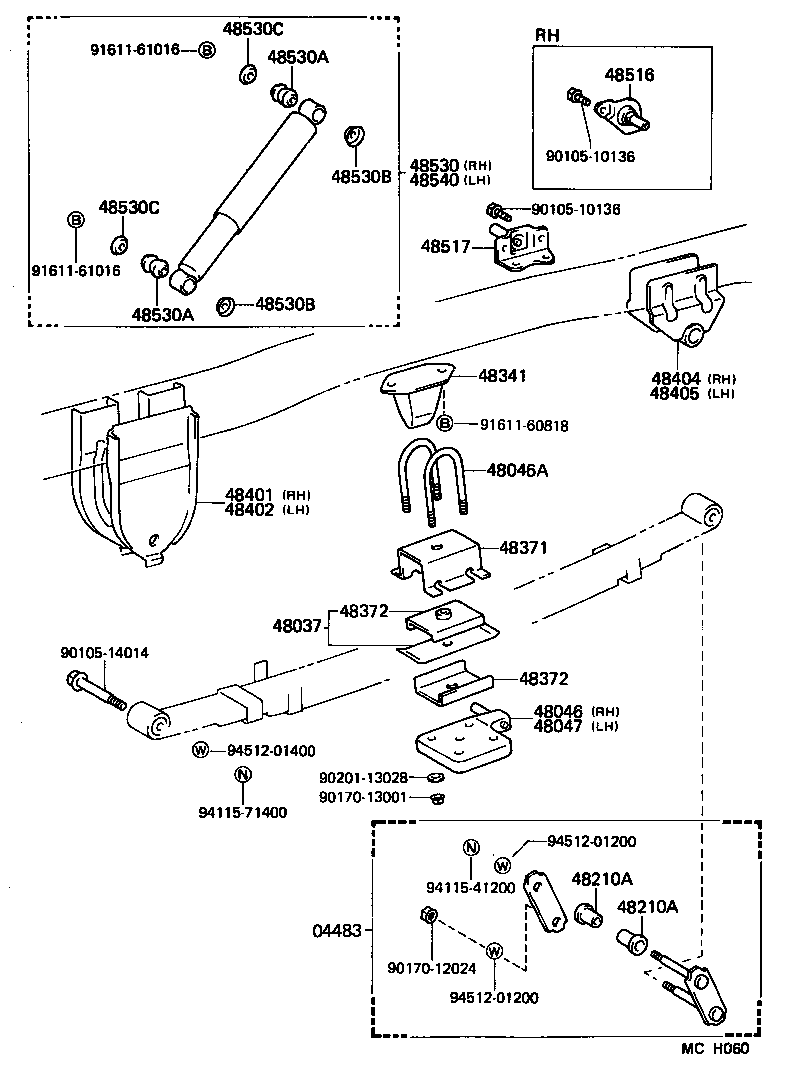

ILLUST NO. 1 OF 2(8808- )3FC,5H..DLX ; (8808- )CM36,KM35,36..V1..4FC,4H,5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-27021 |
CM36,KM35,36 |
1 | ||
| 48037 - SPACER SUB-ASSY, REAR SPRING | ||||
| 48037-26050 |
KM35..V1 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-27070 |
CM36,KM35,36..V1 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-13013 |
KM35..V1 長さ=146.5 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48046-27070 |
CM36,KM35,36..V1 |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-15001 |
CM36,KM35,36 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-15001 |
CM36,KM35,36 |
4 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-27070 |
CM30,31,4#,YM40 |
2 | ||
| 48341-27050 |
CM36,KM35,36..V1 |
2 | ||
| 48371 - RETAINER, REAR SPRING PAD | ||||
| 48371-27120 |
KM35..V1 |
2 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-26040 |
KM35..V1 |
4 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-26040 |
KM35..V1 |
4 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 57701-95706 |
CM36,KM35,36..V1 |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 57702-95704 |
CM36,KM35,36..V1 |
1 | ||
| 48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH | ||||
| 57703-95704 |
CM36,KM35,36..V1 |
1 | ||
| 48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH | ||||
| 57704-95701 |
CM36,KM35,36..V1 |
1 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48516-27011 |
CM36,KM35,36..V1 |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48517-27010 |
CM36,KM35,36..V1 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80078 |
KM35,36..V1 ﾏｰｸ 48531−27100 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
CM36,KM35,36 |
4 | ||
| 90385-16004 |
CM30,31,4#,KM30,31,YM3#,40 |
2 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
CM36,KM35,36 |
4 | ||
| 90385-16004 |
CM30,31,4#,KM30,31,YM3#,40 |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03004 |
CM30,31,4#,KM30,31,YM3#,40 |
2 | ||
| 90948-03004 |
CM36,KM35,36 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03004 |
CM30,31,4#,KM30,31,YM3#,40 |
2 | ||
| 90948-03004 |
CM36,KM35,36 |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03007 |
CM30,31,4#,KM30,31,YM3#,40 |
2 | ||
| 90948-03007 |
CM36,KM35,36 |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03007 |
CM30,31,4#,KM30,31,YM3#,40 |
2 | ||
| 90948-03007 |
CM36,KM35,36 |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80078 |
KM35,36..V1 ﾏｰｸ 48531−27100 |
1 | ||
| Common parts | ||||
| 90105-10136 | ||||
| 90105-14014 | ||||
| 90170-12024 | ||||
| 90170-13001 | ||||
| 90201-13028 | ||||
| 91611-60818 | ||||
| 91611-61016 | ||||
| 94115-41200 | ||||
| 94115-71400 | ||||
| 94512-01200 | ||||
| 94512-01400 | ||||

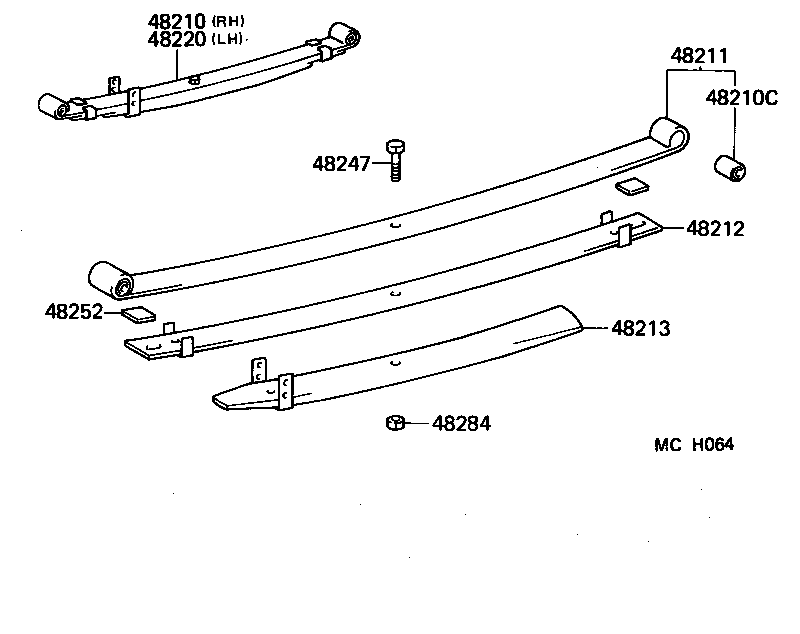

ILLUST NO. 2 OF 2(8808- )KM35..V1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-27270 |
KM35..V1 3枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14004 |
CM36,KM35,36..V1 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-27270 |
KM35..V1 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-27270 |
KM35..V1 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-27270 |
KM35..V1 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-27270 |
KM35..V1 3枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-27270 |
KM35..V1 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
KM36..MRF..3FC;CM36,KM35,36..V1 |
4 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48299-28010 |
CM36,KM35,36 |
2 | ||
