KM35V-JDZF (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Aug 1990
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

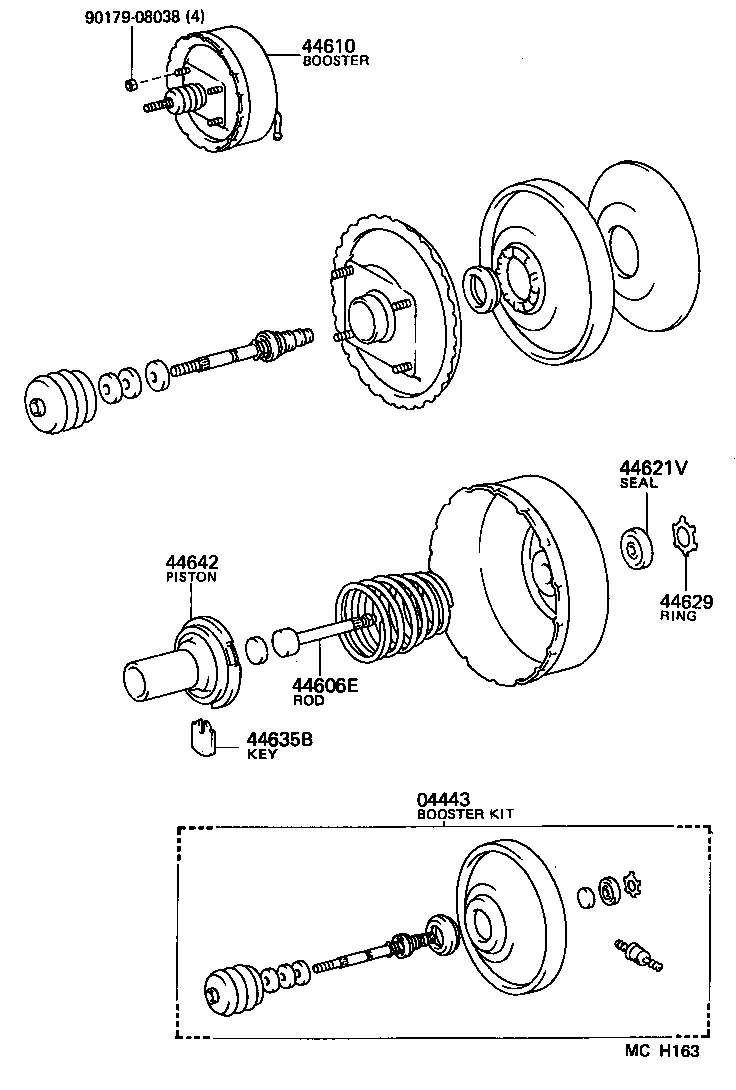

diagram 04443 44606E 44610 44621V 44629 44635B 44642 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-27360

KM36..4H,5F;KM36..3FC..SUP;KM30,31,35,YM30..(V4D,V5D,W4D)..(3FC,4FC,4H,5F)

 1
44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON
44606-12520

CM3#,4#,KM3#,YM3#,40

 1
44610 - BOOSTER ASSY, BRAKE
44610-27340

CM3#,KM3#,YM3#

 1
44621V - SEAL, BOOSTER BODY
44621-28120

CM3#,4#,KM3#,YM3#,40

 1
44629 - RING, CIRCULAR INTERNAL
44628-28120

CM3#,4#,KM3#,YM3#,40

 1
44635B - KEY, VALVE STOPPER
44635-12630

CM3#,4#,KM3#,YM3#,40

 1
44642 - PISTON, BRAKE BOOSTER
44642-32010

CM3#,KM3#,YM3#

 1
Common parts
90179-08038

ILLUST NO. 2 OF 2(8808- )KM3#,YM3#,40

Click highlighted areas on diagram

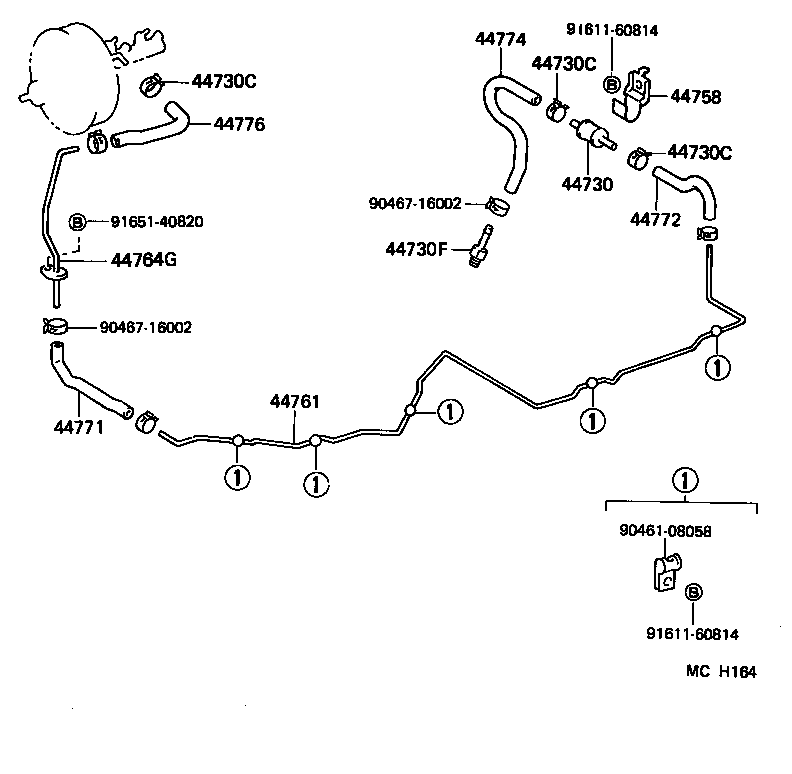

diagram 44730 44730C 44730C 44730C 44730F 44758 44761 44764G 44771 44772 44774 44776 9046108058 9046716002 9046716002 9161160814 9161160814 9165140820
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

CM3#,4#

 1
44730-24020

KM3#,YM3#,40

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

CM3#,4#,KM3#,YM3#,40

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

CM3#,4#,KM3#,YM3#,40

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

CM3#,4#,KM3#,YM3#,40

 8
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031

KM3#,YM3#,40

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-27070

KM3#,YM3#,40

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-27110

KM3#,YM3#,40

 1
44761-27120

CM3#,4#

 1
44764G - TUBE, CONNECTOR TO BRAKE BOOSTER
44764-27060

CM3#,4#,KM3#,YM3#,40

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-27090

KM3#,YM3#,40

 1
44771-27060

CM3#,4#

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-27020

KM3#

 1
44772-27030

CM3#,4#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-27130

KM35

 1
44774-27100

CM3#,4#

 1
44776 - HOSE, BRAKE BOOSTER
44776-27040

CM3#,4#,KM3#,YM3#,40

 1
Common parts
90461-08058
90467-16002
91611-60814
91651-40820

ILLUST NO. 2 OF 2(8808- )CM3#,4#

Click highlighted areas on diagram

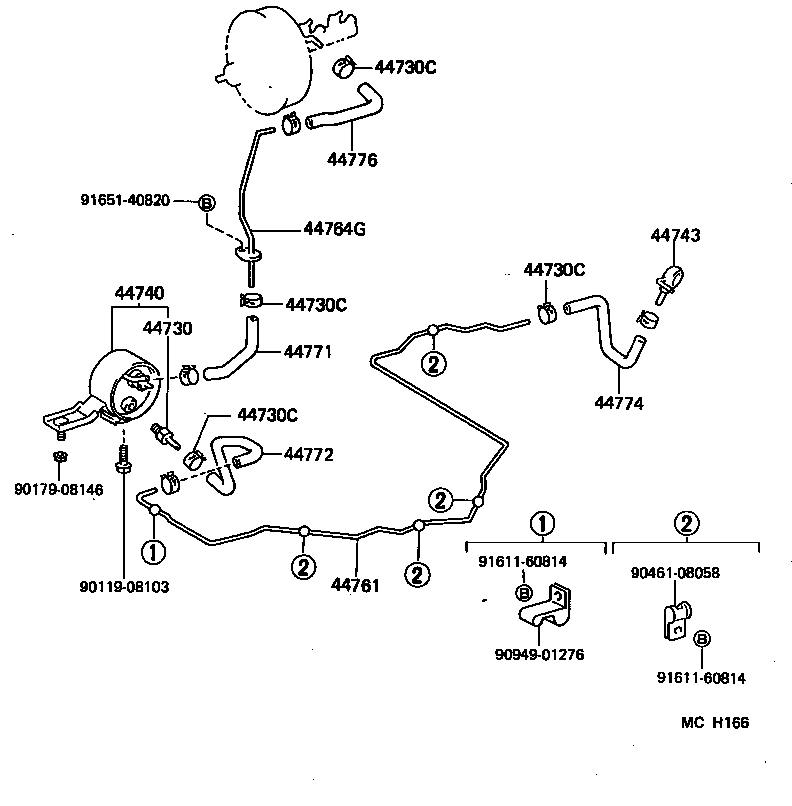

diagram 44730 44730C 44730C 44730C 44730C 44740 44743 44761 44764G 44771 44772 44774 44776 9011908103 9017908146 9046108058 9094901276 9161160814 9161160814 9165140820
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

CM3#,4#

 1
44730-24020

KM3#,YM3#,40

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

CM3#,4#,KM3#,YM3#,40

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

CM3#,4#,KM3#,YM3#,40

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

CM3#,4#,KM3#,YM3#,40

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

CM3#,4#,KM3#,YM3#,40

 8
44740 - RESERVOIR ASSY, VACUUM
44740-27040

CM3#,4#

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-27110

KM3#,YM3#,40

 1
44761-27120

CM3#,4#

 1
44764G - TUBE, CONNECTOR TO BRAKE BOOSTER
44764-27060

CM3#,4#,KM3#,YM3#,40

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-27090

KM3#,YM3#,40

 1
44771-27060

CM3#,4#

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-27020

KM3#

 1
44772-27030

CM3#,4#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-27130

KM35

 1
44774-27100

CM3#,4#

 1
44776 - HOSE, BRAKE BOOSTER
44776-27040

CM3#,4#,KM3#,YM3#,40

 1
Common parts
90119-08103
90179-08146
90461-08058
90949-01276
91611-60814
91651-40820
