KM35V-JDZF (1988)
Toyota Liteace Van,Wagon
(8808- )

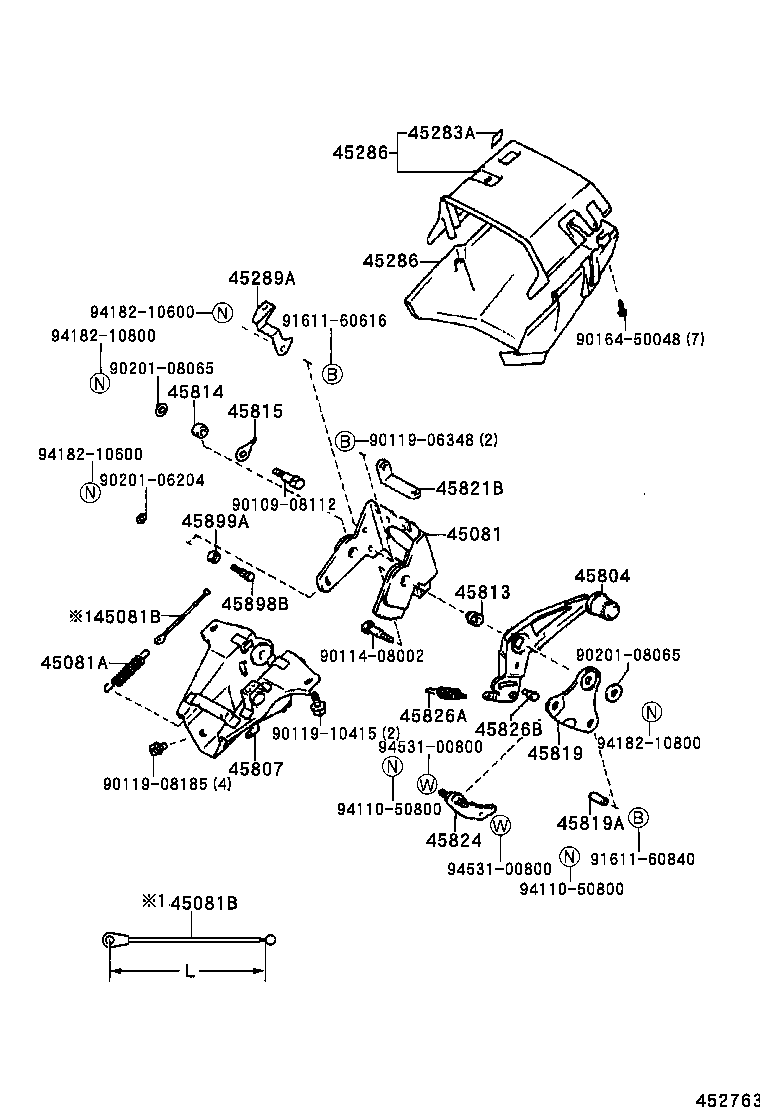

W(TILT STEERING)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45287-2707013 |
KM30,35,36..4H,5H GRAY,TRIM1#,下側 |
1 | ||
| 45286-2716103 |
KM30,35,36..4H GRAY,TRIM1#,上側 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-2716103 |
KM30,35,36..4H GRAY,TRIM1#,上側 |
1 | ||
| 45287-2707013 |
KM30,35,36..4H,5H GRAY,TRIM1#,下側 |
1 | ||
| Common parts | ||||
| 90109-08112 | ||||
| 90114-08002 | ||||
| 90119-06348 | ||||
| 90119-08185 | ||||
| 90119-10415 | ||||
| 90164-50048 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 91611-60616 | ||||
| 91611-60840 | ||||
| 94110-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94531-00800 | ||||

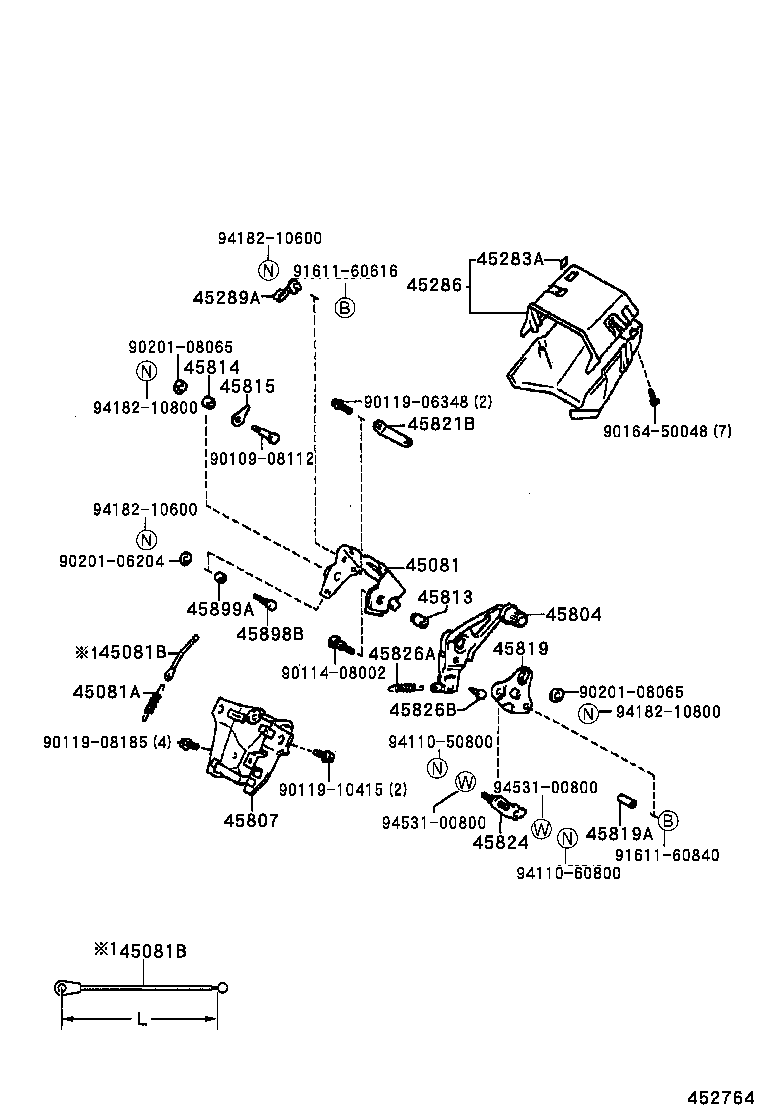

(8808- )
W(TILT & TEMS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-2716103 |
KM30,35,36..4H GRAY,TRIM1#,上側 |
1 | ||
| 45287-2707013 |
KM30,35,36..4H,5H GRAY,TRIM1#,下側 |
1 | ||
| Common parts | ||||
| 90109-08112 | ||||
| 90114-08002 | ||||
| 90119-06348 | ||||
| 90119-08185 | ||||
| 90119-10415 | ||||
| 90164-50048 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 91611-60616 | ||||
| 91611-60840 | ||||
| 94110-50800 | ||||
| 94110-60800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94531-00800 | ||||

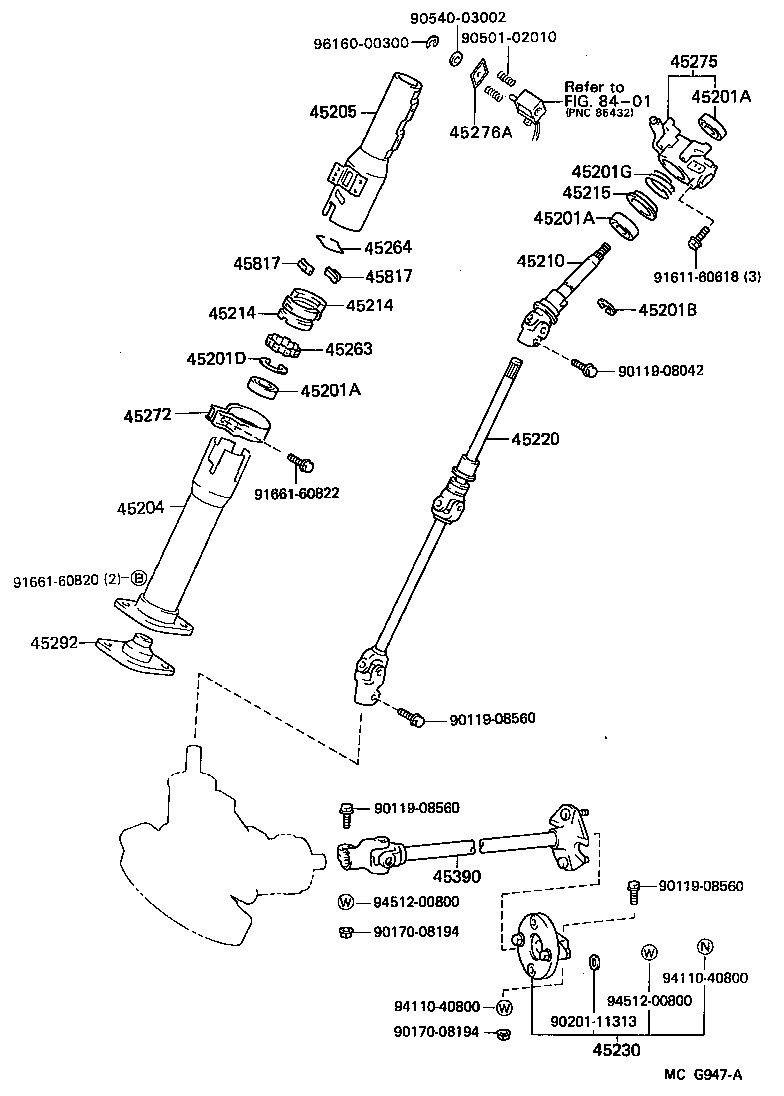

(8808- )
W(TILT & TEMS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
CM3#,4#,KM3#,YM3#,40 上側 |
1 | ||
| 90363-28001 |
CM3#,4#,KM3#,YM3#,40 下側 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
CM3#,4#,KM3#,YM3#,40 上側 |
1 | ||
| 90363-28001 |
CM3#,4#,KM3#,YM3#,40 下側 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
CM3#,4#,KM3#,YM3#,40 上側 |
1 | ||
| 90363-28001 |
CM3#,4#,KM3#,YM3#,40 下側 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
CM3#,4#,KM3#,YM3#,40 厚さ=1.20 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-27090 |
CM3#,4#,KM3#,YM31,40..DLX,LD,SSW,SUP,SW |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-22050 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-27110 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-27080 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-27092 |
KM30,35,36..4H,5H |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-27010 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 45390 - SHAFT ASSY, STEERING TORQUE | ||||
| 45390-27060 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
1 | ||
| Common parts | ||||
| 90119-08042 | ||||
| 90119-08560 | ||||
| 90170-08194 | ||||
| 90201-11313 | ||||
| 90501-02010 | ||||
| 90540-03002 | ||||
| 91611-60618 | ||||
| 91661-60820 | ||||
| 91661-60822 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 96160-00300 | ||||
| Linked diagrams | ||||
| 8401 | ||||

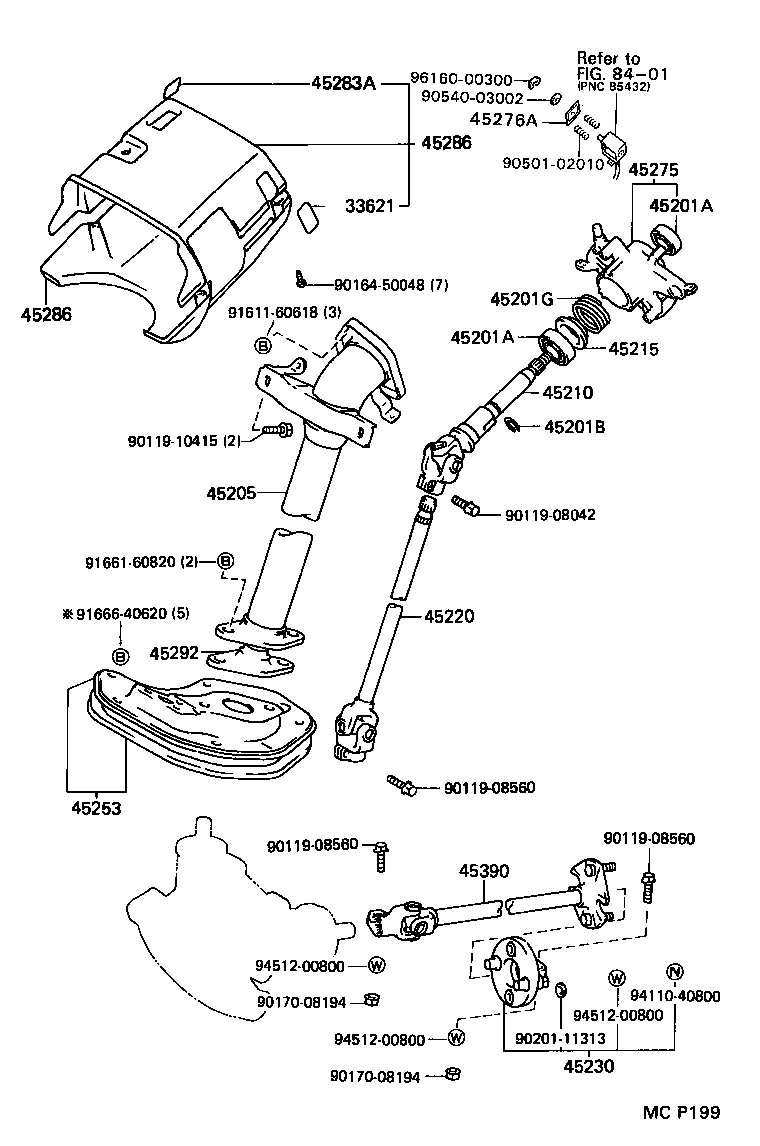

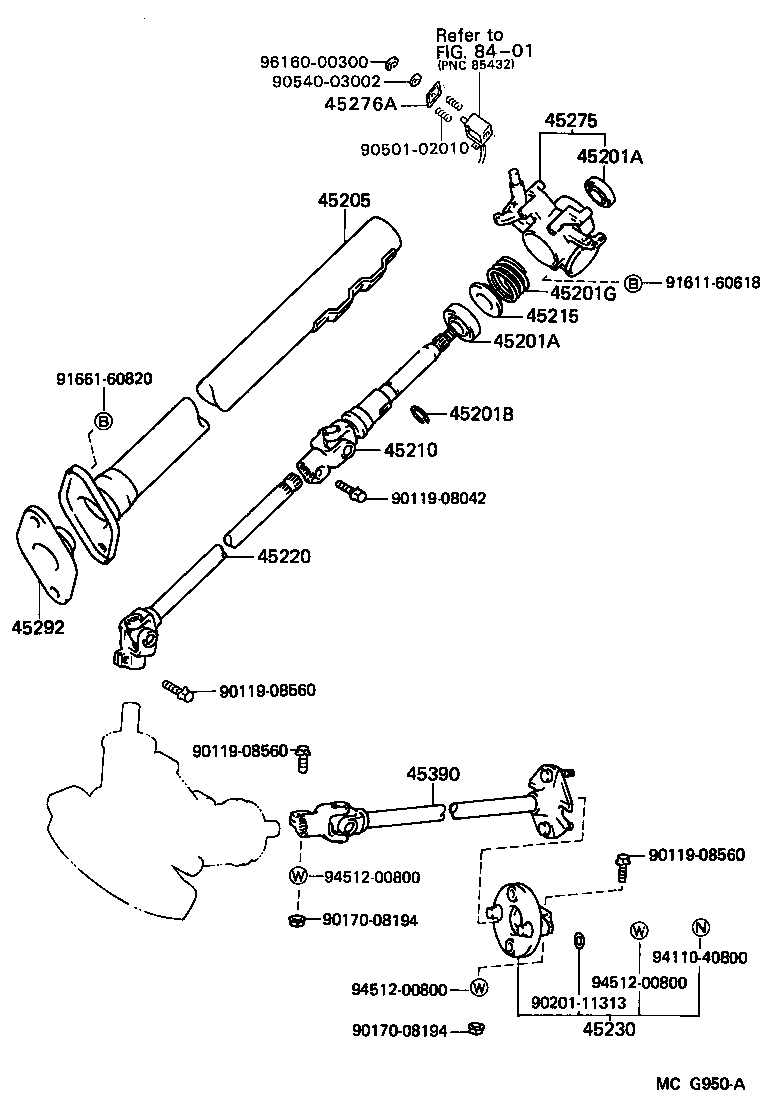

(8808- )
W(TILT STEERING)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
CM3#,4#,KM3#,YM3#,40 上側 |
1 | ||
| 90363-28001 |
CM3#,4#,KM3#,YM3#,40 下側 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
CM3#,4#,KM3#,YM3#,40 上側 |
1 | ||
| 90363-28001 |
CM3#,4#,KM3#,YM3#,40 下側 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
CM3#,4#,KM3#,YM3#,40 厚さ=1.20 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-27090 |
CM3#,4#,KM3#,YM31,40..DLX,LD,SSW,SUP,SW |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-22050 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-27110 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-27080 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-27092 |
KM30,35,36..4H,5H |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-27010 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 45390 - SHAFT ASSY, STEERING TORQUE | ||||
| 45390-27060 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
1 | ||
| Common parts | ||||
| 90119-08042 | ||||
| 90119-08560 | ||||
| 90170-08194 | ||||
| 90201-11313 | ||||
| 90501-02010 | ||||
| 90540-03002 | ||||
| 91611-60618 | ||||
| 91661-60820 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 96160-00300 | ||||
| Linked diagrams | ||||
| 8401 | ||||

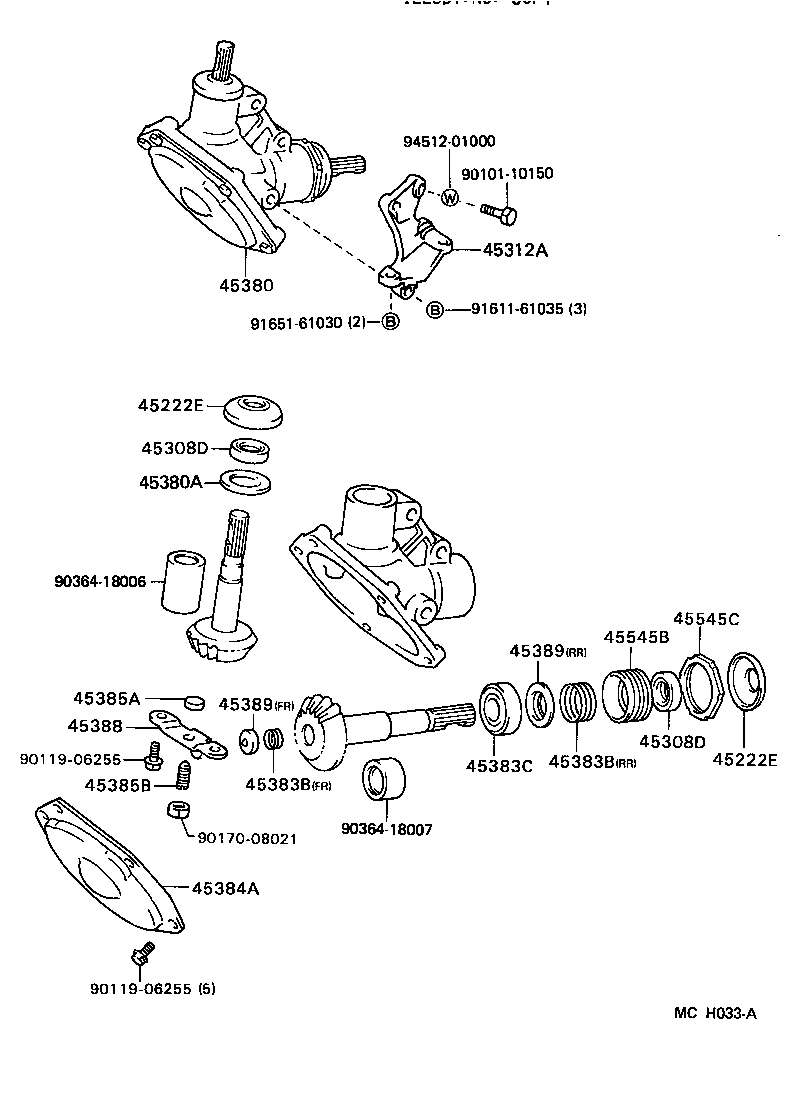

(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45222E - COVER, DUST(FOR STEERING BEVEL GEAR) | ||||
| 45222-27030 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 45222E - COVER, DUST(FOR STEERING BEVEL GEAR) | ||||
| 45222-27030 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 45308D - SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING) | ||||
| 90311-15001 |
CM3#,4#,KM3#,YM30,40 |
2 | ||
| 45308D - SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING) | ||||
| 90311-15001 |
CM3#,4#,KM3#,YM30,40 |
2 | ||
| 45312A - BRACKET, STEERING BEVEL GEAR HOUSING | ||||
| 45312-27070 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 45380 - GEAR ASSY, STEERING BEVEL | ||||
| 45380-28011 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
1 | ||
| 45380A - WASHER(FOR STEERING BEVEL GEAR) | ||||
| 90209-18003 |
CM3#,4#,KM3#,YM3#,40 厚さ=1.95,ﾏｰｸ 3 |
1 | ||
| 90209-18006 |
CM3#,4#,KM3#,YM3#,40 厚さ=2.10,ﾏｰｸ 6 |
1 | ||
| 90209-18002 |
CM3#,4#,KM3#,YM3#,40 厚さ=1.90,ﾏｰｸ 2 |
1 | ||
| 90209-18008 |
CM3#,4#,KM3#,YM3#,40 厚さ=2.20,ﾏｰｸ 8 |
1 | ||
| 90209-18005 |
CM3#,4#,KM3#,YM3#,40 厚さ=2.05,ﾏｰｸ 5 |
1 | ||
| 90209-18004 |
CM3#,4#,KM3#,YM3#,40 厚さ=2.00,ﾏｰｸ 4 |
1 | ||
| 90209-18007 |
CM3#,4#,KM3#,YM3#,40 厚さ=2.15,ﾏｰｸ 7 |
1 | ||
| 45383B - SPRING, COMPRESSION(FOR STEERING BEVEL GEAR) | ||||
| 90501-18063 |
CM3#,4#,KM3#,YM3#,40 ﾘﾔ |
1 | ||
| 90501-20080 |
CM3#,4#,KM3#,YM3#,40 ﾌﾛﾝﾄ |
1 | ||
| 45383B - SPRING, COMPRESSION(FOR STEERING BEVEL GEAR) | ||||
| 90501-18063 |
CM3#,4#,KM3#,YM3#,40 ﾘﾔ |
1 | ||
| 90501-20080 |
CM3#,4#,KM3#,YM3#,40 ﾌﾛﾝﾄ |
1 | ||
| 45383C - BEARING, RADIAL BALL(FOR STEERING BEVEL GEAR) | ||||
| 90363-15010 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 45384A - COVER, STEERING BEVEL GEAR | ||||
| 45384-27010 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 45385A - SEAT, LOCK BOLT(FOR STEERING BEVEL GEAR) | ||||
| 45385-27010 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 45385B - BOLT, SET(FOR LOCK BOLT SEAT) | ||||
| 90113-08006 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 45388 - PLATE, STEERING BEVEL GEAR | ||||
| 45388-27010 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 45389 - HOLDER, STEERING BEVEL GEAR SPRING | ||||
| 45389-27010 |
CM3#,4#,KM3#,YM3#,40 ﾌﾛﾝﾄ |
1 | ||
| 45389-27021 |
CM3#,4#,KM3#,YM3#,40 ﾘﾔ |
1 | ||
| 45389 - HOLDER, STEERING BEVEL GEAR SPRING | ||||
| 45389-27010 |
CM3#,4#,KM3#,YM3#,40 ﾌﾛﾝﾄ |
1 | ||
| 45389-27021 |
CM3#,4#,KM3#,YM3#,40 ﾘﾔ |
1 | ||
| 45545B - SCREW, PINION BEARING ADJUSTING(FOR STEERING BEVEL GEAR | ||||
| 45545-10010 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 45545C - NUT(FOR STEERING BEVEL GEAR PINION BEARING ADJUST SCREW | ||||
| 90179-38001 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| Common parts | ||||
| 90101-10150 | ||||
| 90119-06255 | ||||
| 90170-08021 | ||||
| 90364-18006 | ||||
| 90364-18007 | ||||
| 91611-61035 | ||||
| 91651-61030 | ||||
| 94512-01000 | ||||

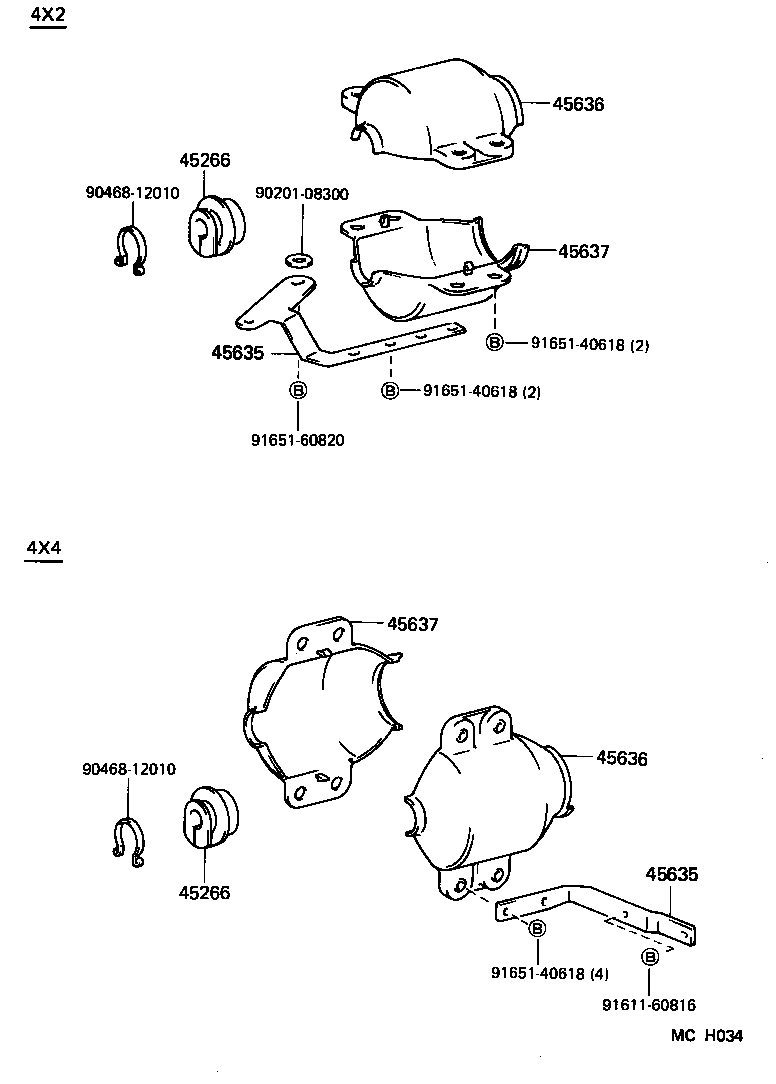

(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-27020 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-27020 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 45635 - SUPPORT, INTERMEDIATE LINK JOINT PROTECTOR | ||||
| 45635-27010 |
KM36..4H,5F;KM36..3FC..SUP;CM3#,KM30,31,35,YM30..(V4D,V5D,W4D)..(3FC,4FC,4H,5F)..(DLX,FXV,GXL,LD,SCA,SUC,SUP,SW) |
1 | ||
| 45635 - SUPPORT, INTERMEDIATE LINK JOINT PROTECTOR | ||||
| 45635-27010 |
KM36..4H,5F;KM36..3FC..SUP;CM3#,KM30,31,35,YM30..(V4D,V5D,W4D)..(3FC,4FC,4H,5F)..(DLX,FXV,GXL,LD,SCA,SUC,SUP,SW) |
1 | ||
| 45636 - PROTECTOR, INTERMEDIATE LINK JOINT, UPPER | ||||
| 45636-27010 |
KM36..4H,5F;KM36..3FC..SUP;CM3#,4#,KM30,31,35,YM30,40..(V4D,V5D,W4D)..(3FC,4FC,4H,5F)..(DLX,FXV,GXL,LD,SCA,SUC,SUP,SW) |
1 | ||
| 45636 - PROTECTOR, INTERMEDIATE LINK JOINT, UPPER | ||||
| 45636-27010 |
KM36..4H,5F;KM36..3FC..SUP;CM3#,4#,KM30,31,35,YM30,40..(V4D,V5D,W4D)..(3FC,4FC,4H,5F)..(DLX,FXV,GXL,LD,SCA,SUC,SUP,SW) |
1 | ||
| 45637 - PROTECTOR, INTER LINK JOINT, LWR NO.1 | ||||
| 45637-27010 |
KM36..4H,5F;KM36..3FC..SUP;CM3#,4#,KM30,31,35,YM30,40..(V4D,V5D,W4D)..(3FC,4FC,4H,5F)..(DLX,FXV,GXL,LD,SCA,SUC,SUP,SW) |
1 | ||
| 45637 - PROTECTOR, INTER LINK JOINT, LWR NO.1 | ||||
| 45637-27010 |
KM36..4H,5F;KM36..3FC..SUP;CM3#,4#,KM30,31,35,YM30,40..(V4D,V5D,W4D)..(3FC,4FC,4H,5F)..(DLX,FXV,GXL,LD,SCA,SUC,SUP,SW) |
1 | ||
| Common parts | ||||
| 90201-08300 | ||||
| 90468-12010 | ||||
| 91611-60816 | ||||
| 91651-40618 | ||||
| 91651-60820 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33621 - PLATE, CONTROL LEVER CAUTION | ||||
| 33621-36040 |
KM30,35,36..4H |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
CM3#,4#,KM3#,YM3#,40 上側 |
1 | ||
| 90363-28001 |
CM3#,4#,KM3#,YM3#,40 下側 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
CM3#,4#,KM3#,YM3#,40 上側 |
1 | ||
| 90363-28001 |
CM3#,4#,KM3#,YM3#,40 下側 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
CM3#,4#,KM3#,YM3#,40 厚さ=1.20 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-27090 |
CM3#,4#,KM3#,YM31,40..DLX,LD,SSW,SUP,SW |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-22050 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-27110 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-27080 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45253-27080 |
KM30,35,36..4H,5H |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-27092 |
KM30,35,36..4H,5H |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-2716103 |
KM30,35,36..4H GRAY,TRIM1#,上側 |
1 | ||
| 45287-2707013 |
KM30,35,36..4H,5H GRAY,TRIM1#,下側 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-2716103 |
KM30,35,36..4H GRAY,TRIM1#,上側 |
1 | ||
| 45287-2707013 |
KM30,35,36..4H,5H GRAY,TRIM1#,下側 |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-27010 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 45390 - SHAFT ASSY, STEERING TORQUE | ||||
| 45390-27060 |
CM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW |
1 | ||
| Common parts | ||||
| 90119-08042 | ||||
| 90119-08560 | ||||
| 90119-10415 | ||||
| 90164-50048 | ||||
| 90170-08194 | ||||
| 90201-11313 | ||||
| 90501-02010 | ||||
| 90540-03002 | ||||
| 91611-60618 | ||||
| 91661-60820 | ||||
| 91666-40620 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 96160-00300 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
