KM35V-JDZF (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Aug 1990
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

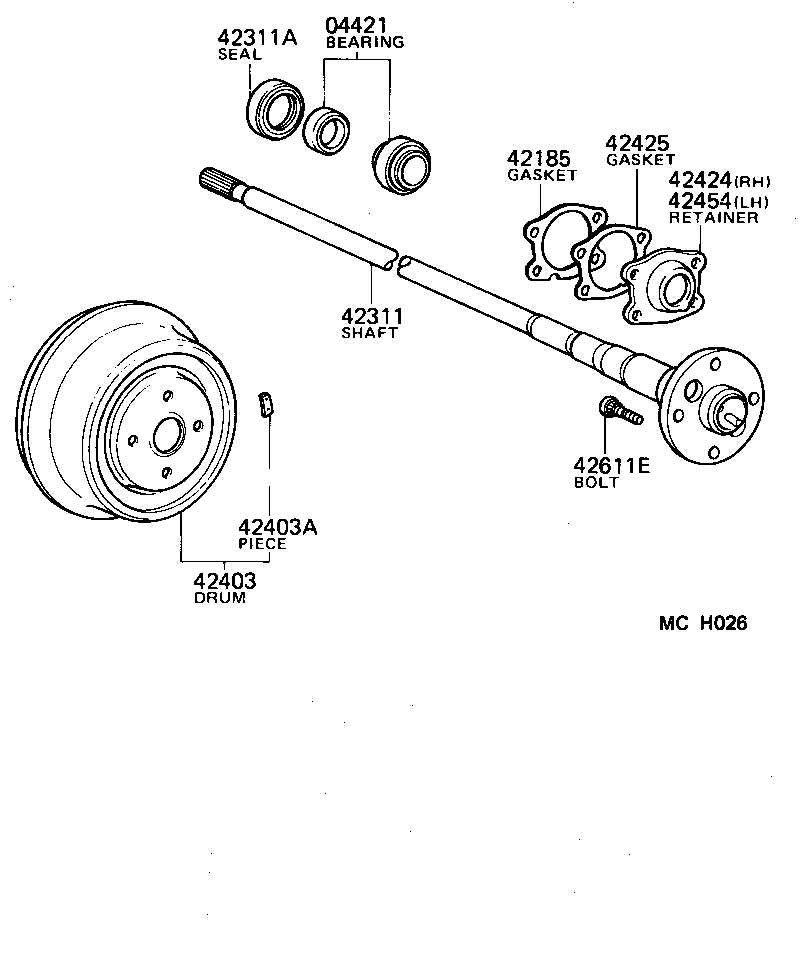

Click highlighted areas on diagram

diagram 04421 42185 42311 42311A 42403 42403A 42424 42425 42454 42611E
Part # Description Qty Price
04421 - BEARING KIT, REAR AXLE SHAFT
04421-27010

CM3#,KM3#,YM3#

 2
42185 - GASKET, REAR AXLE HOUSING END
42185-14020

CM3#,KM3#,YM3#

 2
42311 - SHAFT, REAR AXLE
42311-22100

CM36,KM35,36

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90311-52059

CM3#,4#,KM3#,YM3#,40

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-14061

CM3#,KM3#,YM3#

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01287

CM3#,KM3#,YM3#

10G

 1
90937-01288

CM3#,KM3#,YM3#

20G

 1
90937-01289

CM3#,KM3#,YM3#

30G

 1
42424 - RETAINER, REAR AXLE BEARING, OUTER, RH
42424-14020

CM3#,KM3#,YM3#

 1
42425 - GASKET, REAR AXLE BEARING RETAINER
42425-14020

CM3#,KM3#,YM3#

 2
42454 - RETAINER, REAR AXLE BEARING, OUTER, LH
42454-14010

CM3#,KM3#,YM3#

 1
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02047

CM3#,KM3#,YM3#

 8
