KM35V-JDZF (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

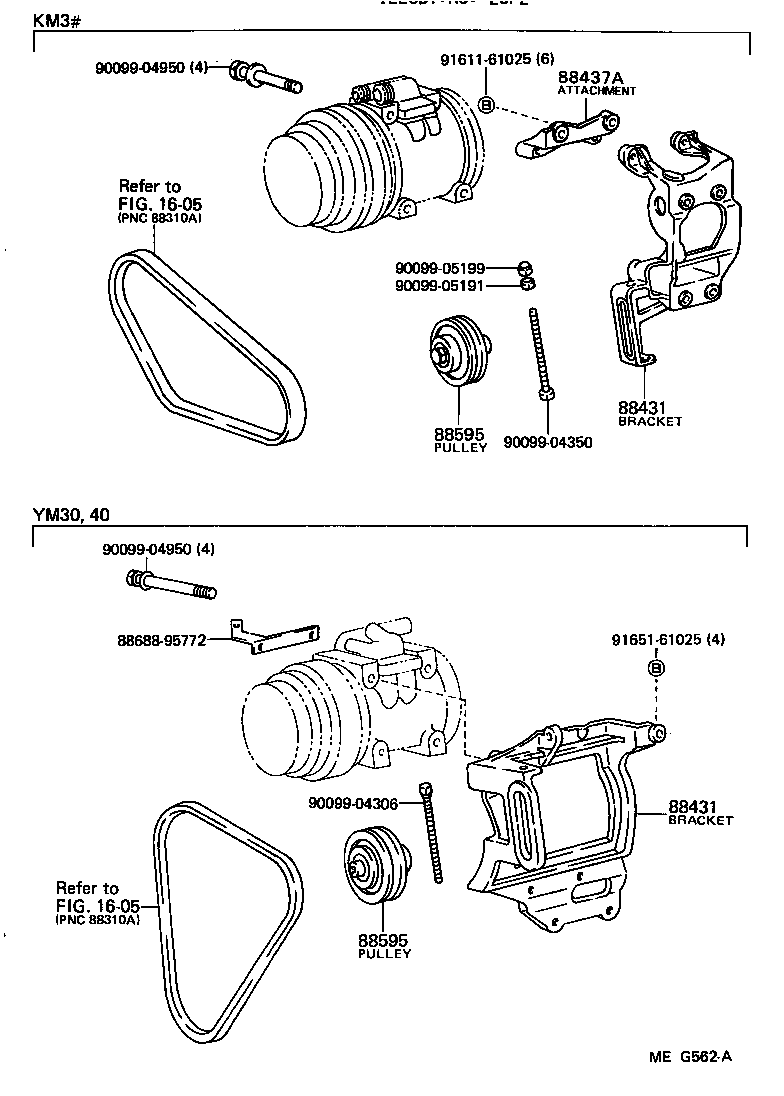

ILLUST NO. 2 OF 2(8509- )KM3#,YM30,40

Click highlighted areas on diagram

diagram 1605 1605 88431 88431 88437A 88595 88595 8868895772 9009904306 9009904350 9009904950 9009904950 9009905191 9009905199 9161161025 9165161025
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-27030

KM3#

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-27030

KM3#

 1
88437A - ATTACHMENT, COMPRESSOR
88437-27030

KM3#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35010

CM3#,KM3#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35010

CM3#,KM3#

 1
Common parts
88688-95772
90099-04306
90099-04350
90099-04950
90099-05191
90099-05199
91611-61025
91651-61025
Linked diagrams
1605

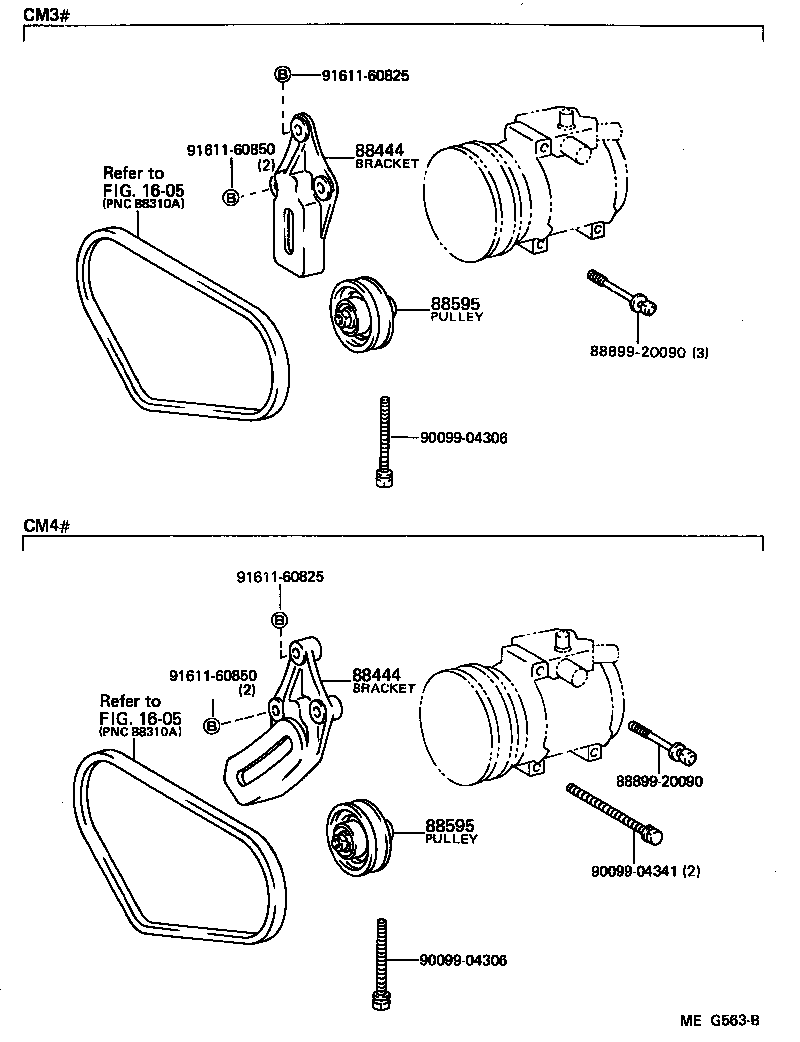

ILLUST NO. 2 OF 2(8509- )CM3#,4#

Click highlighted areas on diagram

diagram 1605 1605 88444 88444 88595 88595 8889920090 8889920090 9009904306 9009904306 9009904341 9161160825 9161160825 9161160850 9161160850
Part # Description Qty Price
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35010

CM3#,KM3#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35010

CM3#,KM3#

 1
Common parts
88899-20090
90099-04306
90099-04341
91611-60825
91611-60850
Linked diagrams
1605

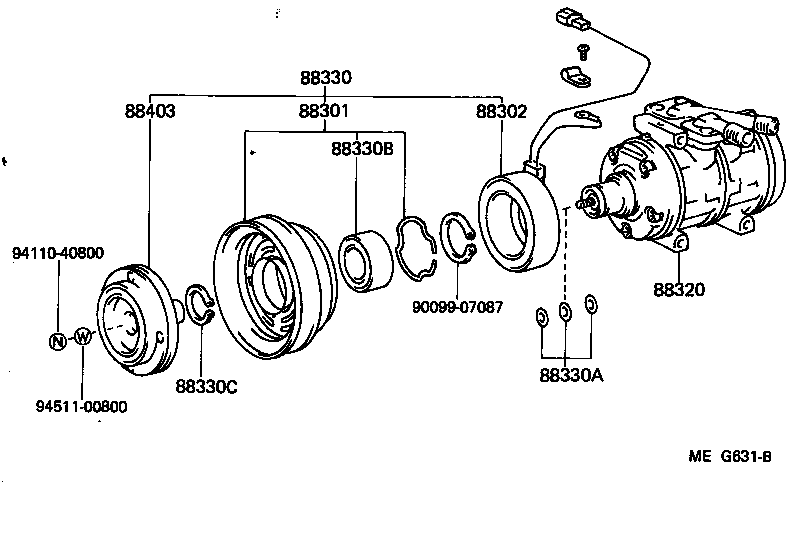

ILLUST NO. 1 OF 2(8509- )

Click highlighted areas on diagram

diagram 88301 88302 88320 88330 88330A 88330B 88330C 88403 9009907087 9411040800 9451100800
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-20070

CM3#,4#

 1
88412-22030

KM3#,YM30,40

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-14050

CM3#,4#,KM3#,YM30,40

 1
88320 - COMPRESSOR ASSY, COOLER
88320-27070

KM3#

 1
88330 - CLUTCH ASSY, MAGNET
88410-22080

KM3#,YM30,40

 1
88410-14120

CM3#,4#

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-12050

CM3#,4#,KM3#,YM30,40

 1
88330B - BEARING, MAGNET CLUTCH
90099-10133

CM3#,4#,KM3#,YM30,40

 1
88330C - RING, SNAP (FOR MAGNET CLUTCH)
90099-07114

KM3#,YM30,40

 1
90099-07118

CM3#,4#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-14030

CM3#,4#,KM3#,YM30,40

 1
Common parts
90099-07087
94110-40800
94511-00800
