KM35V-JDZF (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )

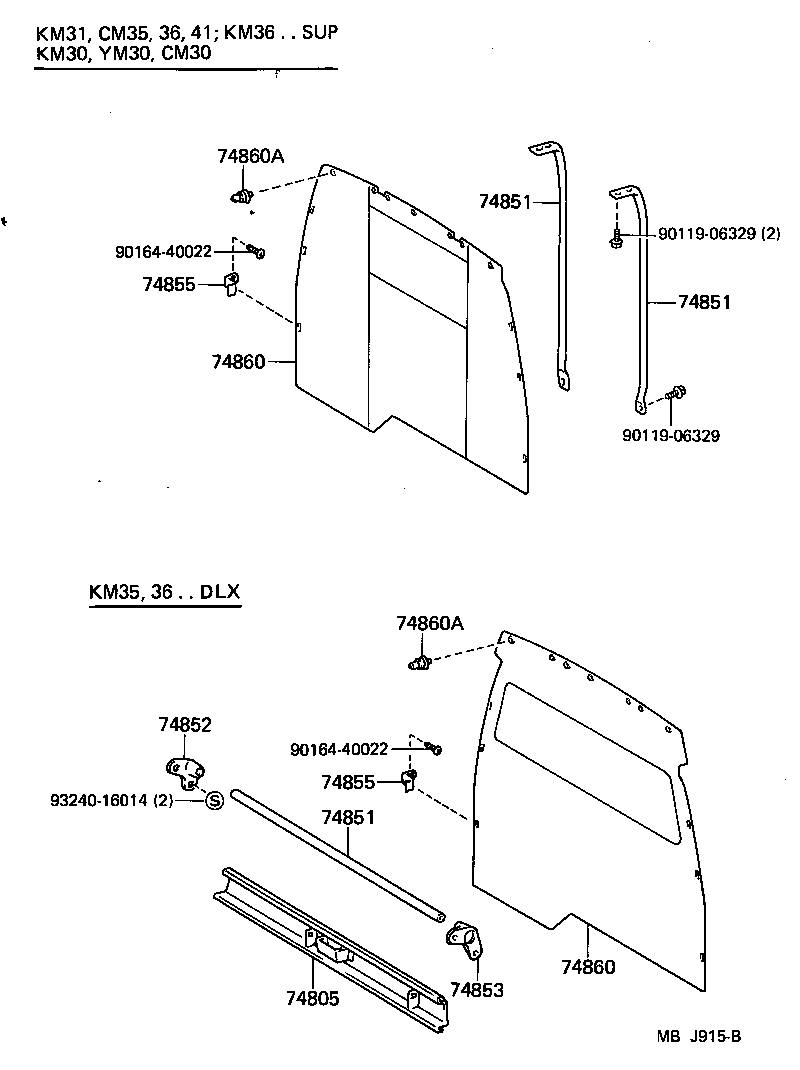

Click highlighted areas on diagram

diagram 74805 74851 74851 74851 74852 74853 74855 74855 74860 74860 74860A 74860A 9011906329 9011906329 9016440022 9016440022 9324016014
Part # Description Qty Price
74805 - SEPARATOR SUB-ASSY
74805-95710

KM35,36..DLX..06S

 1
74851 - BAR, SEPARATOR
74815-9570504

KM35..V5D..(HRF,MRF)

BLUE,BLUE,TRIM4#,8#

 1
74851 - BAR, SEPARATOR
74815-9570504

KM35..V5D..(HRF,MRF)

BLUE,BLUE,TRIM4#,8#

 1
74851 - BAR, SEPARATOR
74815-9570504

KM35..V5D..(HRF,MRF)

BLUE,BLUE,TRIM4#,8#

 1
74852 - BRACKET, SEPARATOR, RH
74827-9570004

KM35,36..(HRF,MRF)..DLX

BLUE,BLUE,TRIM4#,8#

 1
74827-9570006

KM35,36..(HRF,MRF)..DLX

BROWN,BROWN,TRIM4#

 1
74853 - BRACKET, SEPARATOR, LH
74828-9570006

KM35,36..(HRF,MRF)..DLX

BROWN,BROWN,TRIM4#

 1
74828-9570004

KM35,36..(HRF,MRF)..DLX

BLUE,BLUE,TRIM4#,8#

 1
74855 - PLATE, SEPARATOR CURTAIN SET
74862-95661

CM35,36,41,KM31,35,36

 6
74855 - PLATE, SEPARATOR CURTAIN SET
74862-95661

CM35,36,41,KM31,35,36

 6
74860 - CURTAIN ASSY, SEPARATE
74870-95711

KM35..V5D..HRF

 1
74870-9572808

KM35..V5D..HRF

IVORY,IVORY

 1
74860 - CURTAIN ASSY, SEPARATE
74870-95711

KM35..V5D..HRF

 1
74870-9572808

KM35..V5D..HRF

IVORY,IVORY

 1
74860A - HOOK, MALE (FOR SEPARATE CURTAIN SET HOOK)
90530-06001

KM35,36..(HRF,MRF)..DLX

 7
74860A - HOOK, MALE (FOR SEPARATE CURTAIN SET HOOK)
90530-06001

KM35,36..(HRF,MRF)..DLX

 7
Common parts
90119-06329
90164-40022
93240-16014
