KM35V-JDZF (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )DLX,SUP,SW,XL7

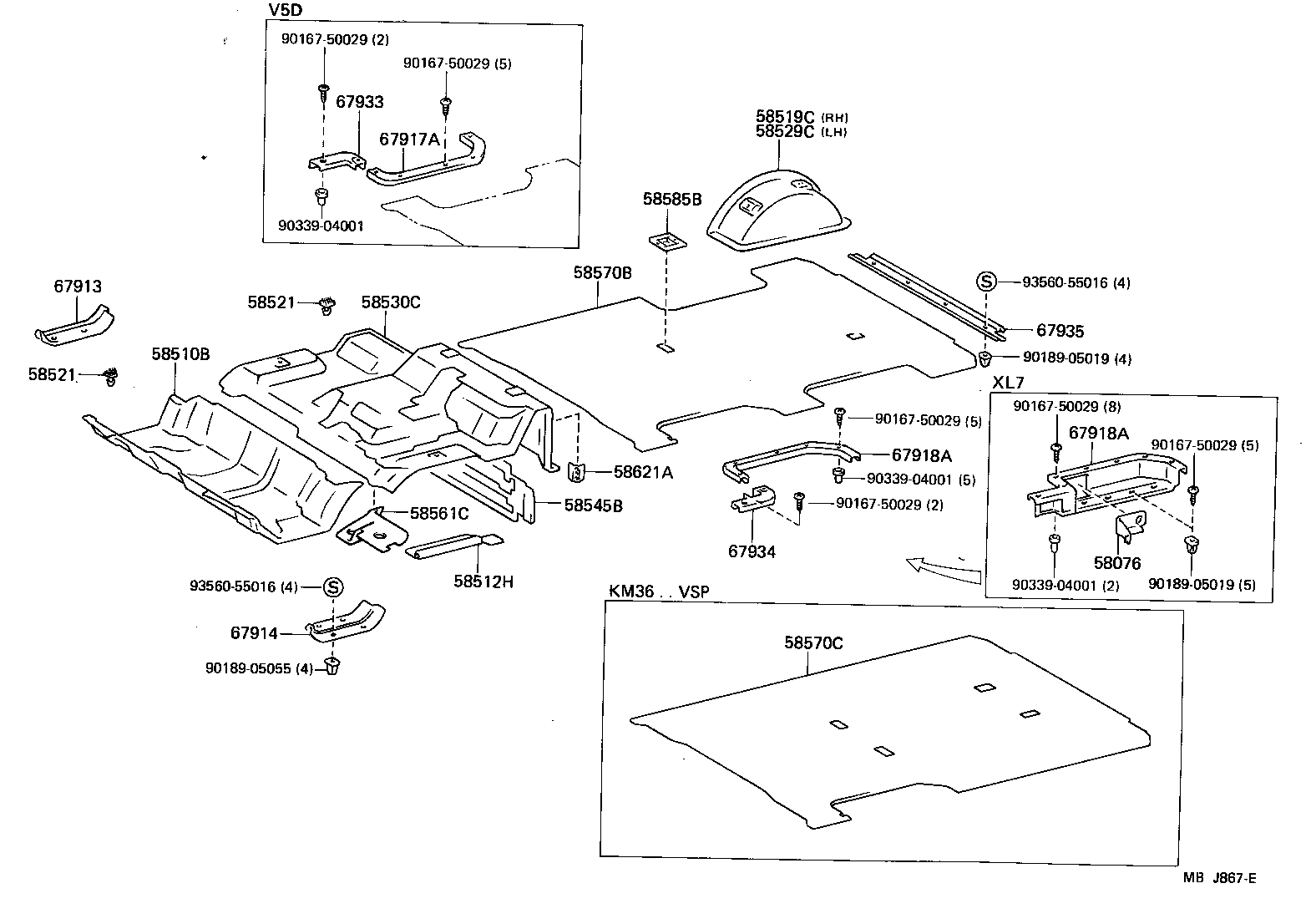

Click highlighted areas on diagram

diagram 58076 58510B 58512H 58519C 58521 58521 58529C 58530C 58545B 58561C 58570B 58570C 58585B 58621A 67913 67914 67917A 67918A 67918A 67933 67934 67935 9016750029 9016750029 9016750029 9016750029 9016750029 9016750029 9018905019 9018905055 9018905819 9033904001 9033904001 9033904001 9356055016 9356055016
Part # Description Qty Price
58510B - MAT, FRONT FLOOR, FRONT
58510-9570606

KM35,36..DLX

BROWN,BROWN,TRIM4#

 1
58510-9570604

KM35,36..VSG..DLX

BLUE,BLUE,TRIM4#,8#

 1
58512H - MAT, FLOOR, FRONT LH
58512-9570304

CM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM30

BLUE,BLUE,TRIM4#,8#

 1
58512-9570306

CM35,36,41,KM31,35,36

BROWN,BROWN,TRIM4#

 1
58512-9570304

CM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7

BLUE,BLUE,TRIM4#,8#

 1
58521 - HOOK, MALE, NO.1
90530-18002

CM3#,4#,KM3#,YM30,40

 5
58521 - HOOK, MALE, NO.1
90530-18002

CM3#,4#,KM3#,YM30,40

 5
58530C - MAT, FRONT FLOOR, REAR
58530-9574404

KM35,36..V1..VSG

BLUE,BLUE,TRIM4#,8#

 1
58530-9574406

KM35,36..V1

BROWN,BROWN,TRIM4#

 1
58545B - SILENCER, HEADER PANEL
58545-95714

KM30,31;KM35,36..V1

 1
58570B - MAT ASSY, REAR FLOOR
58570-9570706

KM35,36..V1..V5D..06S

BROWN,BROWN,TRIM4#

 1
58570-9570704

KM35,36..V1..V5D..06S

BLUE,BLUE,TRIM4#,8#

 1
58621A - PLATE, MAT SET, NO.1 LH
58621-95706

CM35,36,41,KM31,35,36..V5D

 1
58621-95706

CM35,41,KM31,35,36..V5D

 2
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-9570206

CM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP

BROWN,BROWN,TRIM4#

 1
67913-9570204

CM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7

BLUE,BLUE,TRIM4#,8#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-9570206

CM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP

BROWN,BROWN,TRIM4#

 1
67914-9570204

CM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7

BLUE,BLUE,TRIM4#,8#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-95705

CM35,36,41,KM31,35,36..V5D

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-95700

CM3#,4#,KM3#,YM40..DLX,SUP,SW

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-95700

CM3#,4#,KM3#,YM40..DLX,SUP,SW

 1
67933 - PLATE, QUARTER SCUFF, INNER RH
67933-9570004

CM35,36,41,KM31,35,36..V5D

BLUE,BLUE,TRIM4#,8#

 1
67933-9570006

CM35,36,41,KM31,35,36..V5D

BROWN,BROWN,TRIM4#

 1
67934 - PLATE, QUARTER SCUFF, INSIDE LH
67934-9570004

CM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM40..DLX,SUP,SW

BLUE,BLUE,TRIM4#,8#

 1
67934-9570006

CM35,36,41,KM31,35,36

BROWN,BROWN,TRIM4#

 1
67935 - PLATE, BACK DOOR SCUFF
67935-95703

CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM40..DLX,SUP,SW,XL7

 1
Common parts
90167-50029
90189-05019
90189-05055
90189-05819
90339-04001
93560-55016
